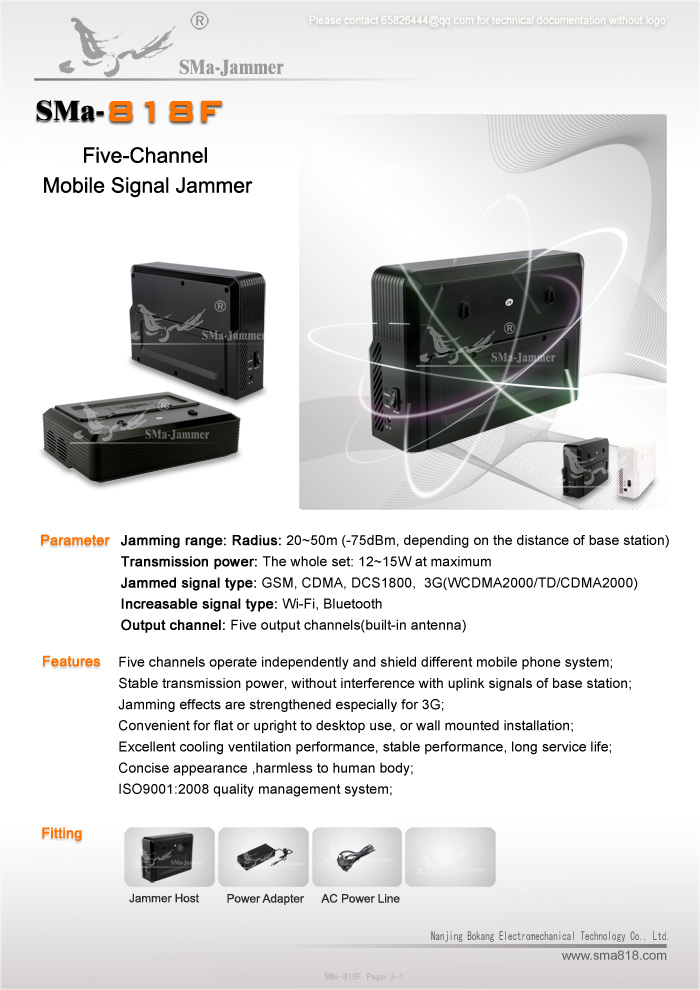

SMa-818F Examination Type Five-Channel Mobile Signal Jammer PDF clear version download
SMa-818F Examination Type Five-Channel Mobile Signal Jammer PDF clear version download
SMa-818F Examination Type Five-Channel Mobile Signal Jammer
Application
Widely used in the Education Industry(School examination room, classrooms, dormitories, various social test sites, educational and training institutions); government agencies, administrative institutions meeting rooms; factories and enterprises warehouses, workshops, production lines; forces and confidentiality unit, theaters, concert halls, memorial halls ,etc.
Technical Parameters
A:Jamming range: Radius: 20~50m (-75dBm, depending on the distance of base station)
B:Transmission power: The whole set: 12~15W at maximum
C:Jammed signal type: GSM, CDMA, DCS1800, 3G (WCDMA2000/TD/WCDMA)
D:Increasable signal type: Wi-Fi, Bluetooth
E:Output channel: Five output channels(built-in antenna)
Features
Five channels operate independently and shield different mobile phone system;
Stable transmission power, without interference with uplink signals of base station;
Jamming effects are strengthened especially for 3G;

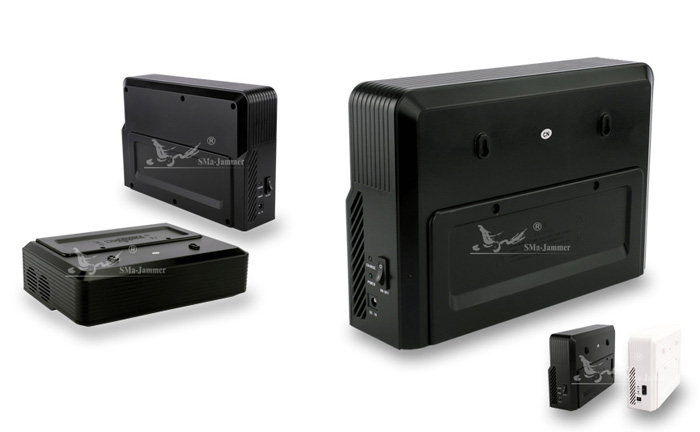

Convenient for flat or upright to desktop use, or wall mounted installation;
Excellent cooling ventilation performance, stable performance, long service life;
Concise appearance, harmless to human body;
ISO9001:2008 quality management system;

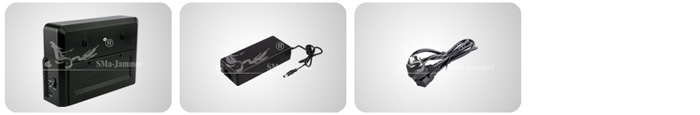

Main Parts
Host Power Adapter AC Power Line
Detailed Technical Parameters
|
Band parameters
|
Channel
|
Frequency
|
Average output power
|
|
WCDMA
|
2110～2145MHz
|
2W
|
|
TD
|
2010～2025MHz
|
2W
|
|
GSM
|
925～960MHz
|
3.5W
|
|
DCS
|
1805～1880MHz
|
2W
|
|
CDMA
|
870～880MHz
|
3.5W
|
|
Host size
|
250*170*72
|
|
Power size
|
120*60*38
|
|
Antenna type
|
Built-in
|
|
Package size
|
400*210*100
|
|
Total weight
|
1.35Kg
|
|
Ambient temperature
|
-40℃～55℃
|
|
Relative humidity
|
35～85%
|
|
Power consumption
|
50W
|
|
Power input
|
AC 110V/220V
|
|
Power output
|
DC 5V/10A
|
|
Installation height
|
1.0～2.5m
|
|
Installation mode
|
inside
|
|
Enclosure material
|
plastic，mold injection molding
|

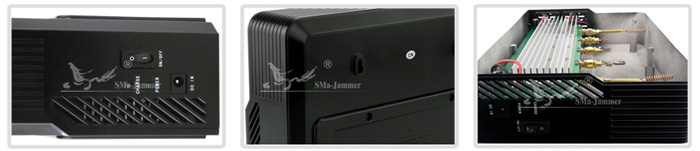

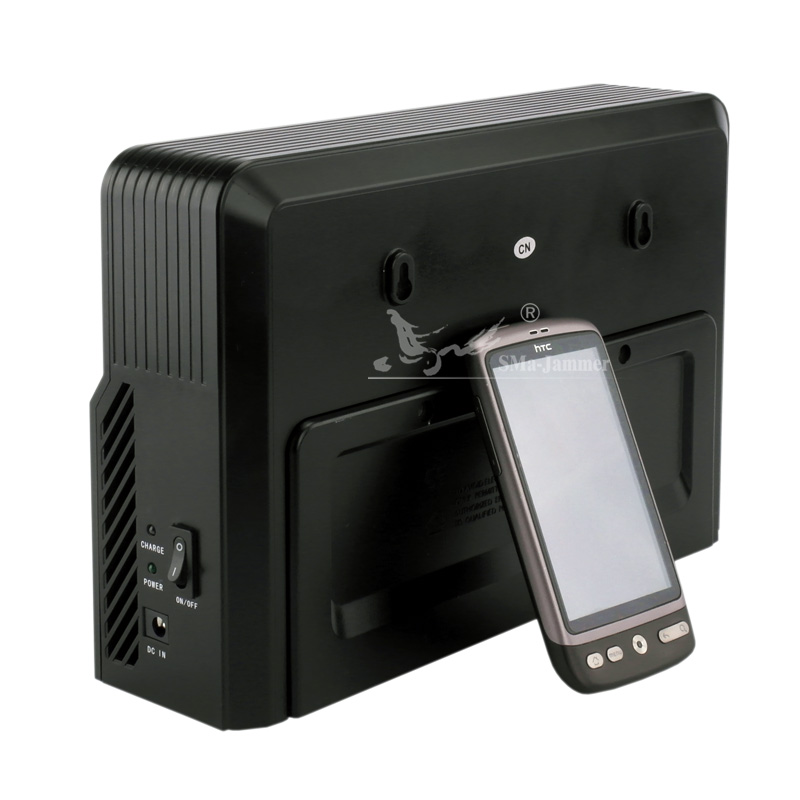

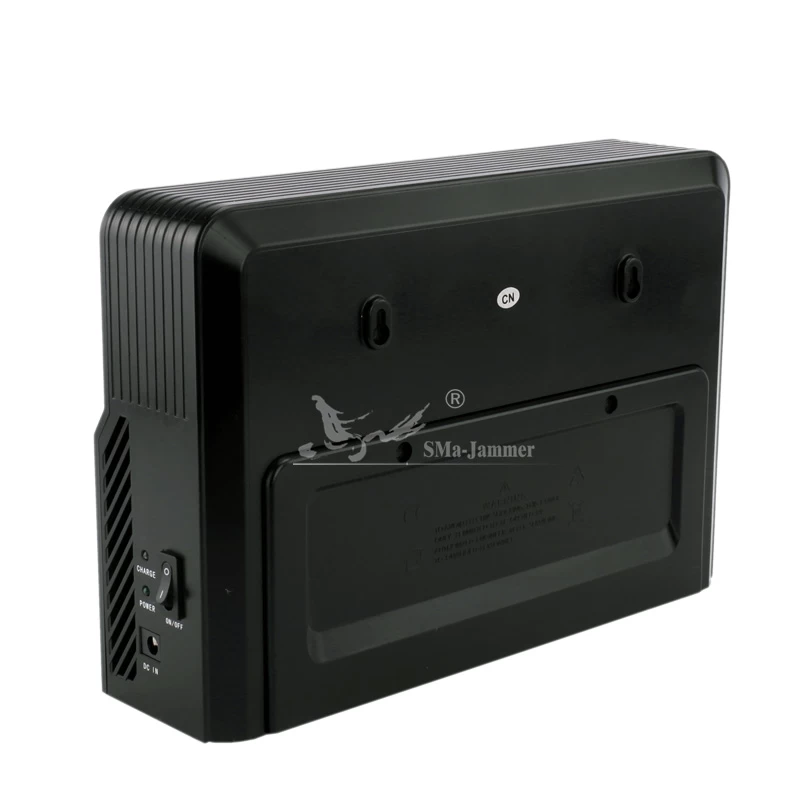

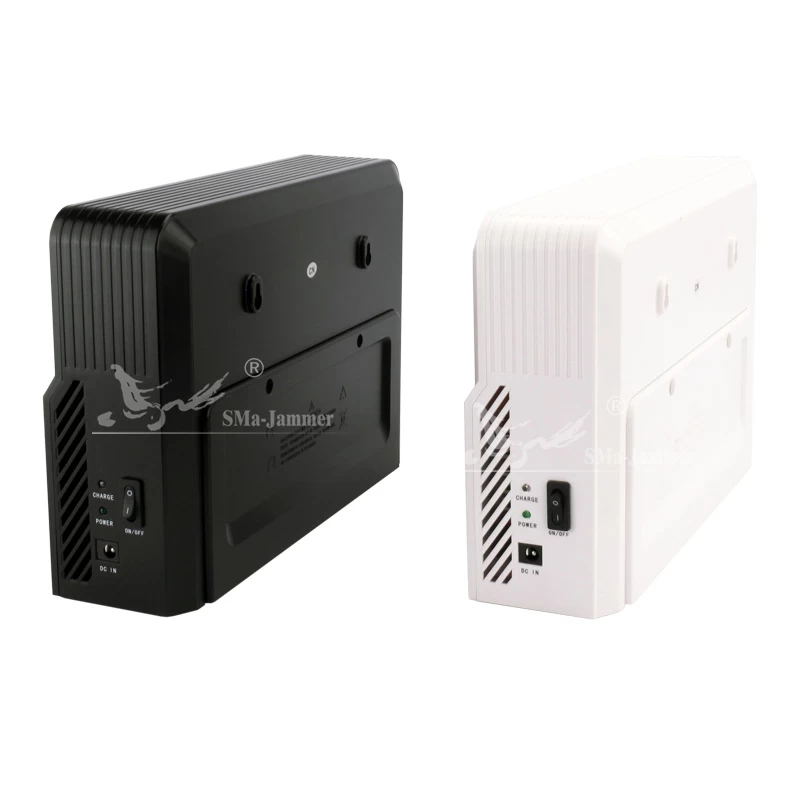

Product Details
Considerations
Jamming range is closely related to the signal strength in the field and may be affected by the system of mobile phone;
Factors that affect jamming range include but not limited to: distance of base station, jammer’s orientation, obstacles, wall’s material quality, jammer’s installation height and mode, etc;
Examination room applications, it can be put uprightly on desks or chairs in the room, don’t put on the ground directly;
Installation height is recommended to be 1.0 to 2.5 meters. Install in areas with no obstructions between the target positions. It can be wall mounted;
In order to avoid possible interference with some electronic devices during use, keep the following common device from 1 to 2 meters away: audio, wireless microphones, radios, computers, TV, Wi-Fi routers, etc.;
OEM Customized Service
Frequency spreading can be done for Wi-Fi, GPS, Bluetooth, etc.
Silkscreen OEM service can be offered for fifty jammers or above.
Neutral jammers can be provided.

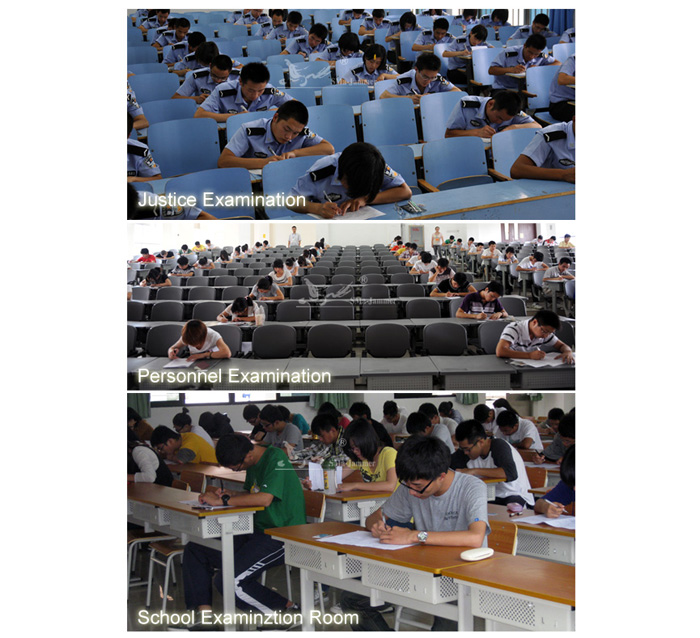

Field Application
