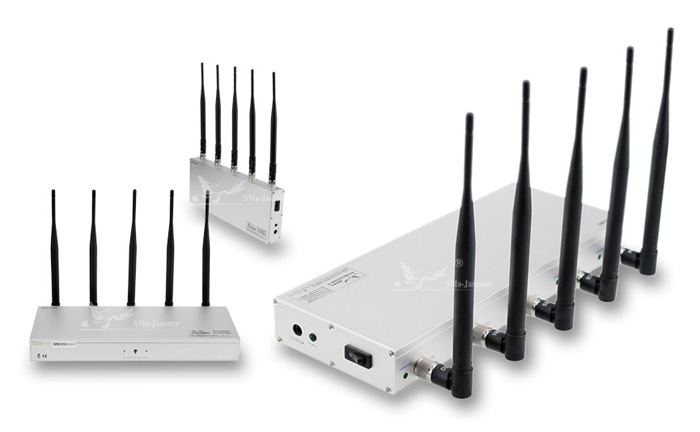

SMa-818W Five-Channel Mobile Signal Jammer
Application
Widely used in Justice Sector(Prisons, detention centers, labor camp, police, courts, prosecutors);the Education Industry(School examination room, classrooms, dormitories, various social test sites, educational and training institutions); government agencies, administrative institutions meeting rooms; factories and enterprises warehouses, workshops, production lines; forces and confidentiality unit, theaters, concert halls, memorial halls, etc.
Technical Parameters
A:Jamming range: Radius: 20~50m (-75dBm, depending on the distance of base station)
B:Transmission power: The whole set: 12~15W at maximum
C:Jammed signal type: GSM 900M, CDMA800M, DCS1800/1900M, TD(3G), CDMA(2000), WCDMA2100 (3G)
D:Increasable signal type: Wi-Fi, GPS, PHS
E:Output channel: Five channels
Features
Each channels has its own individual module, and shield different mobile system optionally;
Stable transmission power, without interference with uplink signals of base station;
Jamming effects are strengthened especially for 3G;
Aluminum profile enclosure looks simple;
Straight plate host, easy for desktop use;
Stable performance, long service life;
Harmless to human body;
ISO9001:2008 quality management system;

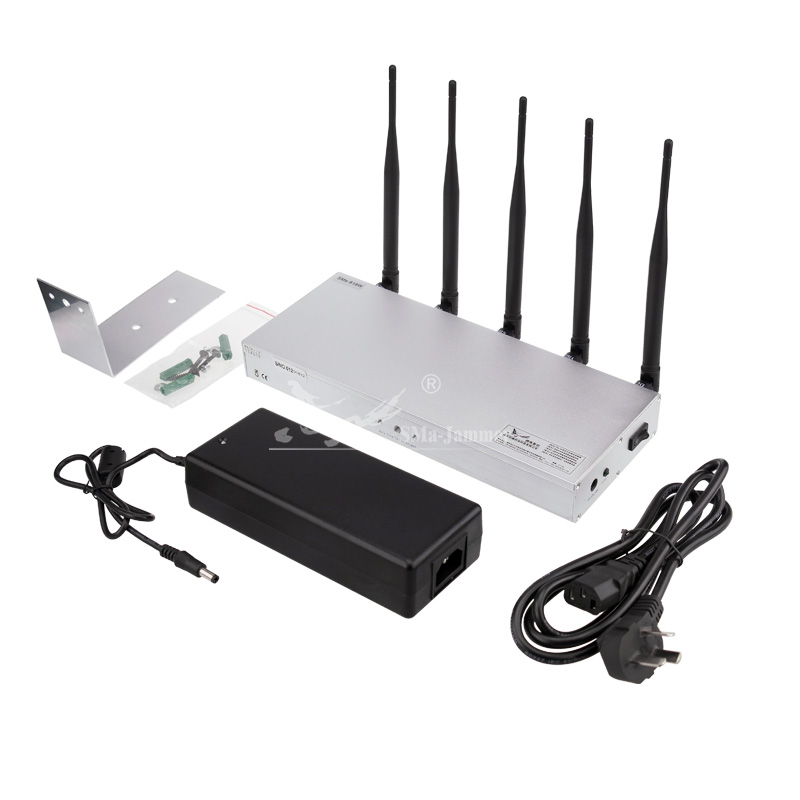

Main Parts

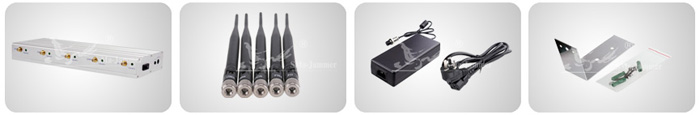

Host Antenna Power Adapter Mounting Bracket
Detailed Technical Parameter
|
Band parameter
|
Channel
|
Operating frequency
|
Average output power
|
|
WCDMA
|
2110～2170MHz
|
2W
|
|
TD/PHS
|
2010～2025MHz
|
2W
|
|
GSM
|
925～960MHz
|
3.5W
|
|
DCS
|
1805～1920MHz
|
2W
|
|
CDMA
|
870～880MHz
|
3.5W
|
|
Host size
|
266*107*36
|
|
Power size
|
153*72*46
|
|
Antenna
|
210*Φ15
|
|
Package size
|
330*255*78
|
|
Total weight
|
1.8Kg
|
|
Ambient temperature
|
－40℃～55℃
|
|
Relative humidity
|
35～85%
|
|
Power consumption
|
60W
|
|
Power input
|
AC 110V/220V
|
|
Power Output
|
DC 5V/12A
|
|
Installation mode
|
inside
|
|
Installation height
|
1.8～2.5m
|
|
Enclosure material
|
Aluminum alloy
|

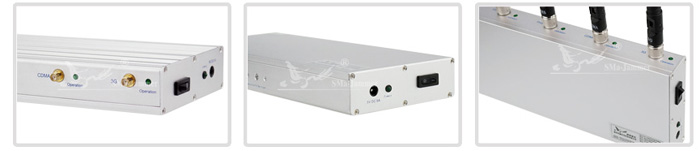

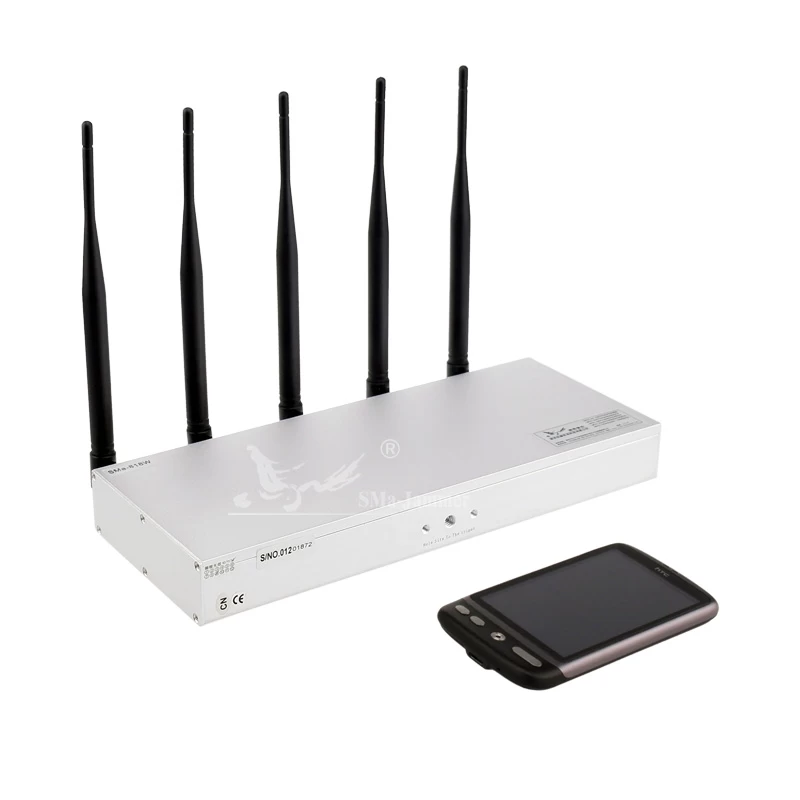

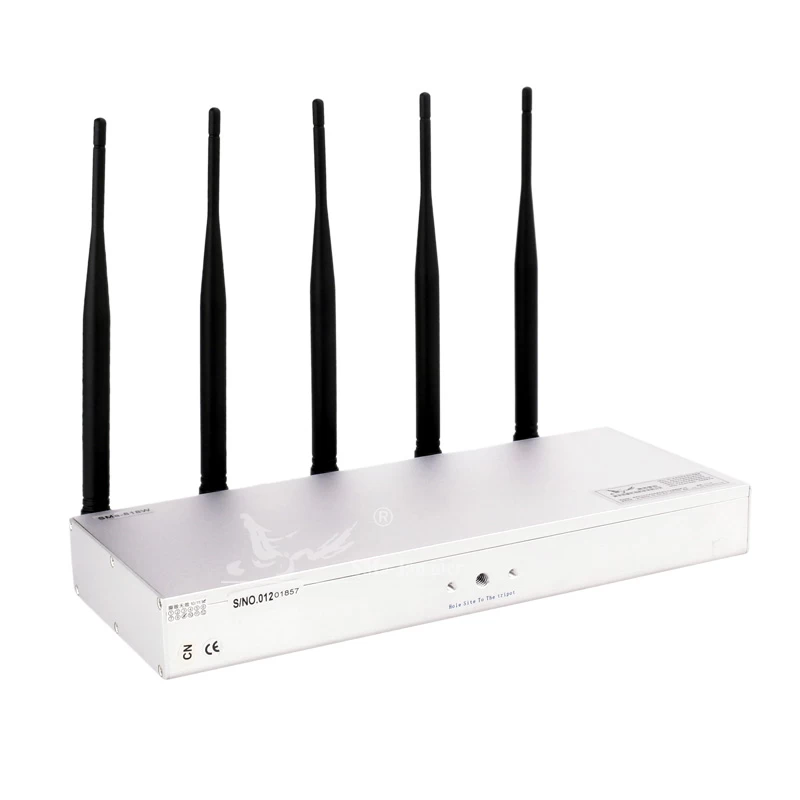

Product Details
Considerations
Jamming range is closely related to the signal strength in the field and may be affected by the system of mobile phone;
Factors that affect jamming range include but not limited to: distance of base station, jammer’s orientation, obstacles, wall’s material quality, jammer’s installation height and mode, etc.;
Band label on each antenna must match those on the jammer. Antennas must be connected before starting up the jammer;
The surface temperature is about 40-50℃ after working a long time without external cooling. If it is too high, turn the power off, and try to contact your local distributor or dealer;
Installation height is recommended to be 1.8 to 2.5 meters. Install in areas with no obstructions between the target positions. Antenna must be vertical, or antenna is vertical upright on the desktop after breaking off 90 degree, make sure no AC power lines or other audio and video line around antenna in range of 0.2 meters;
In order to avoid possible interference with some electronic devices during use, keep the following common device away from 1 to 2 meters: audio, wireless microphones, radios, computers, TV, Wi-Fi routers, etc.;
OEM Customized Service
Frequency spreading can be done for Wi-Fi, GPS, Bluetooth, etc.
Silkscreen OEM service can be offered for fifty jammers or above.
Neutral jammers can be provided.

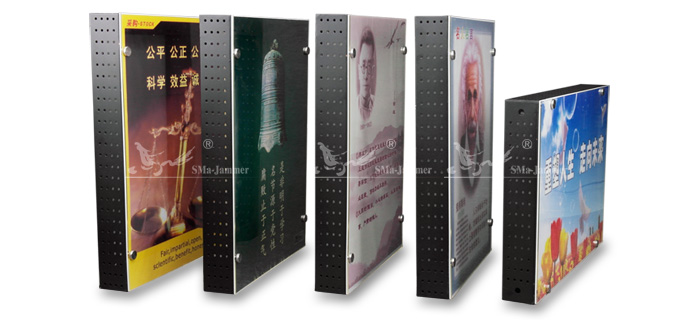

Recommended Installation Box
Engineering applications, with wall-mounted, it is recommended elect SMa-0606-type frame style landscaping installation box.
Covered all equipment, with a strong hidden performance;
The box attenuation to shielding signals transmission is very small;
Frame of plate bending welding, spray, good looking;
Picture content can be customized;
