SMa-818K60 High-Power(60W) Mobile Signal Jammer
Application
Especially applicable to open field, such as prisons, schools, forces, factories, etc.
Open field: 2 or 5 jammers are needed.
Prison: generally, 5 to 15 jammers are needed, depending on the height and layout of buildings, the size of supervision area and distance of base station.
School: The quantity of jammers depends on the quantity and layout of teaching buildings or dormitory buildings and the distance of base station.
Technical Parameters
A:Jamming Range: Radius of 40~120 meters (-75dBm, depending on the distance of base station in an open field)
B:Transmission Power: Integrated equipment ≥60W, 10~15W per channel
C:Types of Mobile Phone Signals: GSM, CDMA, DCS, TD-SCDMA, CDMA2000, WCDMA
D:Other Signal Types: Wi-Fi, Bluetooth, etc.
E:Output Channel: 4 output channels
Features
Shield all 2G/3G signals and jamming band can be customized;
Transmission power is 10W~15W per channel;
Standard configurations include a set of directional antennas, Omni antenna is available according to application environment requirements;
Good cooling performance, ensures the best work state and stability of jammer;
Sophisticated technology, aluminum alloy shell, never rust;
Stable performance, long service life;
ISO9001:2008 quality management system;
Main Parts

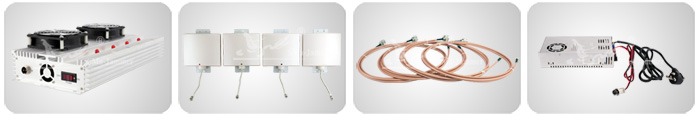

Host Directional Antenna Feeders Power
Detailed Technical Parameters
|
Band parameter
|
Channel
|
Frequency
|
Average output power
|
|
●：CDMA
|
870～880MHz
|
12～15W
|
|
●：3G
|
2010～2170MHz
|
10～12W
|
|
●：DCS
|
1805～1880MHz
|
10～12W
|
|
●：GSM
|
925～960MHz
|
12～15W
|
|
Host size
|
376*180*85(protrusions included)
|
|
Power size
|
225*114*50
|
|
Package size
|
580*340*325(EPE+Carton)
|
|
Total weight
|
13Kg
|
|
Ambient temperature
|
-40℃～55℃
|
|
Relative humidity
|
35～85%
|
|
Power consumption
|
350W
|
|
Power input
|
AC 100V～240V
|
|
Power output
|
DC 27V/13A
|
|
Installation mode
|
Wall in field/Pole(with installation box)
|
|
Installation height
|
3～15m
|
|
Enclosure material
|
Aluminum alloy
|
Product Details
Installation Instructions

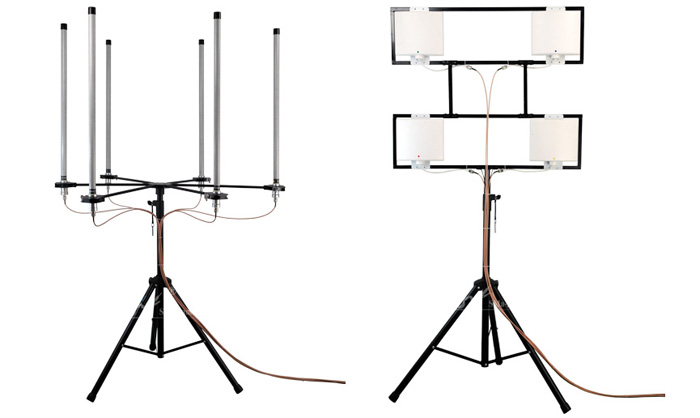

1)The host connects with antenna (directional antenna or Omni antenna) by four RF feeders (about 3meters long);
2) Color label on each antenna terminal (Red/Green/Blue/Yellow) must match those on antenna when connected through feeders;
3) Omni antenna should be kept vertical position, the antenna spacing is greater than or equal to 50cm;
4)Four directional antenna should be towards the same goal area, the antenna facing region is main shielding area, the side and back shielding range is about 30% of the main shielding area;
5）Both antennas and feeders are waterproof, available to outdoors installation. The host without waterproof function should be installed inside or dry place. Or install the host outside with installation box; Omni antenna installed outside, in the roof no lightning rod needed, an open environment need to install lightning rod. The height of lightning rod should be higher than the Omni-directional antenna.
6) There are two temperature controlled fans on the host. They start automatically when shell temperature reaches the pre-set value as the host work for a certain time, the higher temperature is normal after a long time work.
7) The installation height of Omni antenna: suggest installing in half height of shielded building or a higher position than half height. The installation height of directional antenna: suggest installing in periphery of the main shielding body, height similar to the main shielding body, the directional antennas with appropriate angle turn towards the blocked areas.
OEM Customized Service
Frequency spreading can be done for Wi-Fi, GPS, Bluetooth, etc.
Silkscreen OEM service can be offered for five jammers or above.
Neutral jammers can be provided.

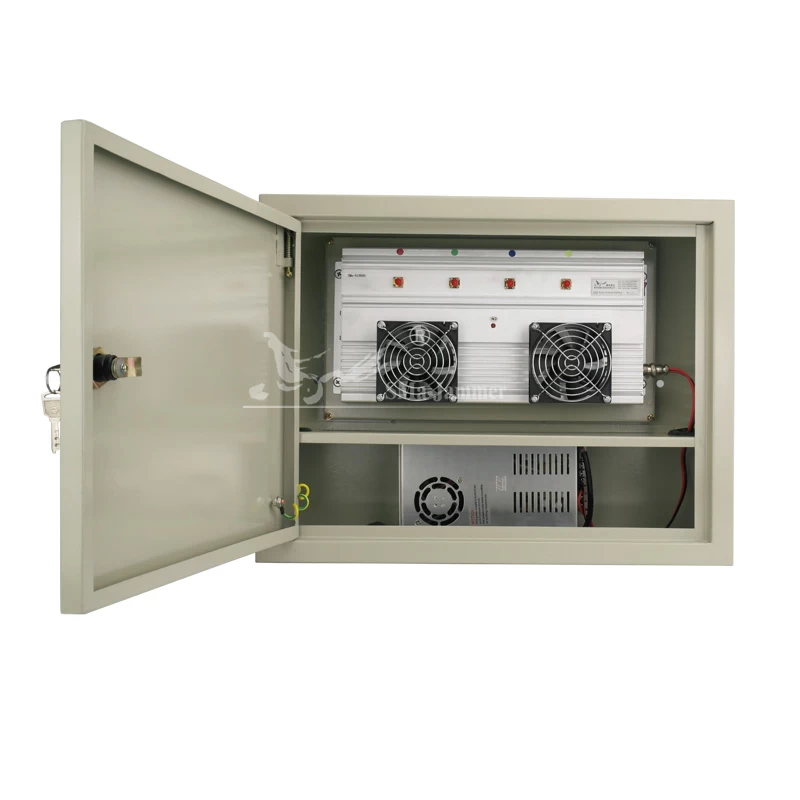

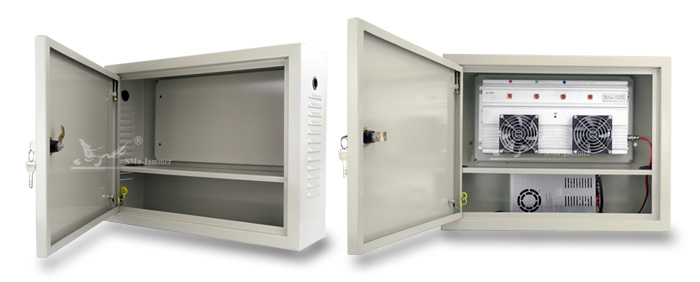

Recommended Installation Box
In engineering applications, it is recommended elect SMa-0603-type specific installation box
Especially for SMa-818K60 high-power shielding device installation, beautiful and durable, to prevent damage, outdoor waterproof (feeder out from the antenna holes on frame, antenna holes sealed by seal head);
The upper layer install the host, lower layer install the power supply.
