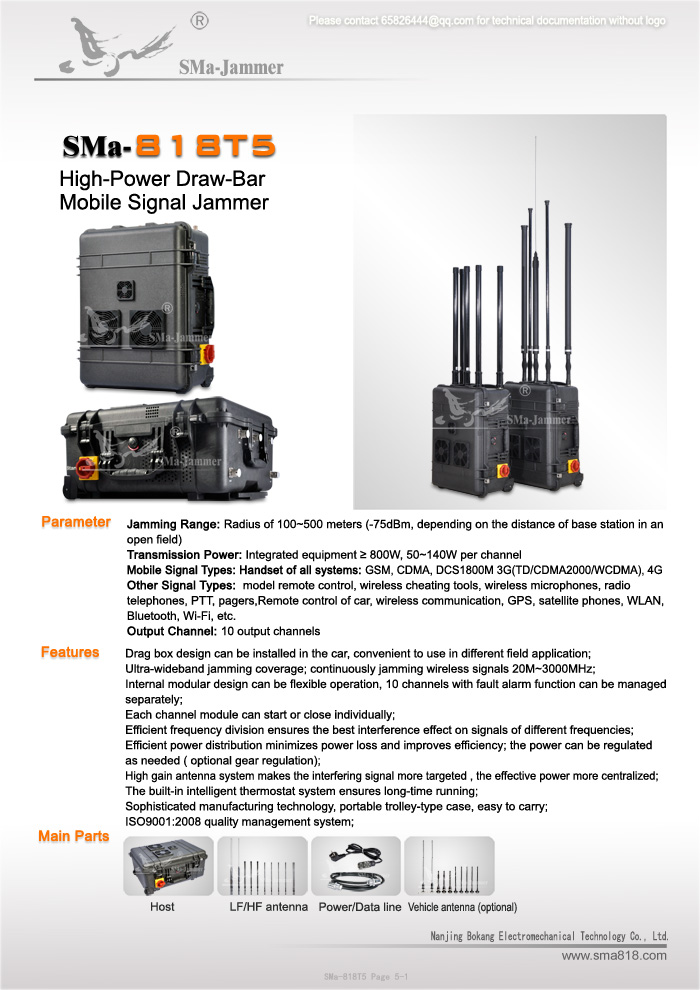

SMa-818T5 High-Power Draw-Bar Mobile Signal Jammer

Application
It is suitable to protect important leadership or VIP security, individual combat, SWAT teams, EOD teams, anti-terrorist units, anti-drug units, bomb squad, security checkpoints, administrative law enforcement, hostage negotiations, border control and military security forces and other application areas.
Full-band wireless shielding device (common band: 20~3000MHz) consist of two draw-bar signal jammers, it can be portable use, or vehicular use.
Vehicle-specific antenna can be configured according to customers’ requirements.
Technical Parameters
A:Jamming Range: Radius of 100~500 meters (-75dBm, depending on the distance of base station in an open field)
B:Transmission Power: Integrated equipment ≥ 800W, 50~140W per channel
C:Mobile Signal Types: Handset of all systems: GSM(Mobile/Unicom 2G), CDMA(Telecom), DCS(Mobile/Unicom1800M), TD(Mobile 3G), CDMA2000(Telecom 3G), WCDMA(Unicom 3G), 4G
D:Other Signal Types: all kinds of model remote control, wireless cheating tools, wireless microphones, radio telephones, PTT, Pagers, Remote control of car, wireless communication, GPS, Satellite phones, WLAN, Bluetooth, Wi-Fi, etc.
E:Output Channel: 10 output channels
Features
Drag box design can be installed in the car, convenient to use in different field application;
Ultra-wideband jamming coverage; continuously jamming wireless signals 20M~3000MHz;
Internal modular design can be flexible operation, 10 channels with fault alarm function can be managed separately;
Each channel module can start or close individually;
Efficient frequency division ensures the best interference effect on signals of different frequencies;
Efficient power distribution minimizes power loss and improves efficiency; the power can be regulated as needed ( optional gear regulation);
High gain antenna system makes the interfering signal more targeted , the effective power more centralized;
The built-in intelligent thermostat system ensures long-time running;
Sophisticated manufacturing technology, portable trolley-type case, easy to carry;

ISO9001:2008 quality management system;

Want to get more Mobile Signal Jammer information, welcome to view more! Any question, please feel free to contact us.

Main Parts

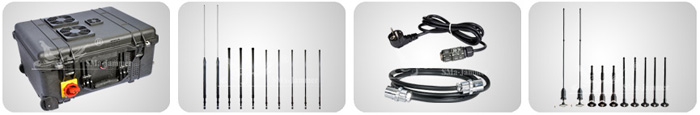

                Host                                 LF/HF Antenna                    Power/Data Line                   Vehicle Antenna

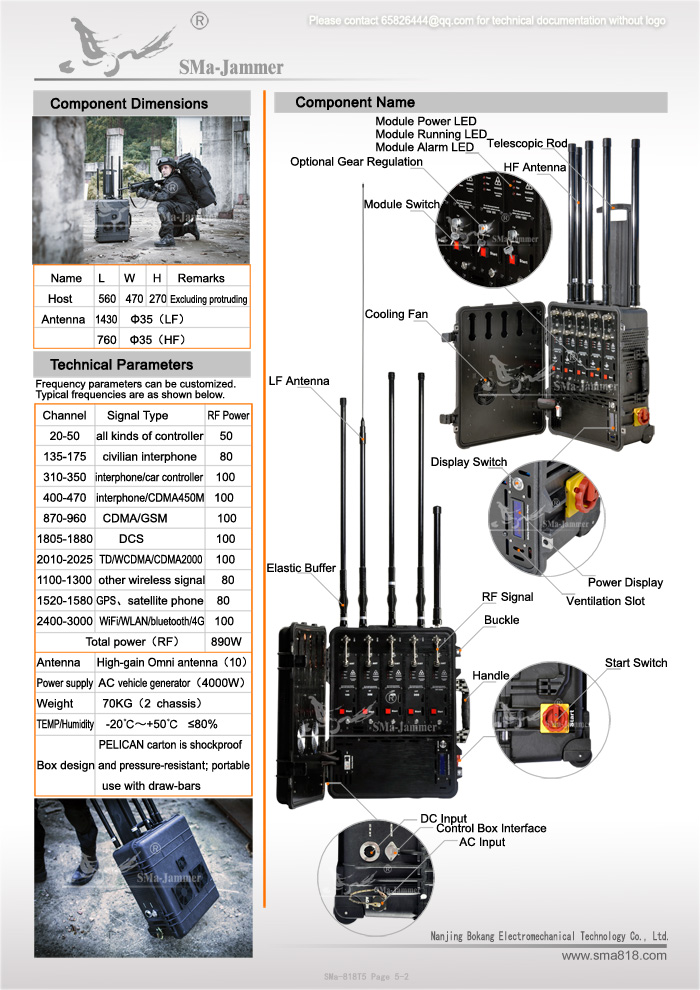

Detailed Technical Parameter
Frequency parameters can be customized. Typical frequencies are shown below

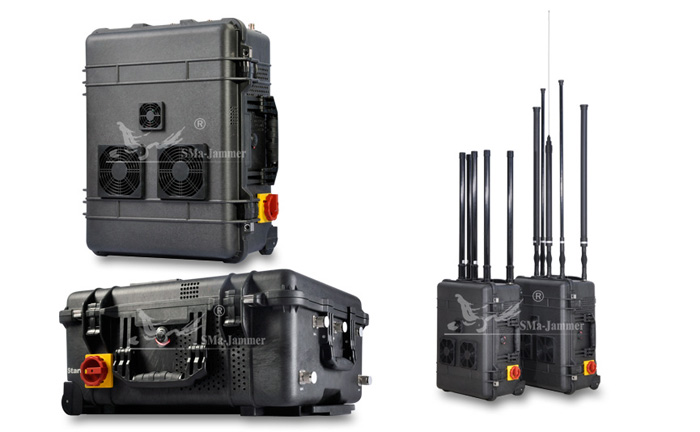

Product Details

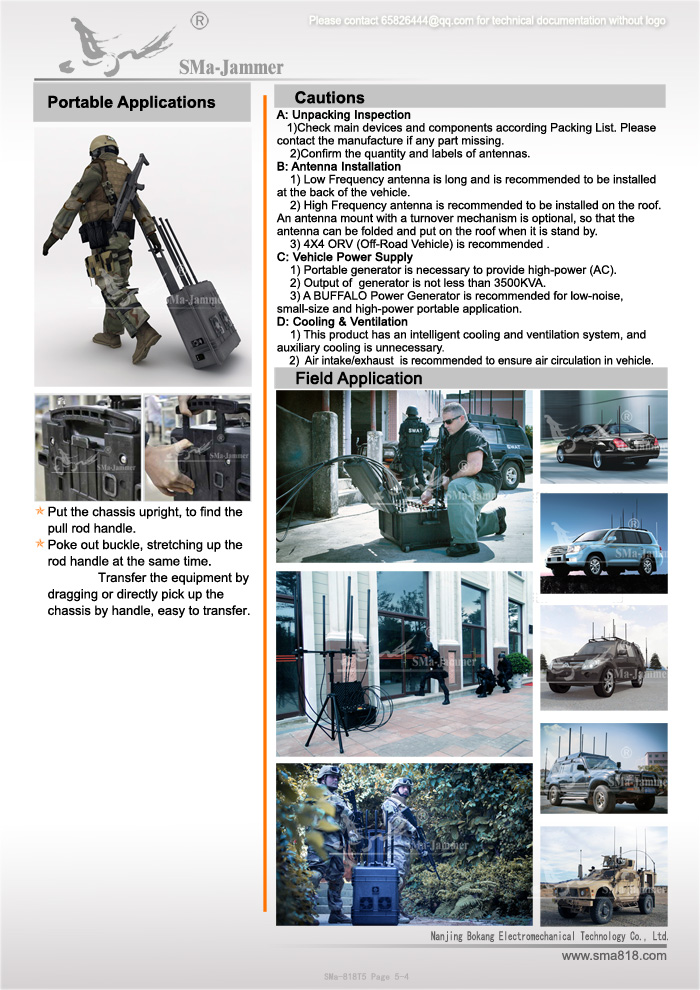

Cautions
A: Unpacking Inspection
1） Check main devices and components according Packing List. Please contact the manufacture if any part missing.
2） Confirm the quantity and labels of antennas
B: Antenna Installation
1） Low Frequency antenna is long and is recommended to be installed at the back of the vehicle.
2） High Frequency antenna is recommended to be installed on the roof. An antenna mount with a turnover mechanism is optional, so that the antenna can be folded and put on the roof when it is stand by.
3） 4X4 ORV (Off-Road Vehicle) is recommended.
C: Vehicle Power Supply
1） Portable generator is necessary to provide high-power (AC).
2） Output of generator is not less than 3500KVA.
3） A BUFFALO Power Generator is recommended for low-noise, small-size and high-power portable application.
D: Cooling & Ventilation
1） This product has an intelligent cooling and ventilation system, and auxiliary cooling is unnecessary.
2） Air intake/exhaust is recommended to ensure air circulation in vehicle

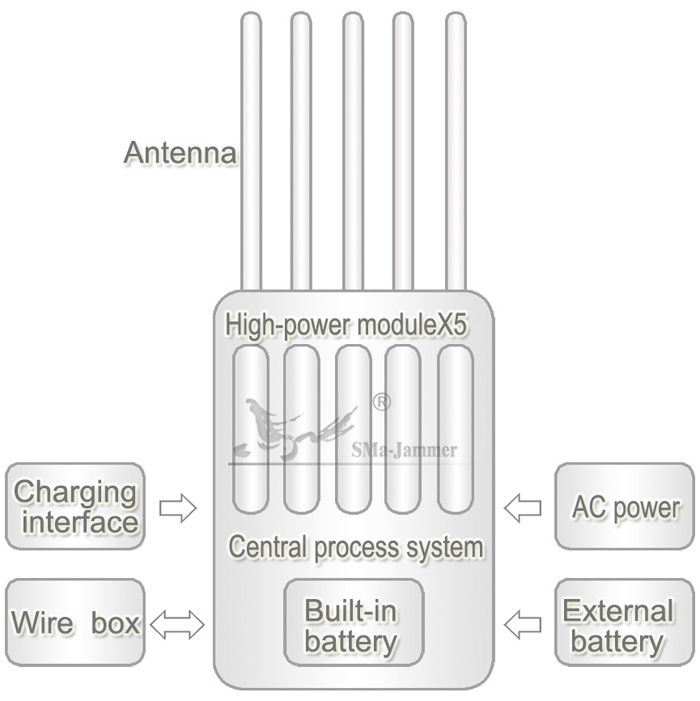

The Device Structure and Working Principle
The device is robust housing, dustproof, shockproof. Flexible power supply ways, such as external AC power, built-in battery, external battery box and generator.
Modular designed, each component is pluggable, can be replaced directly, it has five high-power shielding modules, which can combination randomly, frequency be customized.
Flexible controlling ways, like directly operational control on the machine, or by external line-control-box.

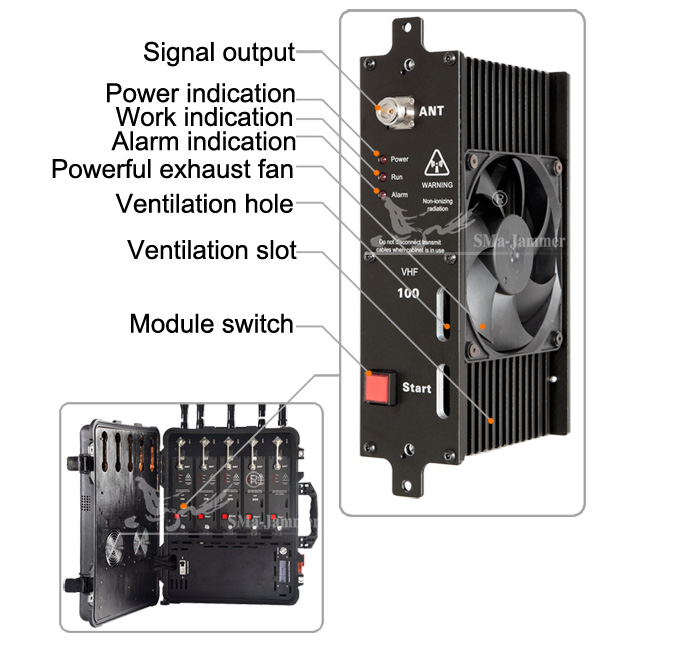

Modular Design
Each draw-bar box can assemble five high-power modules, and each module can be customized.
Each module can be any combination according to frequency requirements.
Each module is designed with three indication lights, to show Power, Run and Alarm (reflective self-excited fault alarm).
Each module has its own module switch, switch on or switch off optionally according to field application requirements.
Each module is independent of each other, pluggable and replaced directly, and it would not affect the normal working of other modules.

Portable Applications

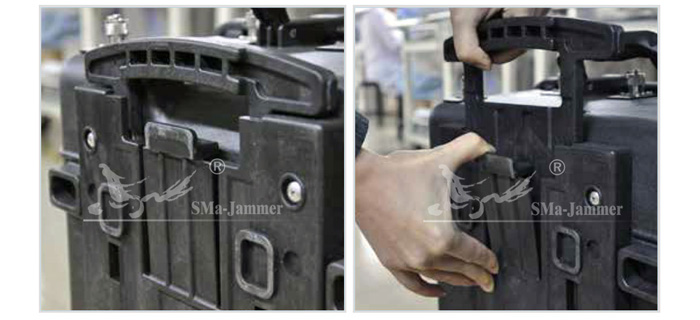

Put the chassis upright, to find the pull rod handle.
Poke out buckle, stretching up the rod handle at the same time.
Transfer the equipment by dragging or directly pick up the chassis by handle, easy to transfer.

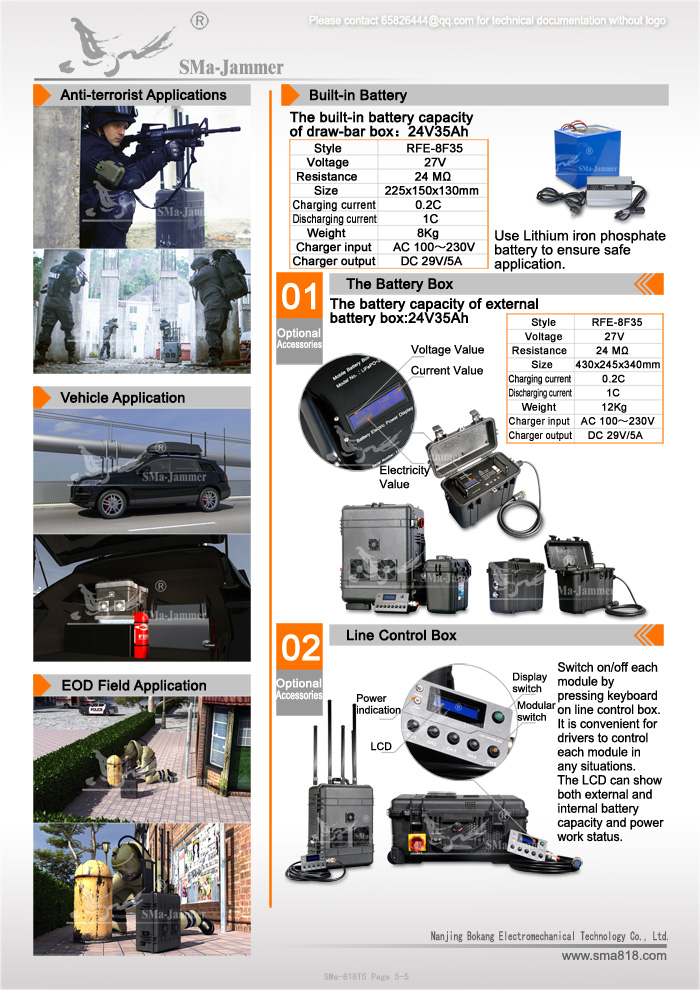

Built-in Battery
Use Lithium iron phosphate battery to ensure safe use.
The built-in battery capacity of draw-bar box: 24V35Ah

Optional Accessories

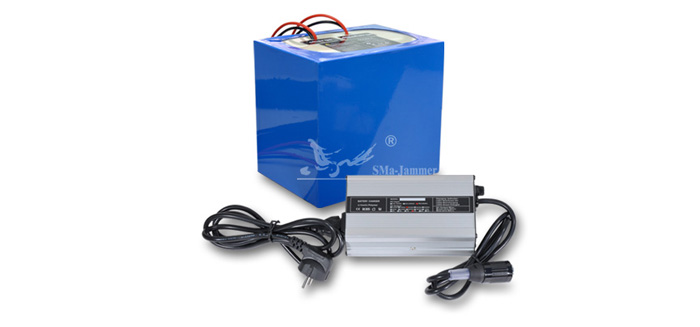

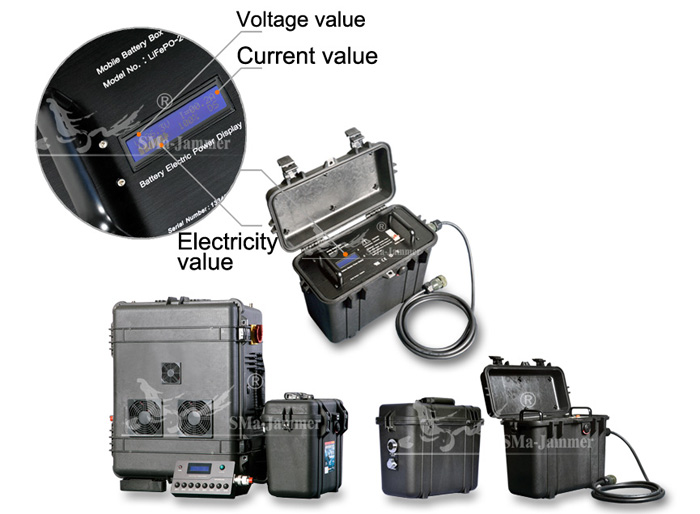

1 The Battery Box
The battery capacity of external battery box: 24V35Ah

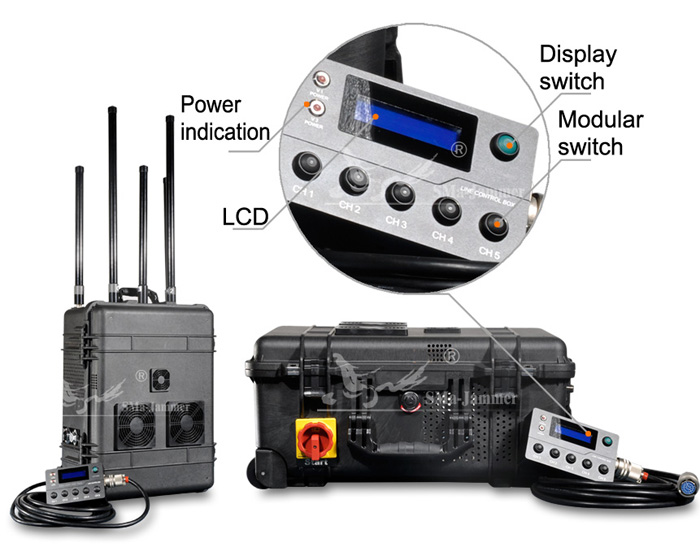

2 Line Control Box
Switch on/off each module by pressing keyboard on line control box.
It is convenient for drivers to control each module in any situations.
The LCD can show both external and internal battery capacity and power work status.

OEM Customized Service
Frequency band within 20~3000MHz can be any customized according to needs.
Silkscreen OEM service can be offered for 5 jammers or above.
Neutral jammers can be provided.
Field Application &Car Modified Examples

Anti-Terrorist EOD Applications

Vehicle Applications

EOD Field Applications
