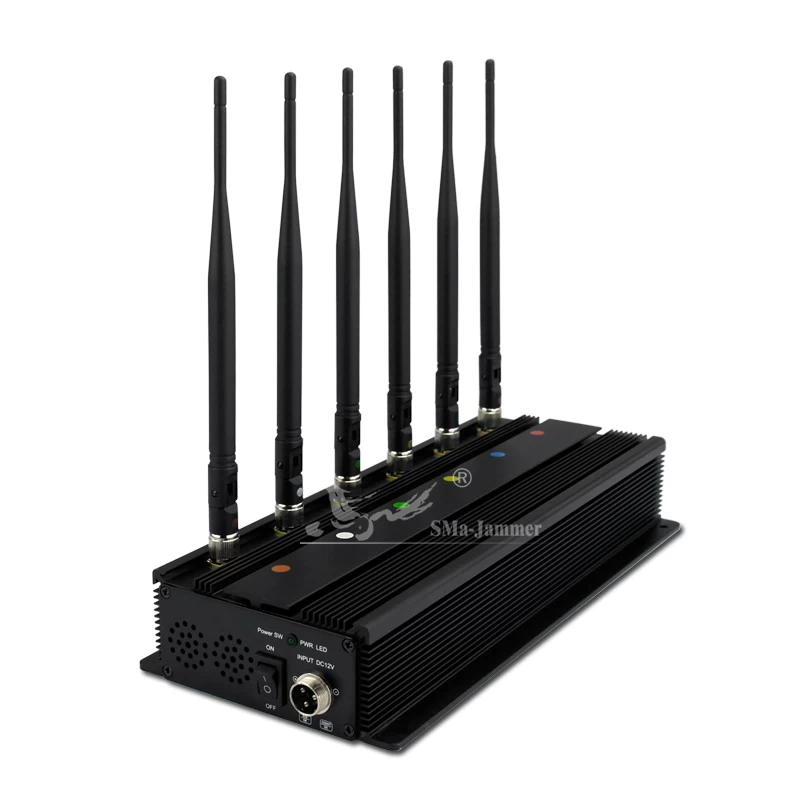

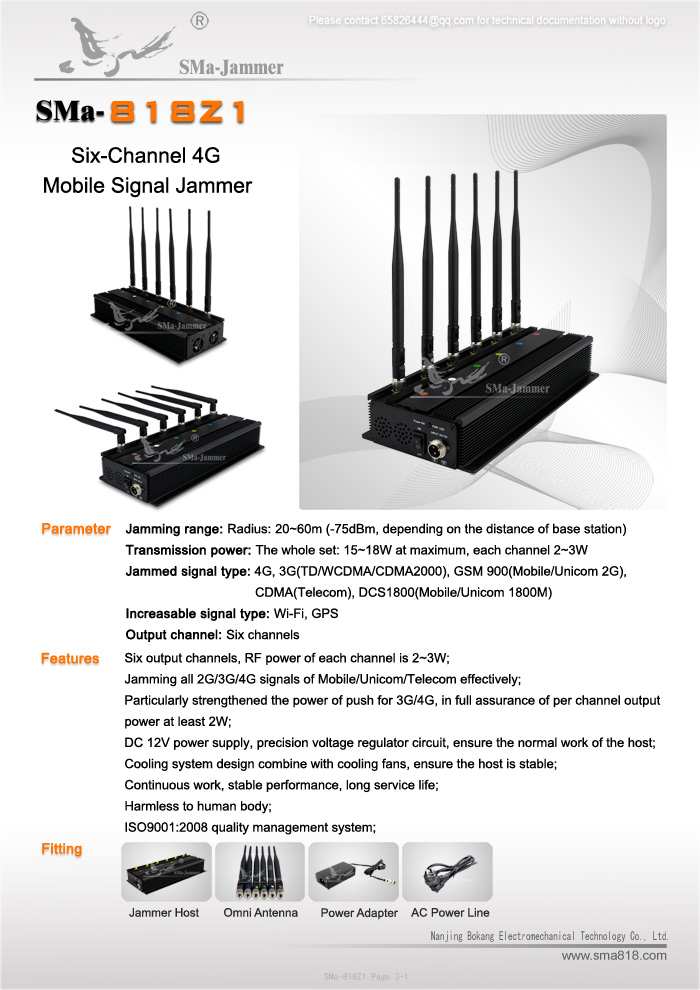

SMa-818Z1 Six-Channel 4G Mobile Signal Jammer
Application
Widely used in the Justice Sector(Prisons, detention centers, labor camp, police, courts, prosecutors);the Education Industry(School examination room, classrooms, dormitories, various social test sites, education and training institutions); Government agencies, administrative institutions meeting rooms; Factories and enterprises warehouses, workshops, production lines; Forces and confidential units, theaters, concert halls, memorial halls ,etc.
Technical Parameters
A:Jamming range: Radius: 20~60m (-75dBm, depending on the distance of base station)
B:Transmission power: The whole set: 15~18W at maximum, each channel 2~3W
C:Jammed signal type: 4G, 3G(TD/WCDMA/CDMA2000), GSM 900(Mobile/Unicom 2G), CDMA(Telecom), DCS1800(Mobile/Unicom 1800M)
D:Increasable signal type: Wi-Fi, GPS
E:Output channel: Six channels
Features
Six output channels, RF power of each channel is 2~3W;
Jamming all 2G/3G/4G signals of Mobile/Unicom/Telecom effectively;
Particularly strengthened the power of push for 3G/4G, in full assurance of per channel output power at least 2W;
DC 12V power supply, precision voltage regulator circuit, ensure the normal work of the host;
Cooling system design combine with cooling fans, ensure the host is stable;
Continuous work, stable performance, long service life;
Harmless to human body;
ISO9001:2008;

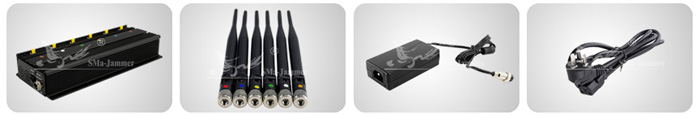

Main Parts
Host Antenna Power Adapter AC Power Line

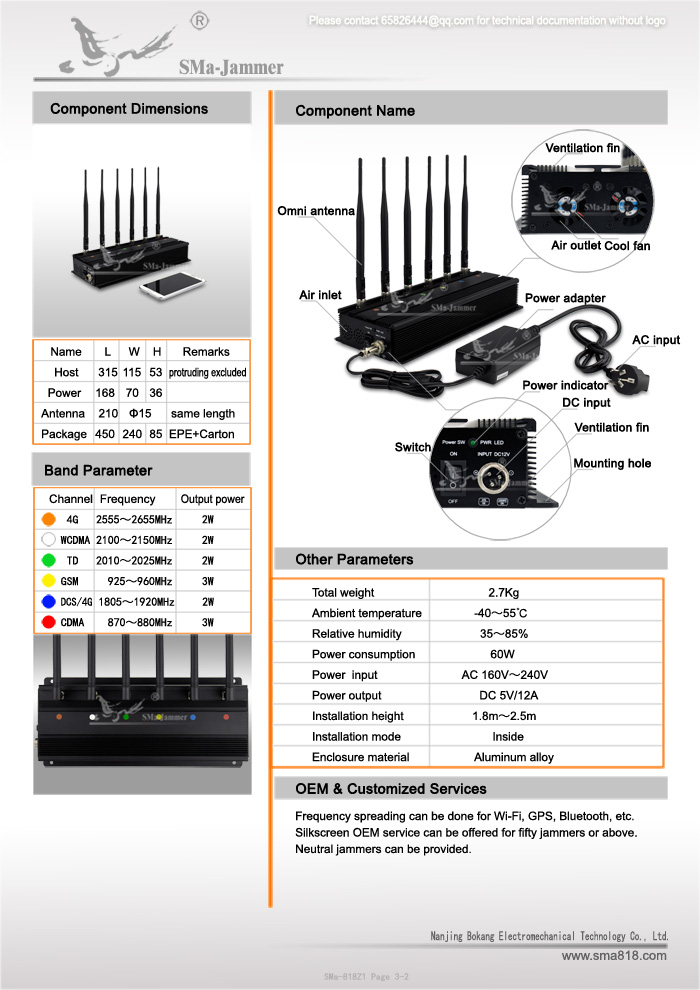

Detailed Technical Parameters
|
Band parameter
|
Channel
|
Operating frequency
|
Average output power
|
|
4G
|
2555~2655MHz
|
2W
|
|
WCDMA
|
2100~2150MHz
|
2W
|
|
TD
|
2010~2025MHz
|
2W
|
|
GSM
|
925~960MHz
|
3W
|
|
DCS/4G
|
1805~1920MHz
|
2W
|
|
CDMA
|
870~880MHz
|
3W
|
|
Host size
|
315*115*53(protruding excluded)
|
|
Power size
|
168*70*36
|
|
Antenna size
|
210*Ф15(same length)
|
|
Package size
|
450*240*85(EPE+Carton)
|
|
Whole weight
|
2.7Kg
|
|
Ambient temperature
|
-40℃~55℃
|
|
Relative humidity
|
35~85%
|
|
Power consumption
|
60W
|
|
Power input
|
AC 160V~240V
|
|
Power output
|
DC 12V/5A
|
|
Installation height
|
1.8m~2.5m
|
|
Installation mode
|
Inside
|
|
Enclosure material
|
Aluminum alloy
|

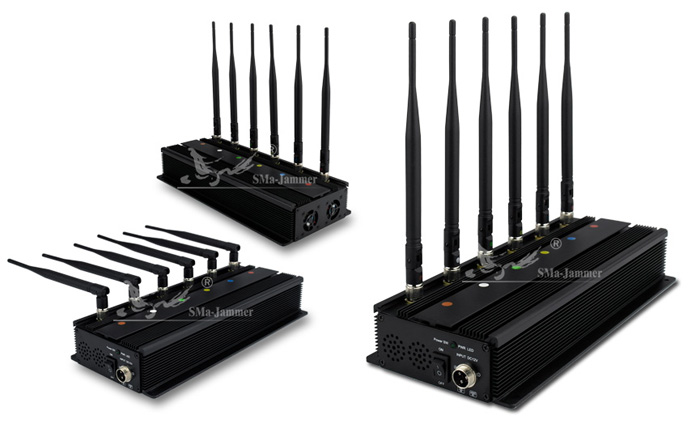

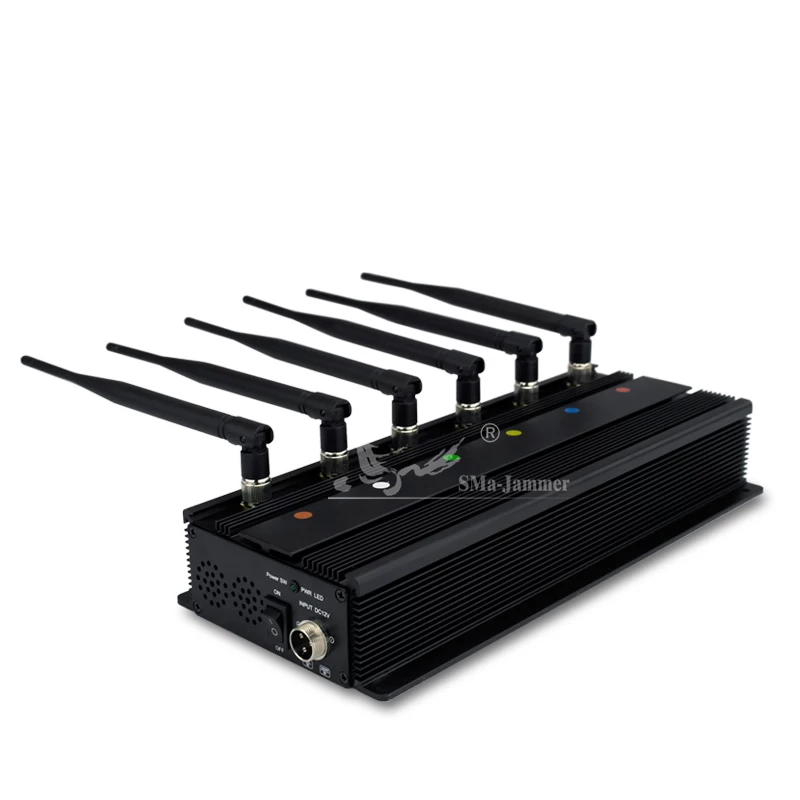

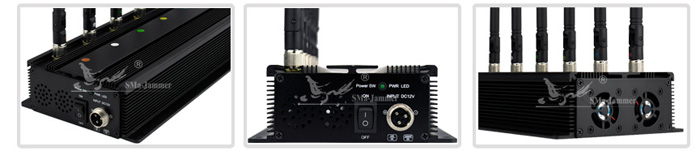

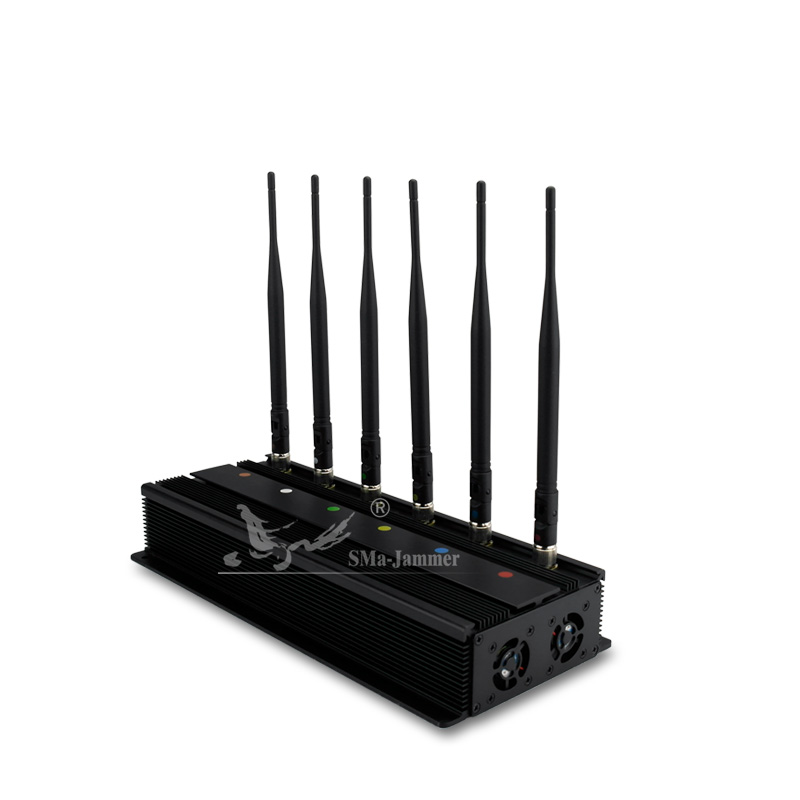

Product Details

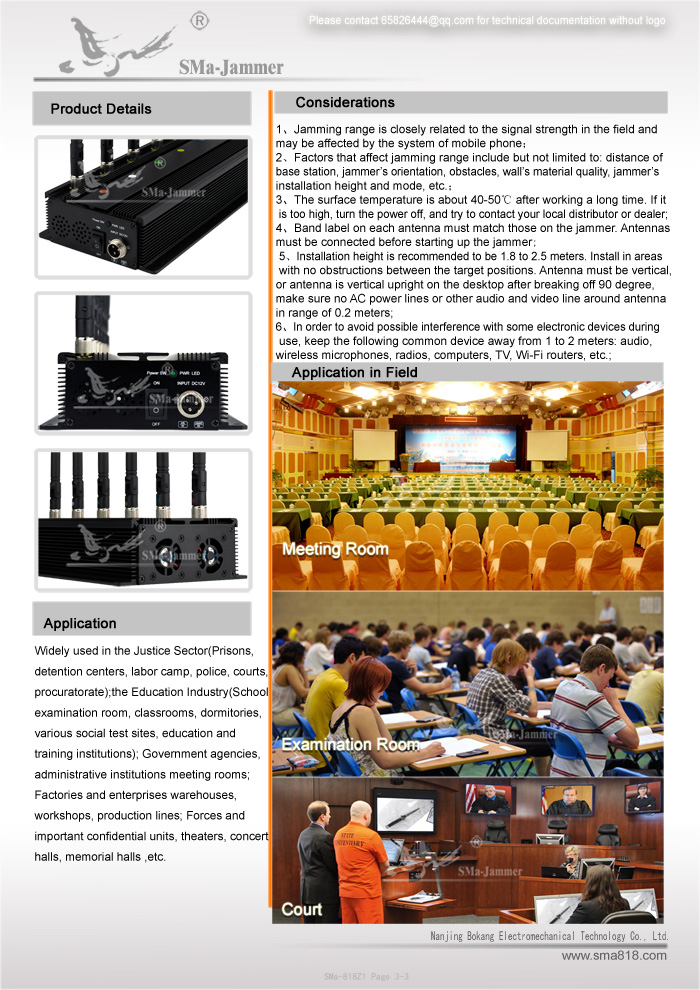

Considerations
Jamming range is closely related to the signal strength in the field and may be affected by the system of mobile phone;
Factors that affect jamming range include but not limited to: distance of base station, jammer’s orientation, obstacles, wall’s material quality, jammer’s installation height and mode, etc;
The surface temperature is about 40-50℃ after working a long time. If it is too high, turn the power off, and try to contact your local distributor or dealer;
Band label on each antenna must match those on the jammer. Antennas must be connected before starting up the jammer;
Installation height is recommended to be 1.8 to 2.5 meters. Install in areas with no obstructions between the target positions. Antenna must be vertical, or antenna is vertical upright on the desktop after breaking off 90 degree, make sure no AC power lines or other audio and video line around antenna in range of 0.2 meters;
In order to avoid possible interference with some electronic devices during use, keep the following common device away from 1 to 2 meters: audio, wireless microphones, radios, computers, TV, Wi-Fi routers, etc.;
OEM Customized Service
Frequency spreading can be done for Wi-Fi, GPS, Bluetooth, etc.
More than 50 units can provide screen printing OEM service.
Provide neutral device.
