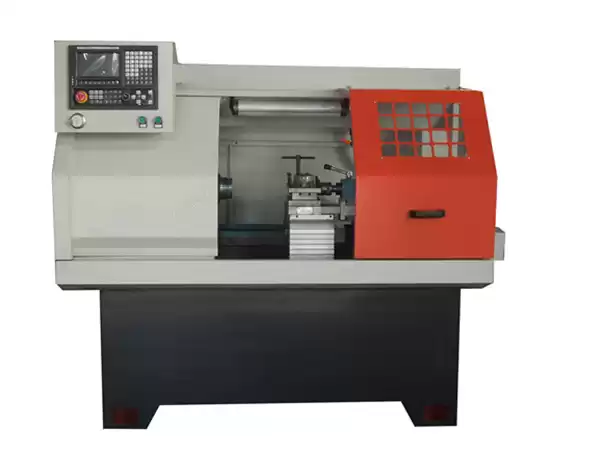

Small Instrument Lathe
Features
1. The guide way and the base are made of nodular cast iron bed, which has the advantages of strong rigidity, good shock resistance, smooth chip removal and convenient operation.
2. High frequency quenching. Large plate with Plastic processing,has good abrasion resistance, long life.
3. The machine head adopts arch-shaped and Wave type design,it has good heat dissipation, high strength, and it is an independent spindle structure can meet high speed moving.
4. Servo control system.The Driver ,servo motor and system are original.
5. The screw rod is made of grinding ball screw (Z axis φ32mm, X axis φ25mm), which is used Central design to improve the longitudinal cutting force.
6. The transmission is multi wedge belt transmission,which has small transmission vibration, quick heat dissipation,stable movement,high processing precision.
7. Clamping for spring chuck, air clamping method. A2/160 chuck (hydraulic or pneumatic or manual) is also available
|
parameters
|
Unit
|
Classic 640 servo CNC lathe
|
|
Processing range
|
Max. turning diameter of machine body
|
mm
|
380
|
|
Max. turning diameter of pallet
|
mm
|
φ90rows tool
φ140automatic tool rest
|
|
X Axis travel
|
mm
|
350
|
|
Z Axis travel
|
mm
|
250
|
|
Max. barstock diameter
|
mm
|
40
|
|
Spindle
|
Speed range
|
r/min
|
100-4000
|
|
speed grade
|
|
无级变速Stepless speed change
|
|
Spindle bore diameter
|
mm
|
52
|
|
Chuck type
|
|
A2-6寸 inch
|
|
Work clamping mode
|
|
Taiwan three claw pneumatic clamping
|
|
Front taper of spindle hole
|
|
Spring chuck
|
|
Main motor power
|
KW
|
3
|
|
Feed
|
X axis Fast forward speed
|
mm/min
|
12500
|
|
z
axis Fast forward speed
|
mm/min
|
15000
|
|
positioning accuracy
|
mm
|
0.005
|
|
Feed motor X/Z Axis
|
|
Servo motor
|
|
Drive motor torque X/Z Axis
|
N.M
|
4/6
|
|
Tool rest form
|
|
Rows tool rest
|
|
Control system
|
|
Huaxing901
Guangshu928TD-L
Guangshu928TEA
Kaiendi100TI-D
Kaiendi100TI-B
Guangtai 130
|
|
（L*W*H）Machine size
|
mm
|
1600X1150X1500
|
|
Machine weight
|
KG
|
900kg
|
