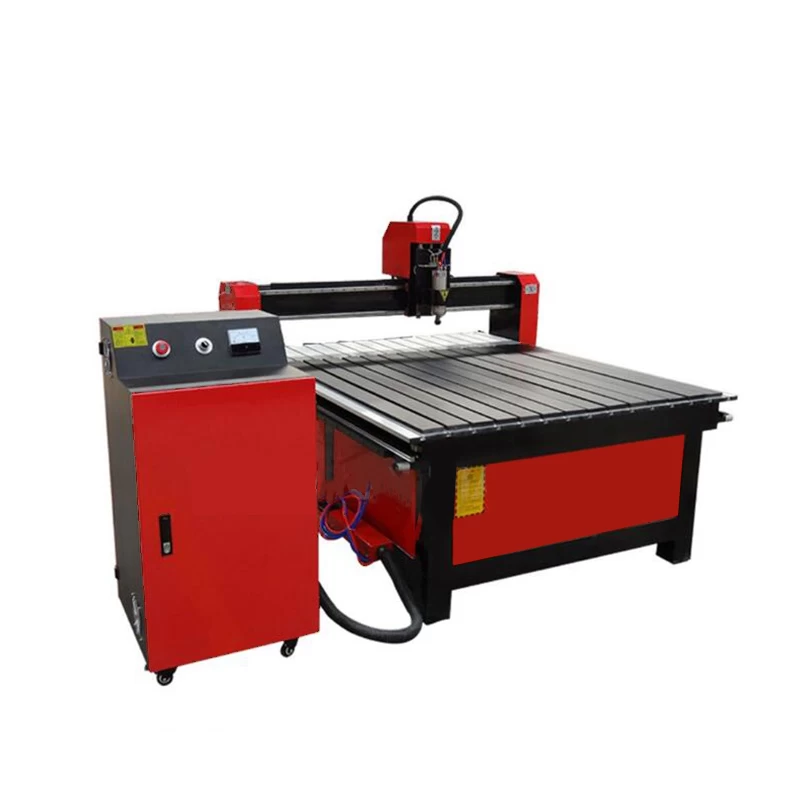

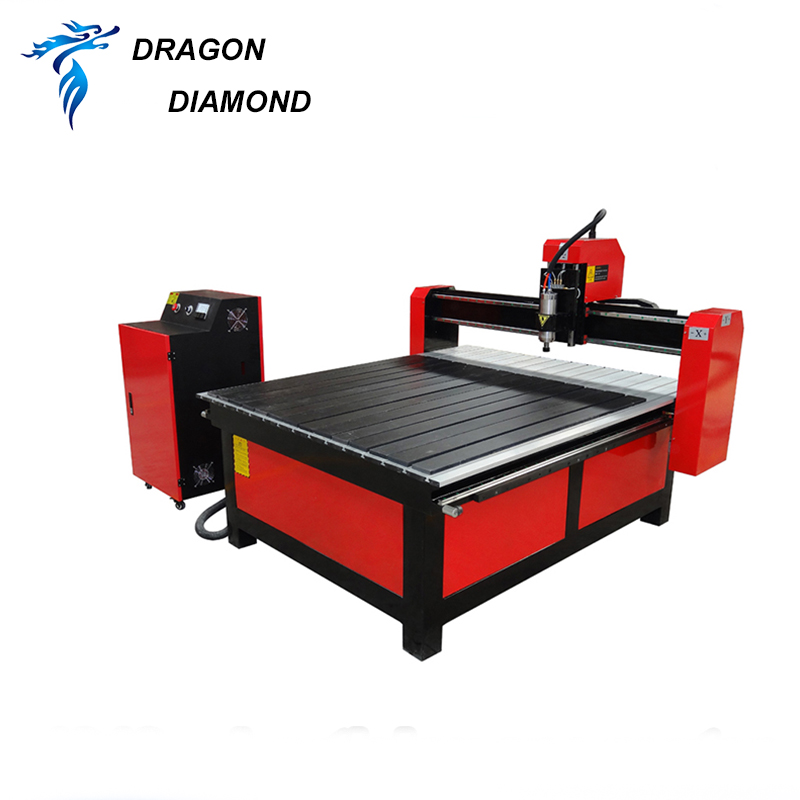

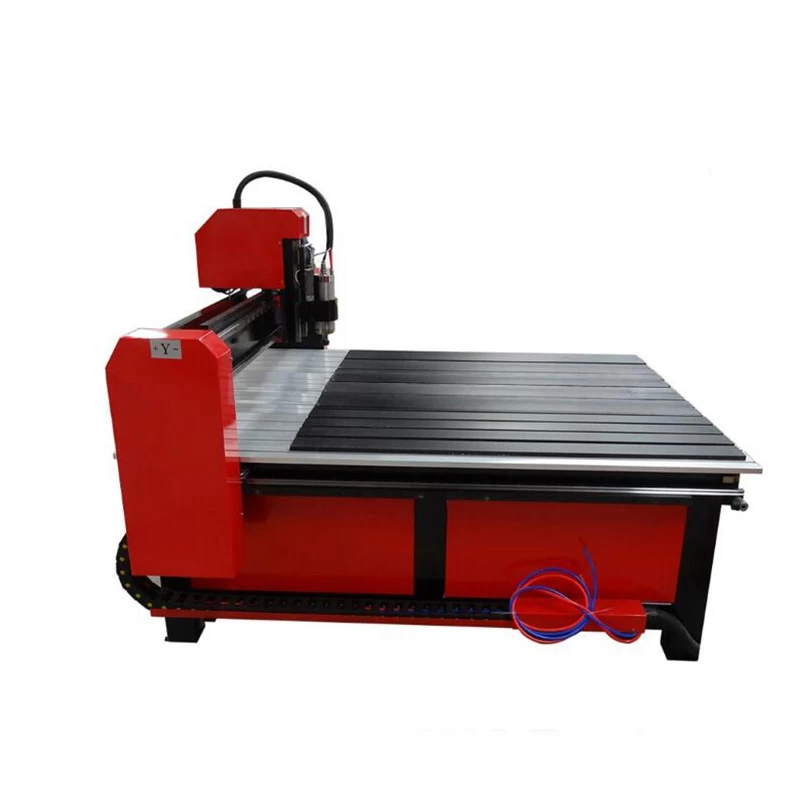

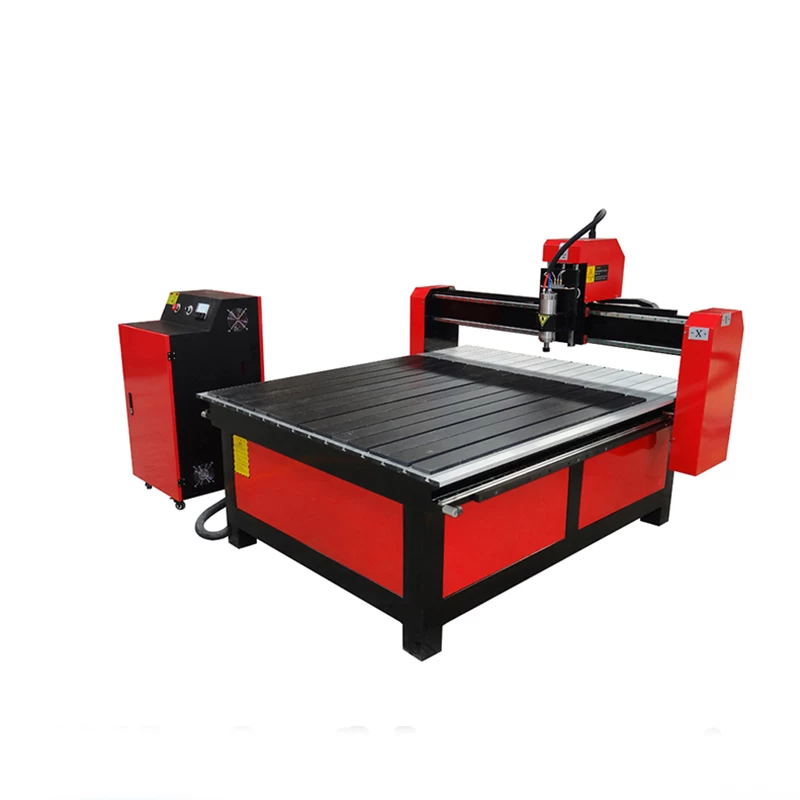

China Cnc Router Mdf Woodworking Cutting Machine
PRODUCT PARAMETER
|
NO.
|
Model
|
Lz-1212A
|
|
1
|
Working Area
|
1200x1200x100mm
|
|
2
|
Table Size
|
1640x1640mm
|
|
3
|
Working Table
|
Aluminum T-Slot Table
|
|
4
|
Spindle
|
2.2KW Water Cooling Spindle
|
|
5
|
Cooling System
|
Water Cooling
|
|
6
|
Control System
|
DSP
|
|
7
|
Inverter
|
Sunfar
|
|
8
|
Transmission
|
XY axis Rack Gear,Z axis Germany NEFF Ball Screws
|
|
9
|
Guide Rail
|
Taiwan HIWIN Square Rail
|
|
10
|
Ball Screw
|
TBI ball screw from Taiwan
|
|
11
|
Drive System
|
Stepper motor
|
|
12
|
Machine Structure
|
Welded steel T type structure as a whole
|
|
13
|
Spindle Speed
|
24000RPM
|
|
14
|
Suitable Software
|
Artcam, Type3, Ucancam V9, etc
|
|
15
|
Traveling Speed
|
4500 mm/min
|
|
16
|
Engraving speed
|
3800 mm/min
|
|
17
|
Reposition Accuracy
|
0.025mm
|
|
18
|
Command Code
|
G Code*.HPGL
|
|
19
|
Voltage
|
AC 380V±10%, 50Hz
|

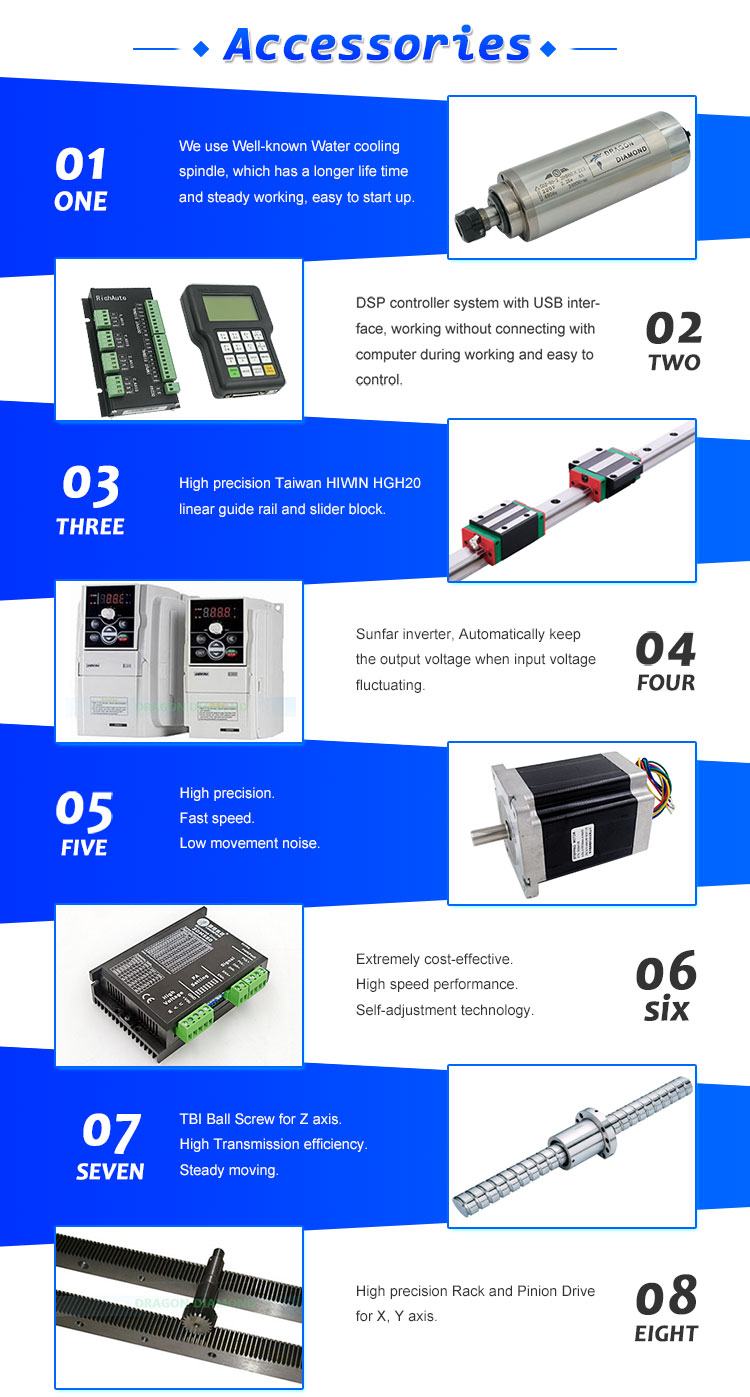

PRODUCT FEATURES
1.Spindle
We use well-know water cooling spindle, which has a longer life time and steady working, easy to start up.
2.Controller
DSP controller system with USB interface,working without connecting with computer during working and easy to control.
3.Linear Guide
High precision Taiwan HIWIN HGH20 linear guide rail and slider block.
4.Inverter
Sunfar inverter.Automatically keep the output voltage when input voltage fluctuating.
5.Dust Proof Design For XZ Axis
Dust proof design for XZ axis,protect the guide rail and ball screws from the dust & dirt.Help to ensure machine working performance.
6.Stepper Motor & Driver
China famous Leadshine Stepper Motor and Leadshine stepper motor and driver for XYZ Axis, high precision, fast speed and more stable.
7.NC Studio Control System
NC Studio control system,supporting XYZ axis moving together,showing the processing path,mote convenient.Besides,we also have other optional controller,such as Mach 3,DSP A11E,etc.
8.Rack and Screw
TBI Ball Screw for Z axis.High transmission efficiency.Steady moving.High precision Rack and Pinion Drive for X,Y axis.
APPLICATION INDUSTRY
1.Furniture decoration industry
large area plate plane carving, wood carving and board type furniture carving. Solid wood art mural, solid wood door, cabinet door sculpture.
2.Wood products processing
sewing machine desktop, electrical counter desktop, sports supplies equipment.
3.Instrument industry
3d curved surface, shape cutting.
