Smaller Seat Loading pad GT-LB01-3
Product Introduction
Application:

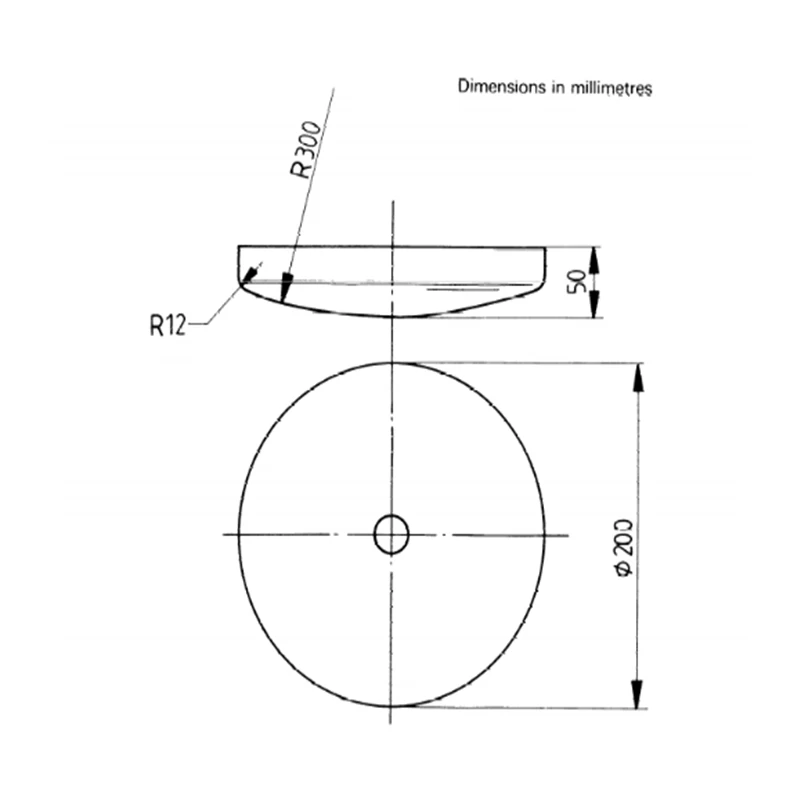

Smaller seat loading
pad, which is a rigid circular object 200 mm in diameter, the loading
surface of which has a convex spherical curvature of 300 mm radius with a
12 mm front edge radius.
Standards:
GB10357-3 -2013, ISO7173-1989 |

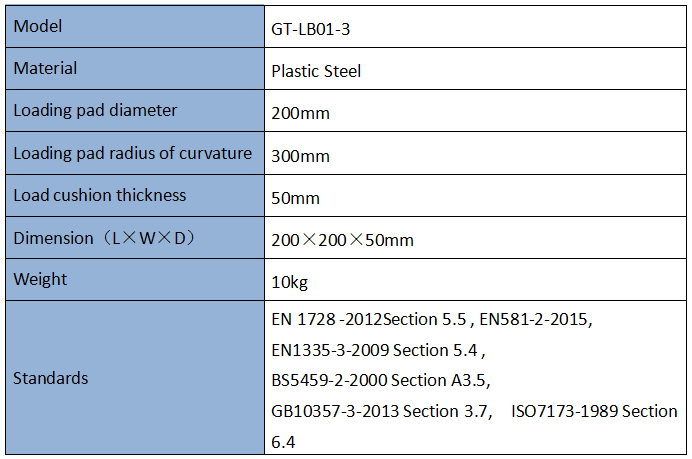

Key Specifications
Applications Industry
All kinds of seats of chair can be tested on the Smaller Seat Loading Pad
