Introduction

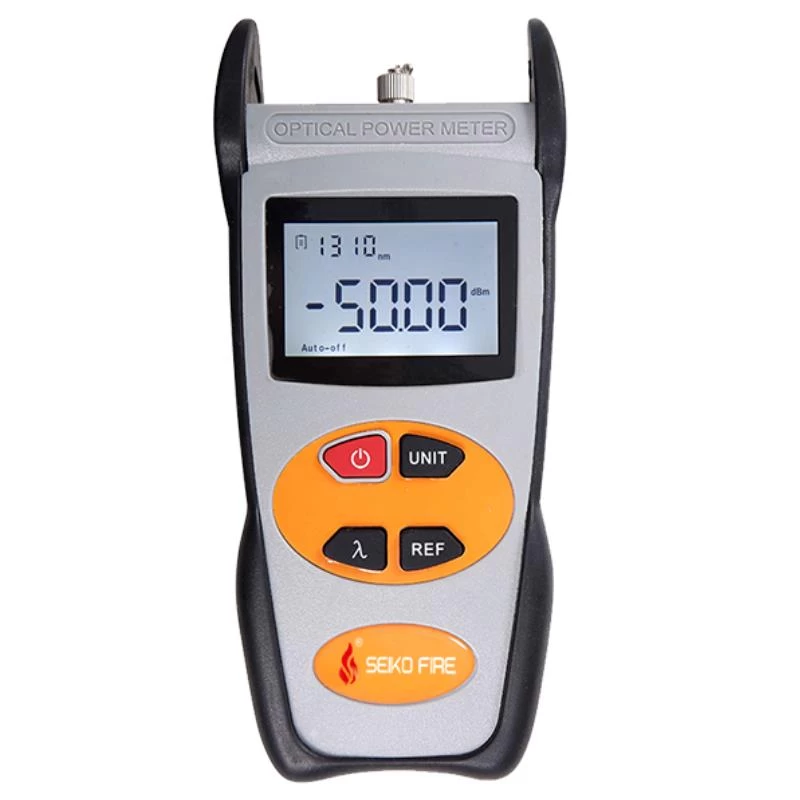

This optical power meter series is a
compact and an easy-to-use testing instrument for optical fiber networks, which
can be used for absolute optical power measurements as well as for relative
loss measurements in optical fibers. It has features of ingenious appearance,
wide range of power measurement, high accuracy with high performance-to-price
ratio.
Features
-
Comfortable LCD display and optional
backlight LCD display supports night operation.
-
Power measurements in dBm or mw and
insertion loss in dB.
-
Reference power level storage (Ref
Setting)
-
Low battery consumption, more than 240
hours continual operation time with three 1.5V alkaline batteries.
-
10 minutes Auto-off function can be
activated or deactivated.
Applications
-
Maintenance in Telecom
-
Maintenance in CATV
-
Fiber Optic Lab Testing
-
Other Fiber Optic Measurements
Specifications
|
Wavelength(nm)
|
800~1700nm
|
|
Detector
|
InGaAs
|
|
Measurement Range (dBm)
|
-70~+3
|
-50~+26
|
|
Uncertainty
|
±5%
|
|
Calibrated Wavelength(nm)
|
850,1300,1310,1490,1550,1625
|
|
Resolution(dB)
|
0.01
|
|

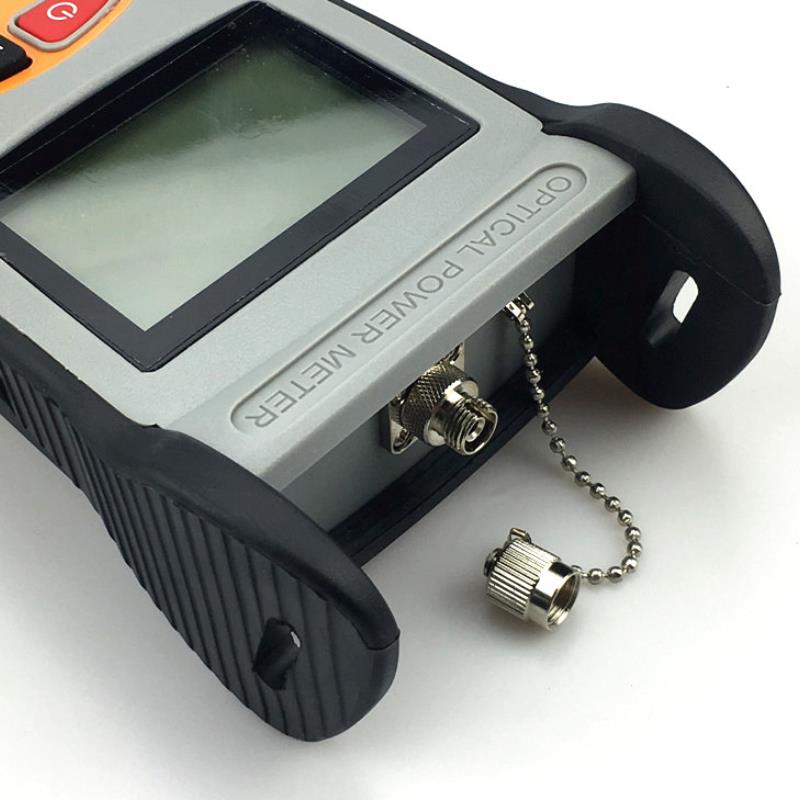

Optical Connector
|
FC(interchangeable SC,ST) / as well as
2.5mm universal
|
|
Power Supply
|
Alkaline Battery(3 AA 1.5V batteries)
|
|
Battery Operating Time
|
240 h with 1.5V Battery(3)
|
|
Operating Temperature(℃)
|
-10 ~ +60
|
|
Storage Temperature(℃)
|
-25 ~ +70
|
|
Relative Humidity
|
0 to 95% (non-condensing)
|
|
Dimension(mm)
|
200 X90 X50
|
|
Weight(g)
|
285
|
Standard Accessories
|
NO.
|
ITEM
|
|
1
|
Power meter
|
|
2
|
Manual
|
|
3
|
Protective Holster
|
|
4
|
1.5V AA battery *3 pcs
|
|
5
|
Cotton swabs
|
