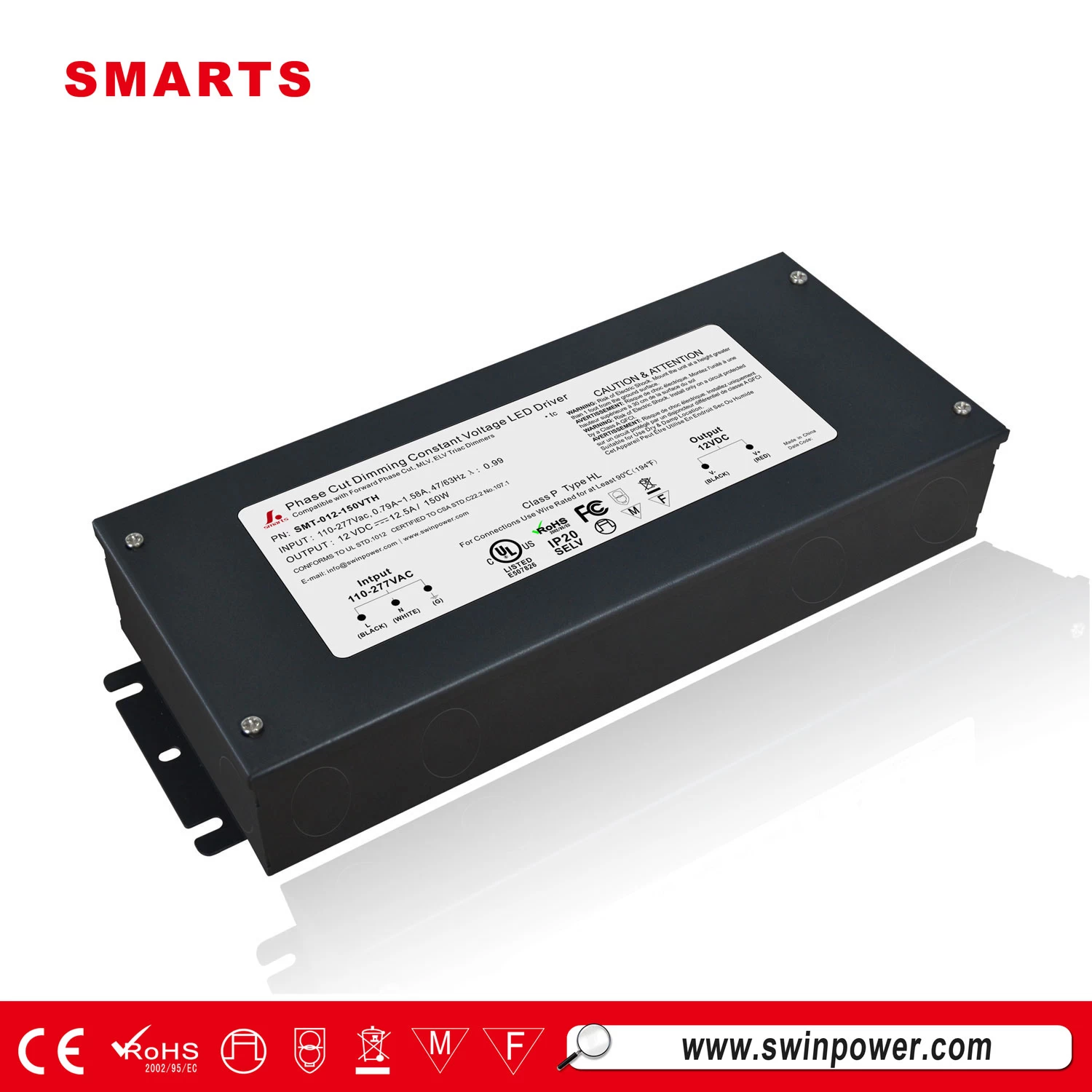

Smarts power supply 277v ac 12v 24v dc triac dimmable led driver 100w 150w 200w
12v 24v dc triac dimmable led driver are UL CE ROHS approval.we give 7 years warranty.Please try to use dimmers with power at least 1.5 times as the output power of the driver
Specification
|
Model
|
SMT-012-150VTH
|
SMT-024-150VTH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
|
Voltage Tolerance
|
±0.5V
|
|
|
Voltage Tolerance
|
±0.5V
|
|
|
Voltage Regulation
|
±0.5%
|
|
|
Rated current
|
12.5A
|
6.25A
|
|
|
Rated power
|
150W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
0.98@120VAC 0.95@277VAC
|
0.99@120VAC 0.94@277VAC
|
|
|
Full Load
Efficiency（Typ.）
|
>83%
|
>83%
|
|
|
AC Current（Typ.）
|
1.8A@110VAC
1.32A
|
|
|
Inrush Current （Typ.）
|
15A, 50%, 1.4ms
|
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
|
Over load
|
≤120% constant current limiting, auto-recovery
|
|
|
TEMP .coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
|
Over Current
|
≤1.4*I out
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz 2G 10min./1 cycle，period for 60min.each along X,Y,Z
axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≧50%load)
|
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11（Surge about 4KV）
|
|
Others
|
Weight
|
1.8Kg
|
|
|
Size
|
260*103*46mm (L*W*H)
|
|
|
packing
|
440*295*145mm ,10PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , rated
load and 25℃of ambient temperature.
2..Tolerance:includes set us tolerance,line regulation and load regulation .
|
Label
|
|
Application
All of our drivers are got ETL CE SAA ROHS listed .OEM Welcome.
Our led drivers are widely used for:
-
1.Indoor LED illuminating lights
-
2.LED Neon, LED urban Decoration
-
3.LED Lighting Advertising,LED Display
-
4.Safety Protection Apparatus
-
5.Telecommunications, Networks
-
6.Vehicle Lights, Controller Panels
Our Services
What Service we can supply??
-
1.All inquiries will be replied within 24 hours
-
2.Professional manufacturer,welcom to visit our website
-
3.OEM/ODM avaliable:
-
A.Print logo on our product;
-
B. Customized specification;
-
4.After Sales-Service:
-
A. All products will have 100% burn-in test and strictly quality test before shipping;
-
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
-
5.High efficiency,long life span,reasonable&competetative price,fast lead time;
-
6.We have our engineer team, if you have any question about your LED applications, let us know freely.
