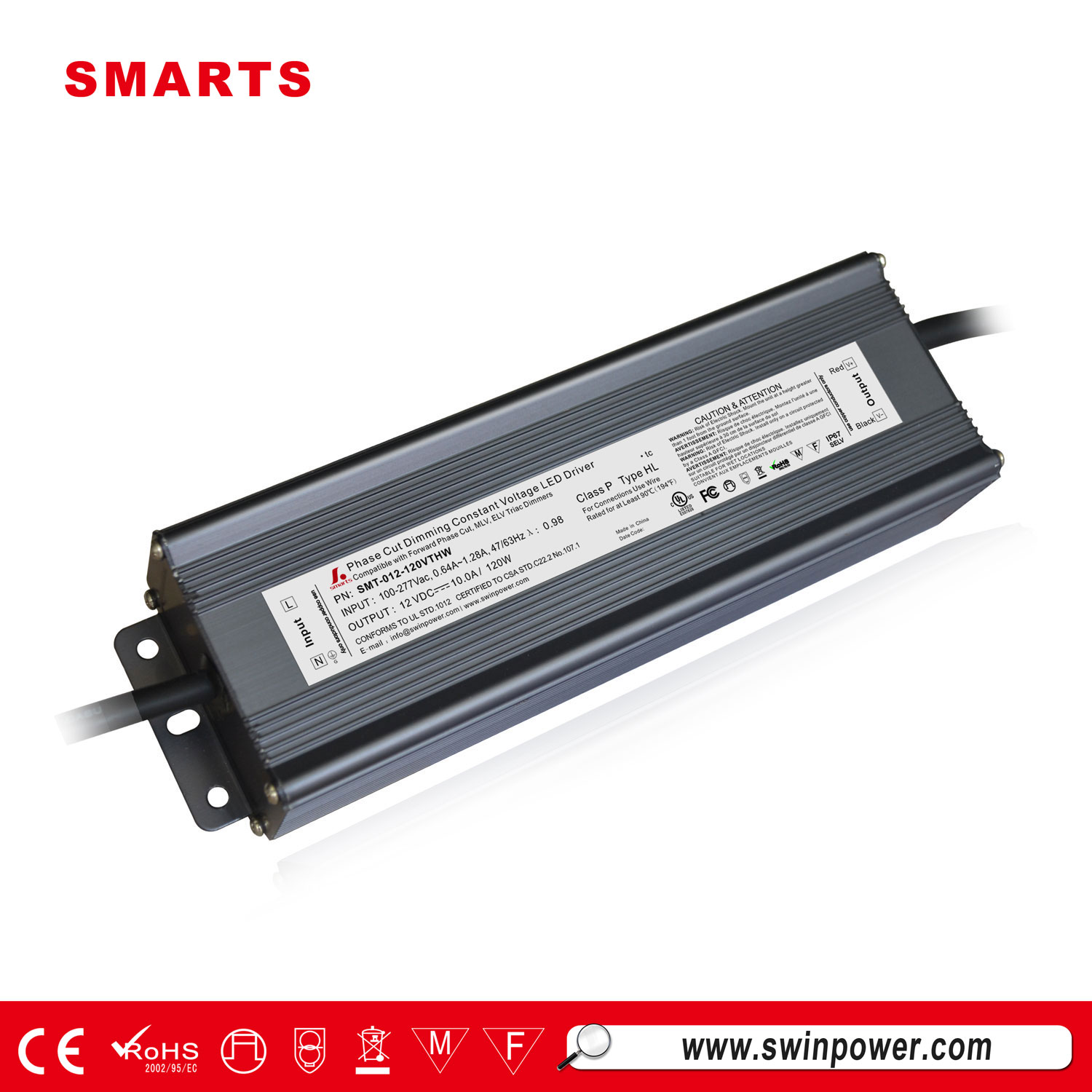

SMARTS power supply 277v ac 12vDC triac dimmable led driver 120w with ULROHS

UL listed triac dimmable led driver are our competitive product,they have got good reputations in North American market . 100w triac dimmable led driver device 12v 24v output voltage.

Size230*70*46mm
CertificationUL CE ROHS
Dimming modetriac dimming
Working Modeconstant voltage
Output Current10A
Output Voltage12v
Input Voltage100-277VAC

Facebook Twitter Pinterest LinkedIn 分享

Description

SMARTS power supply 277v ac 12vDC triac dimmable led driver 120w with UL ROHS

All the Triac dimmable led driver are Constant voltage design,and all are UL CE ROHS FCC approved.

It takes about 7 years warranty,High PF>0.90 for 86% of load or higher.All passed high,low temperature and waterproof testing.

Features

·Output constant voltage

·Input voltage range 100-277VAC

·Built-in PFC function, PF> 0.98

·Efficiency > 82% / Dimming range: 0~100% / Loading range:5~100%

Protections:short circuit/over voltage/over heat

·IP67 design for indoor or outdoor installations

·Cooling by free air convection / Flicker-free

·Work with leading edge and trailing edge TRIAC dimmers

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

Compliance to worldwide safety regulations for lightings.

·Compatible with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers

·7 years warranty

·UL/cUL listed, Class P, Type HL approval

Specification

model

SMT-012-120VTHW

SMT-024-120VTHW

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Rated current

10.00A

5.0A

Rated power

120W

120W

Input

Voltage Range

100~277V AC

Frequency Range

47～63HZ

THD(Typ.) @full load

<20%

Power Factor ( Typ.）

0.99@120VAC 0.96@277VAC

0.98@120VAC 0.96@277VAC

Full Load Efficiency(Typ.)

>82%

>82%

AC Current（Typ.）

1.71A/110VAC

Inrush Current （Typ.）

20A, 50%, 1.6ms

Leakage current

﹤0.5mA/110V

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Over Loading

≤120% constant current limiting, auto-recovery

Over voltage

≦140VAC(90~135V) , ≦270VAC(170~265V)

Environment

Working TEMP.

-40～+60℃

Working Humidity

20～90%RH,non-condensing

Storage TEM.,Humidity

-40～+80℃，10～95%RH

TEMP.coefficient

±0.03%/℃（0～50℃）

Vibration

10～500Hz，2G 10min./1 cycle，period for 60min.

each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P：100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547

Alight industry level （surge4KV）

Others

Net Weight

1.1Kg

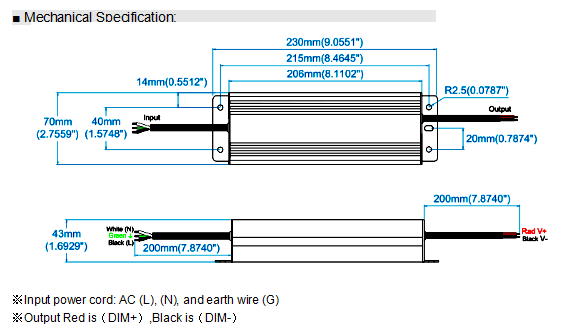

Size

230*70*43mm（L*W*H）

packing

329*279*176mm , 10PCS/ctn

Notes

1.  All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and

25℃of ambient temperature.

2.  Tolerance:includes set us tolerance,line regulation and load regulation .

Label

12v triac dimmable led driver
