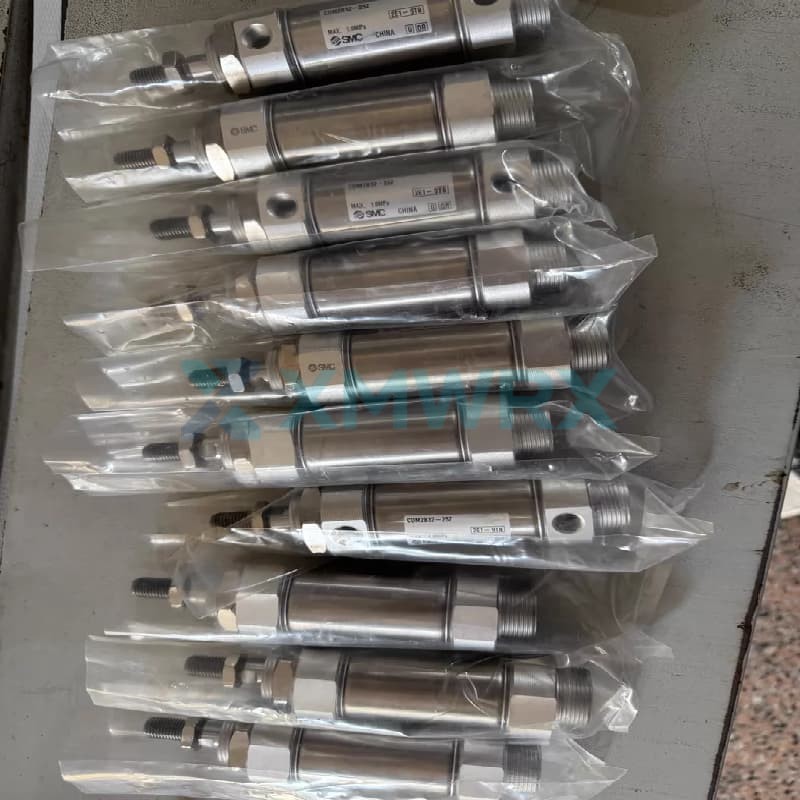

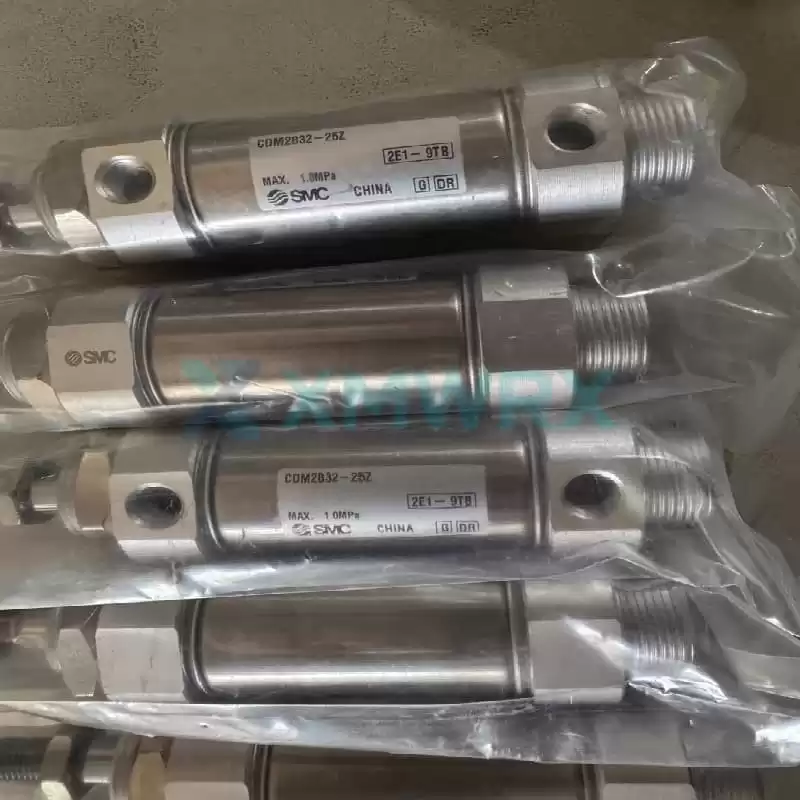

SMC CDM2B32-25Z CM2/CDM2-Z Series Aluminum Alloy Mini Cylinder

Core Features

• ✓  Double-acting pneumatic drive: Compressed air drives the piston in both directions, achieving push-pull function.
• ✓  Built-in magnetic ring: Can be used with an external magnetic switch for piston position detection and automated control.
• ✓  Standard rod end internal thread: The rod end uses a standardized internal thread for easy direct connection to the load.
• ✓  Compact and lightweight design: Aluminum alloy construction combined with a stainless steel cylinder results in a compact structure suitable for use in confined spaces.

Q: What kind of equipment is the CDM2B32-25Z suitable for?

A: This cylinder is suitable for installation in space-constrained equipment, such as automated assembly machinery, food packaging equipment, small machine tools, car wash machines, etc. Its aluminum alloy material and water-resistant design also make it suitable for environments with water or coolant splashes.

Q: Can this cylinder be used with a magnetic switch?

A: Yes. The CDM2B32-25Z has a built-in magnetic ring and can be used with small magnetic switches such as the SMC D-M9 series for piston position detection.

Q: What additional accessories are required for CDM2B32-25Z installation? How to select the rod end mount?

A: This model is a basic model and does not include rod end mounts and swing mounts, which need to be ordered separately. However, the SMC CM2-Z series offers a complete range of matching rod end mounts and swing mounts, allowing you to order everything at once and saving the hassle of purchasing them separately. The rod end has an M10×1.25 external thread. When selecting a mounting part, pay attention to matching the thread specifications.
