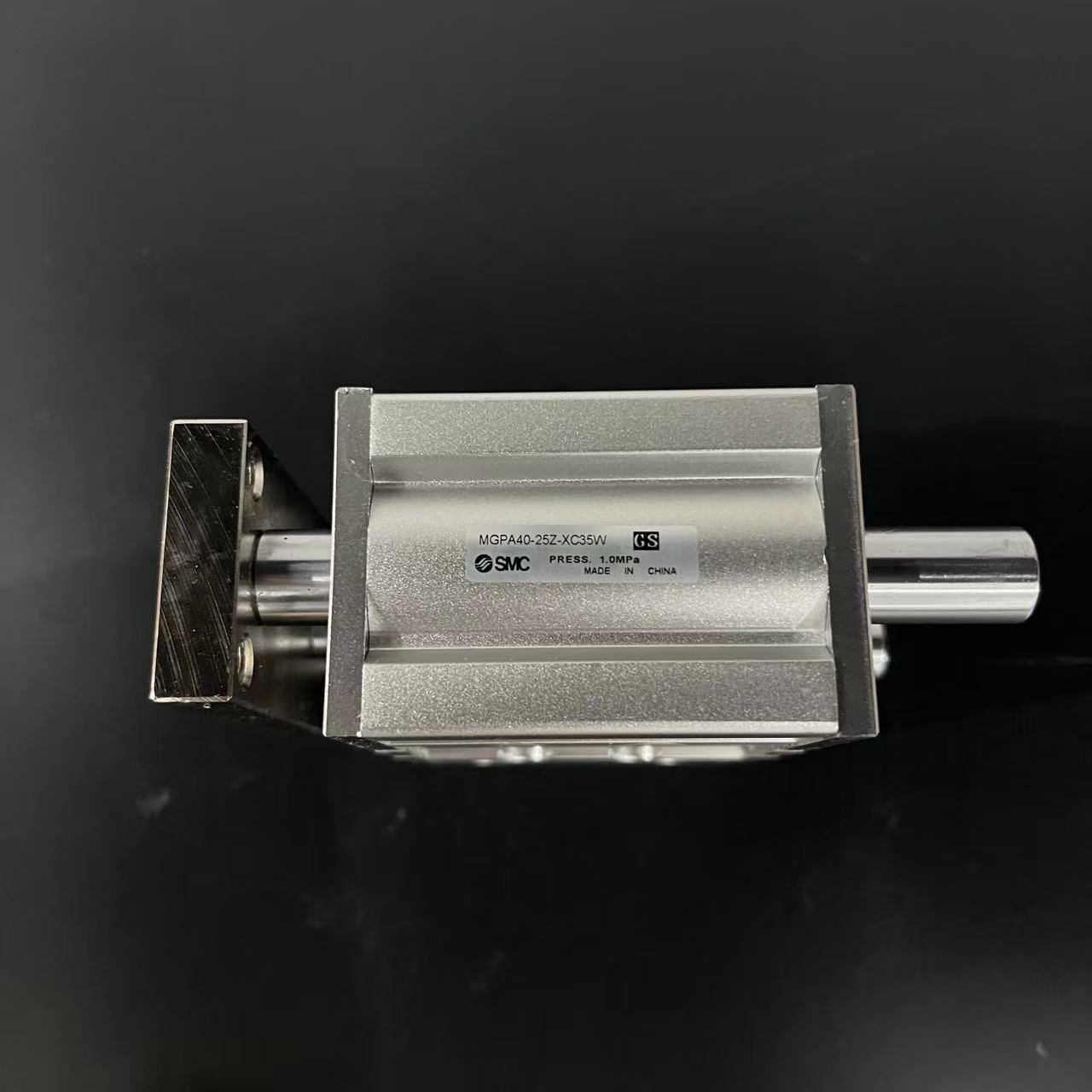

SMC MGPA40-25Z-XC35W MGP-Z Series Thin-walled cylinder with guide rod

Core Features

• ✓  Precision Guidance: Employs high-precision ball bearings as the guiding mechanism, providing excellent torque resistance and resistance to off-center loads.
• ✓  Space Saving: By shortening the guide rod length, the amount of clearance hole machining required during installation is effectively reduced, resulting in a more compact design.
• ✓  Double-Acting Drive: A single-rod double-acting cylinder, using pneumatic pressure to drive the piston in both directions.
• ✓  Easy Installation: Can be directly mounted on circular or strong magnetic field-resistant switches without additional partitions, simplifying electrical control integration.

Q: Is this cylinder suitable for dusty environments?

A: Yes. The "XC35" suffix in the model number indicates a custom specification with a single-sided metal dust seal, effectively preventing external dust and other foreign objects from entering the cylinder and extending its service life.

Q: How is its resistance to eccentric loads?

A: Very strong. It is a cylinder with a guide rod, and this model is equipped with a high-precision ball bearing, which provides better guiding accuracy and resistance to torque/eccentric loads compared to sliding bearings, making it suitable for applications that require resistance to certain lateral forces.

Q: What precautions should be taken when installing magnetic switches?

A: Very convenient. The cylinder design of this series allows for direct installation of circular or strong magnetic field-resistant magnetic switches without the need for a partition, simplifying the installation process and reducing accessory costs.
