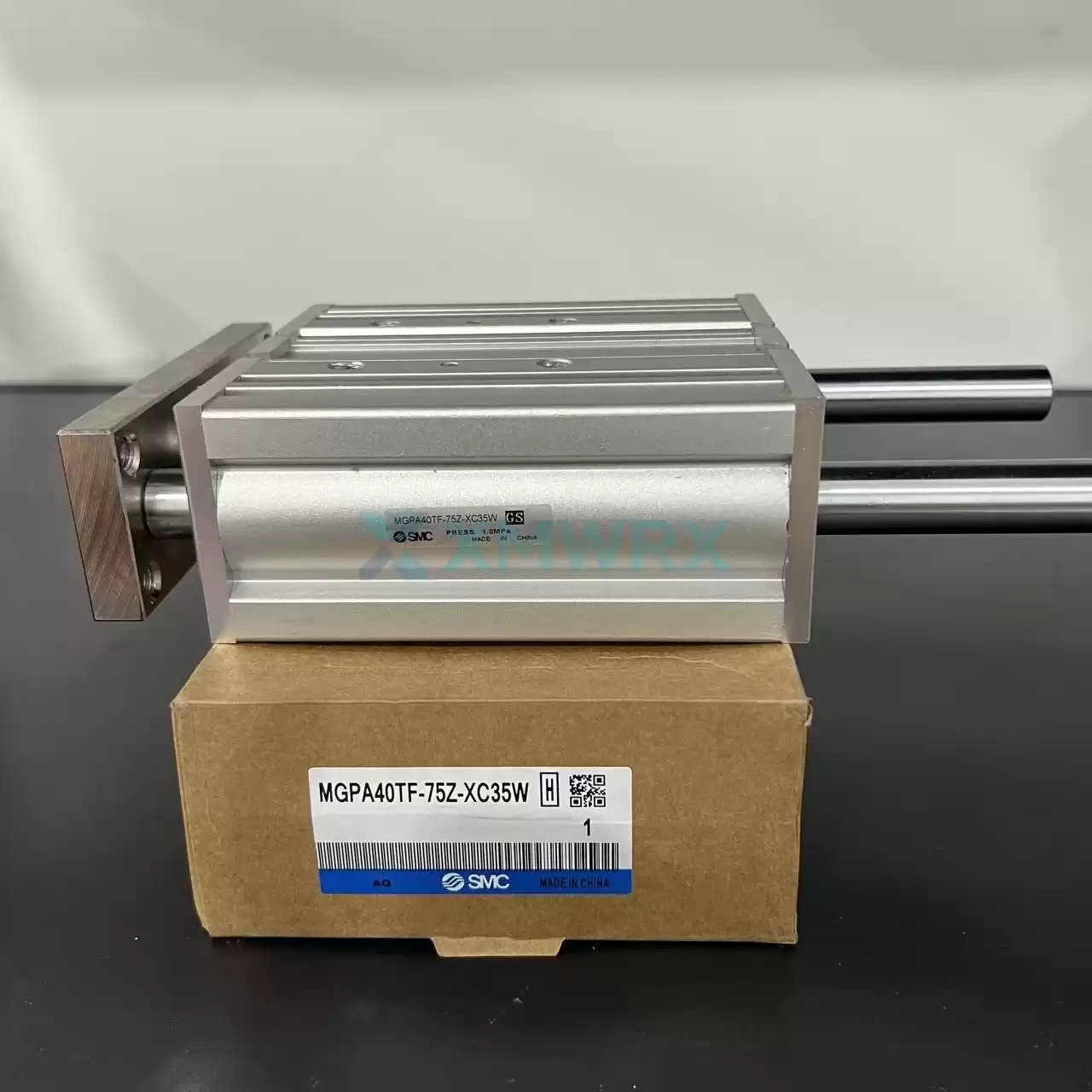

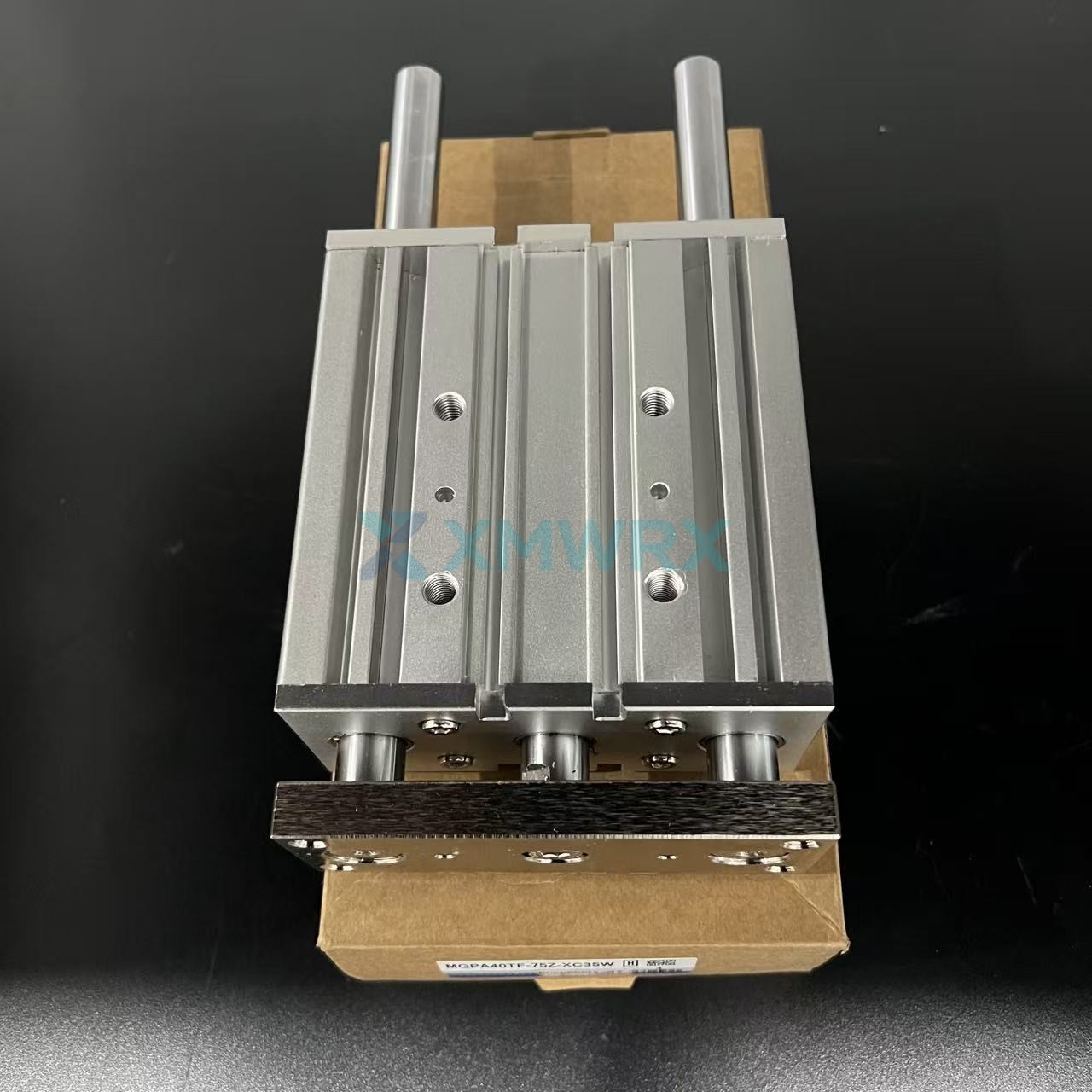

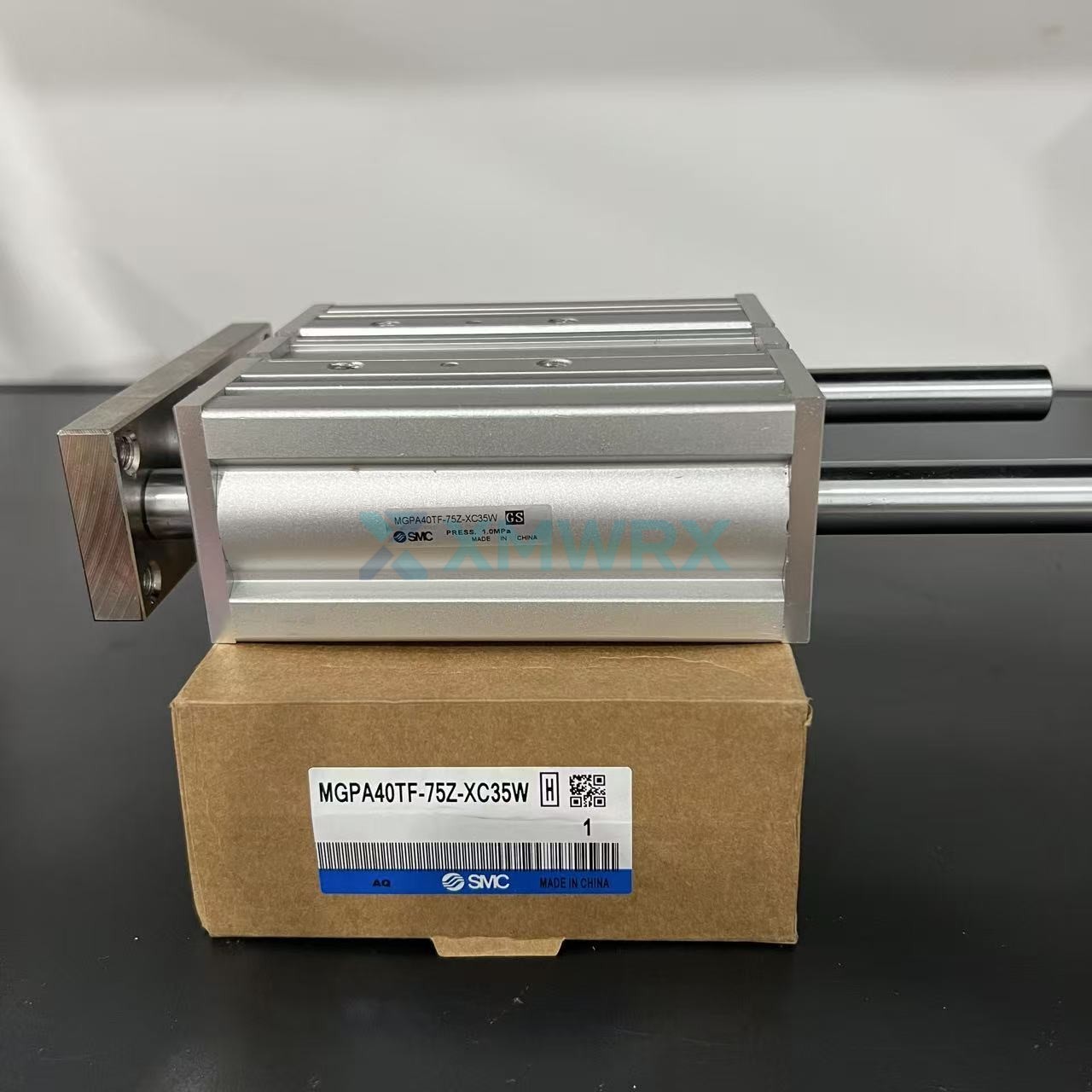

The MGPA40TF-75Z-XC35W is a thin-profile cylinder with a guide rod from SMC's MGP-Z series. It has a 40mm bore, 75mm stroke, and a double-acting design. Belonging to the MGPA-Z high-precision ball-bearing guided type, it offers excellent resistance to lateral loads and high motion accuracy.
Compared to the older MGP series, the MGP-Z series achieves up to 24% weight reduction and space savings by shortening the guide rod and changing the end plate thickness. The "F" in the model number indicates a flange-type mounting, while the suffix "XC35W" indicates a custom-designed model; further details should be confirmed in the official documentation.
100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty
Frequently Asked Questions
Q: What scenarios is this cylinder suitable for?
A: It is suitable for automated equipment requiring high-precision guidance and torsional resistance, such as material handling, lifting, and blocking positioning.
Q: What precautions should be taken when installing this cylinder?
A: Ensure a clean, dry compressed air supply and pay attention to the flatness of the mounting surface. Because the model number includes "F," it should be fixed according to the flange size diagram during installation.
Q: What are its mounting accessories and interfaces?
A: This model is flange-mounted (F), with G-threaded ports. For detailed mounting dimensions and optional magnetic switch models, please refer to the SMC official MGP-Z series catalog.
