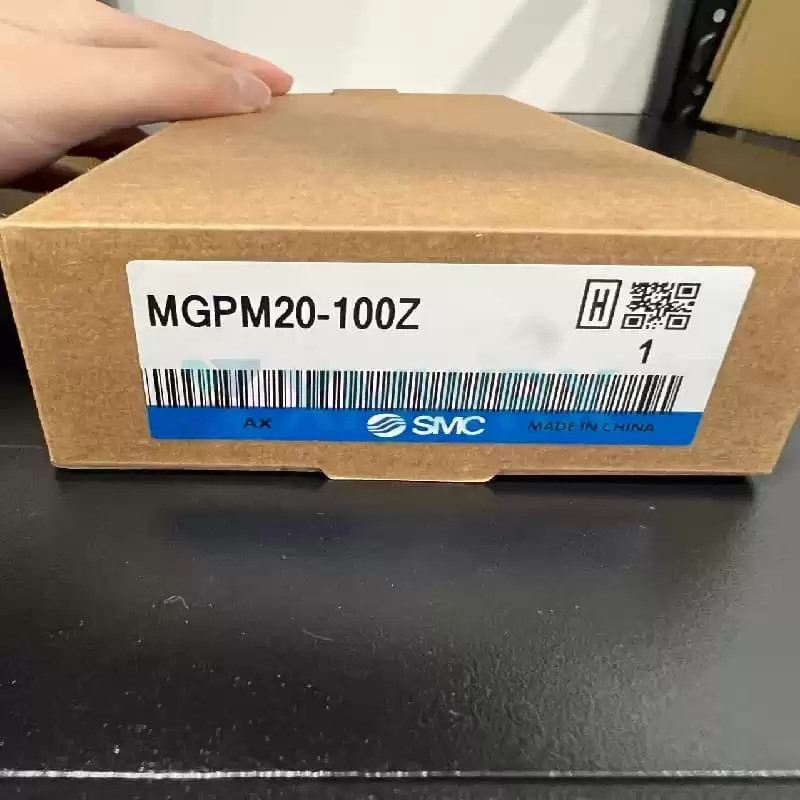

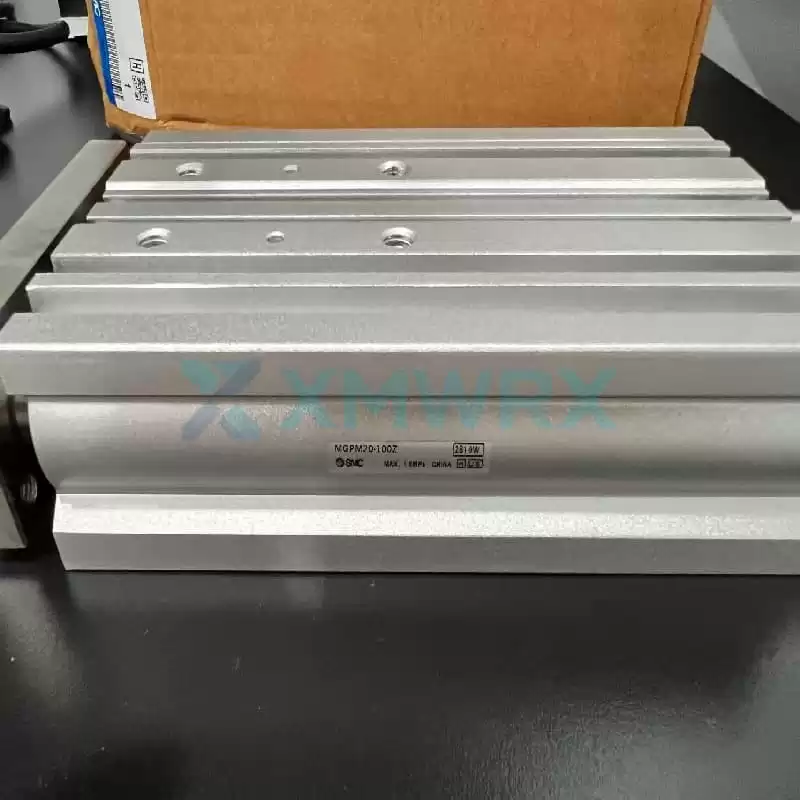

SMC MGPM20-100Z MGP-Z series Thin-film cylinders with guide rods

Core Features

• ✓  Dual-acting drive: Piston rod extension and retraction are controlled by pneumatic pressure, achieving bidirectional motion control.
• ✓  Slide bearing guidance: Utilizing slide bearings, the structure is compact and can withstand certain radial loads and bending moments.
• ✓  Adjustable speed: Piston speed can be adjusted within the range of 50-500 mm/s to adapt to different operating conditions.
• ✓  Direct-mount switch: The round magnetic switch can be directly installed without a partition, reducing parts and labor time.

Q: Can the MGPM20-100Z be used vertically?

A: Yes. When using vertically, a speed control valve must be installed to control the descent speed and prevent the cylinder from extending rapidly due to the load falling, ensuring safe and stable operation.

Q: Is it suitable for environments with water or coolant?

A: Yes. This model can be equipped with a water-resistant 2-color indicator magnetic switch, suitable for environments with water or coolant, such as factory manufacturing machinery, food manufacturing machinery, and car wash machines.

Q: What magnetic switches can it be installed with?

A: Many options are available. Round magnetic switches and strong magnetic field resistant magnetic switches can be installed directly without a partition. Recommended models include the D-M9*W series (2-color indicator solid-state switch), as well as the M9N, M9B, and Z73 series.
