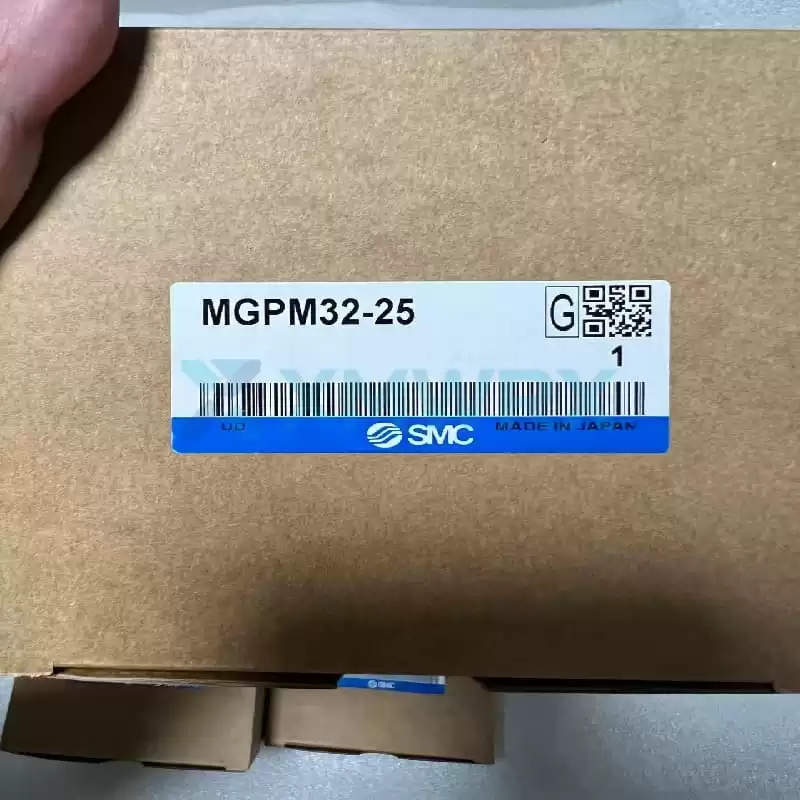

SMC MGPM32-25 MGP series Thin-film cylinders with guide rods

Core Features

• ✓  High load capacity: Built-in guide rod allows direct bearing of large lateral loads and moments, eliminating the need for additional guiding mechanisms.
• ✓  Double-acting drive: Utilizing a double-acting design, the piston rod extends and retracts via pneumatic pressure, achieving bidirectional motion control.
• ✓  Adjustable speed: Piston speed is adjustable from 50-500 mm/s to adapt to various operating conditions.
• ✓  Flexible installation: Mounting bolt holes are located on the side and bottom of the cylinder block, supporting four installation methods and allowing piping from two directions, providing strong adaptability.

Q: Can it be used for vertical lifting loads?

A: Yes, but speed control is crucial. When used vertically, a high load rate may cause rapid extension (falling). It is strongly recommended to use a dual-speed control valve to ensure safe and stable operation.

Q: Does the mounting plate need clearance holes?

A: Yes. When the cylinder retracts to its end, the guide rod will protrude beyond the mounting base. Therefore, clearance holes must be machined into the mounting plate; otherwise, interference will prevent installation.

Q: Can it directly mount magnetic switches?

A: Yes. The cylinder body has mounting grooves on both sides, allowing direct mounting of round or square contactless magnetic switches (such as models M9N, M9B, Z73, etc.) without additional partitions for piston position detection.
