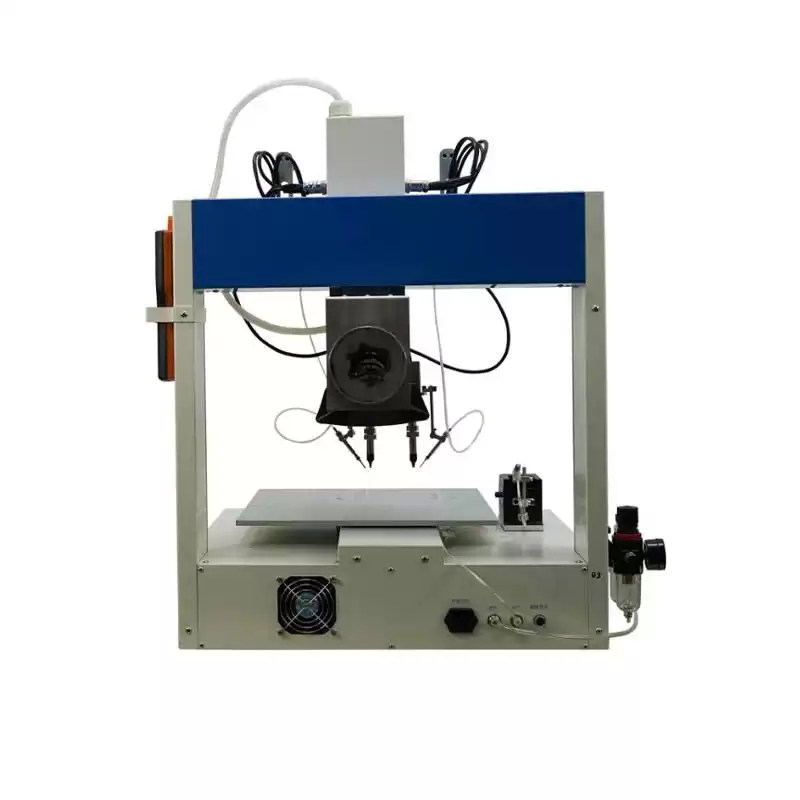

SMD Automatic PCB Robotic Soldering Machine
Automatic PCB robotic soldering machine is mainly used in the electronic manufacturing industry, mainly for reflow soldering, wave soldering and other production equipment is difficult to achieve the process and solder processing, especially suitable for mixed circuit board, thermal sensitive components, SMT back-end process in the welding of sensitive devices, widely used in PCB welding line, charger plug welding, connector welding, DC terminal tin LED light band connection and other fields. Instead of manual welding, automatic robotic soldering machine improves work efficiency and welding quality.
Automatic PCB Robotic Soldering MachineSpecs:
|
Model
|
SMTSR213
|
|
Dimension
|
680*600*730mm
|
|
Weight
|
70Kg
|
|
Control
|
PLC
|
|
Programming
|
Teaching box
|
|
Driving mode
|
Stepper motor
|
|
Stroke
|
300(X)x300(Y)x80(Z)
|
|
Soldering head
|
2
|
|
Repeatability
|
±0.02mm(X/Y/Z)
|
|
Temp. Range
|
0-500℃
|
|
Solder Wire Spec
|
￠0.3-1.6mm
|
|
Number of axes
|
4
|
|
Working pressure
|
0.4~0.6Mpa(No water mist)
|
|
Power
|
AC110V/220V 300W
|
|
Display
|
LCD
|
;
Automatic PCB Robotic Soldering Machine Features:
1. ;Flexible and diverse soldering methods, with spot welding, drag welding (pull welding) and other functions.
2. The mechanical arms of the equipment are all aluminum profiles, which are not deformed, rusted and stable.
3. Device writing work program can be point-to-point, block-to-block copy, shorten the programming time.
4. The device has an automatic cleaning function, to a certain extent stabilize the quality of solder processing and extend the life of the soldering iron tip.
5. Multi-axis linkage manipulators, all adopt precision stepping motor drive and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.
6. This automatic PCB robotic soldering machine is double head and single working place,we accept the double head and double working place and so on.
Automatic PCB Robotic Soldering MachineApplications:

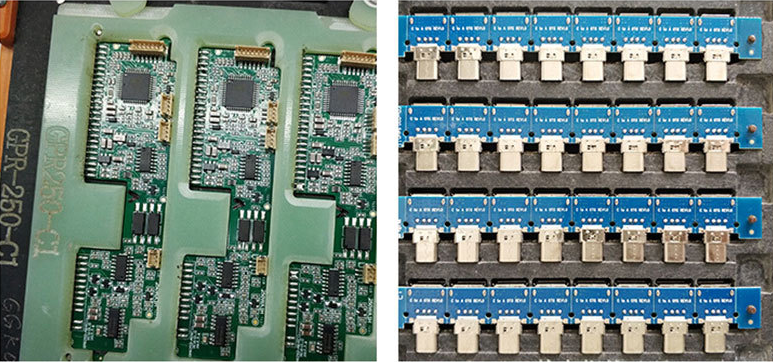

The automatic PCB robotic soldering machine ;is suitable for automotive electronics, digital, electronic, electro-acoustic, LCD, circuit board and other production industries, connectors, networks, transformers, cable, FPC / COF soldering, computer motherboards, CABLE, speakers and motors high quality soldering.

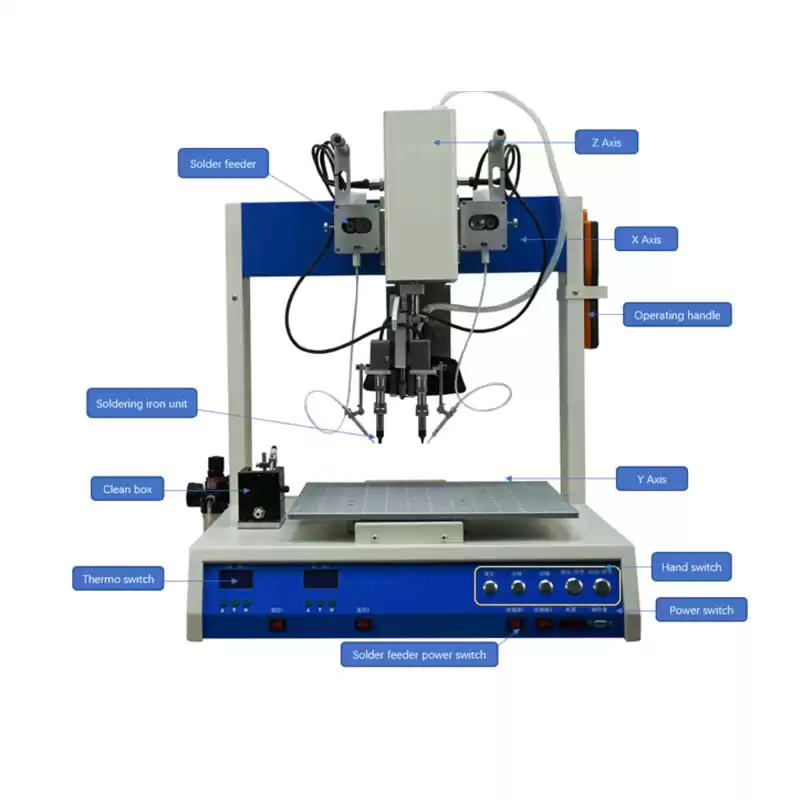

Automatic PCB Robotic Soldering MachineConfiguration:

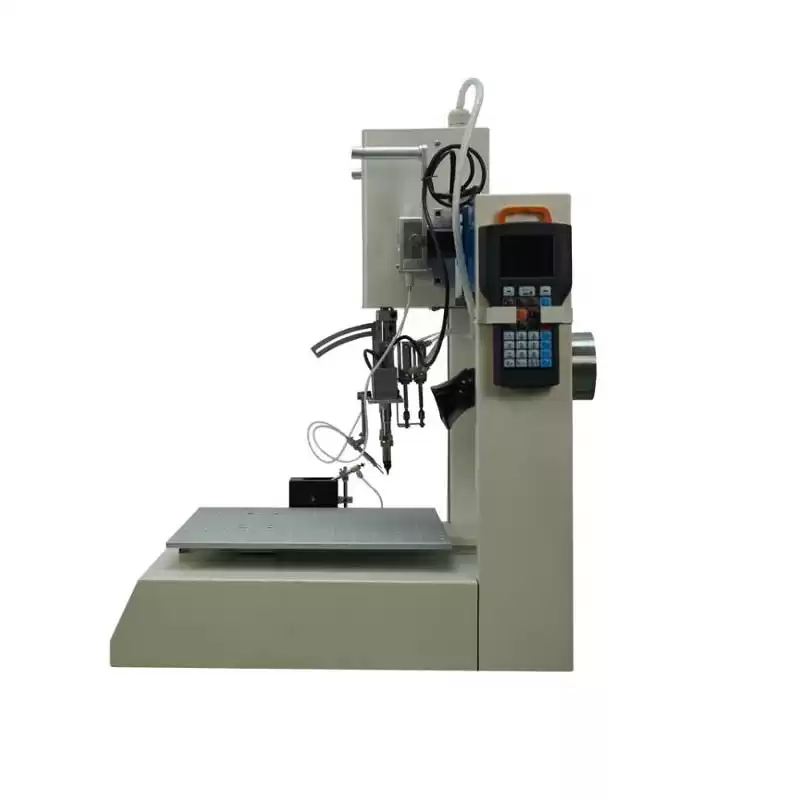

1. ;Handheld teach programmer
2. ;Heating controller
3. ;Broken tin controller
4. ;Soldering tip
5. ;Tin out components
6. ;Smoke purification filter system (optional)
Automatic Robotic Soldering Machine Spare Parts Available:
1. Customized soldering tips
2. Heater
3. Customized fixture
4. Solder wire
5. Soldering head set
; ;
; ;
Our Service:
1. Guarantee for 12 months.
2. Maintenance for whole life.
3. We ;will ;provide ;the ;consumable ;parts ;at ;an ;resonable price.
4. 24 ;hours x 7days online ;service, ;free ;technical ;support.
5. Machine ;has ;been tested before ;delivery.
6. We ;have ;manual ;instruction ;and Guiding ;Videos for installation, ;operation ;and machine's ;using ;and ;maintenance.
7. Oversea on-site installation and trainning is available.
8. Vacuum & wooden case packaging is provided free of charge for sea shipment.
