SMD Crystal Oscillators POSC1612

Features

1612 size, 0.5mm high. Ultra miniature and lightweight SMD SPXO

3-state function

EC-Q 100compliant

Supply Voltage: 1.8V/ 2.5V/ 2.8V/ 3.0V/ 3.3V

Available frequency range: 0.584375~80MHz

Available up to 80MHz by using AT cut fundamental resonator

Low jitter provides for high performance


Applications

PC, PDA, PND, DSC, DVD, DVC, HDD

Smartphone, WiLAN, WiMAX, Bluetooth

PC peripherals gaming equipment

Wearable devices

Facebook Twitter Pinterest LinkedIn 分享


Electrical Parameters

No. Item Symb. Electrical Specification Remark
Min. Type Max. Units
1 Nominal Frequency F0 32 MHz
2 Frequency Stability -30 30 ppm All condition*
3 Operating Temperature Range TOPR -40 85 ℃
4 Storage Temperature TSTG -55 125 ℃
5 Power supply Voltage VDD 2.97 3.3 3.63 V
6 Aging Per Year Fa -5 5 ppm First Year
7 Supply current Ic 30 mA
8 Output symmetry Sym 40 60 %
9 Rise time Tr 7 ns 10%~90%VDD
10 Fall time Tf 7 ns 90%~10%VDD
11 Output voltage VOH 90% VDD
VOL 10% VDD
12 Output load HCMOS LOAD 15 PF
13 Start up time 10 mS
14 Pin 1, tri-state function pin 1=H or open......output active at pin 3
pin 1=L......high impedance at pin 3
15 Package type POSC1612

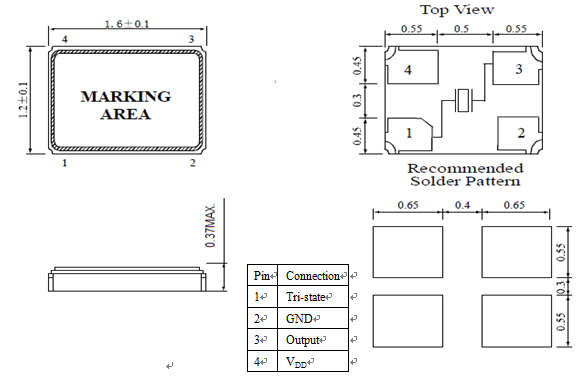

Dimensions

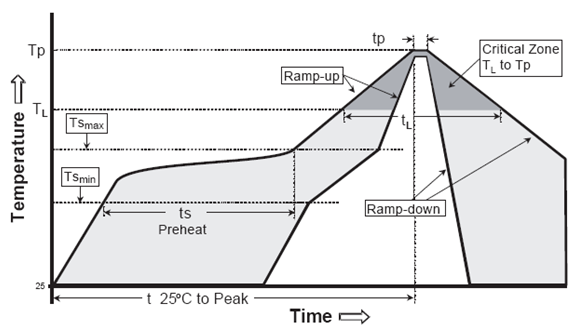

Reflow

Profiles Feature Pb-Free Assembly
Average Ramp-up Rate (Ts max to Tp) 3℃/second max.
Preheat
■  Temperature Min (Ts min)
■  Temperature Max (Ts max)
■  Time (ts min to ts max) 		125℃
200℃
60~180 seconds
Time maintained above
■  Temperature (TL)
■  Time (tL) 		217℃
60~150 seconds
Peak/Classification Temperature (Tp) 260℃
Time within 5℃ of actual Peak
Temperature (tp) 		20~40 seconds
Ramp-down rate 6℃/second max.
Time 25℃ to Peak Temperature 8 minutes max.
Suggest reflow times 3 Times max
