SMD Crystal Oscillators POSC3225

Features

Low current consumption 3-state function

General purpose +5.0V HCMOS oscillator

Optimized characteristic for single gate drive/lower

Loading conditions


Applications

PC, Peripherals, Visual, FA equipment applications

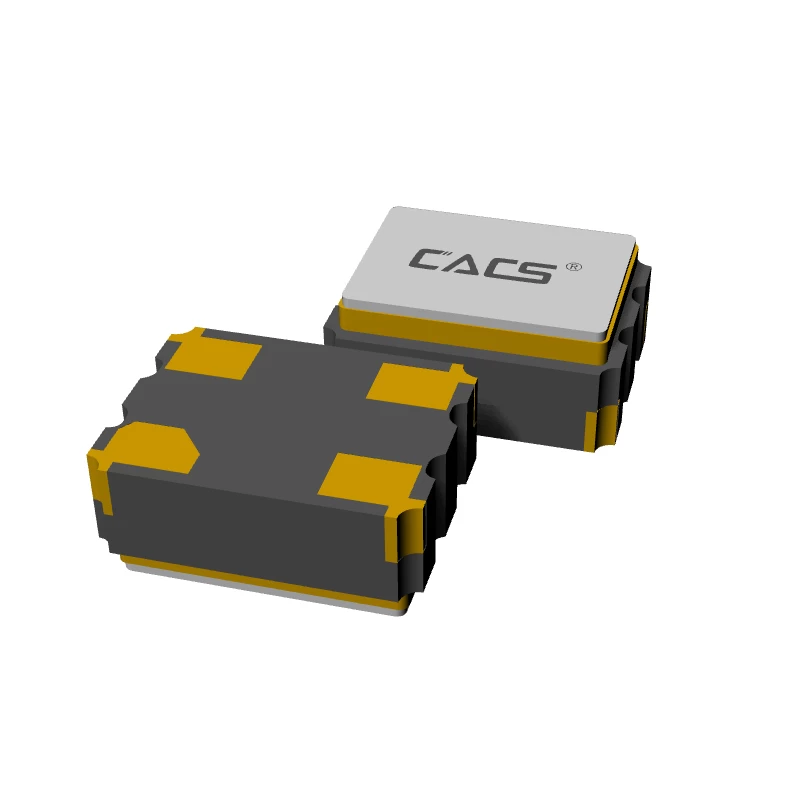

Typical 3.2×2.5×1.1mm ceramic SMD crystal oscillator

1. tight symmetry(45 to 55%)available

2. operation voltage: 1.8V,2.5V,3.3V; Tri-state enable/disable

3. Typical application: WLAN/WiMax,Mobile phone,DSC,Set-top box,HDTV


Electrical Parameters

Item Symb. Electrical Specification Remark
Min. Type Max. Units
Nominal Frequency F0 1.544~125.000 MHz
Frequency Stability  ±10~±30 or specify Ppm All condition*
Operating Temperature Range TOPR -10~60  -20~70 -40~85
Storage Temperature TSTG -40 125
Power supply Voltage VDD 1.8~5.0±10% V
Aging Per Year Fa -5 5 ppm First Year
Supply current Ic 10~30 mA
Output sy Sym 40 60 %
metry
Rise time Tr 10 Ns 10%~90%VDD
Fall time Tf 10 Ns 90%~10%VDD
Output voltage VOH 90% VDD
VOL 10% VDD
Output load HCMOS LOAD 15  30 PF
Start up time 10 mS
Pin 1, tri-state function pin 1=H or open......output active at pin 3
pin 1=L......high impedance at pin 3
Fan Out  Type COMS/HCOMS/LVCMOS
Package type POSC3225

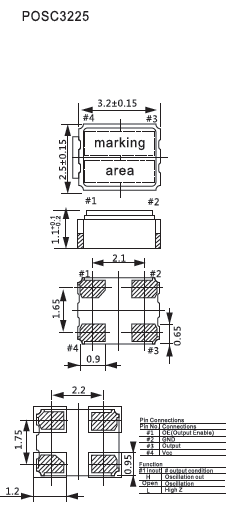

Dimensions

Crystal Oscillators MHz
