SMD Crystal Oscillators POSC5032

Features

Low current consumption 3-state function

General purpose +5.0V HCMOS oscillator

Optimized characteristic for single gate drive/lower

Loading conditions


Applications

PC, Peripherals, Visual, FA equipment applications



Typical 5.0×3.2×1.2mm ceramic SMD crystal oscillator

1. tight symmetry(45 to 55%)available

2. operation voltage:1.8V,2.5V,3.3V; Realize the Standby function with Tri-state enable

3. Typical application: GPS, Mobile phone, WLAN, Wireless,Fiber/10Gbit Ethernt,Notebook,PDA,DSC


Electrical Parameters

Item Symb. Electrical Specification
Min. Type Max. Units
Nominal Frequency F0 1.544~125.000 MHz
Frequency Stability  ±10~±30 or specify ppm
Operating Temperature Range TOPR -10~60  -20~70 -40~85
Storage Temperature TSTG -55 125
Power supply Voltage VDD 1.8~5.0±10% V
Aging Per Year Fa -5 5 ppm
Supply current Ic 16~70 mA
Output s Sym 45 55 %
mmetry
Rise time Tr 10 ns
Fall time Tf 10 ns
Output voltage VOH 90% VDD
VOL 10% VDD
Output load HCMOS LOAD 15  30  50 PF
Start up time 10 mS
Pin 1, tri-state function pin 1=H or open......output active at pin 3
pin 1=L......high impedance at pin 3
Fan Out  Type COMS/HCOMS/LVCMOS
Package type POSC5032

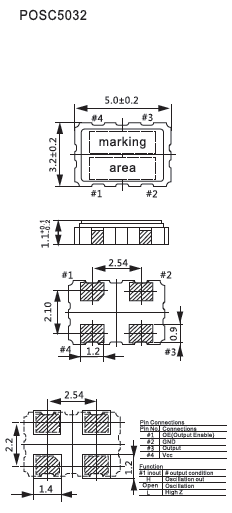

Dimensions
Crystal Oscillators MHz
