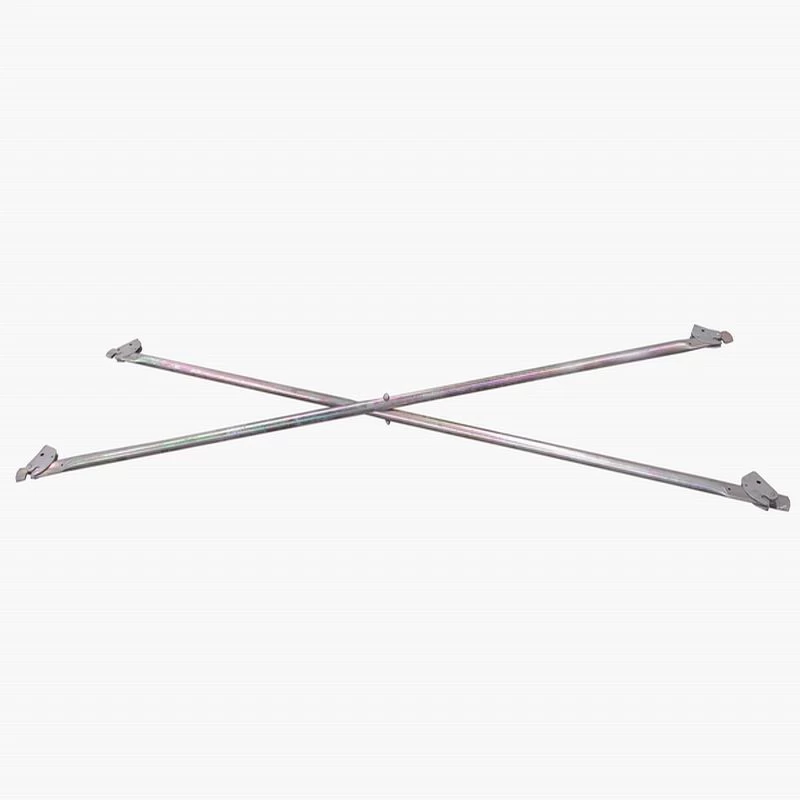

Snap On Cross Brace / X-Braces for Scaffolding Frames
Features:
* They are used for Snap on Lock Frame Scaffolding Only.
* They are made by dia. 1" x 0.071"t (O.D25.4x1.8mm) pre-galvanized tubes, or made by black tubes and then do electric galvanized. Various lengths are available.
* No cracking at two ends atfer punching.
* Long lasting from being rusted.
* Save much cost, cheaper than hot dip galvanized
|
Code
|
Size BxA (Metric)
|
Size BxA (Imperial)
|
Weight(kg)
|
Weight(lbs)
|
|
BRSO.104
|
3048x1219mm
|
10'x4'
|
7.41
|
16.34
|
|
BRSO.103
|
3048x914mm
|
10'x3'
|
7.20
|
15.88
|
|
BRSO.1034
|
3048x864mm
|
10'x34"
|
7.17
|
15.81
|
|
BRSO.1032
|
3048x813mm
|
10'x32"
|
7.15
|
15.77
|
|
BRSO.102
|
3048x610mm
|
10'x2'
|
7.05
|
15.55
|
|
BRSO.101
|
3048x305mm
|
10'x1'
|
6.96
|
15.35
|
|
BRSO.84
|
2438x1219mm
|
8'x4'
|
6.26
|
13.80
|
|
BRSO.83
|
2438x914mm
|
8'x3'
|
6.01
|
13.25
|
|
BRSO.82
|
2438x610mm
|
8'x2'
|
5.82
|
12.83
|
|
BRSO.74
|
2134x1219mm
|
7'x4'
|
5.71
|
12.59
|
|
BRSO.742
|
2134x1067mm
|
7'x42"
|
5.56
|
12.26
|
|
BRSO.73
|
2134x914mm
|
7'x3'
|
5.43
|
11.97
|
|
BRSO.734
|
2134x864mm
|
7'x34"
|
5.39
|
11.88
|
|
BRSO.732
|
2134x813mm
|
7'x32"
|
5.35
|
11.80
|
|
BRSO.72
|
2134x610mm
|
7'x2'
|
5.22
|
11.51
|
|
BRSO.71
|
2134x305mm
|
7'x1'
|
5.09
|
11.22
|
|
BRSO.64
|
1829x1219mm
|
6'x4'
|
5.18
|
11.42
|
|
BRSO.62
|
1829x610mm
|
6'x2'
|
4.62
|
10.19
|
|
BRSO.54
|
1524x1219mm
|
5'x4'
|
4.67
|
10.30
|
|
BRSO.53
|
1524x914mm
|
5'x3'
|
4.31
|
9.50
|
|
BRSO.534
|
1524x864mm
|
5'x34"
|
4.26
|
9.39
|
|
BRSO.532
|
1524x813mm
|
5'x32"
|
4.21
|
9.28
|
|
BRSO.52
|
1524x610mm
|
5'x2'
|
4.03
|
8.89
|
