SNMP Protocal Lithium 48V 40Ah Deep Cycle Battery for Telecommunication Power Station

Long lifetimes - 6000 cycles @85% DOD (dependant on actual DOD, usage & temp.) and low self-discharge rate

A self-designed BMS protects the cell from overcharge, over-discharge, over current, short circuit .





Product Name

SNMP Protocal Lithium 48V 40Ah Deep Cycle Battery for Telecommunication Power Station




48v battery bank solar system


Highlights

  • Long lifetimes - 6000 cycles @85% DOD (dependant on actual DOD, usage & temp.) and low self-discharge rate
  • Easily scalable and stackable 2.5kWh modules - up to 200kWh in a single installation
  • A self-designed BMS protects the cell from overcharge, over-discharge, over current, short circuit .
  • Built-in accessible 125A DC breaker On/Off switch - increases safety .
  • Communication Protocol: Optional RS232/RS485
  • Simple rack-based installation system
  • LCD display available

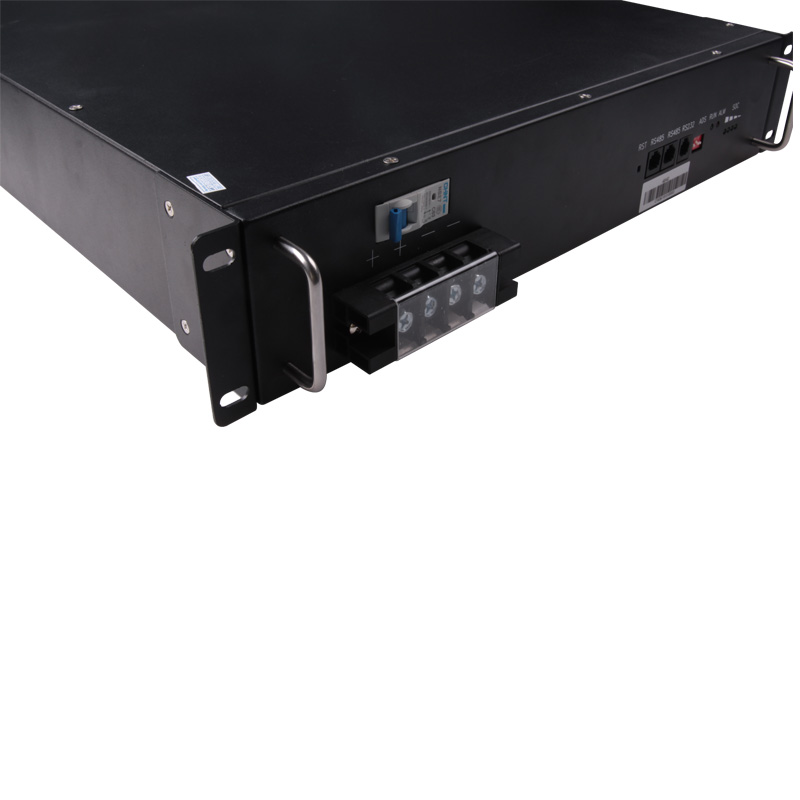

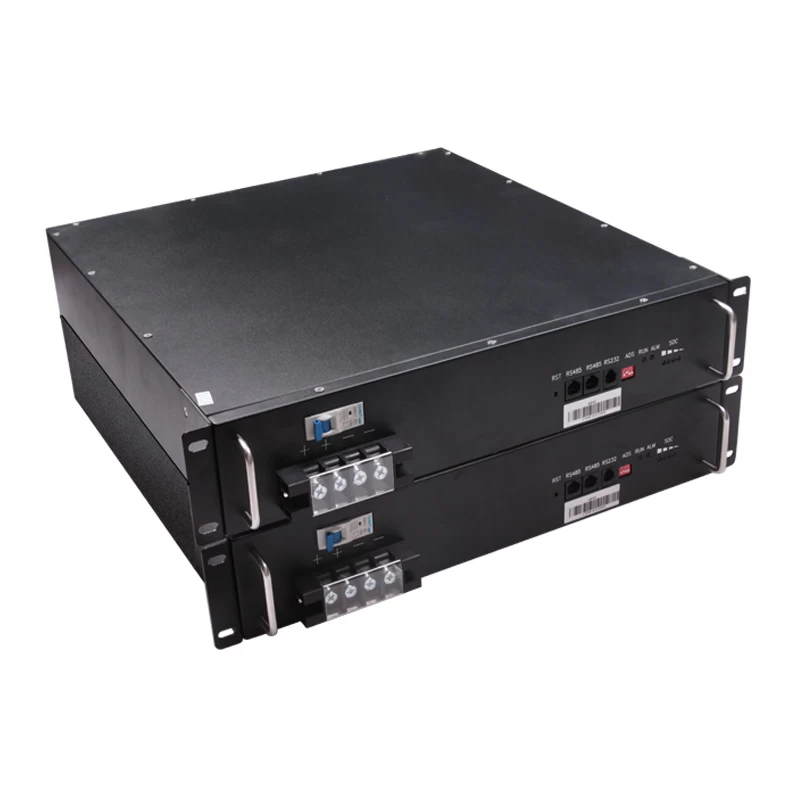

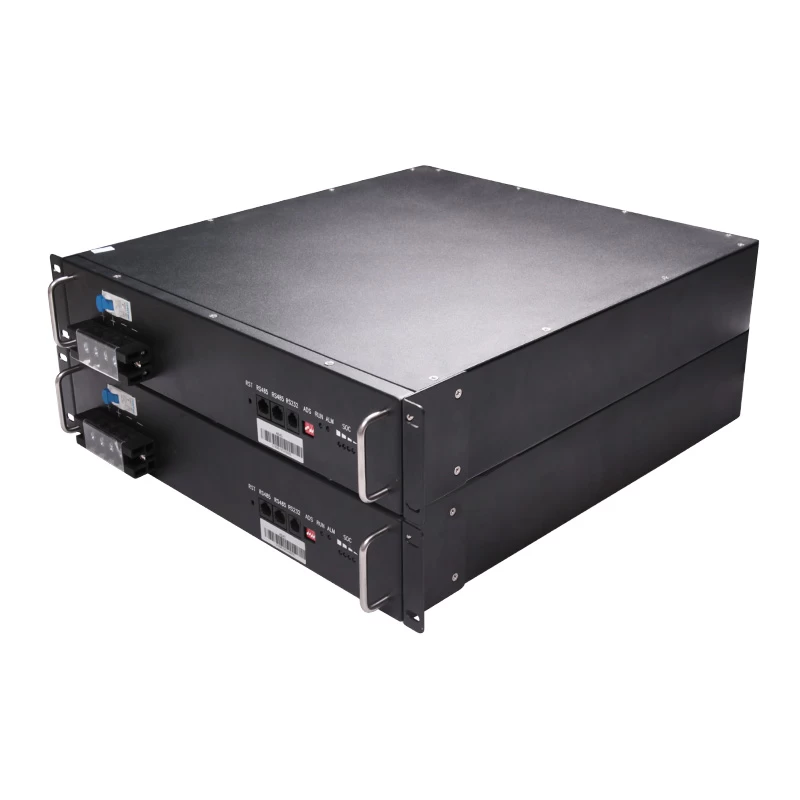

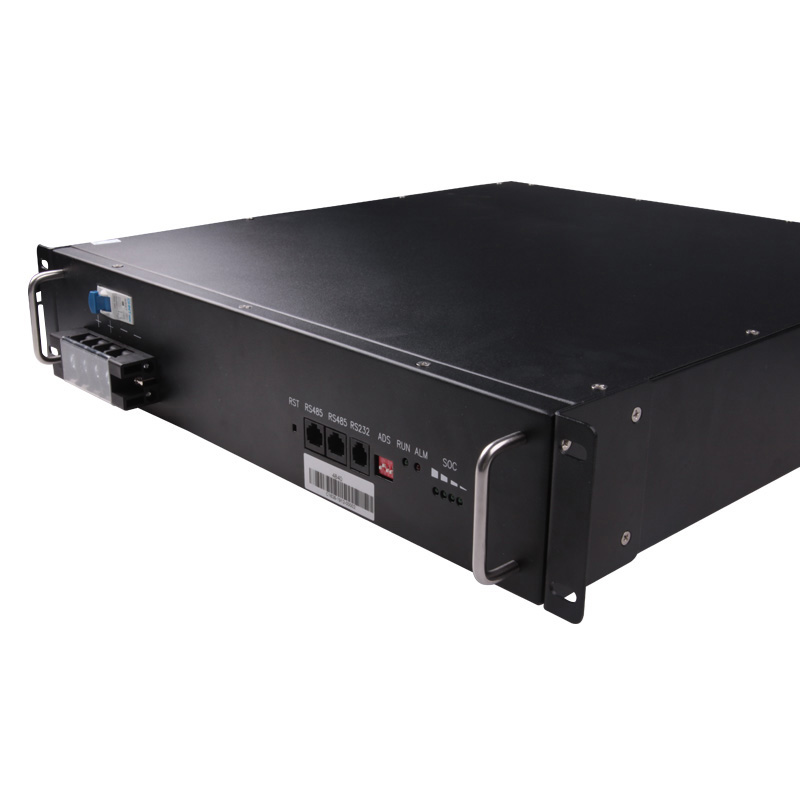

48V 40Ah 1.92KWh ESS Solar Systems Picture as Below

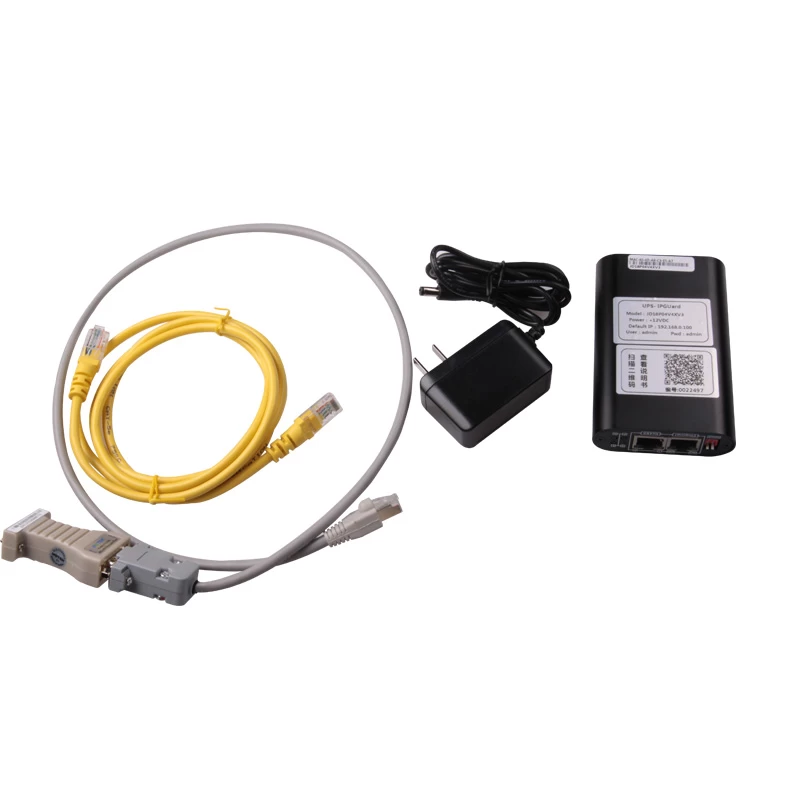

SNMP PROTOCAL AVAILABLE

SNMPv3 is a security model in which an authentication strategy is set up for a user and the group in which the user resides. Security level is the permitted level of security within a security model

The SNMP Version 3 feature provides secure access to devices by authenticating and encrypting data packets over the network. Simple Network Management Protocol version 3 (SNMPv3) is an interoperable, standards-based protocol that is defined in RFCs 3413 to 3415. This module discusses the security features provided in SNMPv3 and describes how to configure the security mechanism to handle SNMP packets.



Our 48v 40Ah solar battery pack is scalable energy storage from 2.5 to 200 kWh

Specification for LiFePO4 solar 48v 50Ah 2.5KWH System


MODEL

OSN-ESS-4840L

PERFORMANCE

Rated Capacity (5hr)

40 Ah

Nominal Voltage

48 V

Discharge Ending Voltage

40.88 V

Charging Limited Voltage

54 V

Max. Charging Current

40.0 A

Max. Continuous Discharging Current

40.0 A

Parallel Connection

Optional (up to 16P). When paralleling Max. charging current = 20A

Containing Cell

3.2V LiFePO4 Cell

Design Life

More than 10 years

Cycle Life

6000 cycles @85% DOD (dependant on actual DOD, usage & temp.)

Discharge Rate

1C

Response Time

> 1ms

MECHANICAL SPECIFICATIONS

Dimensions (W*D*H)

480* 450 * 89 mm

Weight

25.5Kg

Enclosure

3U steel enclosure with protection handles

Communication Ports (LFP-48-50S only)

RS485 RS232 & SNMP available

OTHER

Operating Temperature

Charging: 0 to +45°C Discharging: -20 to +60°C

Storage Temperature

-20 to +60°C

Humidity

5% to 95% Relative Humidity (Non-condensing)

Warranty

5 years


Other Features

-Safe and scalable

OSN LFP battery modules are a practical and economical battery system based on Lithium-iron-phosphate technology (LFP or LiFePO4).

Available in standard 2.5kWh modules, the LFP battery modules can be easily scaled in multiples up to 200kWh in a single installation, making them suitable for a range of applications.

-Efficient

OSN's LFP battery modules feature a round-trip efficiency of 92%, low self discharge rate of 3+ years, and unlike traditional lead acid battery.


Application:

Home Solar Energy Storage
