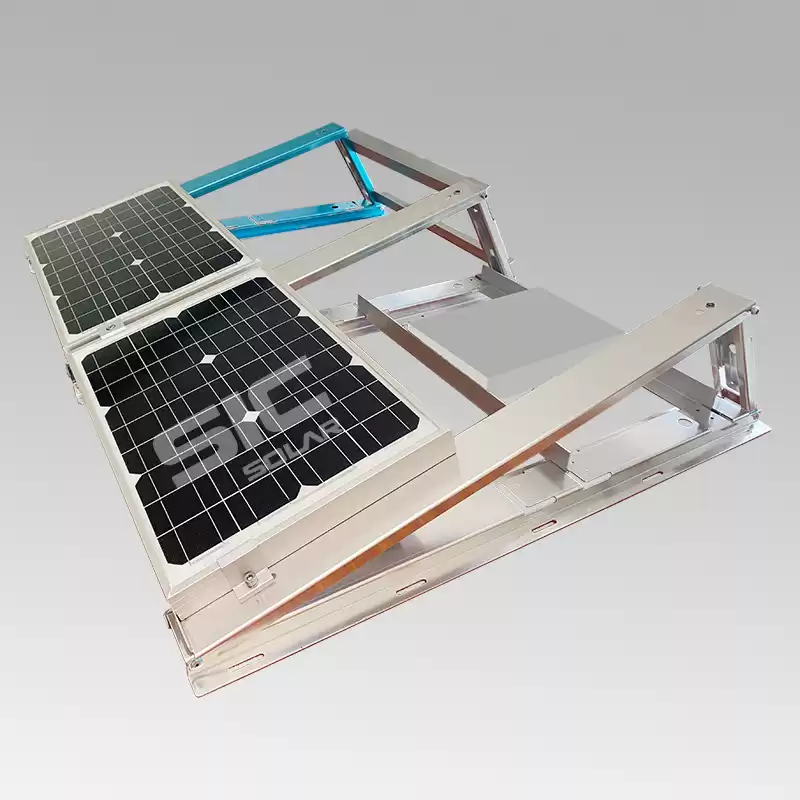

Solar ballasted single face structure

Flat Roof Ballast Mounting Structure is made of 100% aluminum profile.


  • Snow Load<1.4KN/M2
  • Wind Load<60M/S
  • Warranty10 years and 25 years service time
  • MaterialAL6005-T5 & SUS304
  • ColorNature
  • Installation SiteFlat roof or ground

Ballasted solar mounting made in china



Ballasted solar racking could be fixed on ground or flat concrete roof by ballast directly. The ballast could be putted in the bottom or on the back side. Fixed or adjustable angle could be offered.


Ballast racking system



Category: Flat roof mounting


Installation Site

Flat roof or Ground

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

Aluminum 6005-T5 & Stainless Steel 304

Color

Natural or Customized

Anticorrosive

Al6005-T5 & stainless steel

Warranty

10 years and 25 years service time

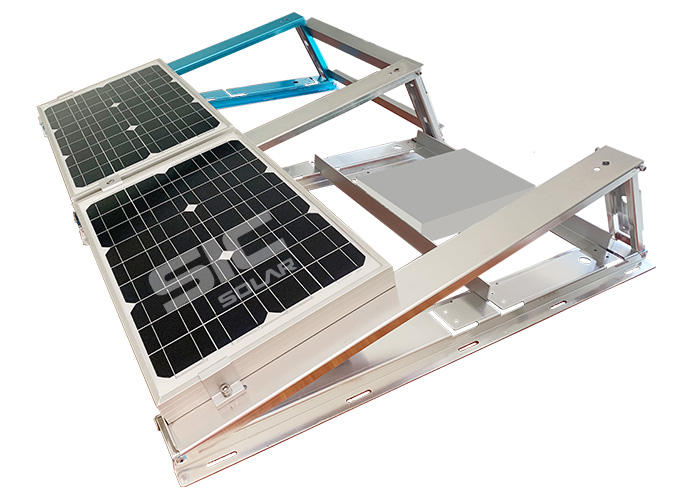

Ballast mount solar

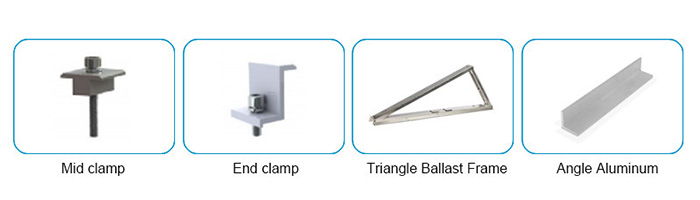

Ballast mounting components

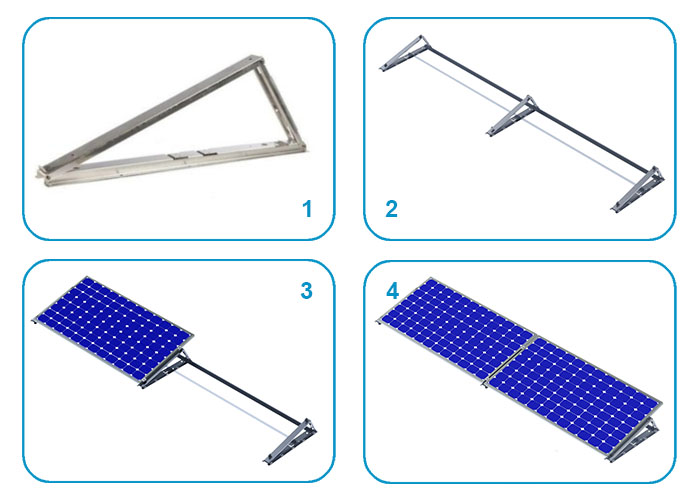

solar ballast installation

1. Fix the pre-assembled triangle ballast frame by one bolt, M6*80.

2. Put the triangle ballast mount according to our drawing, and connect them by angle aluminum.

3. Fix the solar panel on the ballast mounting structure by clamps.

4. Put the ballast, Finished.



Advantages as follow:

☆ Easy to use - Only 4 Components.

☆ 100% Aluminum profile is anti-corrosion, and light for installation.

☆ Pre-assembled ballast frame  – highly save the labor cost at your installation site.

☆ Adjustable angle could also be provided.


Related certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.

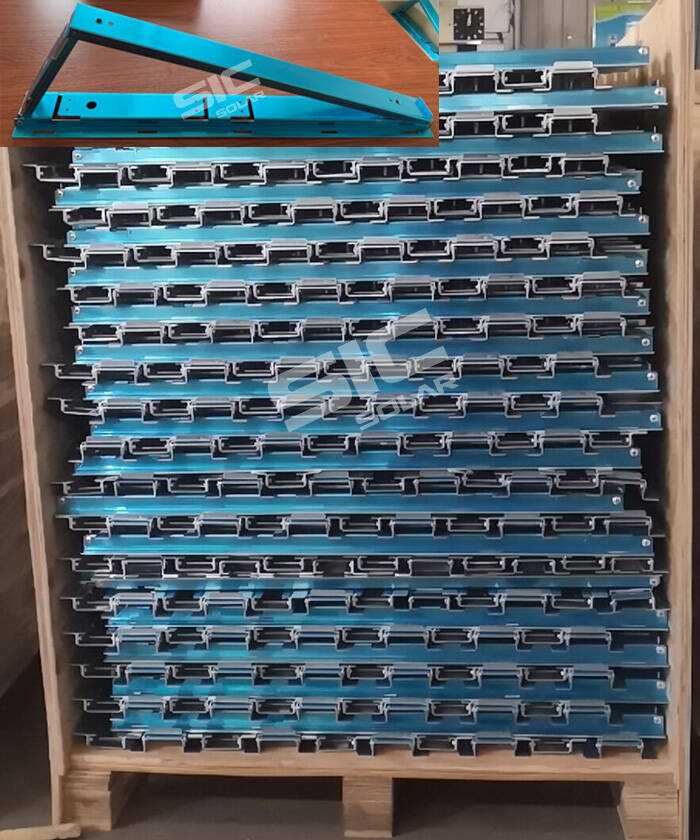

Triangle ballast frame will be pre-assembled and packed with blue protective film. All of them will be putted into one wooden case for transport.

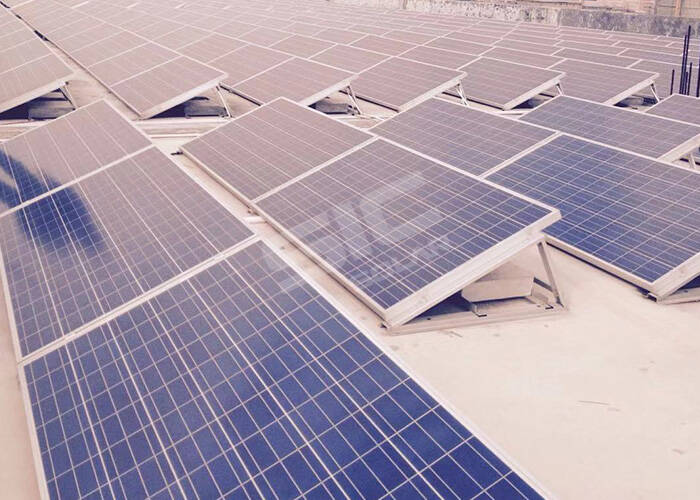

Solar panel flat roof mounting ballast
