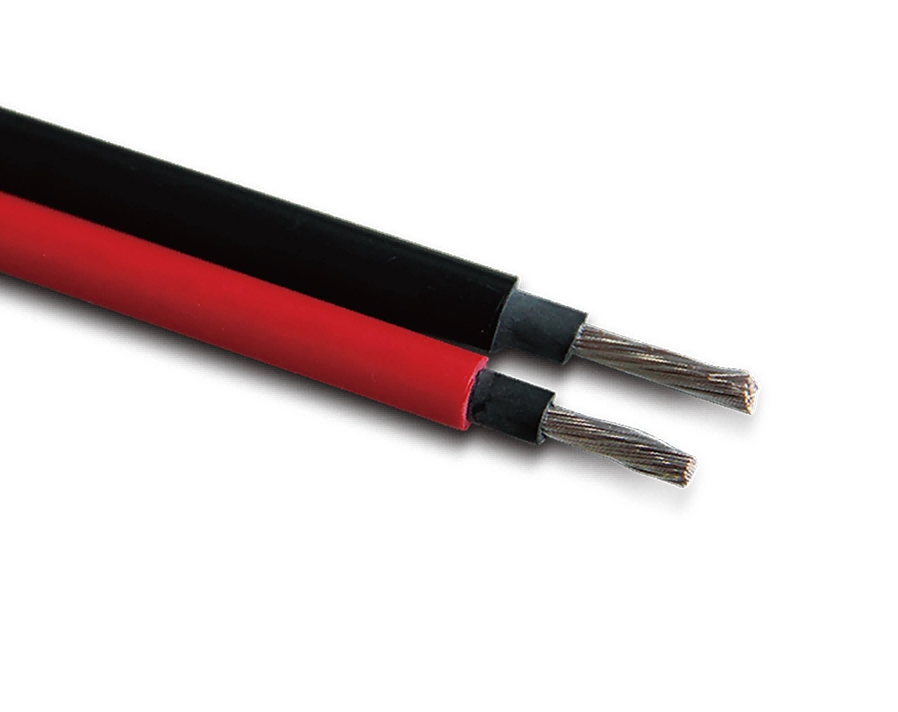

Solar Cables POW-CAB-UL4703
Product Category:
solar cables
Product Code:
POW-CAB-UL4703
Product Description:

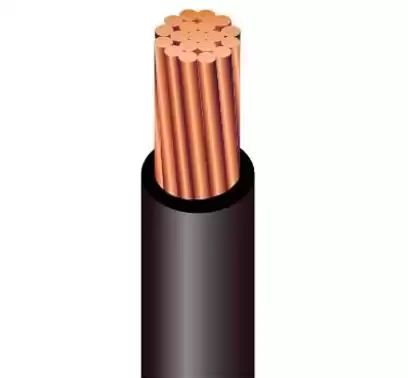

Conductor: Stranded bare copper or tinned copper，electrical property & Structure in accordance
with ASTMB33 or ASTM B172 flexible conductor requirement .
Insulation: ROHS thermosetting insulation material
Outer Sheath: LSZH & UV-resistant electron-beam cross-linked thermosetting Polyolefin copolymer ROHS material，red or black color
Certificate: UL4703

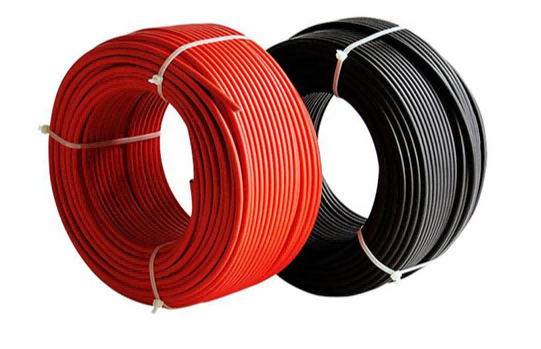

Packaging：Available in rolls (lengths of 100 m) and reels.
Other：Meter by meter marking.
Technical Specification
Nominal Voltage: 600V (AC)、1000 V(AC)、2000 V(AC)
Test Voltage: U=600V
18-10AWG UO=3000V 50HZ 1min 8-2AWG UO=3500V 50HZ1min
1-4/0AWG UO=4000V 50HZ 1min 1000 V(AC) 2000 V(AC)
18-10AWG U0=6000V 50HZ 1min 8-2AWG UO=7500V 50HZ 1min
1-4/0AWG U0=9000V 50HZ 1min
Maximum Operating Voltage: 2000V
Temperature Rating: Working Temperature -40°C~+90°C,max conductorTemperature 125°C,
Allowable short circuit temperature 200°C in 5 second.
Service Life: Expected life spanz 25 years
Bending Radius: Fixed installation>4D. Occasionallymoved>5D
Material Properties
| Size(AWG) |
Conductor constuction(n/mm) |
600v Finished Cable OD (mm) |
1000v&2000v Finished Cable OD (mm)
|
Max DC Resistance(20°C) (Ω/Km) |
| 18 |
16/0.254
|
4.25 |
5 |
23.2 |
| 16 |
26/0.254
|
4.55 |
5.3 |
14.6 |
| 14 |
41/0.254
|
4.95 |
5.7 |
8.96 |
| 12 |
65/0.254
|
5.4 |
6.2 |
5.64 |
| 10 |
105/0.254
|
6.2 |
6.9 |
3.546 |
| 8 |
168/0.254
|
7.9 |
8.4 |
2.23 |
| 6 |
266/0.254
|
9.8 |
10.3 |
1.403 |
| 4 |
420/0.254
|
11.7 |
11.7 |
0.882 |
| 2 |
665/0.254
|
13.3 |
13.4 |
0.5548 |
| 1 |
836/0.254
|
15.2 |
16.1 |
0.4398 |
| 1/0 |
1045/0.254
|
17 |
17.1 |
0.3487 |
| 2/0 |
1330/0.254 |
18.3 |
18.8 |
0.2766 |
| 3/0 |
1672/0.254 |
19.8 |
20.4 |
0.2194 |
| 4/0 |
2109/0.254 |
21.5 |
22.1 |
0.1722 |
