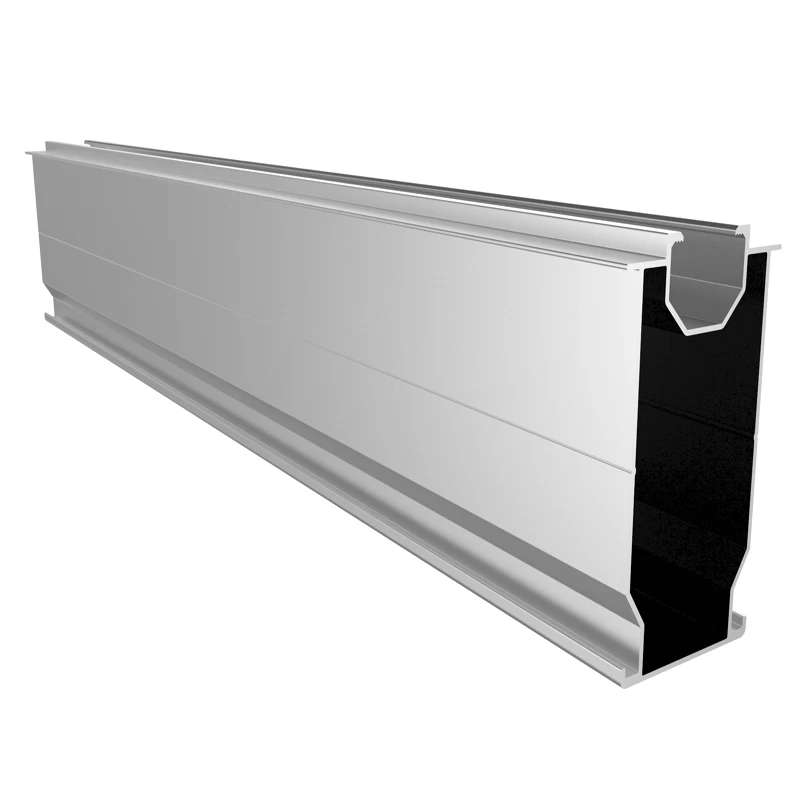

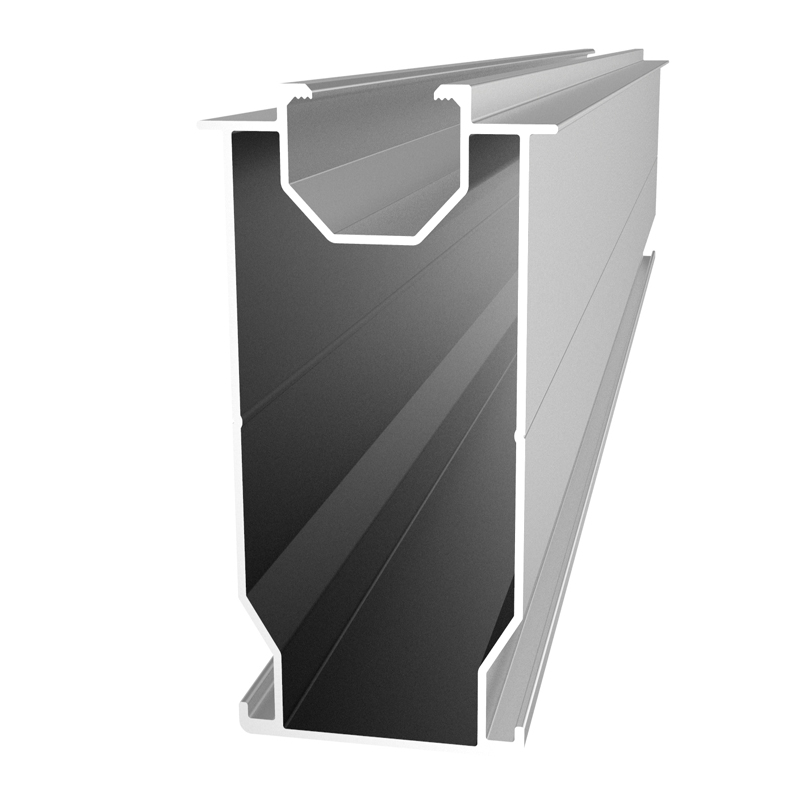

Solar ground rails are often used for horizontal row placement. The rail structure is raised in the middle. The longer side of the solar panel is placed on both sides of the rail. Because most of the racks are at a certain angle, the raised part can block the sliding of the solar panels. The rows of plates share a single rail.

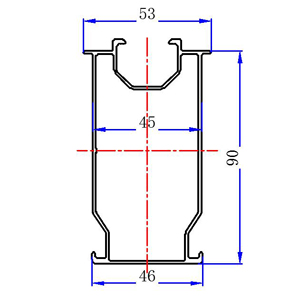

Drawing of component section
Parameter table of section
|
A
|
432.2821
|
Ip
|
646209.0197
|
|
Ix
|
501716.4414
|
Iy
|
144492.5783
|
|
ix
|
34.0679
|
iy
|
18.2826
|
|
Wx(Up)
|
10653.1349
|
Wy(Left)
|
5452.5501
|
|
Wx(Down)
|
10473.2987
|
Wy(Right)
|
5452.5501
|
|
Area moment around
the X-axis
|
6693.5364
|
Area moment around
the Y-axis
|
3740.4217
|
|
Distance from the center of
the shape to the left edge
|
26.5000
|
Distance from the center of
the shape to the right edge
|
26.5000
|
|
Distance from the center of
the shape to the top edge
|
47.0957
|
Distance from the center of
the shape to the lower edge
|
47.9043
|
|
Principal moment I1
|
501716.441
|
Direction of principal
moment 1
|
(1.000,0.000)
|
|
Principal moment I2
|
144492.578
|
Direction of principal
moment 2
|
(0.000,1.000)
|
Component composition
|
Item No.
|
GT-CB3-(L)
|
|
Item Name
|
3# Solar ground rail
|
|
Component
|
Component name
|
Spec (mm)
|
Qty
|
3# Solar ground rail
|
According to demand
|
1
|
|
|
|
|
|
|

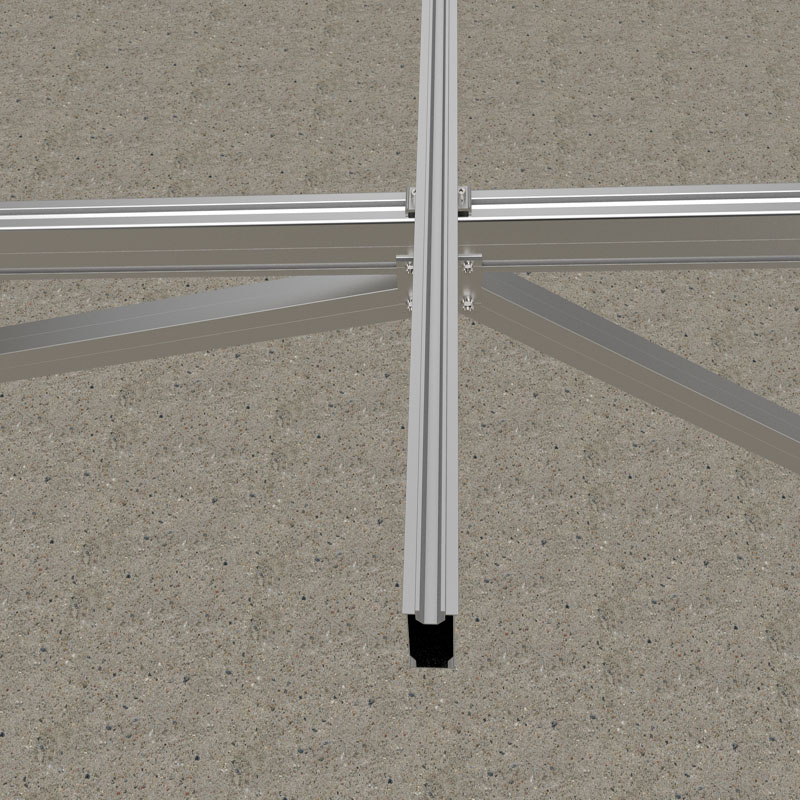

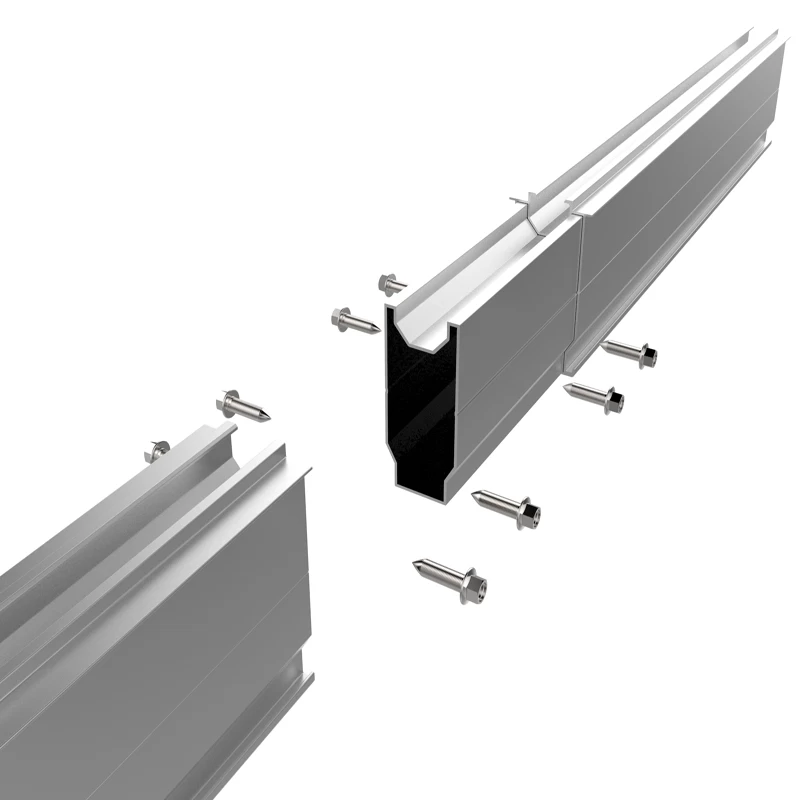

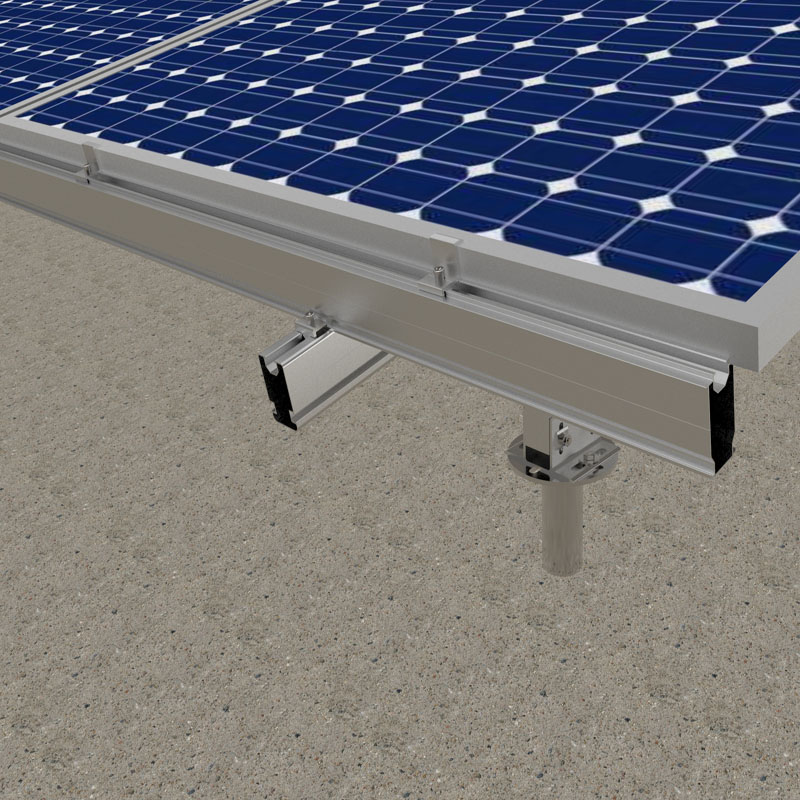

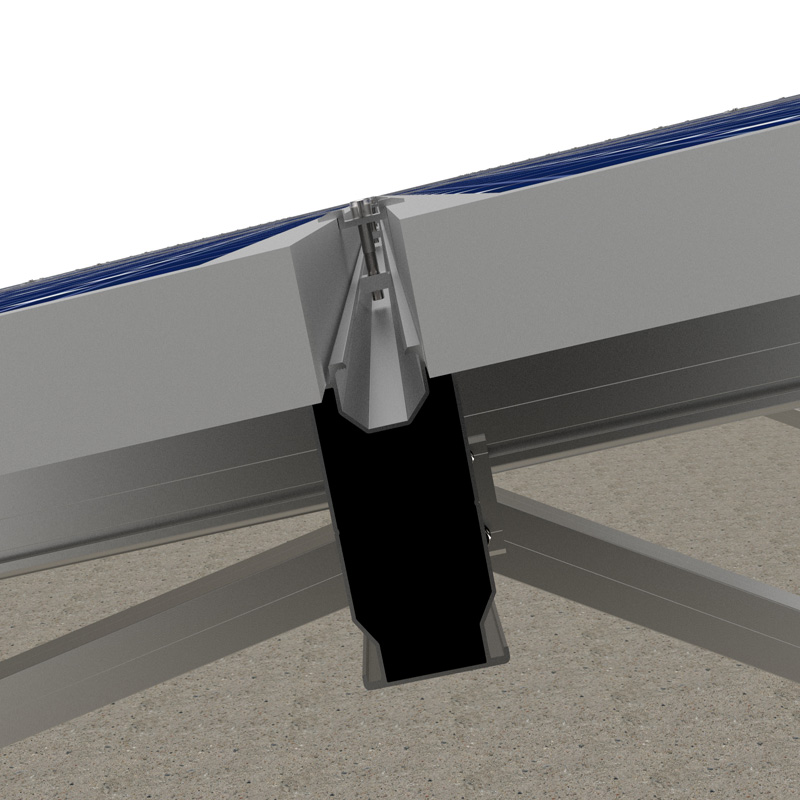

Detail drawing of component installation
