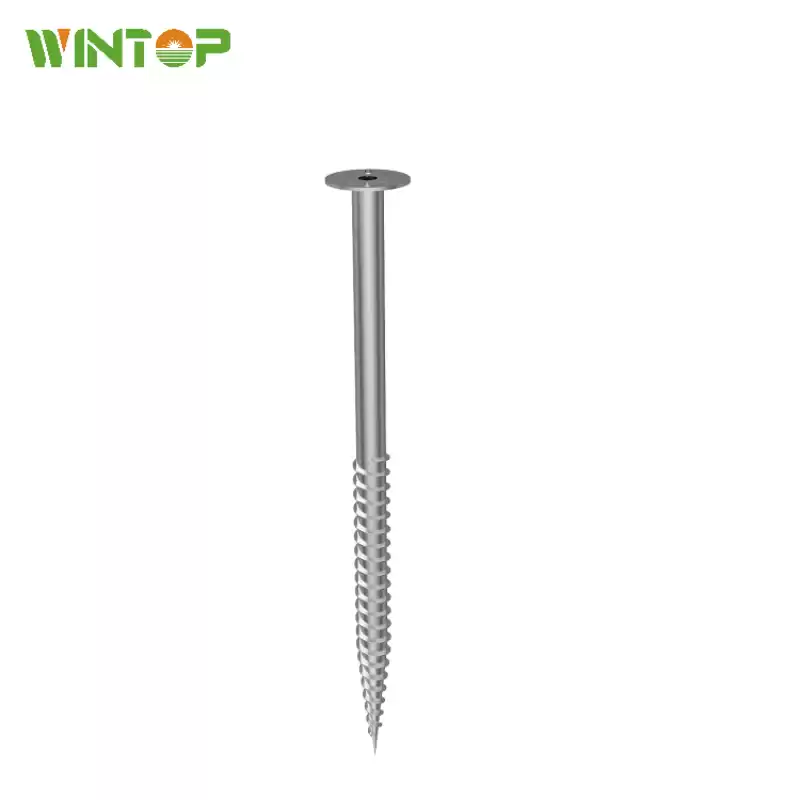

Solar Ground Mounting System Ground Screw Pile

Our ground screws have the advantages of fast installation, light weight, sturdiness, low cost, and environmental protection.


  • ModelDZ-0062
  • Installation locationGround
  • BrandWintop

Solar Ground Mounting System Ground Screw Pile


Product Description

This type of ground screw is a conventional narrow-leaf continuous bolt pile, suitable for soft sand, sand, swamp and other geology.

Ground screws are the best substitute for concrete foundations on the market. They are developed for any type of soil classification and withstand high loads. The grounding screws are made from a single piece of steel so that they can achieve maximum stability.

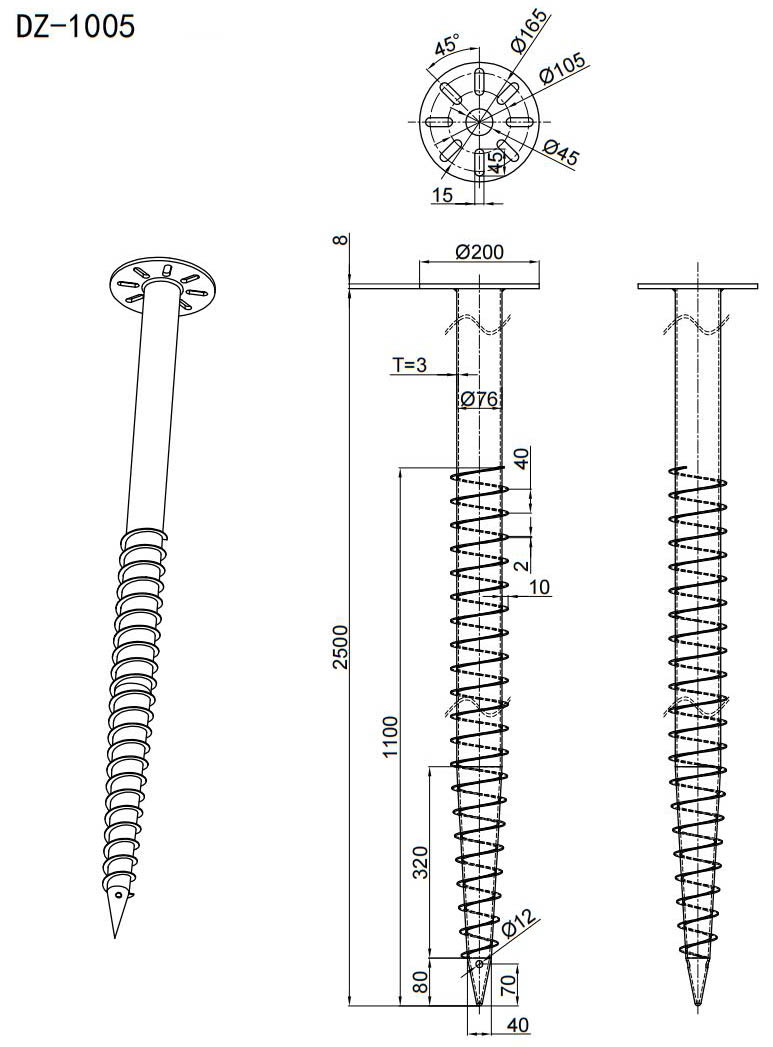

Dimensions

 ground screw dimensions


Technical Parameters

Installation location Ground
Wind load 60m/s (216kmh/133mph)
Snow load 1.4KN/m²
Design standard AS/NZS1170,JIS C 8955-2017
Material Hot dip galvanizedis Q235
Color Nature or Customized
Warranty&Duration 10 years & More than 20 years


Advantage of  Ground Screw Piles

  • Suitable for soft soil foundation
  • Instead of reinforced cement
  • Not affected by climate. Can be constructed in winter
  • Shorten the construction period. save costs
  • Can be used repeatedly. Easy to disassemble



Package


FAQ

1.Can I use a regular screw as a ground screw?
It's not acceptable to use a regular screw as a ground screw.WINTOP's ground screw is perfect matched the solar mounting structure as one of the ground solar mounting solutions.
2.How many kinds of your structures?
At present,N shape,W shape,A shape,2V shape and T shape are offered.If you need more info about them,please feel free to send inquiry here.
3.Can solar panels be mounted on the ground?
Mostly, when households are considering to install solar power system, rooftop solar will be their first choice. But if you don’t have enough space of rooftop to support solar panels, how can you do? Ground mounted solar panels can be an ideal choice. In comparison, ground mounted solar panels don’t have many limitations as rooftop. Even can DIY to provide larger power than rooftop system. That means it can not only save electricity, but also earn money for you sometime.
4.What is a qualified ground screw?
When it comes to high-quality ground screw, in a sense, it should be in good quality, longer life, better, however, we prefer to tell customers to choose the most suitable ground screw. Usually, we will do before construction of a soil survey report, then our engineers will design the most suitable for the customer's design, which is what we call "good."
5.What type of soil is suitable concrete?
Rock accounting for more than 70% in the soil, suitable as a concrete foundation.
6.What is the thickness of your product?
Most of them are 1.3mm, some special may be 1.4mm.
7.ground screw can load much support?
Depending on the type of soil. Higher soil density, can support heavier soil.
8.After the grounding screw drilled into the soil and then pull it out again, it will affect the load capacity?
Exactly! That is why the workers should be skilled.
