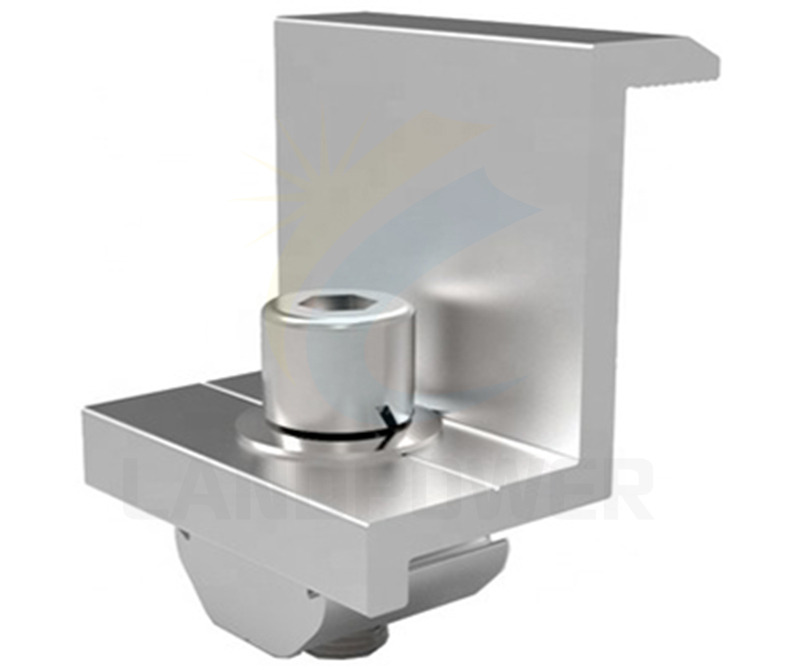

Solar Mounting End Clamp

End Clamp is designed to clamp solar panel onto mounting rail in the end of solar array, it come with stainless steel A2 bolt and aluminum nut.



End Clamp is also known side clamp, it is used to clamp solar panel onto rail(roof attachments etc) in the end of solar array. It normally assembled with stainless bolt and aluminum nut,by changing nut,the End Clamp can come with customized nut to meet with various rails from other mounting supplier.The colour of end clamp can be anodized silver or black anodized,we design the end clamp to meet 30/35/40/45/46/50mm thickness solar panels.we also accept OEM production on End Clamp.


Technical Information

Item Name:

End Clamp / Side Clamp

Material:

Aluminum 6005-T5 + SS304 bolt

Installation Site:

Solar Mounting Rail, Roof Attachments

Colour:

Silver or Black

Surface Settlement:

Anodized

Wind Speed:

Up to 60m/s

Snow Load:

Up to 1.4KN/m2

Application:

30-50mm thickness solar module

Warranty:

12 years in material with 25 year lifespan

Standard:

AS/NZS 1170.2, JIS C 8955:2011

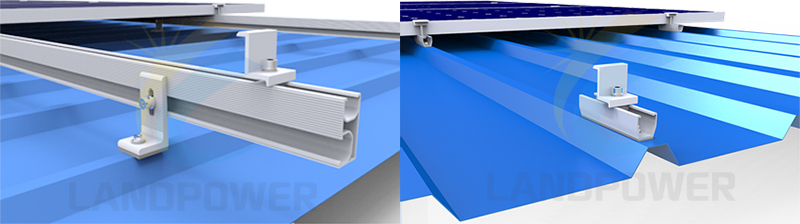

Application
Solar Panel End Clamp


Composition

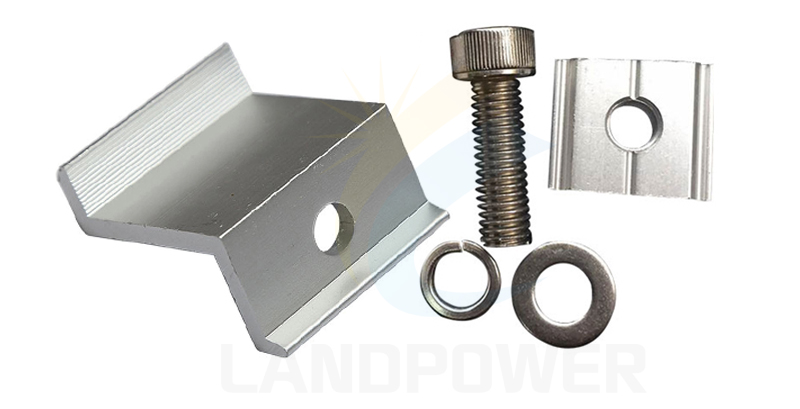

The End Clamp is assembled with stainless steel A2 bolt and Landpower T-module(nut) to meet with Landpower rail/Roof attachments. It come with below parts:

Solar End Clamp

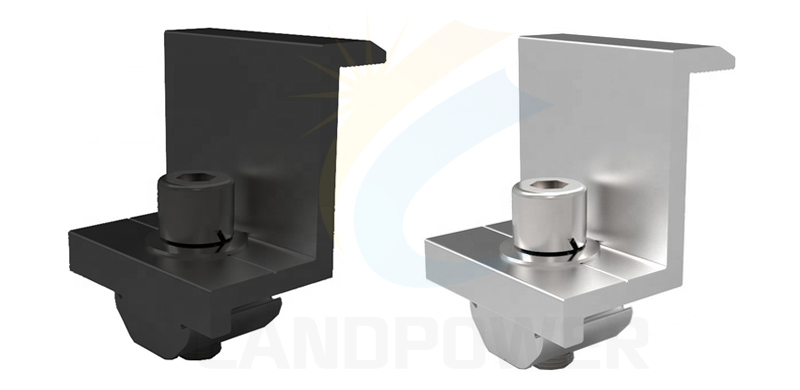

Surface Settlement

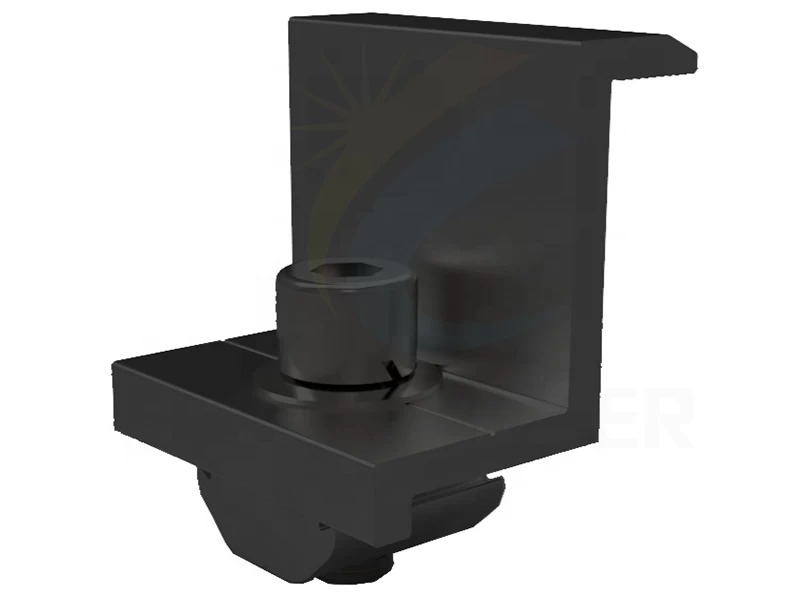

The surface finish can be silver anodized or black anodized,we also accept customized colour on the surface.

solar mounting end clamp

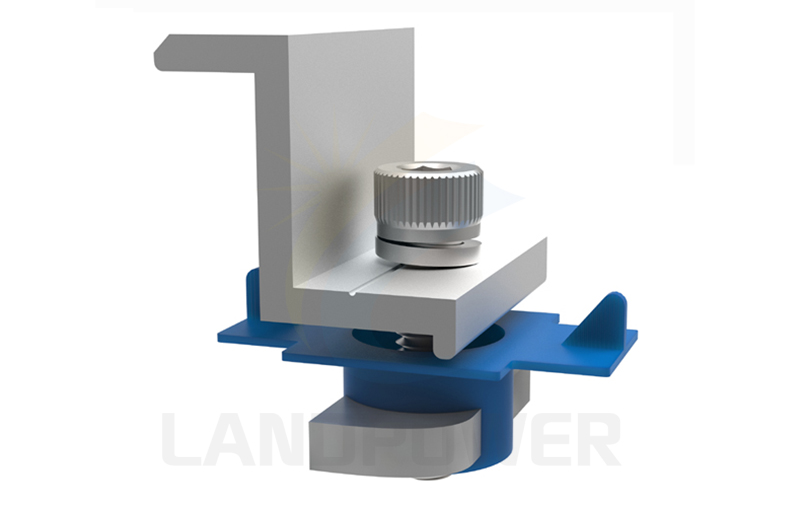

The Rail of Steel Ground Mounting is different,we need to change the nut to meet C channel rail,they will come as below:

end clamp for solar panel


Landpower design various of solar accessories for solar installation, we supply OEM service for production,if you have any specially items to design and produce,feel free to contact us. Please click here for more mounting accessories: solar mounting accessories
