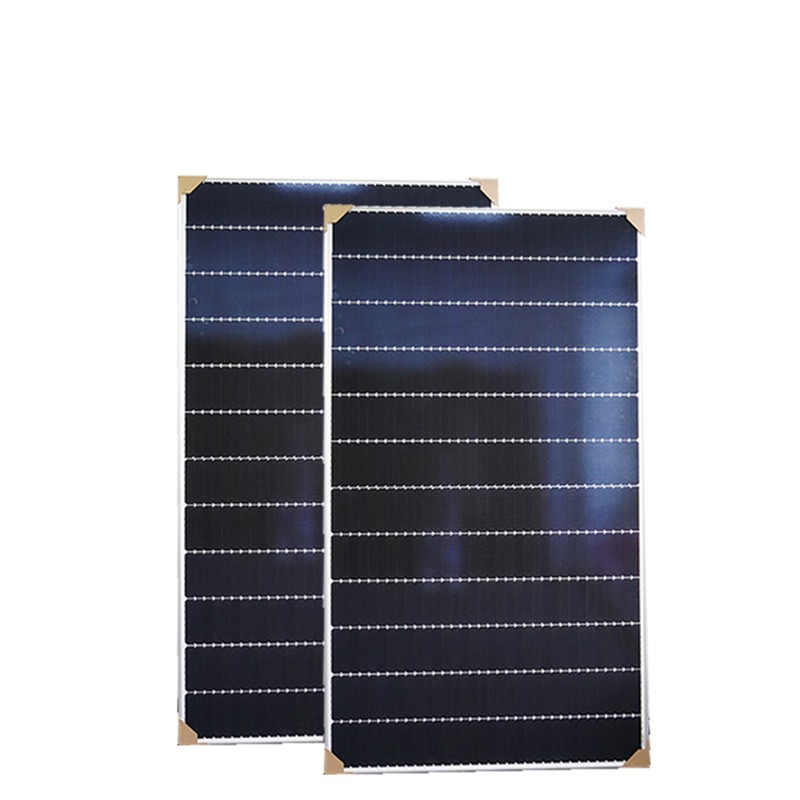

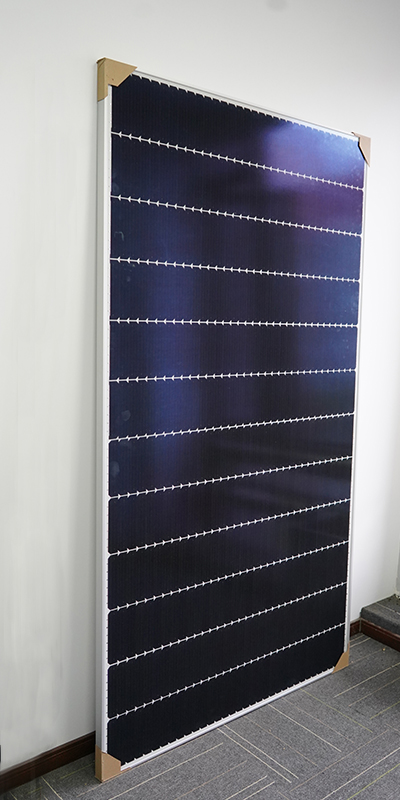

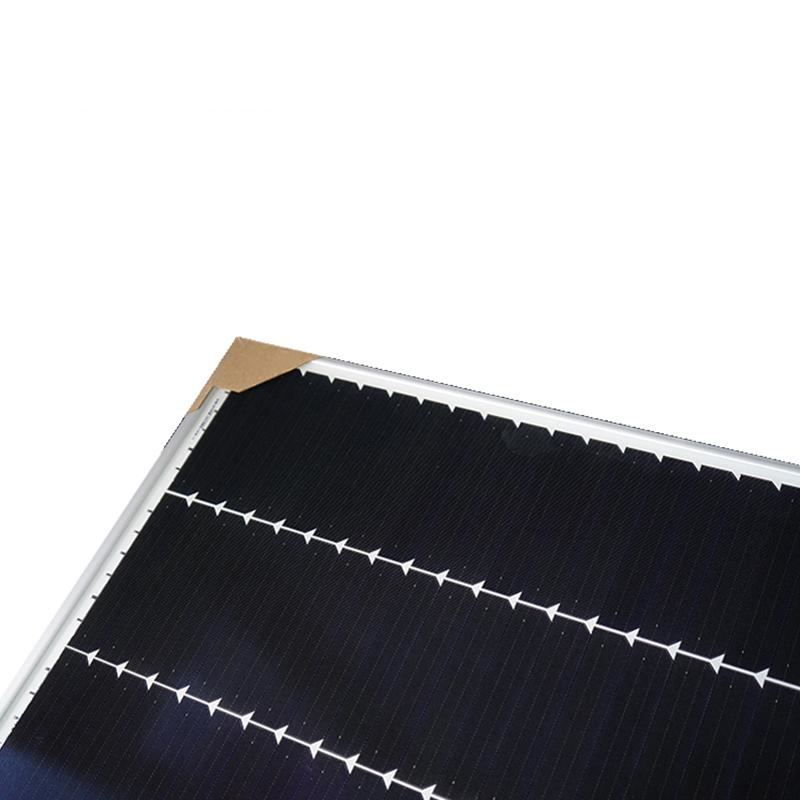

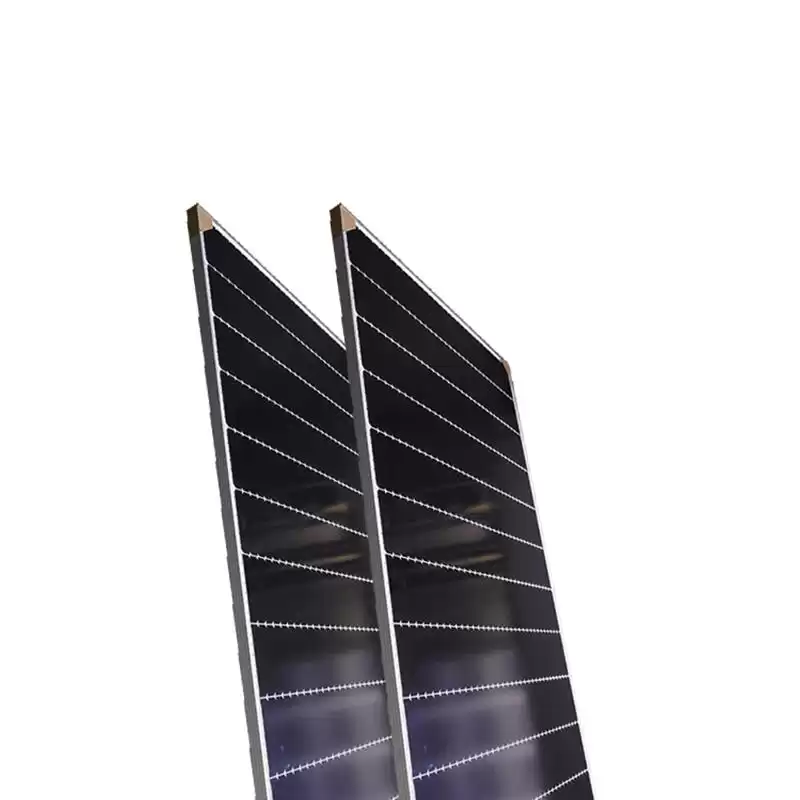

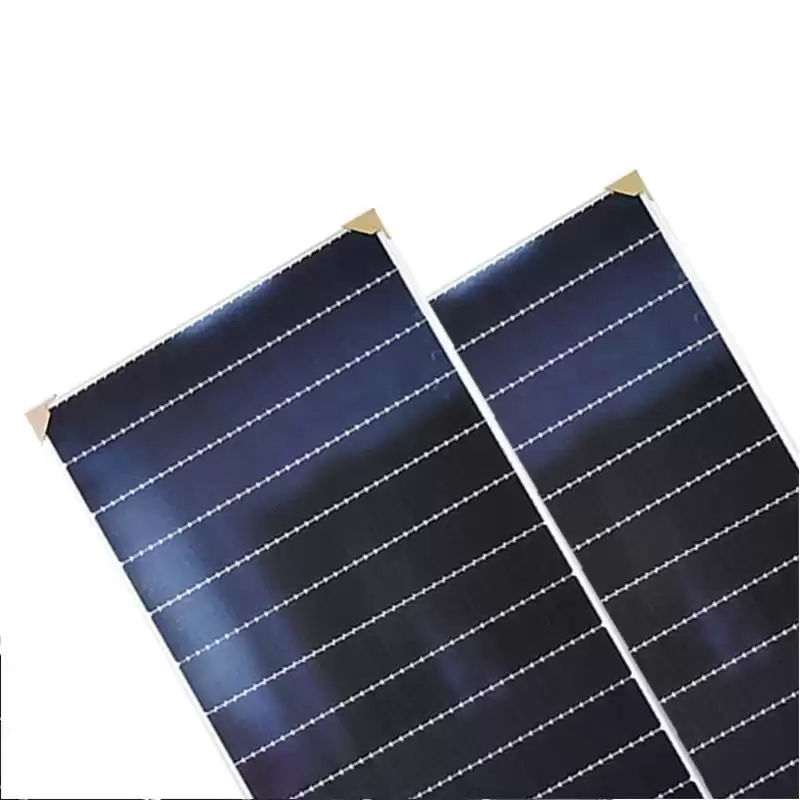

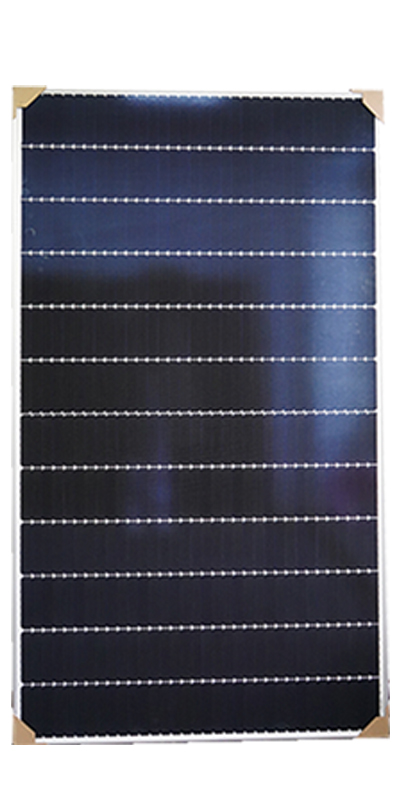

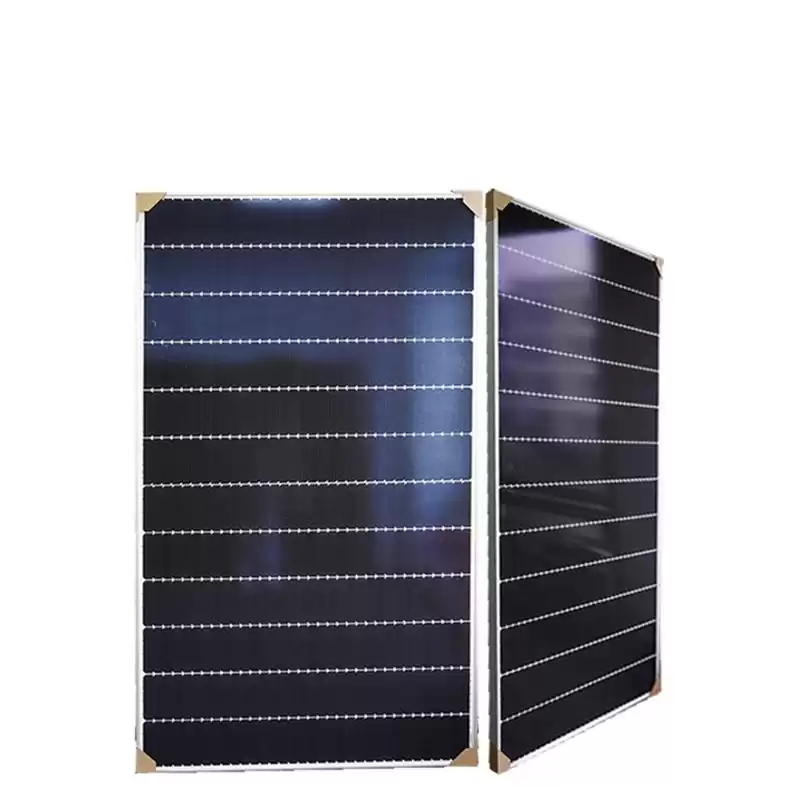

Solar Panel 470W 475W 480W 485W 490W High Efficiency Monocrystalline PERC Shingled Solar Module

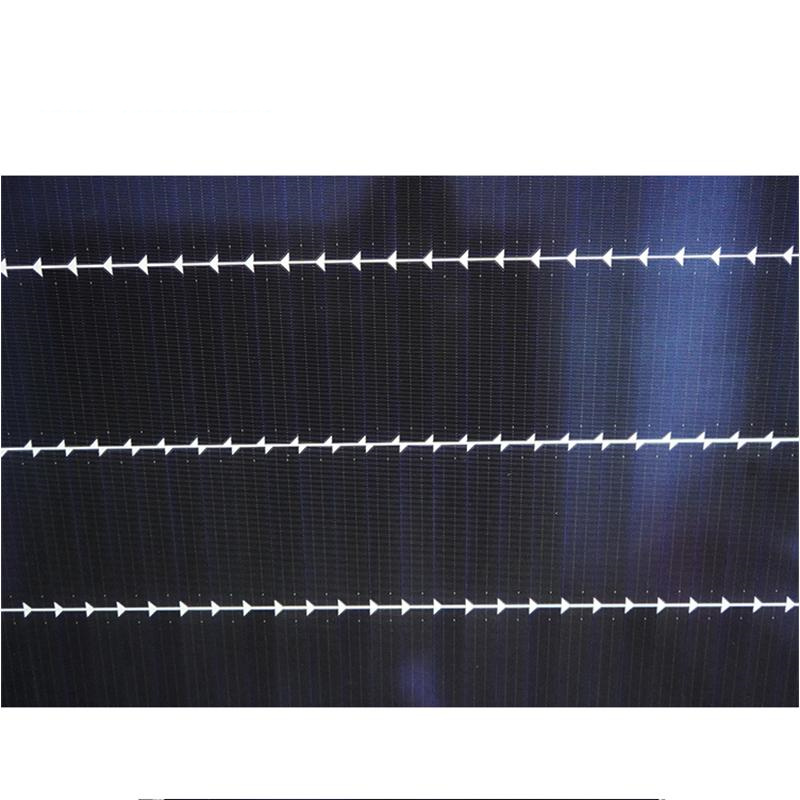

Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module, whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.


  • Warranty25 years linear power warranty
  • CertificateTUV, CE, IEC, Inmetro

FOTOVO  470W 475W 480W 485W 490W Mono Solar Panel High Efficiency PERC Shingled Solar Module


KEY features
1.Technology

Innovative structure; Low temperature adhesive; High density setting

2.Beautiful appearance
Module’s layout is homogeneous and consistent; With more aesthetic feeling of science and technology
3.Safety and reliability
No micro-crack caused by welding; Lower operating temperature; High pressure resistance
4.Lower system cost

High screen-to-body ratio which reduce system cost

5.Low hot spot effect

Prolong module lifetime; Reduce electricity loss during generating
6.Lower occlusion loss
Parallel layout brings high effective generation hours
7.Green and environmental friendly
Insist environmental friendly faith; Fluorine-free and low Pb in module

Product Specification

MECHANICAL CHARACTERISTICS
Solar Cells Monocrystalline silicon
Cell Orientation
408(34*12)
Dimensions 2056*1140*35mm
Weight 24.5KG
Junction Box IP68, two diodes
Front Glass  AR coating tempered glass, 3.2mm
Frame Anodized aluminum profile
Output Cables 4.0mm²,1000mm(Be customized by customers)
Connectors
ELECTRICAL PARAMETERS






490 485 480 475 465 460
Rated Maximum Power (Pmax) [Wp] 490 485 480 475 465 460
Open Circuit Voltage (Voc) [V] 46.7 46.6 46.6 46.5 46.4 46.3
Short Circuit Current (Isc) [A] 13.28 13.22 13.16 13.10 13.04 12.85
Maximum Power Voltage (Vmp) [V] 38.9 38.8 38.8 38.7 38.6 38.5
Maximum Power Current (Imp) [A] 12.6 12.5 12.37 12.27 12.18 12.08
Module Efficiency [%] 20.9 20.7 20.5 20.3 20.1 19.8
Working Temperature [°C] -40°C ~ +85°C
Maximum System Voltage DC 1500 /1000 (IEC)
Maximum Series Fuse Rating  20
Application Class Class A
Maximum Surface Load Capacity[Pa] 5400

AQ

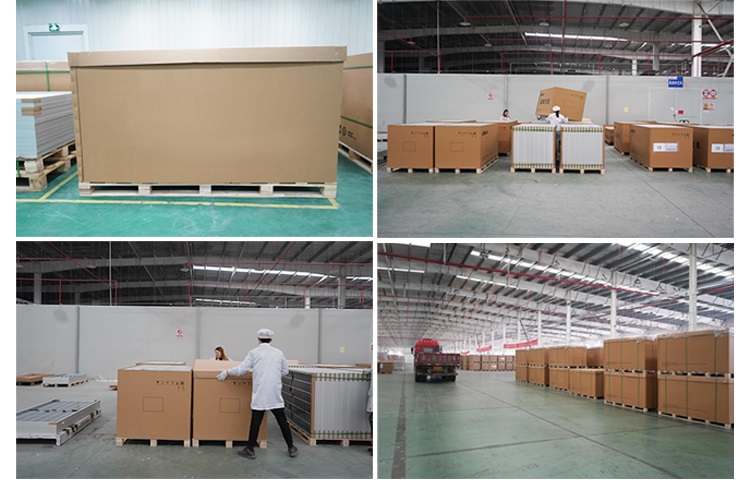

Package

Number of panels per pallet 31
Number of pallets per 40’GP container 22
Number of modules per container 682PCS


Projects

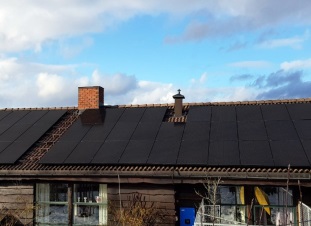

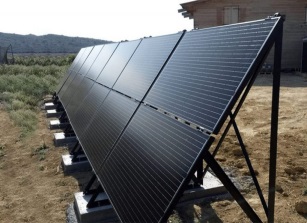

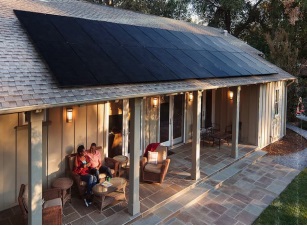

        24kw on-grid solar system in US        15.8kw off-grid solar system in Brazil                     18kw in Saudi Arabia


FAQ

Q1: Does your company accept LOGO customization?


A1: Sure, we could print your company LOGO on the products and package.



Q2: Do you accept customization on the size?


A2: Yea, if the size is reasonable.



Q3: What's types of solar panels do you supply?


A3: Mono-crystalline, Poly-crystalline, bifacial dual glass, shingled, flexible type, from 270W~550W.



Q4: Do you sell solar cell and glass separately?


A4: Yes, just feel free to leave a message.



Q5: Is it possible for me to get a sample before production?


A5: Of course, samples could be offered for your evaluating the quality first.
