Solar panel ground mounting systems

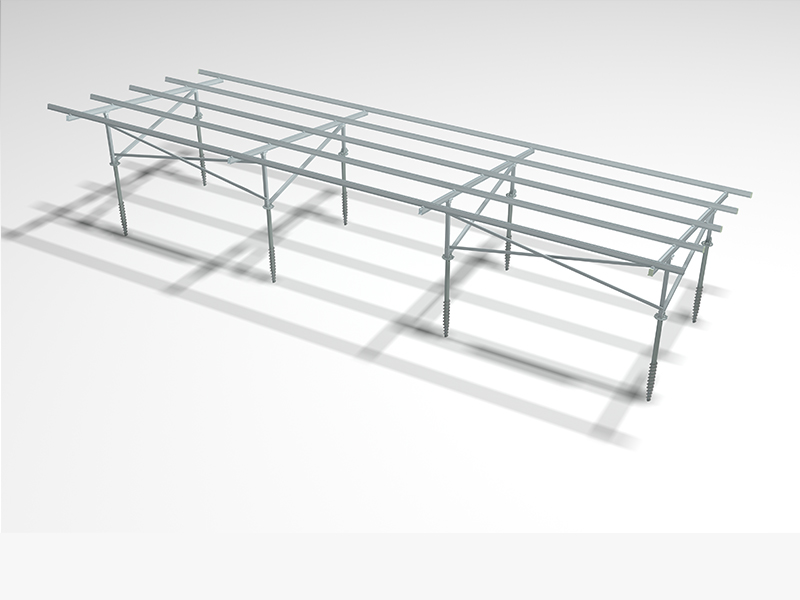

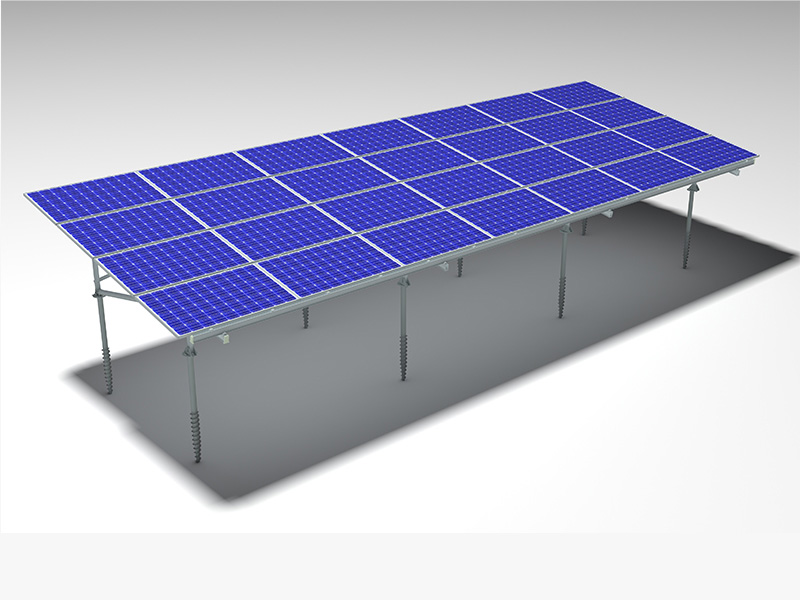

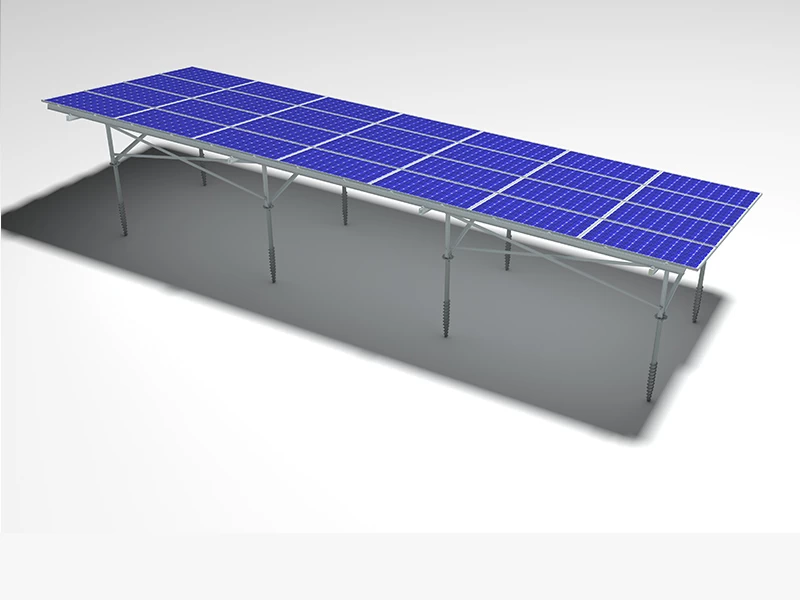

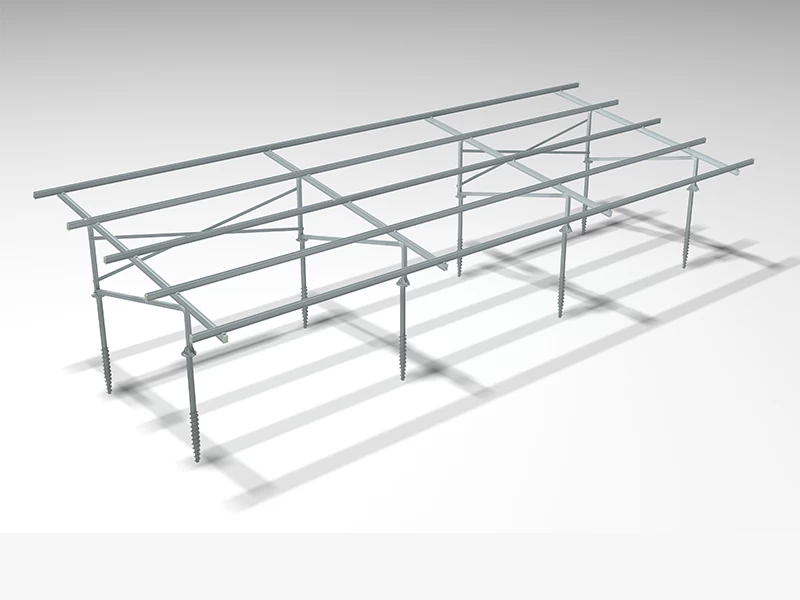

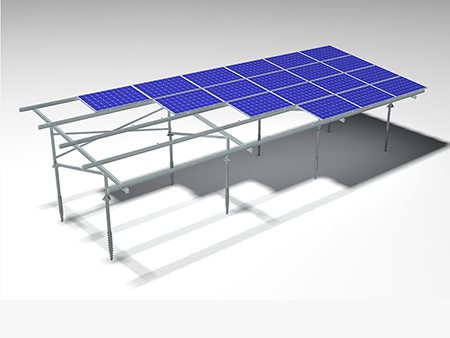

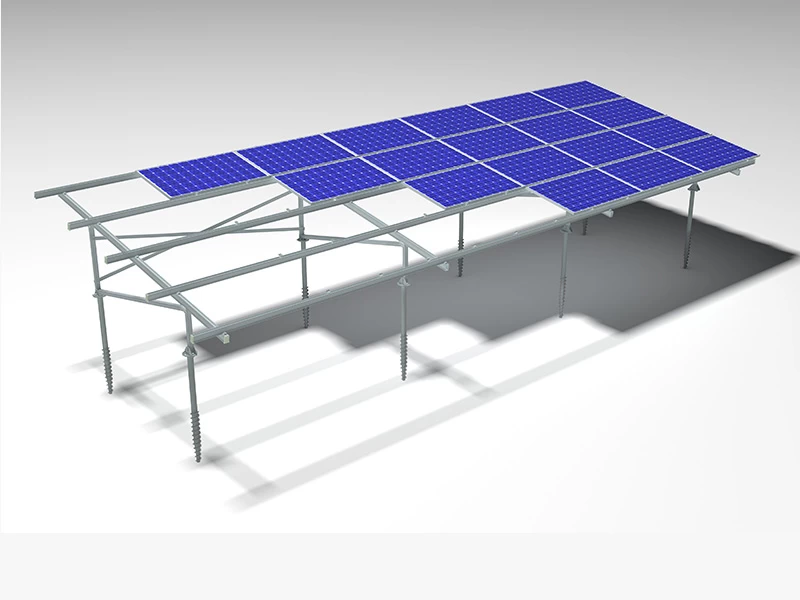

MRac Pro Ground Terrace PGT4  is optimized from GT4, suitable for medium to large scale solar PV projects.



Overview

MRac Pro Ground Terrace PGT4  is optimized from GT4, suitable for medium to large scale solar PV projects. Main beams and post are optimized with better design and less material, with strong wind load and snow load resistance. The system can achieve minor adjustment onsite with special design of Anchor Plate to adapt to different sites. Patented and certified system design ensure projects safety and quick installation.

Technical Parameter

Installation Site

  Ground

Foundation

  Concrete Foundation , Ground Screw

Tilt Angle

  0-60°

Wind Load

  60m/s

Snow Load

  1.6KN/㎡

Ground Clearance

  500-2000mm

Applicable Solar Module

  Framed or Frameless

Panel Layout

  Portrait or Landscape

Design Standard

  AS/NZS 1170 , DIN 1055 , JIS C 8955:2017,


  International Building Code IBC 2009,


  California  Building Code CBC 2010

Material

  Al6005-T5(Anodized)

Fastener

  SUS304 &Zinc-Nickel Alloy Electroplated Steel

Small Components

  Al6005-T5(Anodized)

Color

  Silver or Customized

Warranty

  10-Year Warranty


solar panel ground mounts

Features

Symmetrical Design of Tilt-in-Nut and Rail Channel

No direction limitation for the nut and rail channel, improving the installation efficiency.


No Drill on Portrait Beam

It improves the strength of the system to fix the portrait beam onto the post by special designed clamps, with force at the same direction of the gravity.


Pre-assembled Components Save Onsite Installation Time

Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.



Flexibility and Adjustability

The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.
