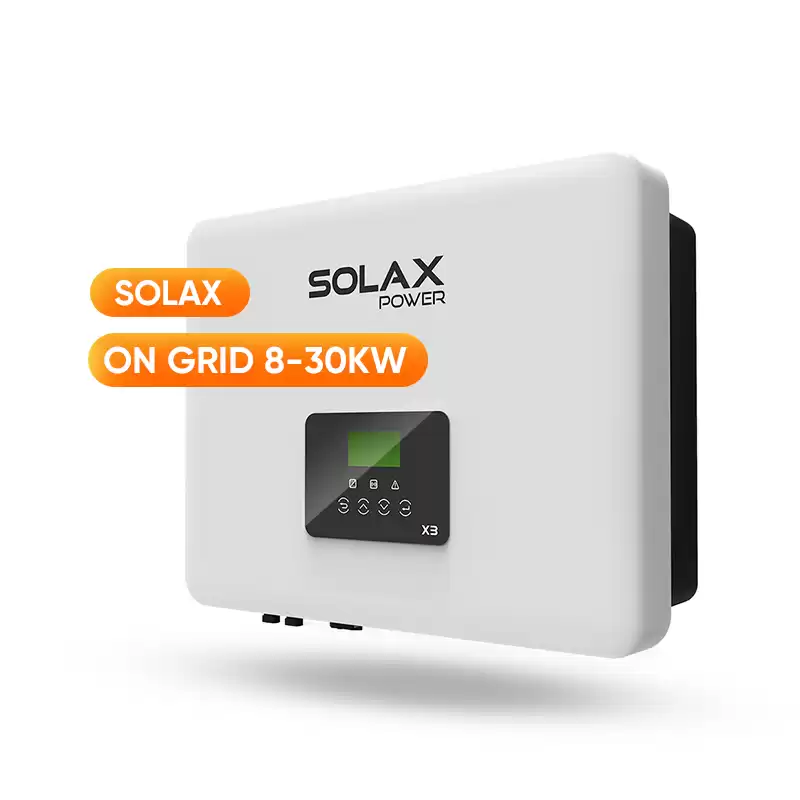

The SolaX three phase inverters boast a wide MPPT voltage range to allow for more energy harvesting and have a maximum input voltage of 1100V, with a maximum efficiency of 98.5%.
In addition, SolaX three phase inverters are IP66 rated, have no internal fan and come with optional ‘plug & play’ WIFI.

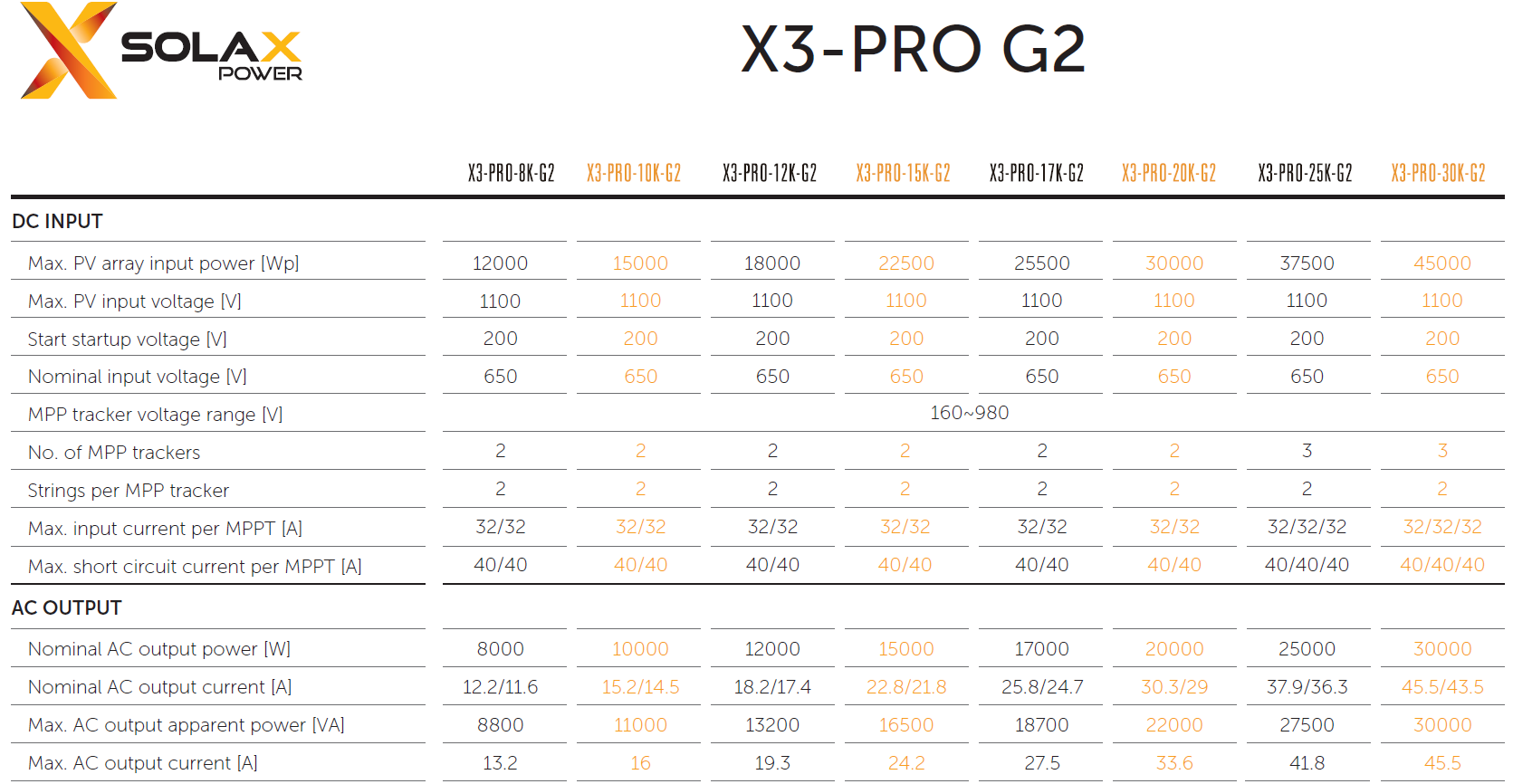

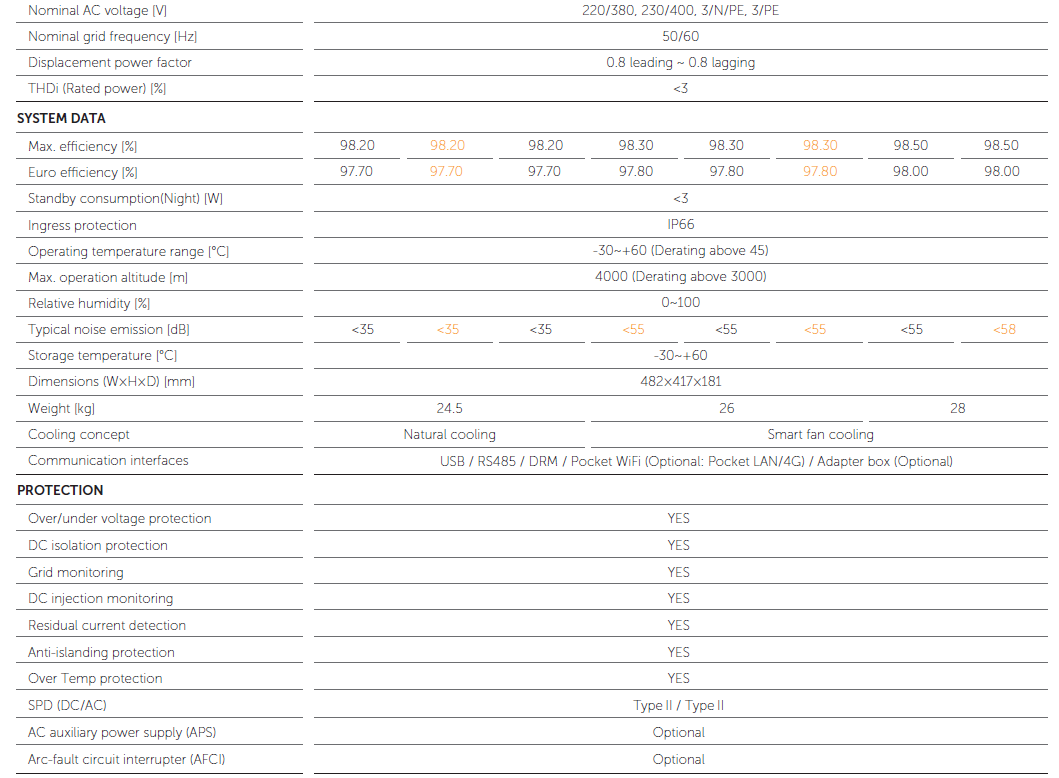

Technical Data:

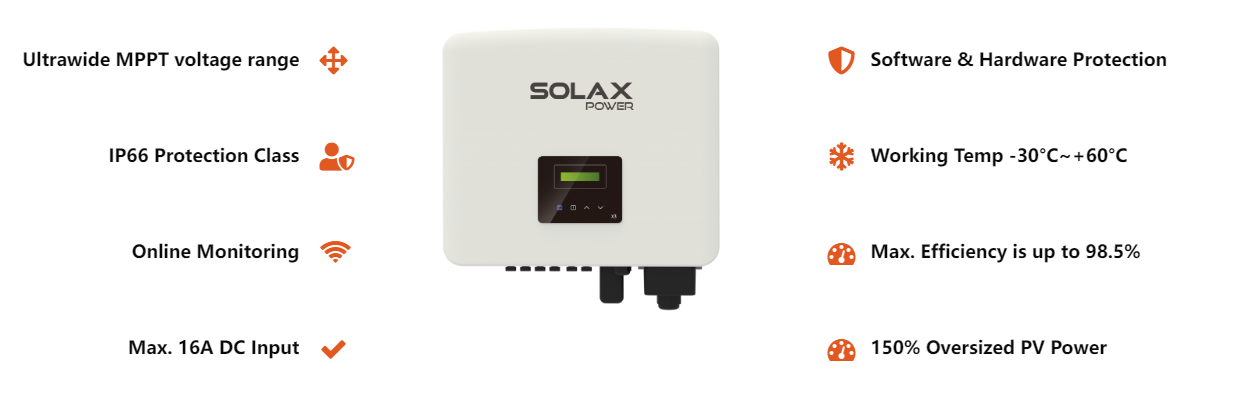

Key Features / Advantages:
High-efficiency
Maximum efficiency is up to 98.5%
Low startup voltage, ultrawide MPPT voltage range
150% DC oversizing, 110% AC overloading output
In-built global MPP scan for higher yield efficiency
Safe
SPD type II protection on both AC&DC
ARC protection (Optional)
IP66 protection
Smart
Built-in export power control
Intelligent load management - heat pump (Adapter Box required)
24h monitoring and maintenance (Optional)
Multiple monitoring methods, Pocket WiFi/LAN (Optional)/4G (Optional)
Economic
Ultra-high power density
Maximum 32A DC input current per MPP tracker, support high power solar panels
Up to 3 MPPTs, 2 strings per MPPT
Inverter Dimension: 482×417×181mm

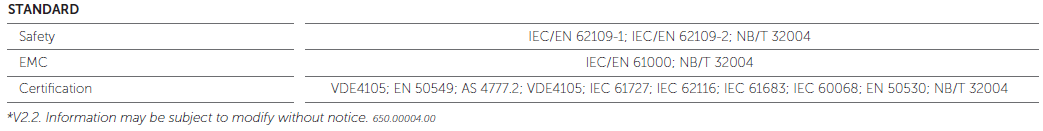

Certificate:
Safety: IEC/EN 62109-1; IEC/EN 62109-2; NB/T 32004
EMC : IEC/EN 61000; NB/T 32004
Certification : VDE4105; EN 50549; AS 4777.2; VDE4105; IEC 61727; IEC 62116; IEC 61683; IEC 60068; EN 50530; NB/T 32004
