Solis 30kW / 40kW / 50kW / 60kW Hybrid Solar Inverter

Take full control of your solar energy.

The Solis 30kW–60kW hybrid solar inverter is a high-performance three-phase inverter designed for commercial and industrial solar + energy storage systems. It seamlessly integrates solar power, battery storage, and grid electricity to maximize self-consumption, improve energy independence, and reduce electricity costs.

Facebook Twitter Pinterest LinkedIn 分享

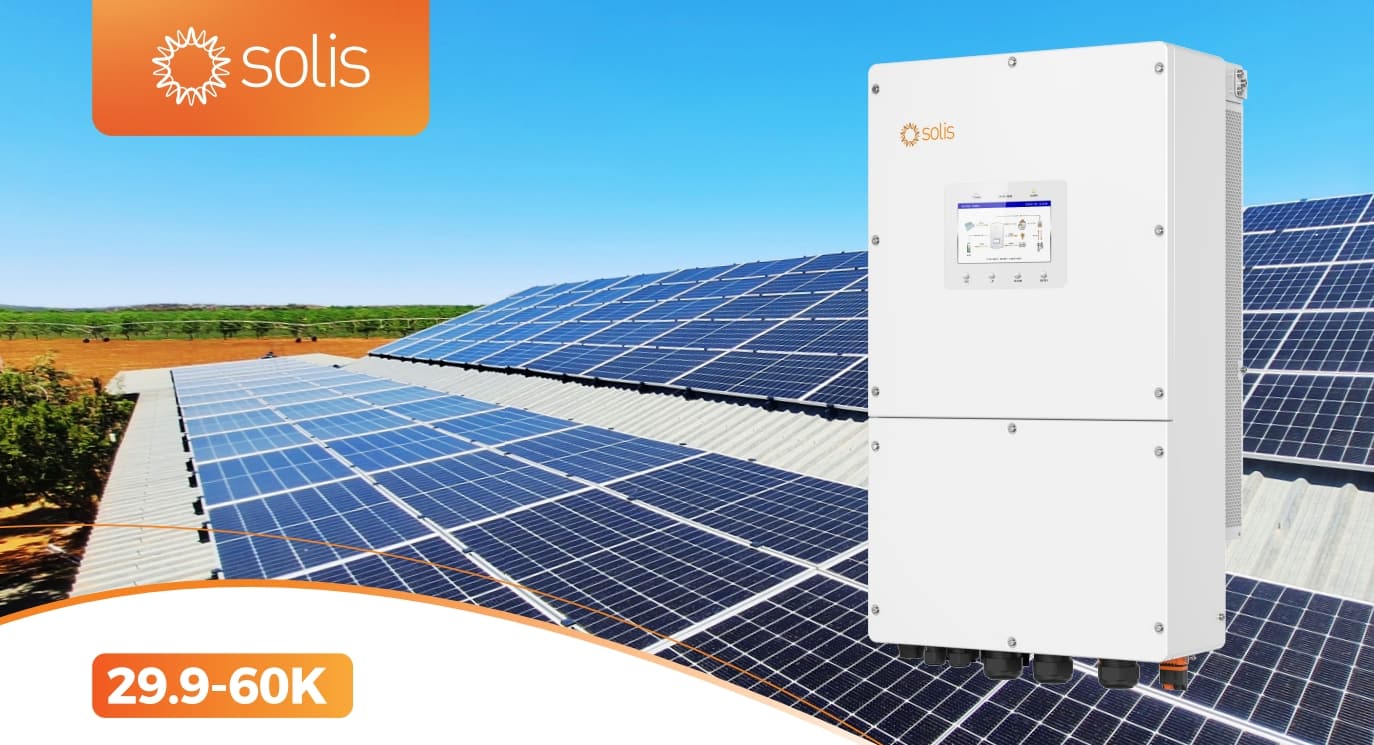

Sunrange Solis 30-60KW Hybrid inverter

Three Phase High Voltage Energy Storage Inverter Leading Features



*Supports PV input up to 100kW, maximising solar utilisation

*Supports both DC and AC coupling, for flexible retrofits and system expansions

*Supports a maximum string input current of 21A, ensuring compatibility with high-power PV modules

*Ensures reliable backup power across diverse scenarios through battery reserve management

*Compatible with 100–314Ah battery modules, reducing overall system costs

*Extends supply time for critical loads with intelligent load prioritization

*Supports fast battery charging with a maximum charging current of 168A

*Offers a versatile three-in-one interface for seamless integration of on-grid PV, wind power, and diesel generators



Models 29.9K 30K 40K 49K 50K 60K
Input DC(PVside)
Recommended max. PV array size 59.8 kW 60 kW 80 kW 98 kW 100 kW 100 kW
Max. usable PV input power 59.8 kW 60 kW 80 kW 98 kW 100 kW 100 kW
Max.input voltage 1000 V
Rated voltage 600V
Start-up voltage 180V
MPPT voltage range 150-850V
Max.input current 3 × 42 A 4×42A
Max.current per DC input 42A
Max.short circuit current 3×60A 4×60A
MPPT number/Max.in put strings number 3月6日 4/8
Battery
Battery type Li-ion
Battery voltage range 150 - 800 V
Max charge/discharge current 80 A × 2
Number of battery ports 2
Max.charge/dscharge powerof each input 32.1kW 33 kW 35 kW
Communication CAN/RS485
Output AC(Back-up)
Rated  outputpower 29.9kW 30 kW 40 kW 49 kW 50 kW 60kW
Max.apparent output power 1.6 times of rated power, 2 s; 1.5 times of rated power, 10 s
Back-up switch time < 10 ms
Rated output voltage 3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated frequency 50 Hz / 60 Hz
THDv(@linear load) ≤2%
Input AC(Grid side)
Max.input current 90.8A/86.4A 91.2A/86.6A 121.6A/115.4A 149A/141.4A 152A/144.4A 152A/152A
Input AC(Generator)
Max.input powver 29.9kW 30 kW 40 kW 49 kW 50 kW 60 kW
Rated input curent 45.4A/43.2A 45.6A/43.3A 60.8A/57.7A 74.5A/70.7A 76A/72.2A 91.2A/86.6A
Rated input voltage 3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated input frequency 50Hz/60Hz
Output AC(Grid side)
Rated output power 29.9kW 30kW 40 KW 49kW 50 kW 60 kW
Max.apparent output power 29.9 KVA 30 kVA 40 kVA 49 KVA 50 KVA 60 kVA
Rated grid voltage 3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated grid frequency 50 Hz/60Hz
Rated grid output current 45.4A/43.2A 45.6A/43.3A 60.8A/57.7A 74.5A/70.7A 76A/72.2A 91.2A/86.6A
Power factor >0.99(0.8 leading-0.8 lagging)
THDi <3%
Efficiency
Max. efficiency 97.70%
EU efficiency 97.30%
Battery charged efficiency 98.50%
Battery discharged eficiency 97.5%
Protection
Surge protection DC Type ll/AC Type ll
Output over curent protection Yes
Integrated DC switch Yes
DC reverse-polarity protection Yes
Protection class/Over voltage category I/PV II,battery II,AC II
Integrated AFCI 2.0 Optional
General Data
Max allowable phase imbalance(grid & back-up) 100%
Max.power per phase(grid&back-up) 33%
Dimensions(W×H×D) 530 × 880 × 290 mm
Weight 76kg
Topology Transformerless
Operating ambient temperature range -25 ~ +60°C
Relative humidity 0 - 100%
Ingress protection IP66
Cooling concept Intelligent fan-cooling
Max.operation altitude 4000 m
Grid connection standard G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1/EN 50549-10, PTPiREE,
VDE 0126/XP C15/VFR:2019, NTS 631/RD 1699/RD 244/UNE 217002,
CEI 0-21, C10/11, NRS 097-2-1,
TOR, EIFS 2018.2, IEC 62116, IEC 61727,
DEWA, MEA, PEA, PORTARIA Nº 140/PORTARIA Nº 515
Safety/EMCstandard IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011
Features
PV connection MC4 connector
Battery connection Terminal connector
AC connection OTteminal
Display 7.0" LCD display & Bluetooth + APP
Communication CAN, RS485-115200, Optional: Wi-Fi, Cellular, LAN

Partner Brands

Sunrange Partner Brands



Why Choose Solis Hybrid Solar Inverter?

⚡ All-in-One Solar & Storage Solution



This hybrid solar inverter supports both grid-connected and battery systems, enabling smooth energy flow between PV panels, lithium batteries, loads, and the grid. It is perfect for PV + ESS projects where flexibility and reliability matter.



🔋 Compatible with Lithium Battery Storage



Designed for modern energy storage applications, the inverter is compatible with high-voltage lithium battery systems, allowing efficient charging and discharging while extending battery lifespan.



🌞 High Efficiency for Commercial Applications



Advanced MPPT technology ensures maximum solar energy utilization, even under complex rooftop layouts or variable sunlight conditions, helping commercial users achieve higher ROI.



🧠 Intelligent Energy Management



With smart energy scheduling, peak shaving, and backup power support, the inverter helps businesses optimize electricity usage and reduce grid dependency.



🏗️ Industrial-Grade Reliability



Built with premium components and a robust thermal design, the inverter delivers stable long-term performance in demanding commercial and industrial environments.

FAQ

1: What is a hybrid solar inverter?

A hybrid solar inverter combines solar PV, lithium battery energy storage, loads, and the grid into one system, allowing efficient energy use and storage.



2: Is this hybrid inverter suitable for commercial energy storage systems?

Yes. This 30kW–60kW hybrid solar inverter is designed for commercial and industrial solar energy storage systems (ESS).



3: What battery types are compatible with this hybrid solar inverter?

The inverter is compatible with high-voltage lithium battery systems, ideal for modern PV + energy storage solutions.



4: Can the hybrid solar inverter provide backup power?

Yes. When connected to a battery, the hybrid inverter can supply backup power during grid outages, improving power reliability.



5: Can Sunrange provide a complete solar + storage solution?

Yes. As a professional solar PV and energy storage manufacturer and exporter, Sunrange supplies solar panels, hybrid inverters, lithium batteries, and mounting systems.



Take the next step toward a sustainable and profitable energy future.



Contact our expert team today for a personalized system design, detailed financial modeling, and to discuss volume pricing for your project. Let's build your optimal solar solution together.
