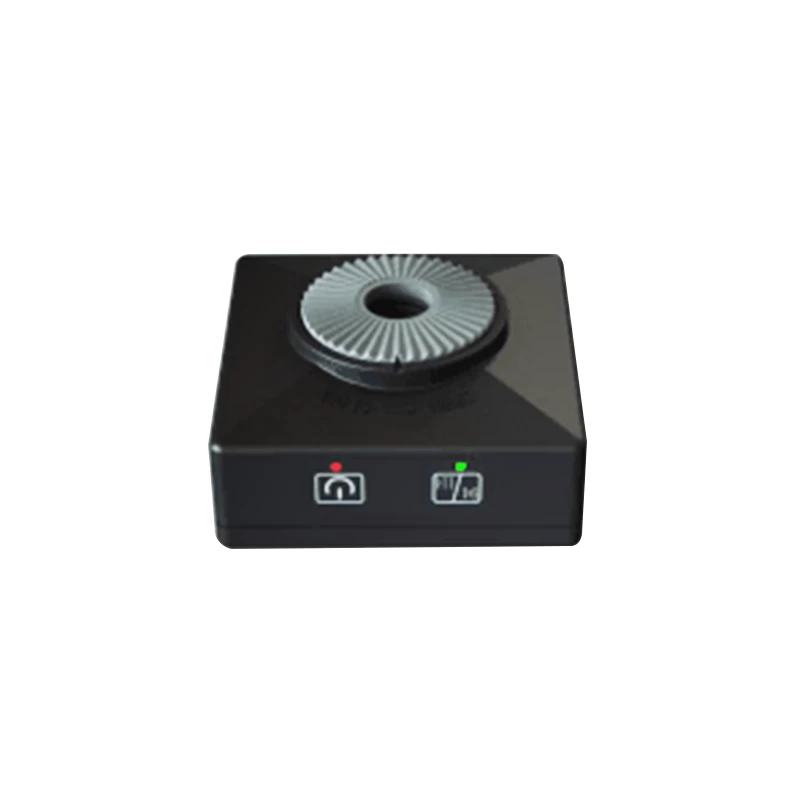

Sound Level Calibrator GT-AWA6021A

Sound level calibrator is mainly used for the absolute acoustic sound pressure calibration of microphones, sound level meters and other acoustic measuring instruments.

  • standardIEC 61672
  • certificateISO 9001, UKAS, CE
Facebook Twitter Pinterest LinkedIn 分享


Sound Level Calibrator

Applications:

Sound level calibrator is mainly used for the absolute acoustic sound pressure calibration of microphones, sound level meters and other acoustic measuring instruments. In line with GB / T 15173 and IEC 60942 for the Tier 1 Calibrator technical requirements. Sound pressure compression type, good stability. Battery-powered, ease of use.




Standards:

IEC 61672 Class 1



Key Specifications

Model

GT-AWA6021A

Nominal SPL

94 dB & 114 dB

Frequency

1000Hz±10Hz

SPL Accuracy

Class 1, ±0.3 dB

Total Harmonic Distortion

≤1 %

Power

Battery 1 x 6F22

Operating Temperature Range

-10 ℃~+50 ℃

Dimensions

φ53×117(mm)

Weight

100Kg


Applications Industry

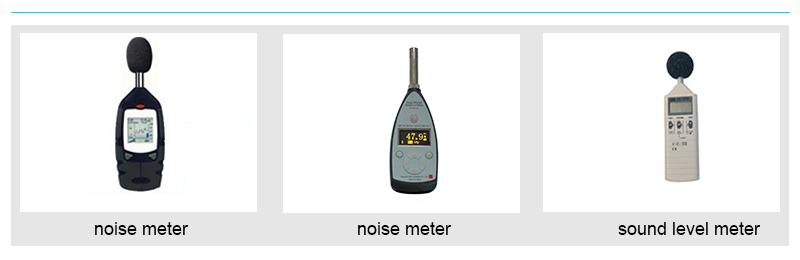

The following products- Noise Meter can be tested on the Sound Level Calibrator

Sound level calibrator And Noise Meter
