South Africa Kwikstage Scaffolding Standard

South Africa Kwikstage Scaffolding is a kind of popular modular scaffolding in SA. The Standards is made from O.D48.3mm x 3.25mm Scaffold Tube with V-lugs.

It is Vertical Parts of Kwikstage Modular System.  Kwikstage Scaffolding is commonly used for Concrete Formwork Slab Support, also used in Construction and Building.


The main components of SA Kwikstage Scaffolding include: Standard, Ledger, Diagonal Brace, Hook-on Plank, Toe Board, Stair or Ladder, Cantilever Bracket, Strip Beam, decking Panel, and so on.

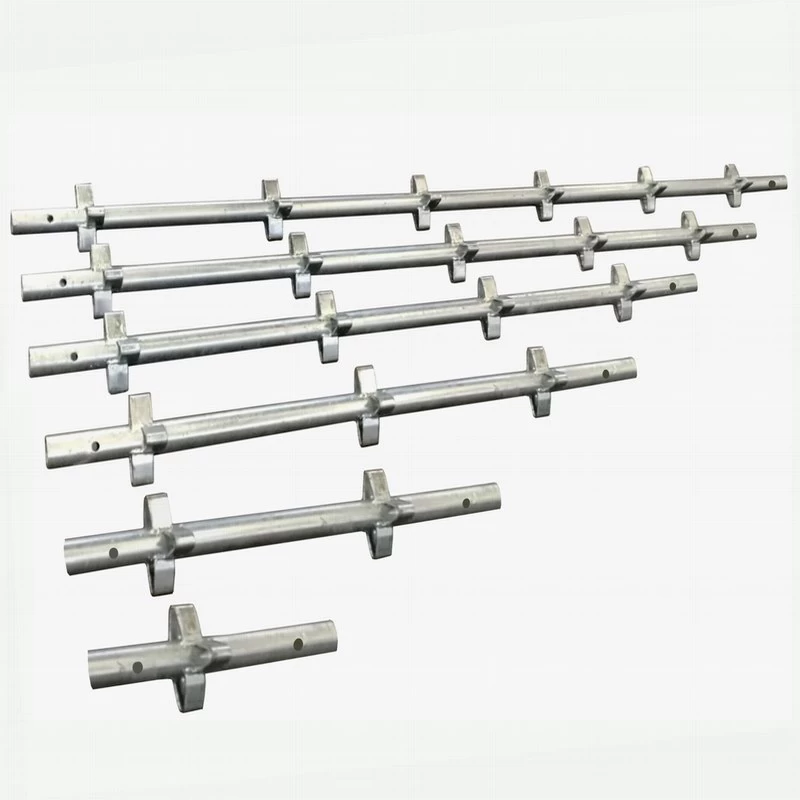

Kwikstage Scaffolding Standard / Vertical (South Africa)


Product Details:

Code Description Material Size Weight (kg) Weight (lbs)
KS.S.400SA 4.00M Standard SA Ø48x3.25; Q235-Q355 4000mm 19.37  42.71
KS.S.350SA 3.50M Standard SA 3500mm 16.95  37.37
KS.S.300SA 3.00M Standard SA 3000mm 14.53  32.04
KS.S.250SA 2.50M Standard SA 2500mm 12.11  26.70
KS.S.200SA 2.00M Standard SA 2000mm 9.69  21.37
KS.S.150SA 1.50M Standard SA 1500mm 7.26  16.01
KS.S.100SA 1.00M Standard SA 1000mm 4.84  10.67
KS.S.050SA 0.50M Standard SA 500mm 2.42  5.34
KS.S.PIN 0.20M Spigot Pin Ø38x3; Q235 203mm 0.56  1.23


Features:

Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 4.0mm/3.5mm/3.0mm is also available by request.

Spigot Size: O.D 38x3x203mm

Steel Tube Grade: Q235-Q355

V-lug Distance: 500mm

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted


Welding ProcessCO2/Mixture Gas Shielding Welding
