Kinds of roof panel roll forming machines, for such as trapezoidal roof, standing seam roof, corrugated roof for aluminum sheet, prepainted sheet, zinc coated steel are available for custom manufactured.
Product name: Speed 30m/min Zinc Metal Roofing Three layers Roof Panel Forming Machine
Machine Details

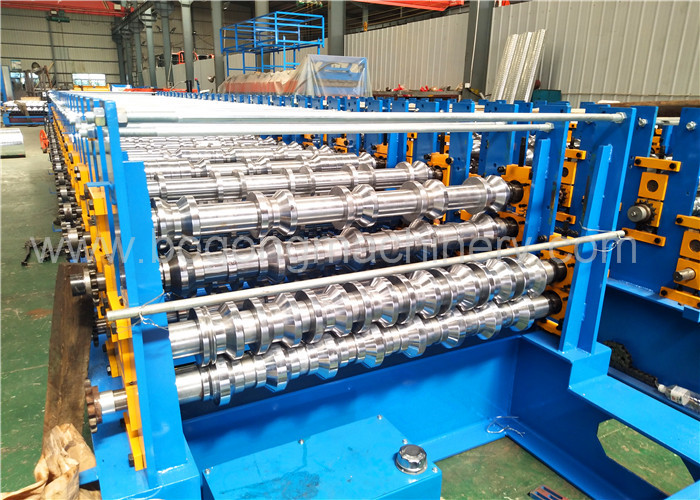

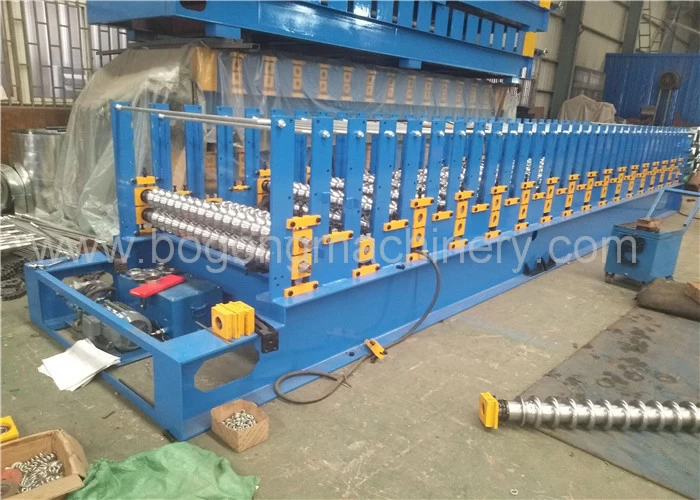

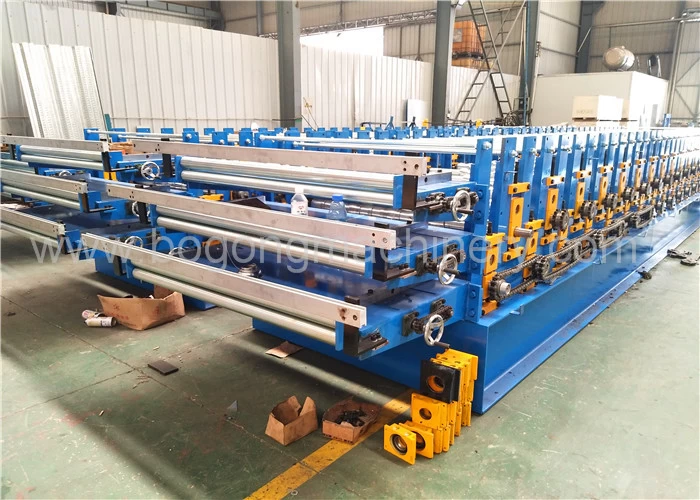

This Zinc Metal Roofing Three Layers Roof Panel Roll Forming Machine has three working layers, each layers has their own feeding table, and each feeding table also has their own hand wheels for adjusting feeding width. So each layers has alone working height, it is good for machine maintenance and adjustment.
The alone manual pre-shears for each roof panel layers also, one lay design is total separated from others.

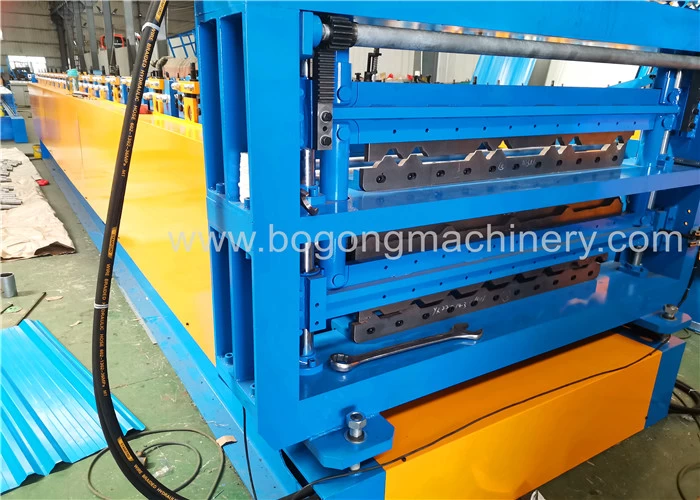

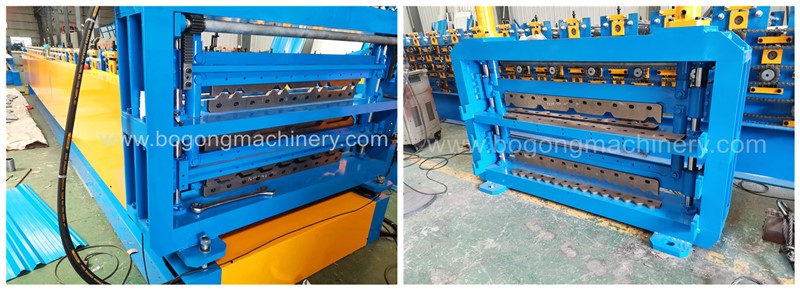

Each roof design has its own cutting blades, all are hydraulic cutting but same hydraulic motor for each roof design. So in fact that this Zinc Metal Roofing Three Layers Roof Panel Roll Forming Machine's roof profile are separated roll forming rollers, separated cutting blades but only share the same PLC control system.

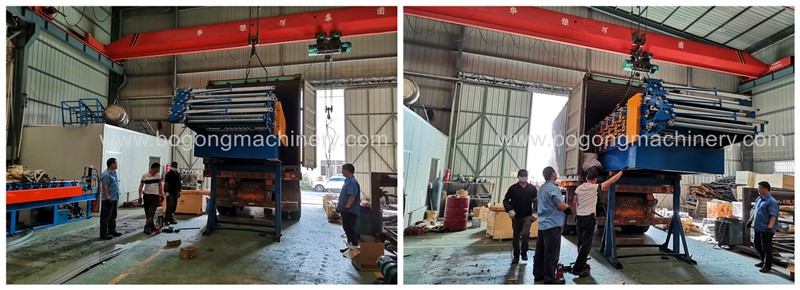

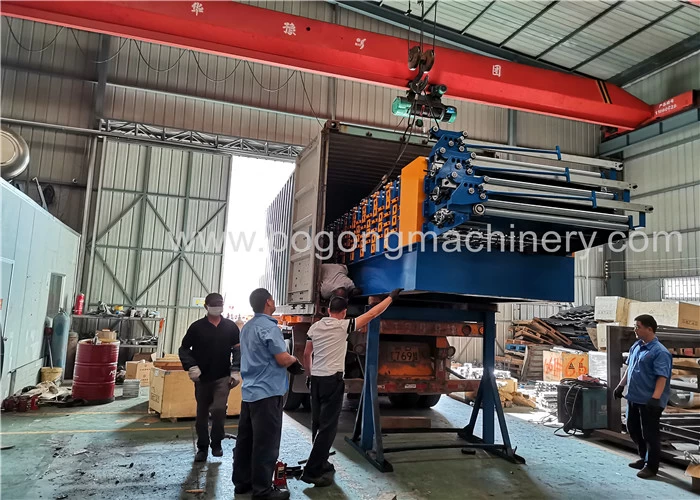

Container Loading in our factory, one zinc metal roofing three layer roof panel roll forming machine need one 40 feet container for shipping, it is totally about 15tons for this machine, when we loading container or pull out from containers, should be more careful about this.
Technical Specification
|
Parameters
|
Specification
|
|
Voltage
|
380V/50HZ/3PH/or customized
|
|
Driving Motor
|
15KW*3
|
|
Forming Steps
|
16 steps for upper layer, 16 steps for middle layer, 17 steps for bottom layer
|
|
Working Speed
|
25-30m/min
|
|
Thickness for Steel
|
0.4-0.6mm (Material:PPGI,GI Steel G550)
|
|
Shaft Diameter
|
75mm
|
|
Shaft Material
|
High grade 45# forged steel
|
|
Roller Material
|
G45# steel, CNC lathe,polished and chrome plated
|
|
PLC Cabinet
|
Schneider, Delta
|
|
Encoder
|
Omron
|
|
Sprocket Wheel
|
45 steel high-frequencies quench
|
|
Cut-off System
|
Post cutting, no waste cutting
|
|
Cutting Blade Material
|
Cr12 steel
|
|
Machine Frame Material
|
Fine welded structural steel;
|
|
Roofing Material
|
PPGI, GI steel G330-550
|
|
Painted Color
|
Blue+Orange Or Customization
|
|
Overall Size
|
11500*1450*1650mm
|
|
Weight
|
15000KGS
|
