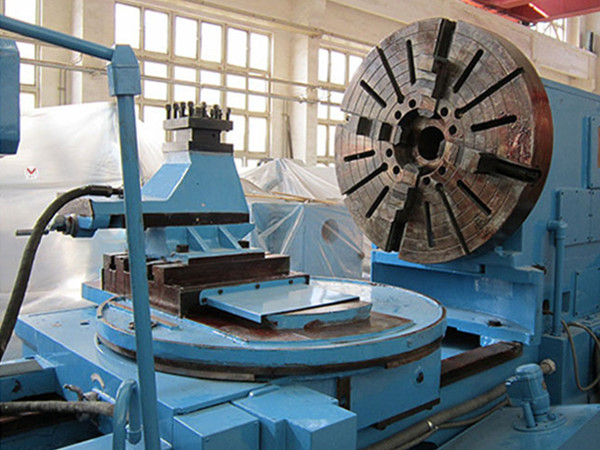

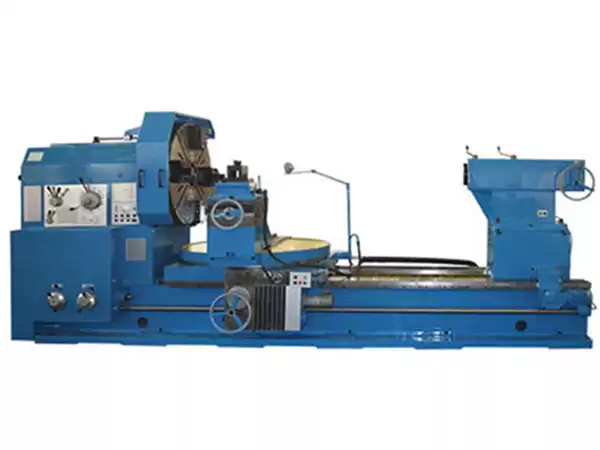

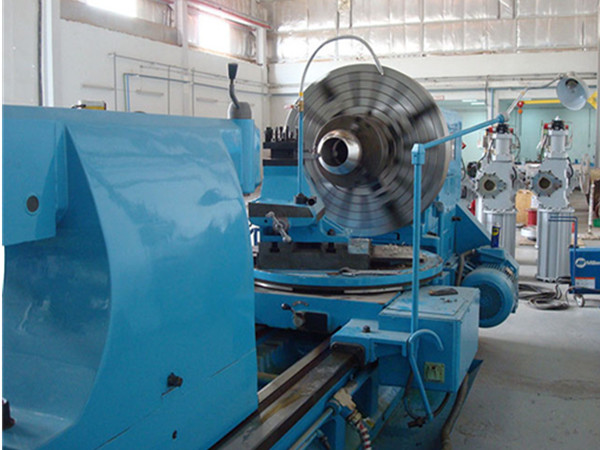

Spherical Turning Lathe

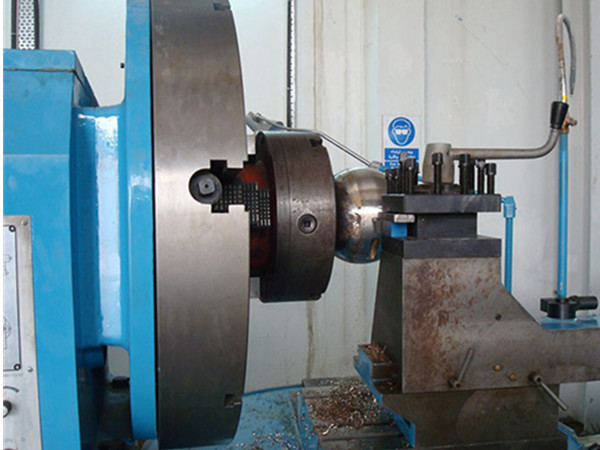

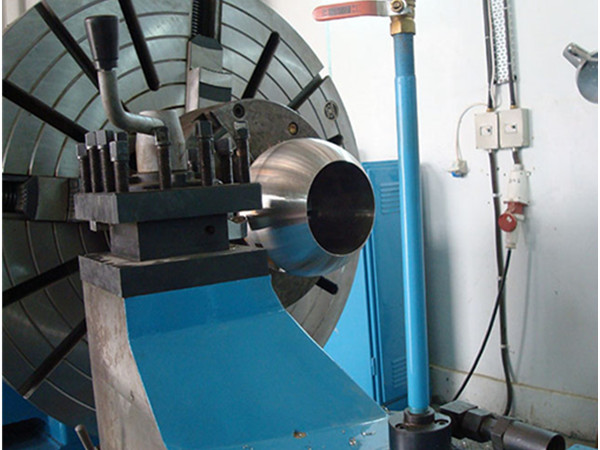

Precision automatic spherical turning lathe for machining parts of ball valves
Specification:
|
Item
|
Unit
|
C6555
|
C6595
|
C65160
|
C65180
|
|
Max. Dia. of spherical
|
mm
|
550
|
900
|
1600
|
1800
|
|
Min. Dia. of spherical
|
mm
|
50
|
260
|
1000
|
1200
|
|
Dia. of spindle hole
|
mm
|
100
|
130
|
100
|
100
|
|
Taper of hole of spindle
|
mm
|
120
|
140
|
140
|
140
|
|
No. of spindle speeds
|
|
18
|
21
|
21
|
21
|
|
Range of spindle speeds
|
r/min
|
6-800
|
3.15-315
|
3.15-315
|
3.15-315
|
|
Spindle reverse speeds
|
r/min
|
11-838
|
3.5-291
|
3.5
|
3.5-291
|
|
Swivel angle of toolpost
|
°
|
±90
|
±90
|
±55
|
±55
|
|
Main power
|
kw
|
11
|
22
|
30
|
30
|
|
Weight
|
t
|
4.4
|
12
|
25.4
|
27.4
|
|
Length
|
mm
|
3725
|
4700
|
6120
|
6220
|
|
Width
|
mm
|
1280
|
2500
|
2620
|
2720
|
|
Height
|
mm
|
1690
|
2000
|
2520
|
2620
|
Delivery:
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
The package is wooden box which is heat treatment. Or pack it according to customers special request.
Our service:
Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
Quick action and reply for the technical questions at any time in the whole life of the machine.
Overseas after service center available in some region.
Engineer overseas service available on the requirement of customer(relative cost born by customer)
