Spiral gate LDM200X3000H/W/Y/X/F
Overview of Products

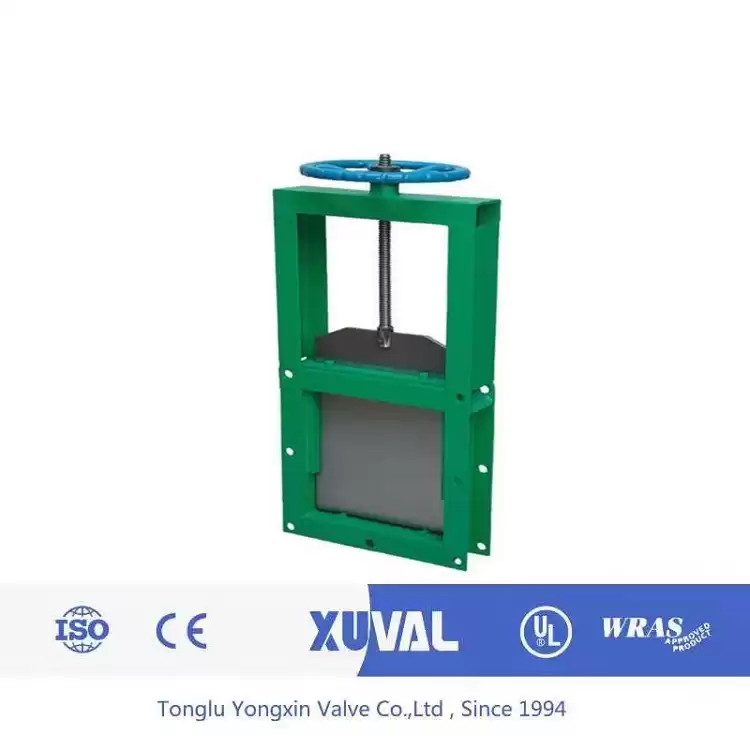

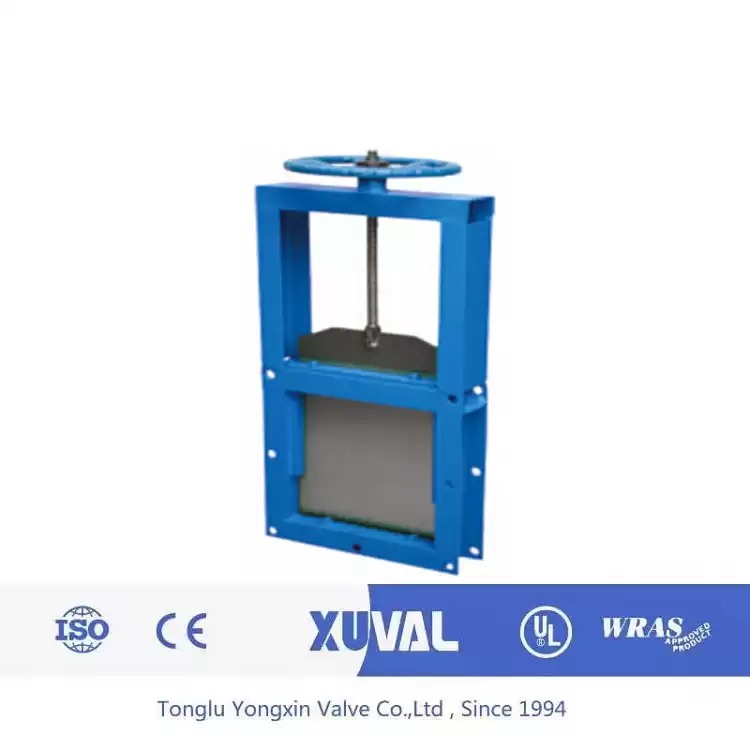

Sporal gate is used for top, bottom and import and export of building materials, metallurgy, mining, elextric power, chemical industry, glass, light industry, grain and other industries. It is an ideal equipment for controlling the flow change, starting frequently and cutting off quickly. The gate is simple in structure, flexible in operation, light in weight, non-obstructuon and fast in cut-off. It is especially suitable for all kinds of non-viscous solids, powders and granular materials less than 10mm in diameter. It can convey and adjust the flow rate of grain materials. Its installation is not limited b angle, and its operation is convenient. It can adjust the opening at any tiem. It is mainly composed of frame, gate, screw, nut and other parts. The hand wheel is rotated to make the screw with screw nut and gate move back and forth along the horizontal direction to achieve the purpose of opening and closing the gate.
Connection dimension of screw gate
|
AxA
|
BxB
|
CxC
|
L
|
H
|
Do
|
N-M
|
|
200x200
|
256x256
|
296x296
|
100
|
820
|
300
|
8-12
|
250x250
|
306x306
|
346x346
|
100
|
930
|
340
|
8-14
|
|
300x300
|
356x356
|
396x396
|
100
|
1050
|
380
|
8-14
|
|
400x400
|
456x456
|
496x496
|
100
|
1140
|
445
|
12-14
|
|
450x450
|
510x510
|
556x556
|
120
|
1450
|
530
|
12-18
|
|
500x500
|
560x560
|
606x606
|
120
|
1610
|
580
|
16-18l
|
|
600x600
|
660x660
|
706x706
|
120
|
1830
|
450
|
16-18
|
|
700x700
|
770x770
|
820x820
|
140
|
2130
|
450
|
20-18
|
|
800x800
|
870x870
|
920x920
|
140
|
2440
|
450
|
20-18
|
|
900x900
|
974x974
|
1030x1030
|
160
|
2660
|
450
|
24-23
|
|
1000x1000
|
1074x1074
|
1130x1130
|
160
|
2870
|
450
|
24-23
|
Packing & Delivery :
Packing Details :all by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45 days.
