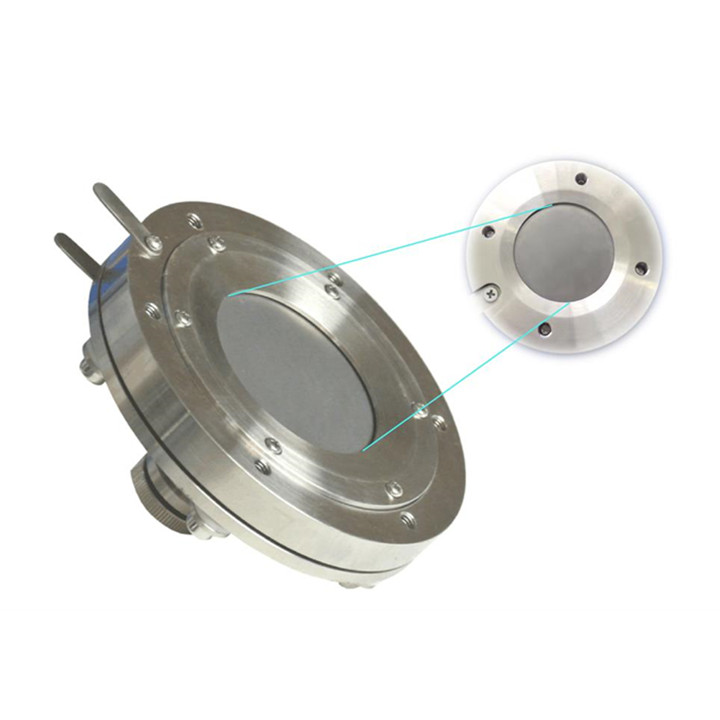

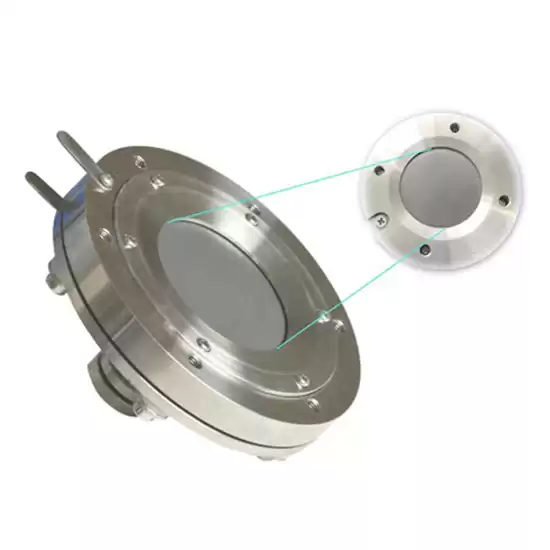

Split Test Cell with  In-situ XRD Analysis of Battery Electrode


Split Test Cell is designed for R&D of rechargeable battery material. It can accept optional 10,12, 15, 19, 20, 24 mm diameter electrode and separator (please kindly choose the size from above check box) and test electrode easy and quick.

Features:

·        Full stainless steel structure

·        Optional 10, 12, 15, 19, 20, 24 mm diameter insert

·        A 6mm height spacer inside to press down the electrode for preventing the electrode from curling

·        Sealed by electrolyte corrosive-proof PTFE O-rings

·        Electrolyte corrosive-proof PTFE Guide Sleeve up to 250 ºC

·        Easy to separate cell after test

·        Small enough to be put in and take out from glove box

·        Max. Cell thickness (cathode+separator+anode): 6mm


Split Test Cell

Split Test Cell

Split Test Cell

Split Test Cell
