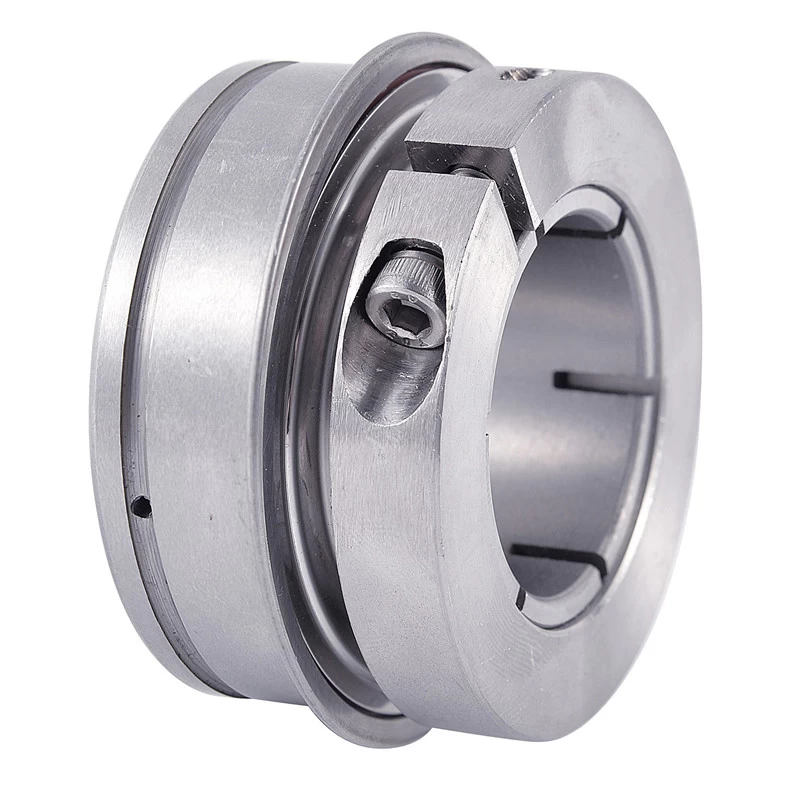

Stainless Steel Bearing Inserts With Concentic Locking SUER2


SUER  Standard duty,Stainlesss steel,With cylindrical outer ring and snap ring,Concentric locking



Facebook Twitter Pinterest LinkedIn 分享

SUER204 Stainless Steel Bearing Inserts

Bearing No. Shaft Dia Dimensions (mm)
Load rating
( KN )
Weight (kg)

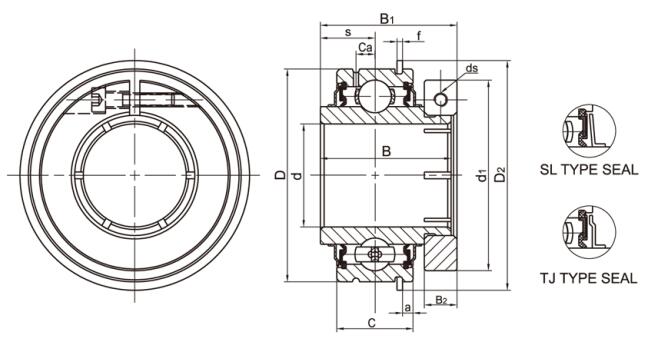

d D B C S B1 B2 a f D2 d1 ds Ca Dynamic Static
(m) (mm) (max) Cr Cor
SUER204  20 47 31 15.9 10.3 33 9.5 2.38 1.07 52.7 40.8 M4 4.05 12.82 6.65 0.22
SUER204-12 3/4   47 31 15.9 10.3 33 9.5 2.38 1.07 52.7 40.8 M4 4.05 0.22
SUER205   25 52 34.9 19 13.1 35.4 9.5 2.38 1.07 57.9 49 M4 5.5 14.03 8.05 0.28
SUER205-13 13/16   52 34.9 19 13.1 35.4 9.5 2.38 1.07 57.9 49 M4 5.5 0.28
SUER205-14 7/8   52 34.9 19 13.1 35.4 9.5 2.38 1.07 57.9 49 M4 5.5 0.28
SUER205-15 15/16   52 34.9 19 13.1 35.4 9.5 2.38 1.07 57.9 49 M4 5.5 0.28
SUER205-16 1   52 34.9 19 13.1 35.4 9.5 2.38 1.07 57.9 49 M4 5.5 0.28
SUER206   30 62 38.1 22.2 15.9 39.8 9.5 3.18 1.65 67.7 55.5 M4 5.5 19.47 11.43 0.38
SUER206-17 1-1/16   62 38.1 22.2 15.9 39.8 9.5 3.18 1.65 67.7 55.5 M4 5.5 0.38
SUER206-18 1-1/8   62 38.1 22.2 15.9 39.8 9.5 3.18 1.65 67.7 55.5 M4 5.5 0.38
SUER206-19 1-3/16   62 38.1 22.2 15.9 39.8 9.5 3.18 1.65 67.7 55.5 M4 5.5 0.38
SUER206-20 1-1/4   62 38.1 22.2 15.9 39.8 9.5 3.18 1.65 67.7 55.5 M4 5.5 0.38
SUER207   35 72 42.9 23.8 17.5 43.9 11 3.18 1.65 78.6 64 M5 6.3 25.69 15.55 0.56
SUER207-20 1-1/4   72 42.9 23.8 17.5 43.9 11 3.18 1.65 78.6 64 M5 6.3 0.56
SUER207-21 1-5/16   72 42.9 23.8 17.5 43.9 11 3.18 1.65 78.6 64 M5 6.3 0.56
SUER207-22 1-3/8   72 42.9 23.8 17.5 43.9 11 3.18 1.65 78.6 64 M5 6.3 0.56
SUER207-23 1-7/16   72 42.9 23.8 17.5 43.9 11 3.18 1.65 78.6 64 M5 6.3 0.56
SUER208   40 80 49.2 27.8 19 50.2 11 3.18 1.65 86.6 68 M5 7.5 29.51 18.14 0.87
SUER208-24 1-1/2   80 49.2 27.8 19 50.2 11 3.18 1.65 86.6 68 M5 7.5 0.87
SUER208-25 1-9/16   80 49.2 27.8 19 50.2 11 3.18 1.65 86.6 68 M5 7.5 0.87
SUER209   45 85 49.2 27.8 19 50.2 11 3.18 1.65 91.6 74 M5 7.5 31.85 20.8 0.95
SUER209-26  1-5/8    85 49.2 27.8 19 50.2 11 3.18 1.65 91.6 74 M5 7.5 0.95
SUER209-27 1-11/16   85 49.2 27.8 19 50.2 11 3.18 1.65 91.6 74 M5 7.5 0.95
SUER209-28 1-3/4   85 49.2 27.8 19 50.2 11 3.18 1.65 91.6 74 M5 7.5 0.95
SUER210   50 90 51.6 28.6 19 52.6 14.5 3.18 2.41 96.5 81 M6 6.8 34.99 23.7 1.03
SUER210-30 1-7/8    90 51.6 28.6 19 52.6 14.5 3.18 2.41 96.5 81 M6 6.8 1.03
SUER210-31 1-15/16   90 51.6 28.6 19 52.6 14.5 3.18 2.41 96.5 81 M6 6.8 1.03
SUER210-32 2   90 51.6 28.6 19 52.6 14.5 3.18 2.41 96.5 81 M6 6.8 1.03
SUER211   55 100 55.6 30.2 22.2 55.6 14.5 3.18 2.41 106.5 92 M6 7.6 43.34 29.39 1.21
SUER211-32 2   100 55.6 30.2 22.2 55.6 14.5 3.18 2.41 106.5 92 M6 7.6 1.21
SUER211-33 2-1/16   100 55.6 30.2 22.2 55.6 14.5 3.18 2.41 106.5 92 M6 7.6 1.21
SUER211-34 2-1/8   100 55.6 30.2 22.2 55.6 14.5 3.18 2.41 106.5 92 M6 7.6 1.21
SUER211-35 2-3/16   100 55.6 30.2 22.2 55.6 14.5 3.18 2.41 106.5 92 M6 7.6 1.21
SUER212   60 110 65.1 31.8 25.4 66.6 17.4 3.18 2.41 116.6 103 M8 8.4 47.68 33.43 1.68
SUER212-36 2-1/4   110 65.1 31.8 25.4 66.6 17.4 3.18 2.41 116.6 103 M8 8.4 1.68
SUER212-37 2-5/16   110 65.1 31.8 25.4 66.6 17.4 3.18 2.41 116.6 103 M8 8.4 1.68
SUER212-38 2-3/8   110 65.1 31.8 25.4 66.6 17.4 3.18 2.41 116.6 103 M8 8.4 1.68
SUER212-39 2-7/16   110 65.1 31.8 25.4 66.6 17.4 3.18 2.41 116.6 103 M8 8.4 1.68
