Stainless Steel Bearing Inserts With Setscrew Locking SUC2 SUC2...L3



SUC  Standard duty, Stainless steel,Wider inner ring,Setscrew locking



Facebook Twitter Pinterest LinkedIn 分享

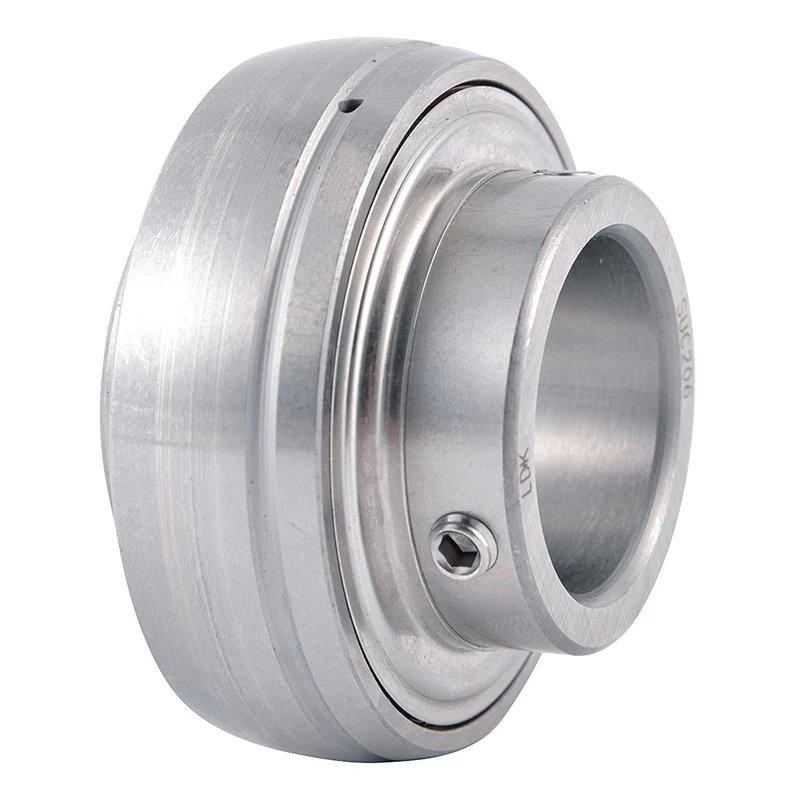

Stainless Steel Bearing Inserts SUC209

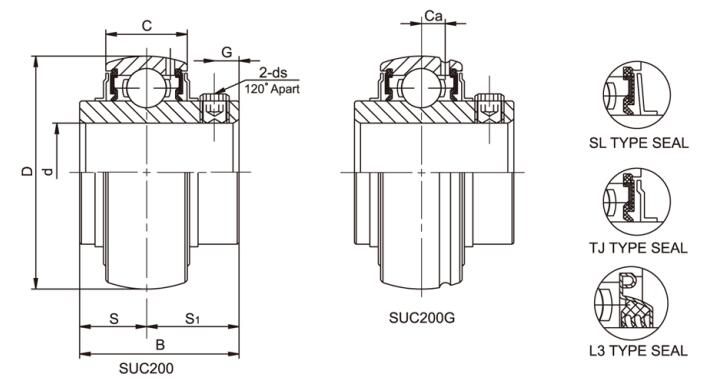

Bearing No. Shaft Dia Dimensions(mm)
Load rating
( KN )
Weight (kg)
d D B C S S1 G ds Ca Dynamic Cr Static Cor
(in) (mm) (mm) (in.UNF)
SUC201  12 47 31 17 12.7 18.3 5 M6x1 4.3 9.55 4.78 0.21
SUC201-8 1/2   47 31 17 12.7 18.3 5   1/4-28 4.3 0.21
SUC202  15 47 31 17 12.7 18.3 5 M6x1 4.3 9.55 4.78 0.19
SUC202-9  9/16    47 31 17 12.7 18.3 5   1/4-28 4.3 0.19
SUC202-10 5/8   47 31 17 12.7 18.3 5   1/4-28 4.3 0.19
SUC203  17 47 31 17 12.7 18.3 5 M6x1 4.3 9.55 4.78 0.18
SUC203-11 11/16   47 31 17 12.7 18.3 5   1/4-28 4.3 0.18
SUC204  20 47 31 17 12.7 18.3 5 M6x1 4.3 12.82 6.65 0.16
SUC204-12 3/4   47 31 17 12.7 18.3 5   1/4-28 4.3 0.16
SUC205  25 52 34.1 17 14.3 19.8 5.4 M6x1 4.2 14.03 8.05 0.18
SUC205-13  13/16    52 34.1 17 14.3 19.8 5.4   1/4-28 4.2 0.18
SUC205-14  7/8    52 34.1 17 14.3 19.8 5.4   1/4-28 4.2 0.18
SUC205-15  15/16    52 34.1 17 14.3 19.8 5.4   1/4-28 4.2 0.18
SUC205-16 1   52 34.1 17 14.3 19.8 5.4   1/4-28 4.2 0.18
SUC206  30 62 38.1 19 15.9 22.2 5.5 M6x1 5.3 19.47 11.43 0.33
SUC206-17  1-1/16    62 38.1 19 15.9 22.2 5.5   1/4-28 5.3 0.33
SUC206-18  1-1/8    62 38.1 19 15.9 22.2 5.5   1/4-28 5.3 0.33
SUC206-19  1-3/16    62 38.1 19 15.9 22.2 5.5   1/4-28 5.3 0.33
SUC206-20 1-1/4   62 38.1 19 15.9 22.2 5.5   1/4-28 5.3 0.33
SUC207  35 72 42.9 20 17.5 25.4 6.9 M8x1 5.8 25.69 15.55 0.49
SUC207-20  1-1/4    72 42.9 20 17.5 25.4 6.9   5/16-24 5.8 0.49
SUC207-21  1-5/16    72 42.9 20 17.5 25.4 6.9   5/16-24 5.8 0.49
SUC207-22  1-3/8    72 42.9 20 17.5 25.4 6.9   5/16-24 5.8 0.49
SUC207-23 1-7/16   72 42.9 20 17.5 25.4 6.9   5/16-24 5.8 0.49
SUC208  40 80 49.2 21 19 30.2 8 M8x1 6.2 29.51 18.14 0.65
SUC208-24  1-1/2    80 49.2 21 19 30.2 8   5/16-24 6.2 0.65
SUC208-25 1-9/16   80 49.2 21 19 30.2 8   5/16-24 6.2 0.65
SUC209  45 85 49.2 22 19 30.2 8 M8x1 6.5 31.85 20.8 0.71
SUC209-26  1-5/8    85 49.2 22 19 30.2 8   5/16-24 6.5 0.71
SUC209-27  1-11/16    85 49.2 22 19 30.2 8   5/16-24 6.5 0.71
SUC209-28 1-3/4   85 49.2 22 19 30.2 8   5/16-24 6.5 0.71
SUC210  50 90 51.6 24 19 32.6 10 M10x1.25 7 34.99 23.7 0.80
SUC210-30  1-7/8    90 51.6 24 19 32.6 10   3/8-24 7 0.80
SUC210-31  1-15/16    90 51.6 24 19 32.6 10   3/8-24 7 0.80
SUC210-32 2   90 51.6 24 19 32.6 10   3/8-24 7 0.80
SUC211  55 100 55.6 25 22.2 33.4 10 M10x1.25 7.4 43.34 29.39 1.08
SUC211-32  2   100 55.6 25 22.2 33.4 10   3/8-24 7.4 1.08
SUC211-33  2-1/16    100 55.6 25 22.2 33.4 10   3/8-24 7.4 1.08
SUC211-34  2-1/8    100 55.6 25 22.2 33.4 10   3/8-24 7.4 1.08
SUC211-35 2-3/16   100 55.6 25 22.2 33.4 10   3/8-24 7.4 1.08
SUC212    60 110 65.1 27 25.4 39.7 10 M10x1.25   7.6 47.68 33430 1.51
SUC212-36  2-1/4    110 65.1 27 25.4 39.7 10   3/8-24 7.6 1.51
SUC212-37  2-5/16    110 65.1 27 25.4 39.7 10   3/8-24 7.6 1.51
SUC212-38  2-3/8    110 65.1 27 25.4 39.7 10   3/8-24 7.6 1.51
SUC212-39 2-7/16   110 65.1 27 25.4 39.7 10   3/8-24 7.6 1.51
