Stamped Steel Housed Units SAPF2 SAPFT2

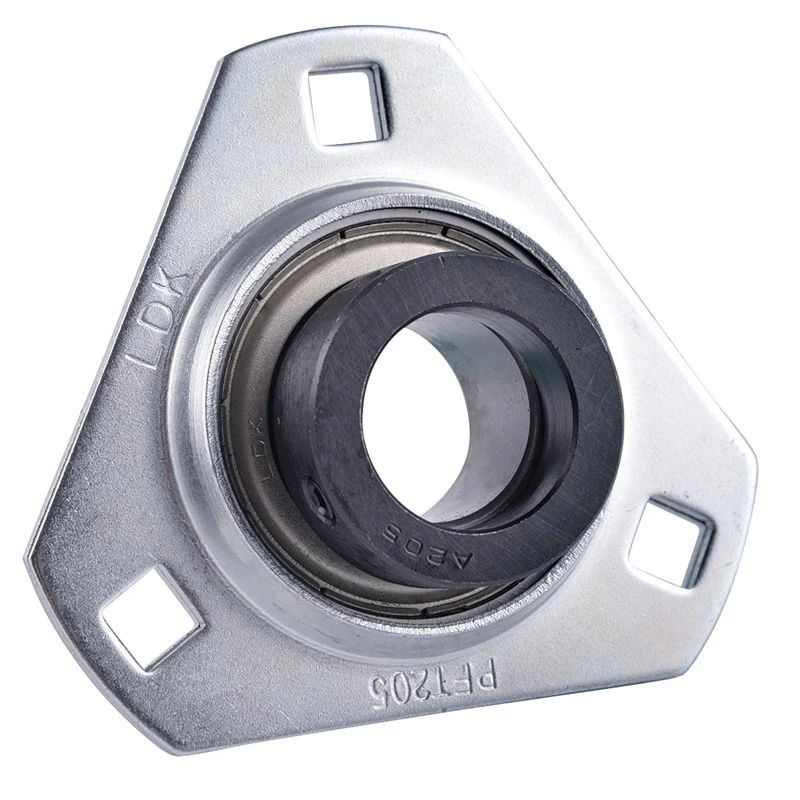

SAPF200/SAPFT200  Light duty, Eccentric locking, 3-Bolt flange housing


Facebook Twitter Pinterest LinkedIn 分享

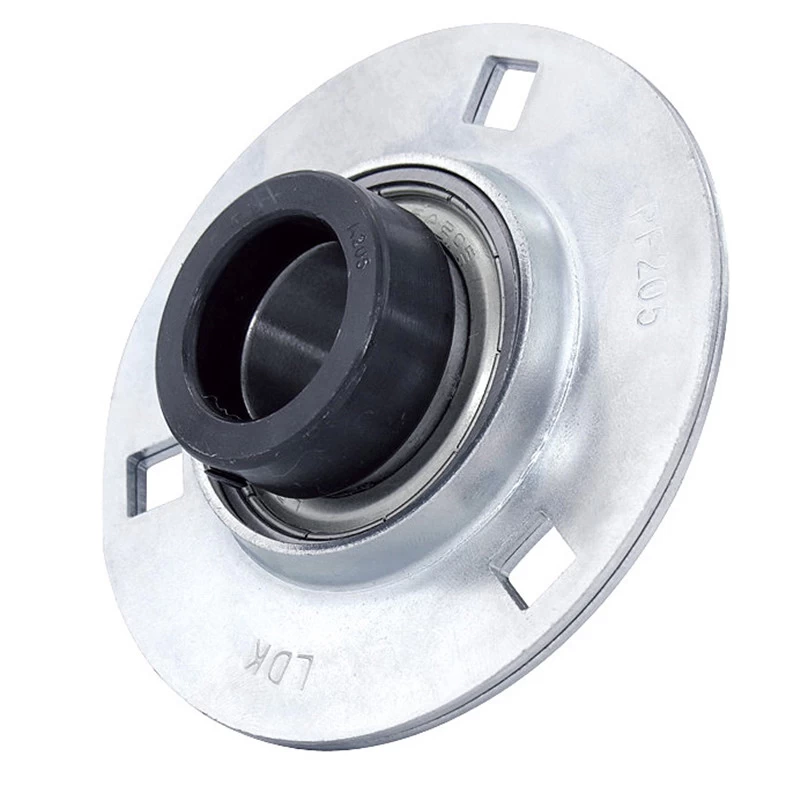

Stamped Steel Housed Units SAPF206

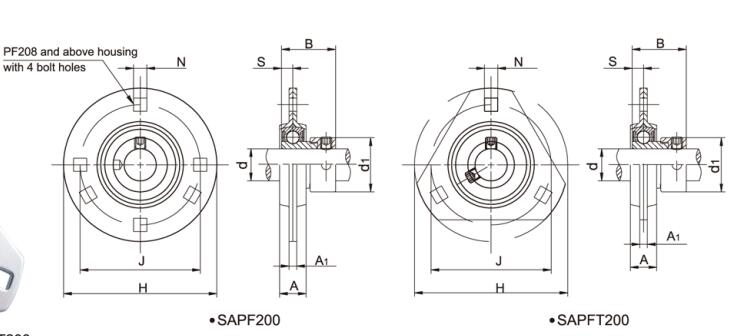

Unit No.
Shaft Dia
 d
Dimensions (mm) Bolt Size Weight (kg)
(in) (mm) H J A A1 d1 N B1 S (mm) (in)
SAPF201 12 81 63.5 14 4 28.6 7 28.6 6 M6 1/4 0.24
SAPF201-8  1/2    81 63.5 14 4 28.6 7 28.6 6 M6 1/4 0.24
SAPF202   15 81 63.5 14 4 28.6 7 28.6 6 M6 1/4 0.24
SAPF202-10  5/8    81 63.5 14 4 28.6 7 28.6 6 M6 1/4 0.24
SAPF203   17 81 63.5 14 4 28.6 7 28.6 6 M6 1/4 0.24
SAPF203-11 11/16   81 63.5 14 4 28.6 7 28.6 6 M6 1/4 0.24
SAPF204 20 90 71 16 4 33.3 9 31 7 M8 5/16 0.35
SAPF204-12 3/4   90 71 16 4 33.3 9 31 7 M8 5/16 0.35
SAPF205 25 95 76 18 4 38.1 9 31.5 7.5 M8 5/16 0.42
SAPF205-14  7/8    95 76 18 4 38.1 9 31.5 7.5 M8 5/16 0.42
SAPF205-15  15/16    95 76 18 4 38.1 9 31.5 7.5 M8 5/16 0.42
SAPF205-16 1   95 76 18 4 38.1 9 31.5 7.5 M8 5/16 0.42
SAPF206 30 113 90 18 5 44.5 11 35.7 8 M10 3/8 0.59
SAPF206-18  1-1/8    113 90 18 5 44.5 11 35.7 8 M10 3/8 0.59
SAPF206-19  1-3/16    113 90 18 5 44.5 11 35.7 8 M10 3/8 0.59
SAPF206-20 1-1/4   113 90 18 5 44.5 11 35.7 8 M10 3/8 0.59
SAPF207 35 122 100 20 5 55.6 11 38.9 8.5 M10 3/8 0.9
SAPF207-20  1-1/4    122 100 20 5 55.6 11 38.9 8.5 M10 3/8 0.9
SAPF207-21  1-5/16    122 100 20 5 55.6 11 38.9 8.5 M10 3/8 0.9
SAPF207-22  1-3/8    122 100 20 5 55.6 11 38.9 8.5 M10 3/8 0.9
SAPF207-23 1-7/16   122 100 20 5 55.6 11 38.9 8.5 M10 3/8 0.9
SAPF208 40 148 119 23 7 60.3 13.5 43.7 9 M12 1/2 1.11
SAPF208-24  1-1/2    148 119 23 7 60.3 13.5 43.7 9 M12 1/2 1.11
SAPF208-25 1-9/16   148 119 23 7 60.3 13.5 43.7 9 M12 1/2 1.11
SAPF209 45 150 120.5 23 7 63.5 13.5 43.7 9.5 M12 1/2 1.48
SAPF209-26  1-5/8    150 120.5 23 7 63.5 13.5 43.7 9.5 M12 1/2 1.48
SAPF209-27  1-11/16    150 120.5 23 7 63.5 13.5 43.7 9.5 M12 1/2 1.48
SAPF209-28 1-3/4   150 120.5 23 7 63.5 13.5 43.7 9.5 M12 1/2 1.48
SAPF210 50 157 127 25 8 63.5 13.5 43.7 10 M12 1/2  
SAPF210-30  1-7/8    157 127 25 8 63.5 13.5 43.7 10 M12 1/2  
SAPF210-31 1-15/16   157 127 25 8 63.5 13.5 43.7 10 M12 1/2  
SAPF211 55 168 138 26 8 63.5 13.5 48.4 10.5 M12 1/2  
SAPF211-32  2   168 138 26 8 63.5 13.5 48.4 10.5 M12 1/2  
SAPF211-34  2-1/8    168 138 26 8 63.5 13.5 48.4 10.5 M12 1/2  
SAPF211-35 2-3/16   168 138 26 8 63.5 13.5 48.4 10.5 M12 1/2  
SAPF212   60 177 148 28 8 63.5 13.5 53.1 11 M12 1/2  
SAPF212-36  2-1/4    177 148 28 8 63.5 13.5 53.1 11 M12 1/2  
SAPF212-38  2-3/8    177 148 28 8 63.5 13.5 53.1 11 M12 1/2  
SAPF212-39 2-7/16   177 148 28 8 63.5 13.5 53.1 11 M12 1/2  


Unit No.
Shaft Dia
 d
Dimensions (mm) Bolt Size Weight (kg)
(in) (mm) H J A A1 d1 N B1 S (mm) (in)
SAPFT201 12 81 63.5 14 4 28.6 7 28.6 6 M6 1/4 0.24
SAPFT201-8  1/2    81 63.5 14 4 28.6 7 28.6 6 M6 1/4 0.24
SAPFT202   15 81 63.5 14 4 28.6 7 28.6 6 M6 1/4 0.24
SAPFT202-10  5/8    81 63.5 14 4 28.6 7 28.6 6 M6 1/4 0.24
SAPFT203   17 81 63.5 14 4 28.6 7 28.6 6 M6 1/4 0.24
SAPFT203-11 11/16   81 63.5 14 4 28.6 7 28.6 6 M6 1/4 0.24
SAPFT204 20 90 71 16 4 33.3 9 31 7 M8 5/16 0.35
SAPFT204-12 3/4   90 71 16 4 33.3 9 31 7 M8 5/16 0.35
SAPFT205 25 95 76 18 4 38.1 9 31.5 7.5 M8 5/16 0.42
SAPFT205-14  7/8    95 76 18 4 38.1 9 31.5 7.5 M8 5/16 0.42
SAPFT205-15  15/16    95 76 18 4 38.1 9 31.5 7.5 M8 5/16 0.42
SAPFT205-16 1   95 76 18 4 38.1 9 31.5 7.5 M8 5/16 0.42
SAPFT206 30 113 90 18 5 44.5 11 35.7 8 M10 3/8 0.59
SAPFT206-18  1-1/8    113 90 18 5 44.5 11 35.7 8 M10 3/8 0.59
SAPFT206-19  1-3/16    113 90 18 5 44.5 11 35.7 8 M10 3/8 0.59
SAPFT206-20 1-1/4   113 90 18 5 44.5 11 35.7 8 M10 3/8 0.59
SAPFT207 35 122 100 20 5 55.6 11 38.9 8.5 M10 3/8 0.9
SAPFT207-20  1-1/4    122 100 20 5 55.6 11 38.9 8.5 M10 3/8 0.9
SAPFT207-21  1-5/16    122 100 20 5 55.6 11 38.9 8.5 M10 3/8 0.9
SAPFT207-22  1-3/8    122 100 20 5 55.6 11 38.9 8.5 M10 3/8 0.9
SAPFT207-23 1-7/16   122 100 20 5 55.6 11 38.9 8.5 M10 3/8 0.9
SAPFT208 40 148 119 23 7 60.3 13.5 43.7 9 M12 1/2 1.11
SAPFT208-24  1-1/2    148 119 23 7 60.3 13.5 43.7 9 M12 1/2 1.11
SAPFT208-25 1-9/16   148 119 23 7 60.3 13.5 43.7 9 M12 1/2 1.11
SAPFT209 45 150 120.5 23 7 63.5 13.5 43.7 9.5 M12 1/2 1.48
SAPFT209-26  1-5/8    150 120.5 23 7 63.5 13.5 43.7 9.5 M12 1/2 1.48
SAPFT209-27  1-11/16    150 120.5 23 7 63.5 13.5 43.7 9.5 M12 1/2 1.48
SAPFT209-28 1-3/4   150 120.5 23 7 63.5 13.5 43.7 9.5 M12 1/2 1.48
SAPFT210 50 157 127 25 8 63.5 13.5 43.7 10 M12 1/2  
SAPFT210-30  1-7/8    157 127 25 8 63.5 13.5 43.7 10 M12 1/2  
SAPFT210-31 1-15/16   157 127 25 8 63.5 13.5 43.7 10 M12 1/2  
SAPFT211 55 168 138 26 8 63.5 13.5 48.4 10.5 M12 1/2  
SAPFT211-32  2   168 138 26 8 63.5 13.5 48.4 10.5 M12 1/2  
SAPFT211-34  2-1/8    168 138 26 8 63.5 13.5 48.4 10.5 M12 1/2  
SAPFT211-35 2-3/16   168 138 26 8 63.5 13.5 48.4 10.5 M12 1/2  
SAPFT212   60 177 148 28 8 63.5 13.5 53.1 11 M12 1/2  
SAPFT212-36  2-1/4    177 148 28 8 63.5 13.5 53.1 11 M12 1/2  
SAPFT212-38  2-3/8    177 148 28 8 63.5 13.5 53.1 11 M12 1/2  
SAPFT212-39 2-7/16   177 148 28 8 63.5 13.5 53.1 11 M12 1/2  
