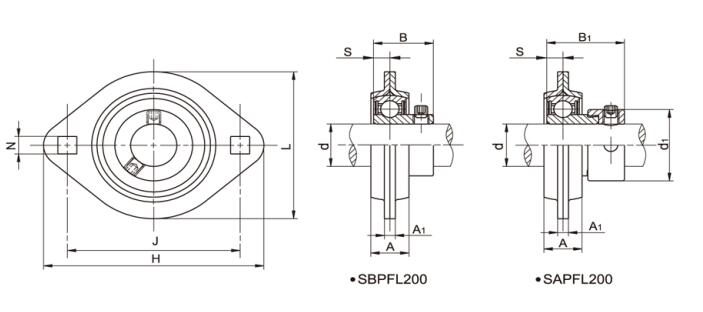

Unit No.
|
Shaft Dia
d
|
Dimensions(mm)
|
Bolt Size
|
Weight (kg)
|
|
(in)
|
(mm)
|
H
|
J
|
L
|
A
|
A1
|
N
|
B
|
S
|
(mm)
|
(in)
|
|
SBPFL201
|
|
12
|
81
|
63.5
|
59
|
14
|
4
|
7
|
22
|
6
|
M6
|
1/4
|
0.23
|
|
SBPFL201-8
|
1/2
|
|
81
|
63.5
|
59
|
14
|
4
|
7
|
22
|
6
|
M6
|
1/4
|
0.23
|
|
SBPFL202
|
|
15
|
81
|
63.5
|
59
|
14
|
4
|
7
|
22
|
6
|
M6
|
1/4
|
0.23
|
|
SBPFL202-10
|
5/8
|
|
81
|
63.5
|
59
|
14
|
4
|
7
|
22
|
6
|
M6
|
1/4
|
0.23
|
|
SBPFL203
|
|
17
|
81
|
63.5
|
59
|
14
|
4
|
7
|
22
|
6
|
M6
|
1/4
|
0.23
|
|
SBPFL203-11
|
11/16
|
|
81
|
63.5
|
59
|
14
|
4
|
7
|
22
|
6
|
M6
|
1/4
|
0.23
|
|
SBPFL204
|
|
20
|
90
|
71.5
|
67
|
16
|
4
|
9
|
25
|
7
|
MS
|
5/16
|
0.26
|
|
SBPFL204-12
|
3/4
|
|
90
|
71.5
|
67
|
16
|
4
|
9
|
25
|
7
|
MS
|
5/16
|
0.26
|
|
SBPFL205
|
|
25
|
95
|
76
|
71
|
18
|
4
|
9
|
27
|
7.5
|
M8
|
5/16
|
0.35
|
|
SBPFL205-14
|
7/8
|
|
95
|
76
|
71
|
18
|
4
|
9
|
27
|
7.5
|
M8
|
5/16
|
0.35
|
|
SBPFL205-15
|
15/16
|
|
95
|
76
|
71
|
18
|
4
|
9
|
27
|
7.5
|
M8
|
5/16
|
0.35
|
|
SBPFL205-16
|
1
|
|
95
|
76
|
71
|
18
|
4
|
9
|
27
|
7.5
|
M8
|
5/16
|
0.35
|
|
SBPFL206
|
|
30
|
113
|
90.5
|
84
|
18
|
5
|
11
|
30
|
8
|
M10
|
3/8
|
0.46
|
|
SBPFL206-18
|
1-1/8
|
|
113
|
90.5
|
84
|
18
|
5
|
11
|
30
|
8
|
M10
|
3/8
|
0.46
|
|
SBPFL206-19
|
1-3/16
|
|
113
|
90.5
|
84
|
18
|
5
|
11
|
30
|
8
|
M10
|
3/8
|
0.46
|
|
SBPFL206-20
|
1-1/4
|
|
113
|
90.5
|
84
|
18
|
5
|
11
|
30
|
8
|
M10
|
3/8
|
0.46
|
|
SBPFL207
|
|
35
|
122
|
100
|
94
|
20
|
5
|
11
|
32
|
8.5
|
M10
|
3/8
|
0.73
|
|
SBPFL207-20
|
1-1/4
|
|
122
|
100
|
94
|
20
|
5
|
11
|
32
|
8.5
|
M10
|
3/8
|
0.73
|
|
SBPFL207-21
|
1-5/16
|
|
122
|
100
|
94
|
20
|
5
|
11
|
32
|
8.5
|
M10
|
3/8
|
0.73
|
|
SBPFL207-22
|
1-3/8
|
|
122
|
100
|
94
|
20
|
5
|
11
|
32
|
8.5
|
M10
|
3/8
|
0.73
|
|
SBPFL207-23
|
1-7/16
|
|
122
|
100
|
94
|
20
|
5
|
11
|
32
|
8.5
|
M10
|
3/8
|
0.73
|
|
SBPFL208
|
|
40
|
147
|
119
|
106
|
23
|
7
|
13.5
|
34
|
9
|
M12
|
1/2
|
0.94
|
|
SBPFL208-24
|
1-1/2
|
|
147
|
119
|
106
|
23
|
7
|
13.5
|
34
|
9
|
M12
|
1/2
|
0.94
|
|
SBPFL208-25
|
1-9/16
|
|
147
|
119
|
106
|
23
|
7
|
13.5
|
34
|
9
|
M12
|
1/2
|
0.94
|
SAPFL200 Series
|
Unit No.
|
Shaft Dia
d
|
Dimensions(mm)
|
Bolt Size
|
Weight (kg)
|
|
(in)
|
(mm)
|
H
|
J
|
L
|
A
|
A1
|
d1
|
N
|
B1
|
S
|
(mm)
|
(in)
|
|
|
SAPFL201
|
|
12
|
81
|
63.5
|
59
|
14
|
4
|
28.6
|
7
|
28.6
|
6
|
M6
|
1/4
|
0.34
|
|
SAPFL201-8
|
1/2
|
|
81
|
63.5
|
59
|
14
|
4
|
28.6
|
7
|
28.6
|
6
|
M6
|
1/4
|
0.34
|
|
SAPFL202
|
|
15
|
81
|
63.5
|
59
|
14
|
4
|
28.6
|
7
|
28.6
|
6
|
M6
|
1/4
|
0.34
|
|
SAPFL202-10
|
5/8
|
|
81
|
63.5
|
59
|
14
|
4
|
28.6
|
7
|
28.6
|
6
|
M6
|
1/4
|
0.34
|
|
SAPFL203
|
|
17
|
81
|
63.5
|
59
|
14
|
4
|
28.6
|
7
|
28.6
|
6
|
M6
|
1/4
|
0.34
|
|
SAPFL203-11
|
11/16
|
|
81
|
63.5
|
59
|
14
|
4
|
28.6
|
7
|
28.6
|
6
|
M6
|
1/4
|
0.34
|
|
SAPFL204
|
|
20
|
90
|
71.5
|
67
|
16
|
4
|
33.3
|
9
|
31
|
7
|
M8
|
5/16
|
0.35
|
|
SAPFL204-12
|
3/4
|
|
90
|
71.5
|
67
|
16
|
4
|
33.3
|
9
|
31
|
7
|
M8
|
5/16
|
0.35
|
|
SAPFL205
|
|
25
|
95
|
76
|
71
|
18
|
4
|
38.1
|
9
|
31.5
|
7.5
|
M8
|
5/16
|
0.42
|
|
SAPFL205-14
|
7/8
|
|
95
|
76
|
71
|
18
|
4
|
38.1
|
9
|
31.5
|
7.5
|
M8
|
5/16
|
0.42
|
|
SAPFL205-15
|
15/16
|
|
95
|
76
|
71
|
18
|
4
|
38.1
|
9
|
31.5
|
7.5
|
M8
|
5/16
|
0.42
|
|
SAPFL205-16
|
1
|
|
95
|
76
|
71
|
18
|
4
|
38.1
|
9
|
31.5
|
7.5
|
M8
|
5/16
|
0.42
|
|
SAPFL206
|
|
30
|
113
|
90.5
|
84
|
18
|
5
|
44.5
|
11
|
35.7
|
8
|
M10
|
3/8
|
0.59
|
|
SAPFL206-18
|
1-1/8
|
|
113
|
90.5
|
84
|
18
|
5
|
44.5
|
11
|
35.7
|
8
|
M10
|
3/8
|
0.59
|
|
SAPFL206-19
|
1-3/16
|
|
113
|
90.5
|
84
|
18
|
5
|
44.5
|
11
|
35.7
|
8
|
M10
|
3/8
|
0.59
|
|
SAPFL206-20
|
1-1/4
|
|
113
|
90.5
|
84
|
18
|
5
|
44.5
|
11
|
35.7
|
8
|
M10
|
3/8
|
0.59
|
|
SAPFL207
|
|
35
|
122
|
100
|
94
|
20
|
5
|
55.6
|
11
|
38.9
|
8.5
|
M10
|
3/8
|
0.9
|
|
SAPFL207-20
|
1-1/4
|
|
122
|
100
|
94
|
20
|
5
|
55.6
|
11
|
38.9
|
8.5
|
M10
|
3/8
|
0.9
|
|
SAPFL207-21
|
1-5/16
|
|
122
|
100
|
94
|
20
|
5
|
55.6
|
11
|
38.9
|
8.5
|
M10
|
3/8
|
0.9
|
|
SAPFL207-22
|
1-3/8
|
|
122
|
100
|
94
|
20
|
5
|
55.6
|
11
|
38.9
|
8.5
|
M10
|
3/8
|
0.9
|
|
SAPFL207-23
|
1-7/16
|
|
122
|
100
|
94
|
20
|
5
|
55.6
|
11
|
38.9
|
8.5
|
M10
|
3/8
|
0.9
|
|
SAPFL208
|
|
40
|
147
|
119
|
106
|
23
|
7
|
60.3
|
13.5
|
43.7
|
9
|
M12
|
1/2
|
1.11
|
|
SAPFL208-24
|
1-1/2
|
|
147
|
119
|
106
|
23
|
7
|
60.3
|
13.5
|
43.7
|
9
|
M12
|
1/2
|
1.11
|
|
SAPFL208-25
|
1-9/16
|
|
147
|
119
|
106
|
23
|
7
|
60.3
|
13.5
|
43.7
|
9
|
M12
|
1/2
|
1.11
|
