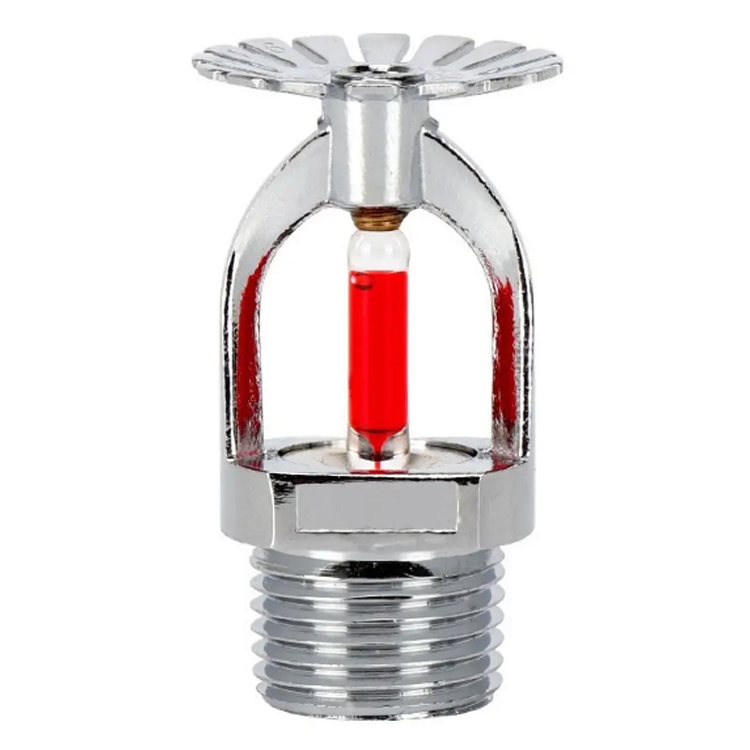

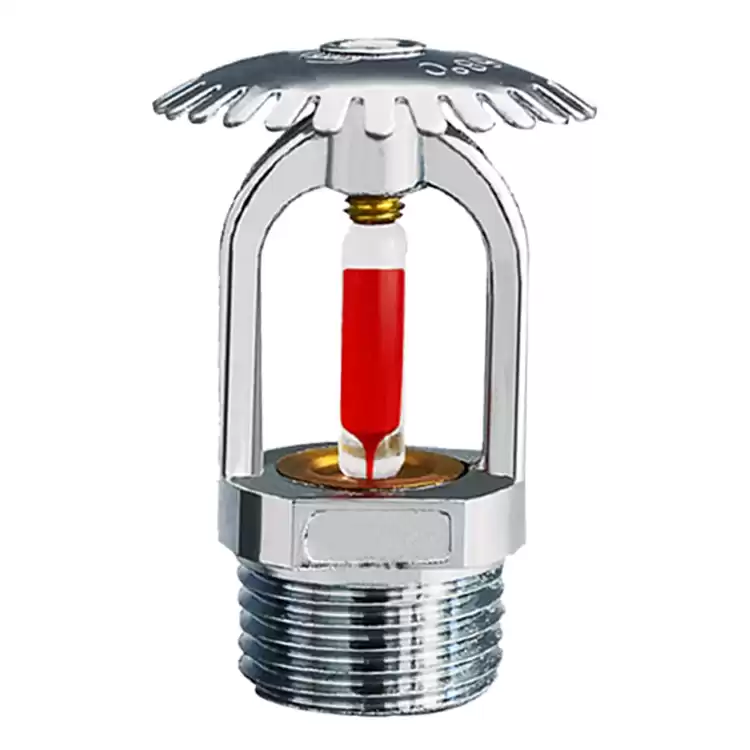

Jinyuan fire sprinklers are key components in fire protection systems. When a fire occurs and the ambient temperature reaches the designed response temperature (68℃ here), the thermal - sensitive element (the red liquid - filled part) ruptures, and the sprinkler discharges water to suppress and extinguish the fire, playing a crucial role in initial fire fighting and protecting property and life safety.
Products Parameters
| Model |
Diameter of thread |
Flow coefficient |
Operating temperature |
Minimum and maximum order length |
| T - ZSTGX80 - 68℃ Q5 |
Standard order: 1” NPT(DN25) |
80±6 |
68℃ |
76.5mm - 1422.8mm |
| T - ZSTGX115 - 68℃ Q5 |
Standard order: 1” NPT(DN25) |
115±9 |
68℃ |
76.5mm - 1422.8mm |
| K - ZSTGX80 - 68℃ Q3 |
Standard order: 1” NPT(DN25) |
80±6 |
68℃ |
76.5mm - 1422.8mm |
| K - ZSTGX115 - 68℃ Q3 |
Standard order: 1” NPT(DN25) |
115±9 |
68℃ |
76.5mm - 1422.8mm |
| Main Parts of the Product |
Materials |
Available Size Specifications and Models |
| Sprinkler Body (Including nozzle, shell, etc.) |
Alloy, Metal |
T - ZSTGX80 - 68℃ Q5、T - ZSTGX115 - 68℃ Q5、K - ZSTGX80 - 68℃ Q3、K - ZSTGX115 - 68℃ Q3 |
| Glass Bubble Thermal - Sensitive Element |
Glass with heat - sensitive liquid inside |
T - ZSTGX80 - 68℃ Q5、T - ZSTGX115 - 68℃ Q5、K - ZSTGX80 - 68℃ Q3、K - ZSTGX115 - 68℃ Q3 |
| Spring - Pipe Plug Assembly |
Metal spring, Sealing material |
T - ZSTGX80 - 68℃ Q5、T - ZSTGX115 - 68℃ Q5、K - ZSTGX80 - 68℃ Q3、K - ZSTGX115 - 68℃ Q3 |
FAQ
1:What’s the MOQ for your Jinyuan Standard sprinklers?
The regular MOQ is 500 sets. For special purchase quantities, it can be negotiated and adjusted. We support flexible adaptation for small - batch trial orders and large - scale purchases.
2: What’s the production lead time? Can urgent orders be expedited?
The standard production lead time is 15 days. For urgent orders, if communicated in advance and the order quantity is reasonable, we can coordinate the production line for expediting to meet the delivery demand as much as possible.
3:Can you provide free samples for testing? How about sample fees if charged?
Free samples are available within 2 sets for function and quality inspection. For quantities exceeding or special - customized samples, fees are charged at cost, which can be deducted from the payment after order placement.
4：How to handle quality issues of sprinklers during cooperation?
If quality issues are indeed caused by our production, we will provide unconditional return and replacement. Assist in replenishment and rectification throughout to ensure your project progress, and bear corresponding logistics and loss costs.
5：What payment and delivery terms do you support?
Payment supports T/T, L/C, etc. Delivery can be based on international trade terms like FOB, CIF, or domestic logistics distribution (such as express, dedicated line logistics), flexibly adapting to cooperation needs.
Feature
|
| Sensitive Element: |
Glass Bulb |
| Main Material: |
Brass |
| Seal Material: |
NBR |
| Surface Finishing: |
Chrome |
| Length of Pipe: |
80~1500mm customized. |
