Overview

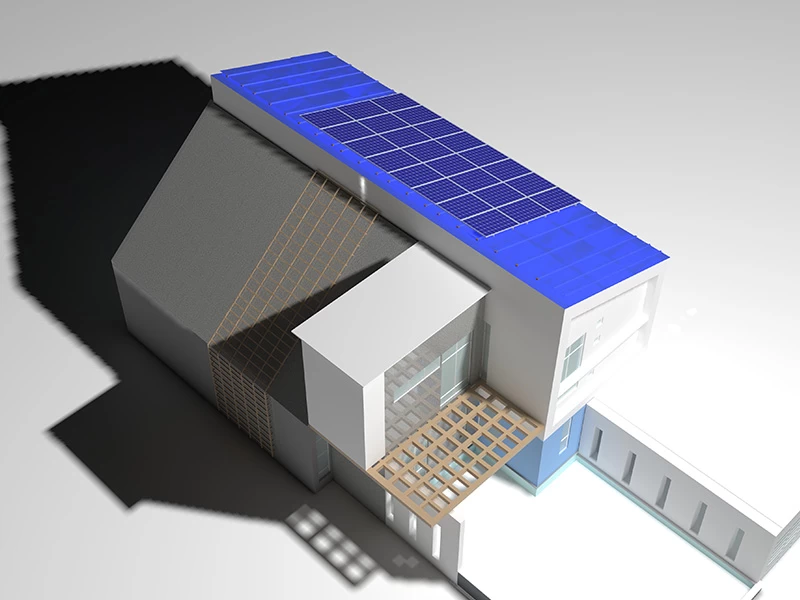

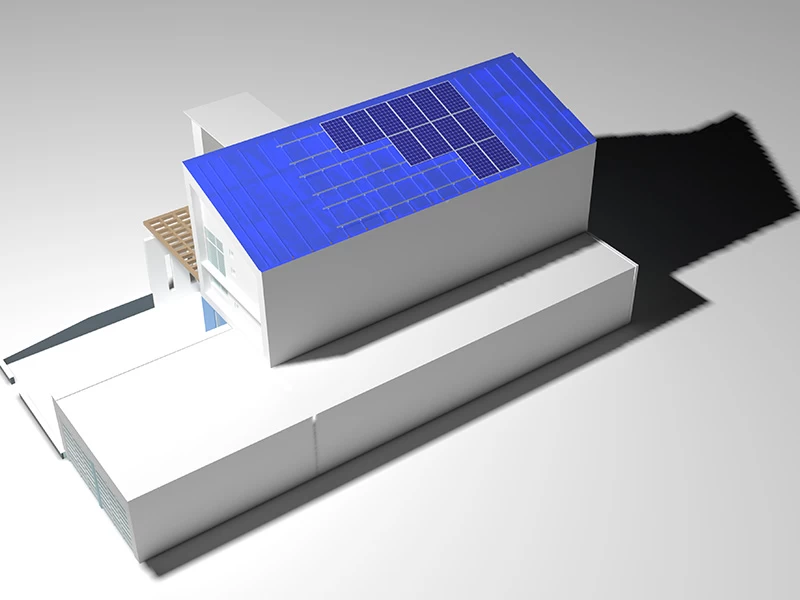

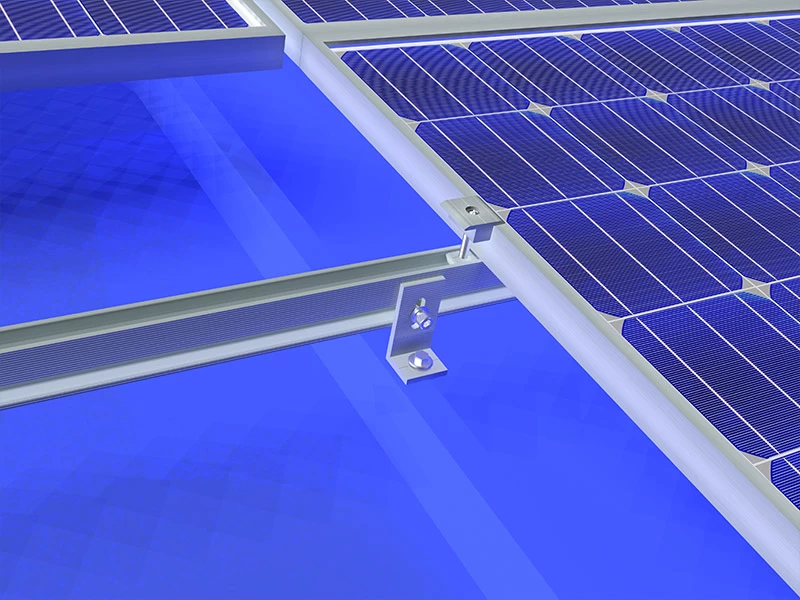

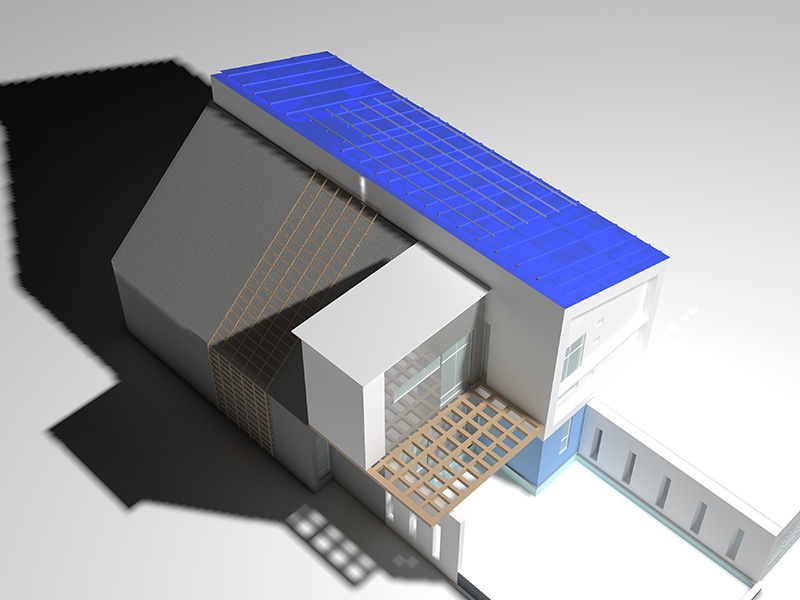

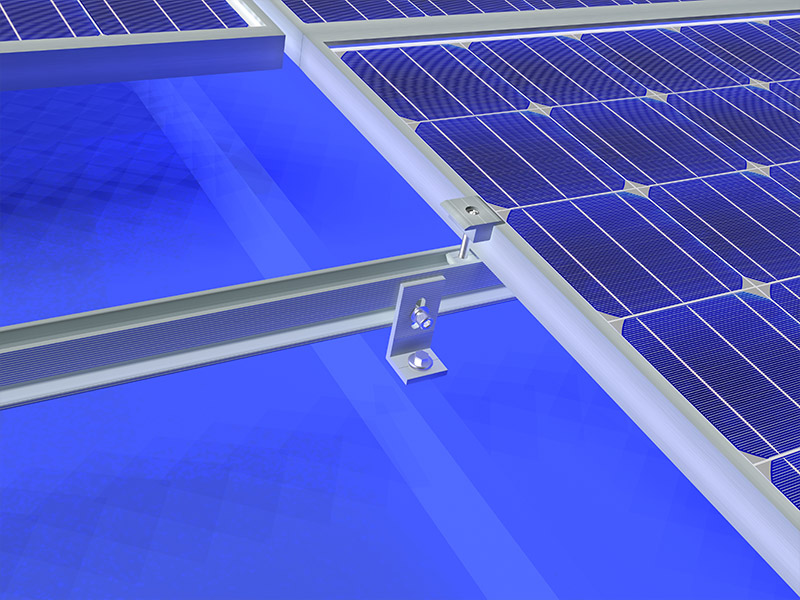

MRac L feet Kit and Hanger Bolt Kit are applied in most Corrugated
Metal Roof commercial and industrial solar projects. The system can
achieve stable and strong connection between the roof support
structure and solar modules with modular Patented design.
Pre-assembled kits save the installation time and cost on site.
|
Technical Parameter
|
|
Installation Site
|
Pitched Roof
|
|
Roof Type
|
Trapezoidal Metal Roof Support
|
|
Tilt Angle
|
0°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
System Name
|

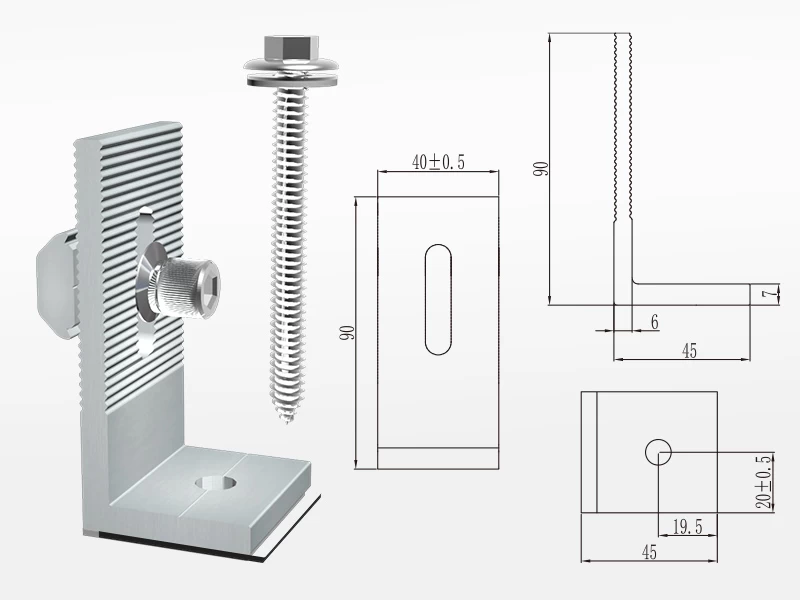

MRac L Feet Kit & Hanger Bolt Kit
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Q235B(Hot-Dip Galvanized), Al6005-T5(Anodized)
|
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel & Hot Dip Galvanized
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Technology Certification
