Standing Seam Wall Roll Forming Machine


Easy operate and cheap price.





Standing Seam Wall Forming Machine For YX26-220/550


Please Click Here To View The Video

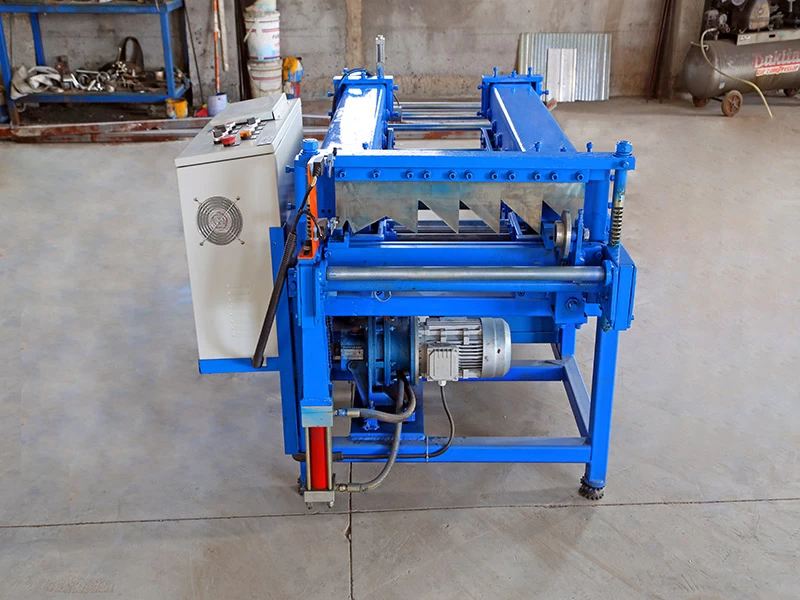

Standing seam wall forming machine


Profile

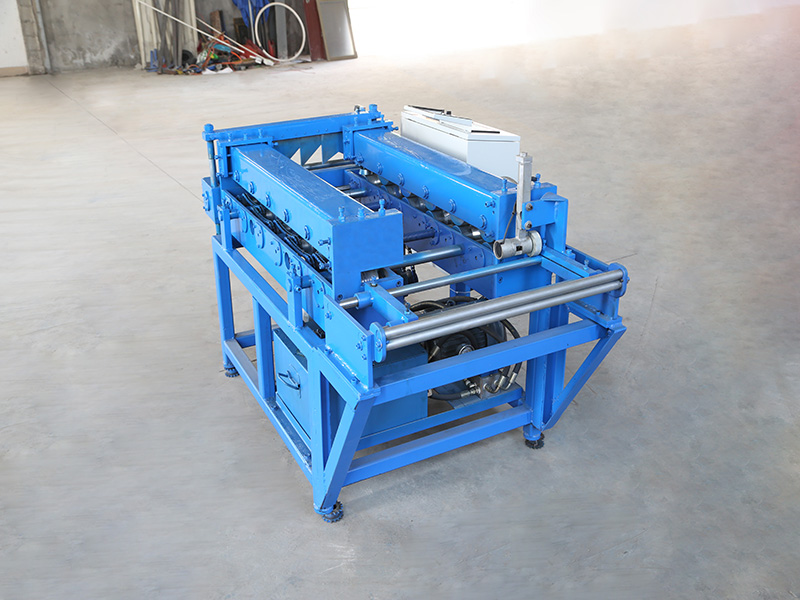

Standing seam wall forming machine




Material

Effective width:220/550mm
Feeding width: about 320/650mm
Material Thickness: 0.4-1.0mm
Applicable material:Galvanized Steel(GI)
Cold roll steel(CRC),with yield strength 345-550Mpa




Main Machine Parameters

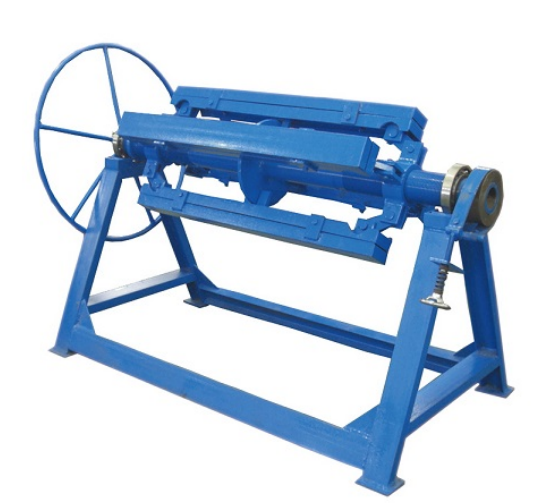

3 Ton Manual Decoiler




Side wall thickness: Q235 t18mm

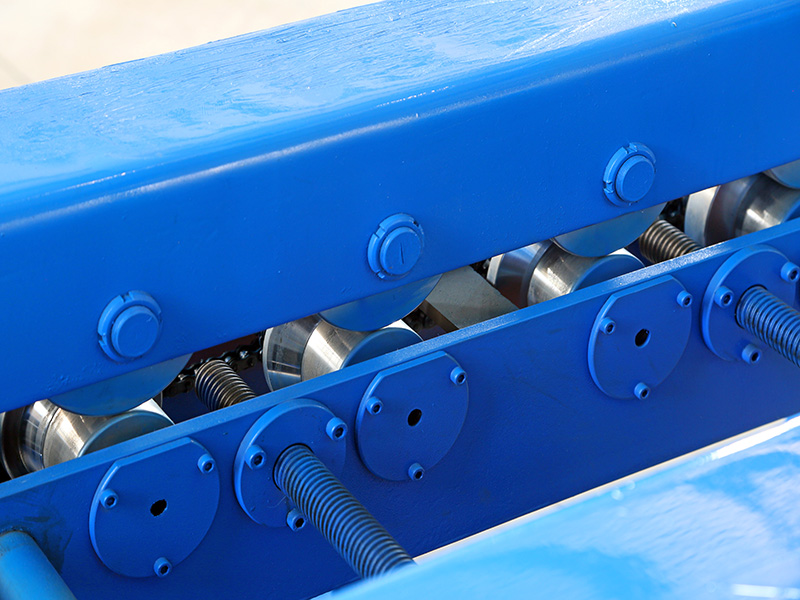

Rollers manufactured from 45# Steel,CNC lathes,Heat Treatment,hard Chrome Coated,with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust).
Shaft diameter:75mm
Main Motor=4KW,Frequency speed control.
Gear/Sprocket driving,about 6-8-step to form.




Standing seam wall forming machine


Standing seam wall forming machine

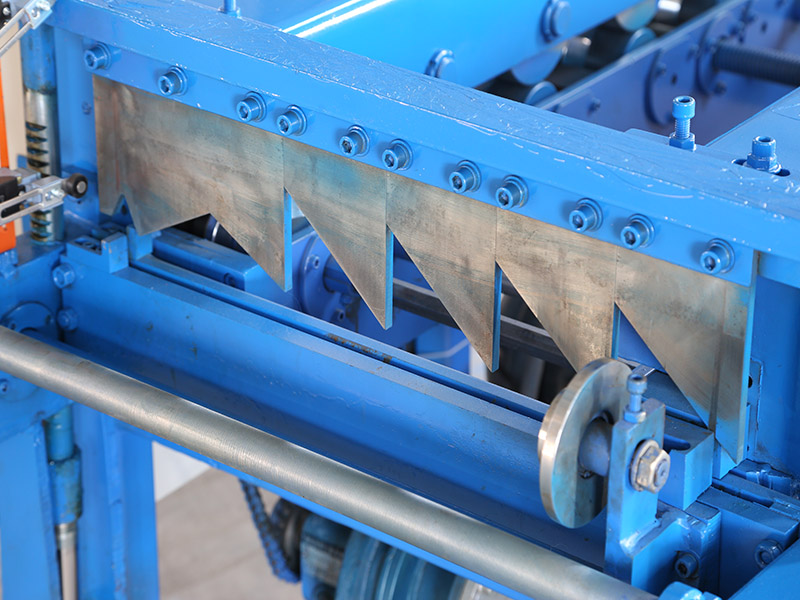

Post Hydraulic Cutting Device


Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking.
Hydraulic motor: 3KW.
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree.
The cutting power is provided by the main engine hydraulic station.


Standing seam wall forming machine



PLC Control System

Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.


Standing seam wall forming machine

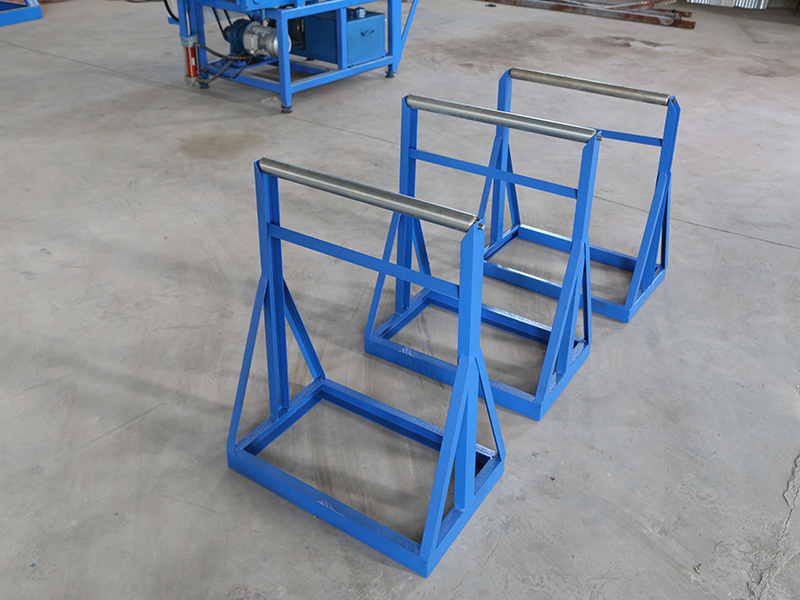

Exit Rack

Un-powered, Three units,with rollers on it for easy movement.


Standing seam wall forming machine

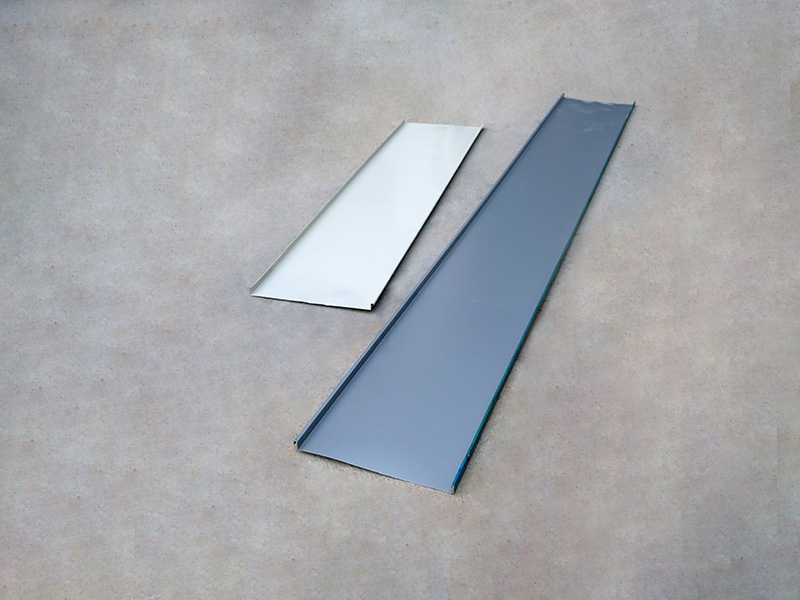

Product Show

Standing seam wall forming machine



Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.





After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Terms Of Trade

1.Minimum order quantity (MOQ): 1 Set.
2.Delivery time: about 35 workdays.
3.Port of loading: port of Xiamen.
4.Type of payment: by T/T or by L/C.
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc.
