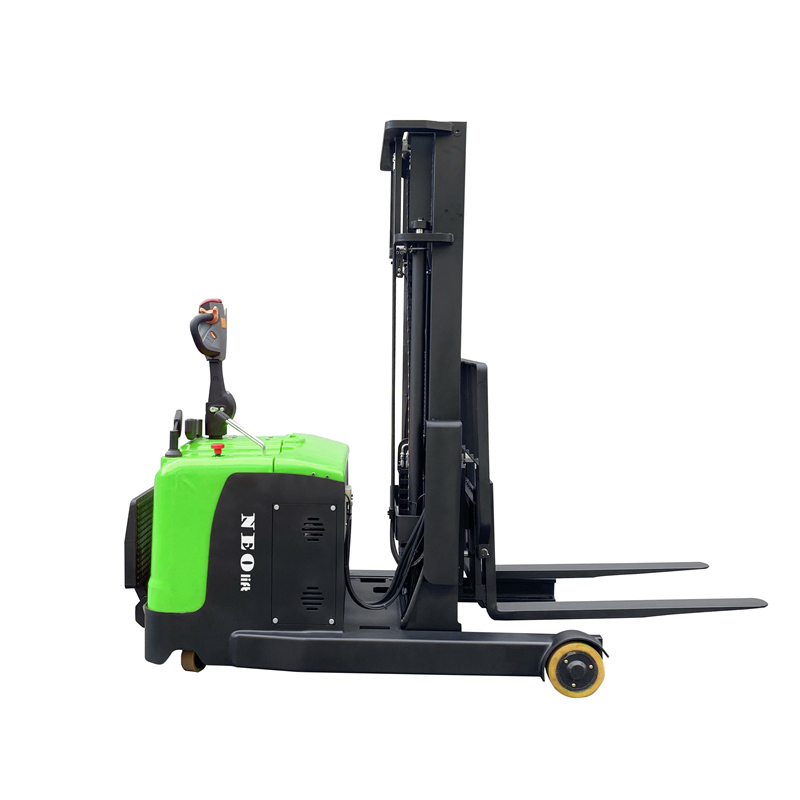

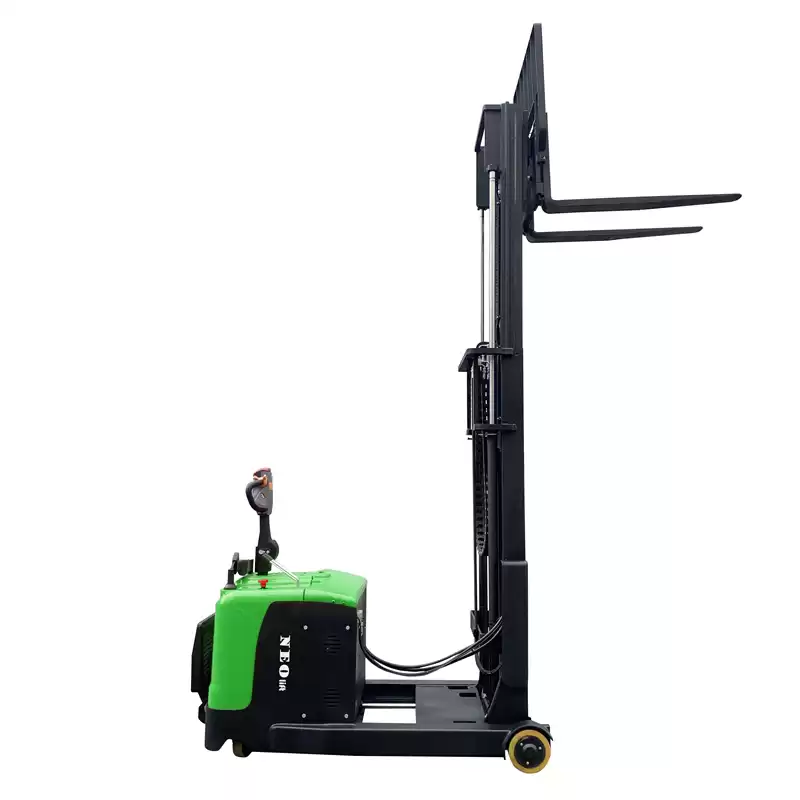

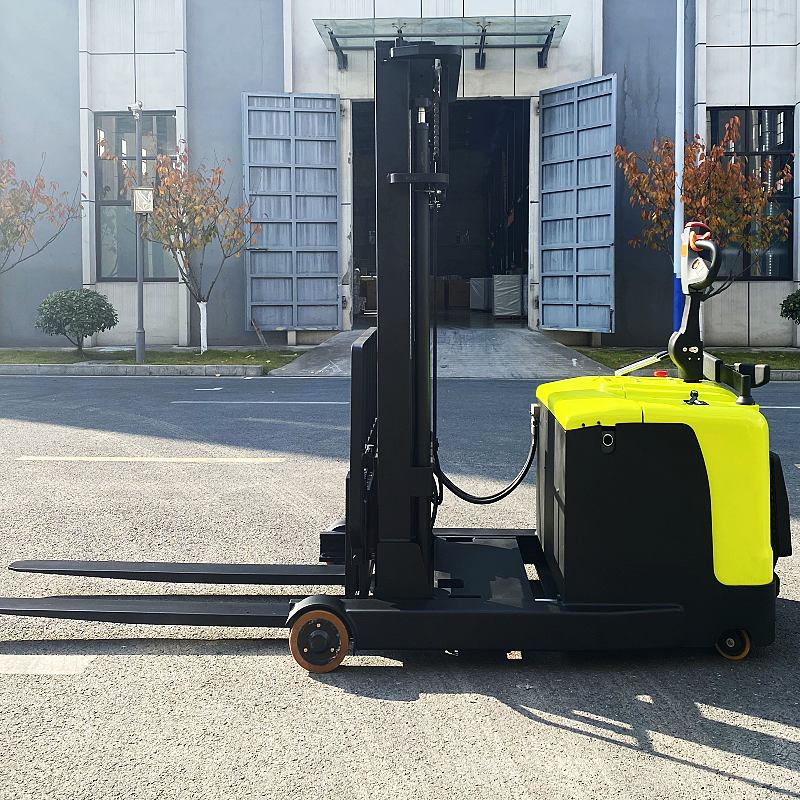

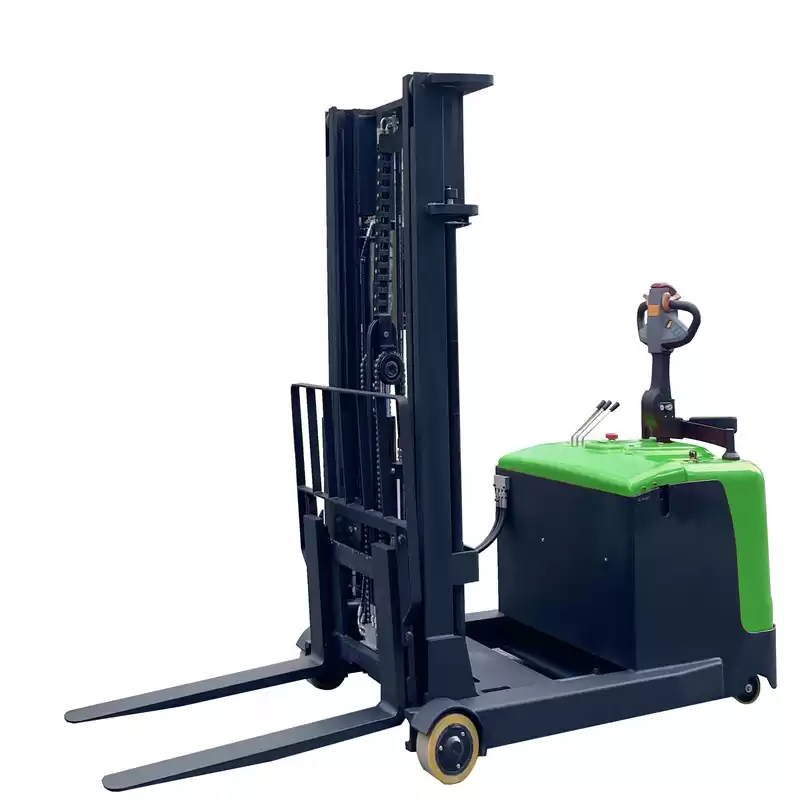

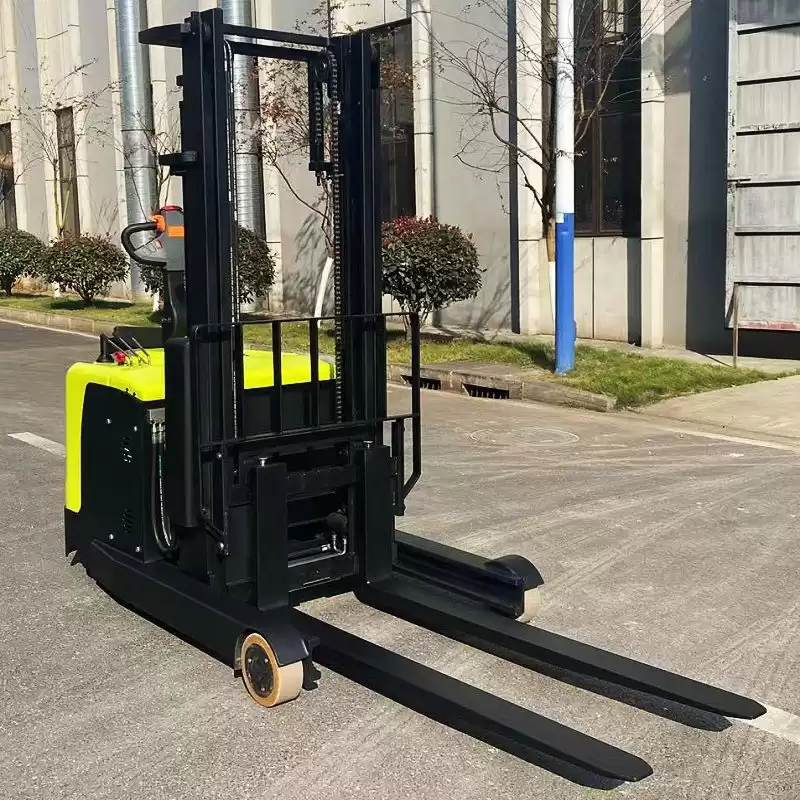

Standing Type Mini Electric Reach Truck
Standing Type Mini Electric Reach Truck loading capacity 1T-2T with lifting height 1.6m-5.5m.For medium and long distance handling and stacking of warehouses, supermarkets, workshops, home interiors and palletized goods, suitable for all kinds of pallets.Small size, light weight, flexible and convenient operation. High quality and low price, welcomed by the majority of users.

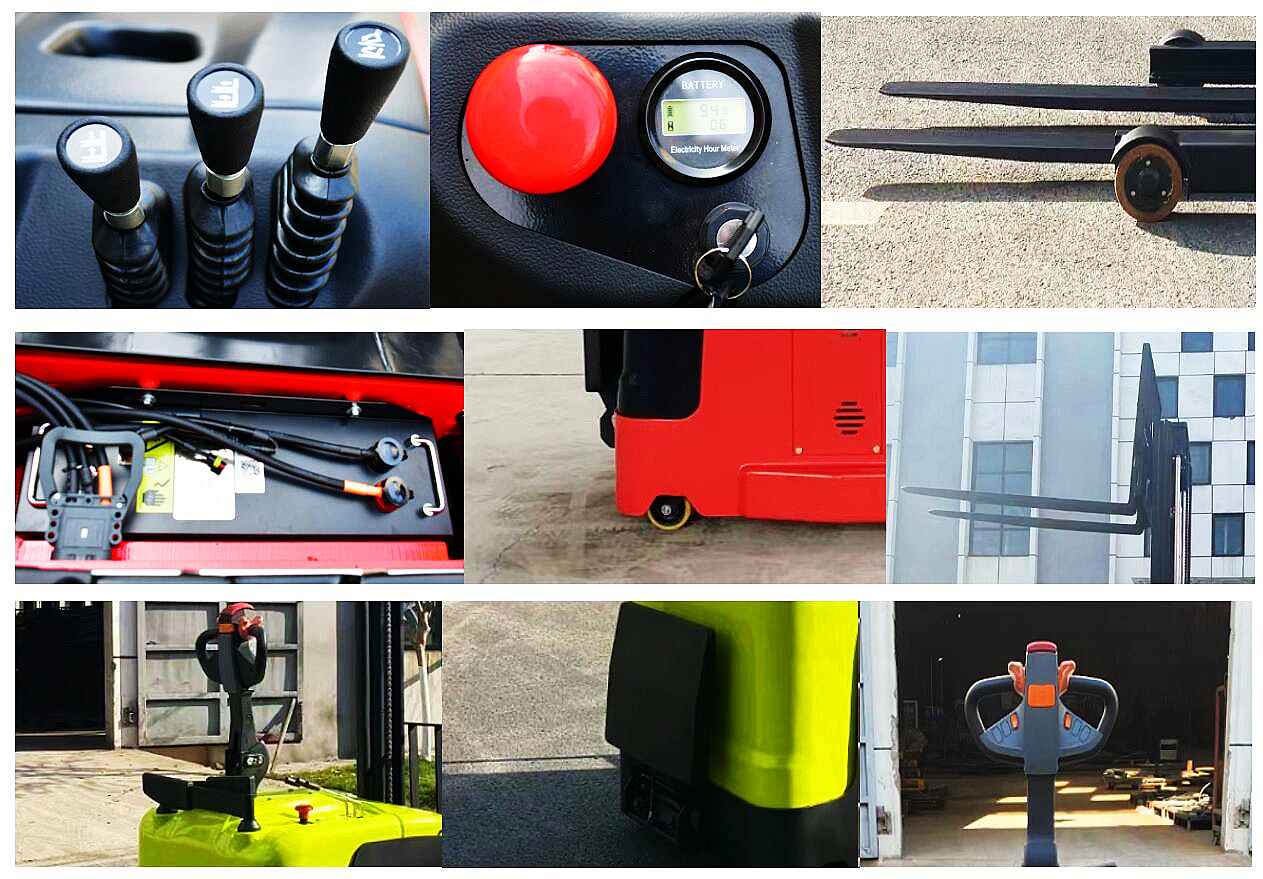

Features:
1. The body is shorter and the channel requirements are smaller (within 2.7M).
2. The AC motor is brushless and maintenance-free.
3..5 fulcrum low center of gravity design, good stability;
4. Multi-way valve control.
5. It has the function of anti-slip on the slope,emergency braking to ensure safety.
6. Install wings, when the wings are down, the speed of the vehicle will drop by 30%-40%, which increases the safety.
7. Detachable pedal design, it is more convenient to replace accessories.
8. The turning speed is limited to prevent the vehicle from turning over too fast.
9. It has the function of descending buffer. When the fork is less than a certain height from the ground, it will automatically decelerate to effectively protect the goods.
Specification:
| |
| |
Manufacturer |
|
NEOlift |
|
| Model |
|
NRM15
(Double mast) |
NRM20
(Double mast) |
| Power type |
|
Battery |
Battery |
| Rated capacity |
kg |
1500 |
2000 |
| Service weight(incl.battery) |
kg |
2100 |
2200 |
| Lift height |
mm |
3000 |
3000 |
| Fork size |
mm |
1070/100/35 |
1070/122/40 |
| Installation class |
|
2A |
2A |
| Reach stroke |
mm |
≤620 |
≤685 |
| Brake type |
|
Electromagnetic |
Electromagnetic |
| Driving motor(S2-60min) |
kw |
1.5 |
1.5 |
| Lifting motor(S3-10%) |
kw |
3 |
3 |
| Battery voltage/capacity |
V/Ah |
24/210
(270AH optional) |
24/210
(270AH optional) |
| Steering system |
|
EPS |
EPS |
| |
Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
