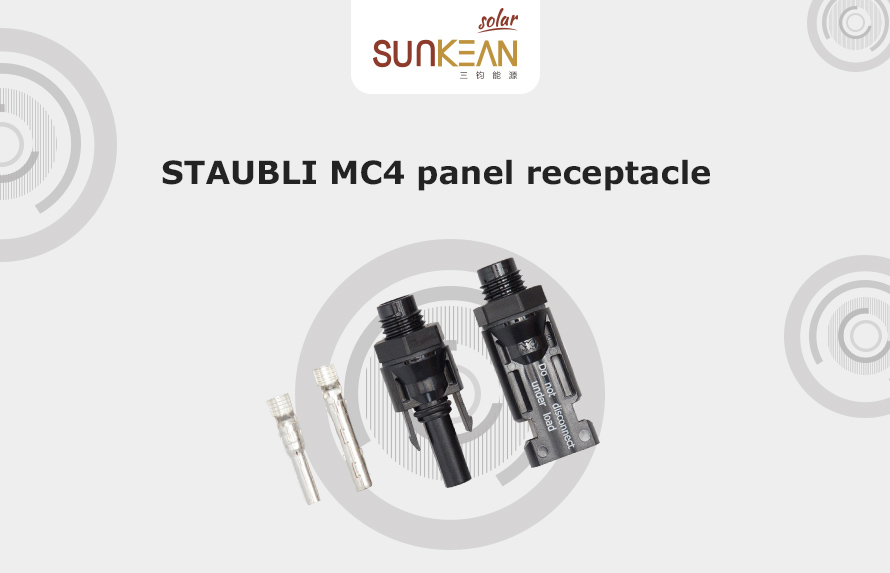

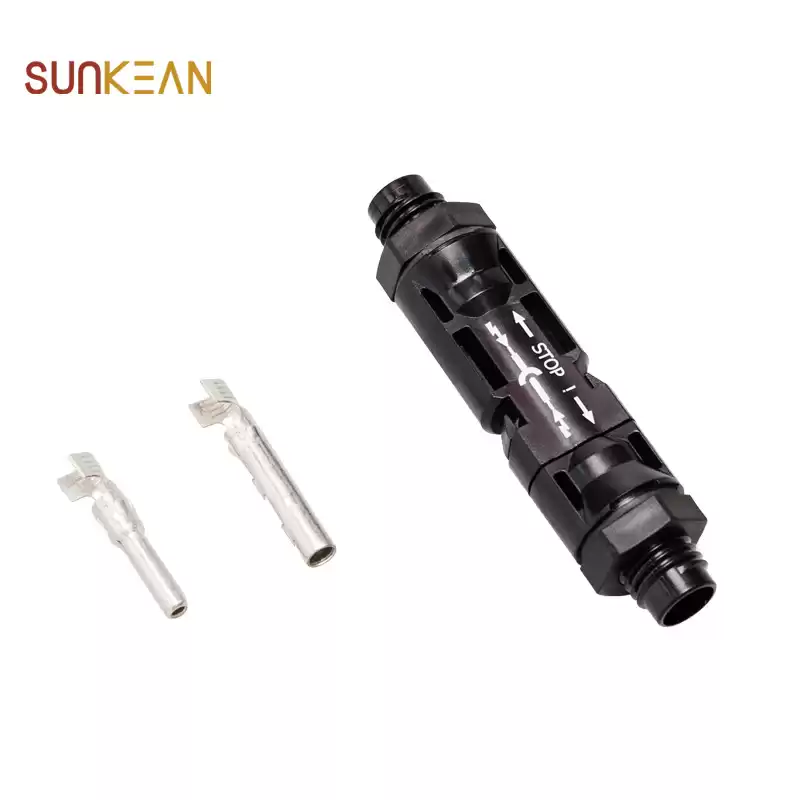

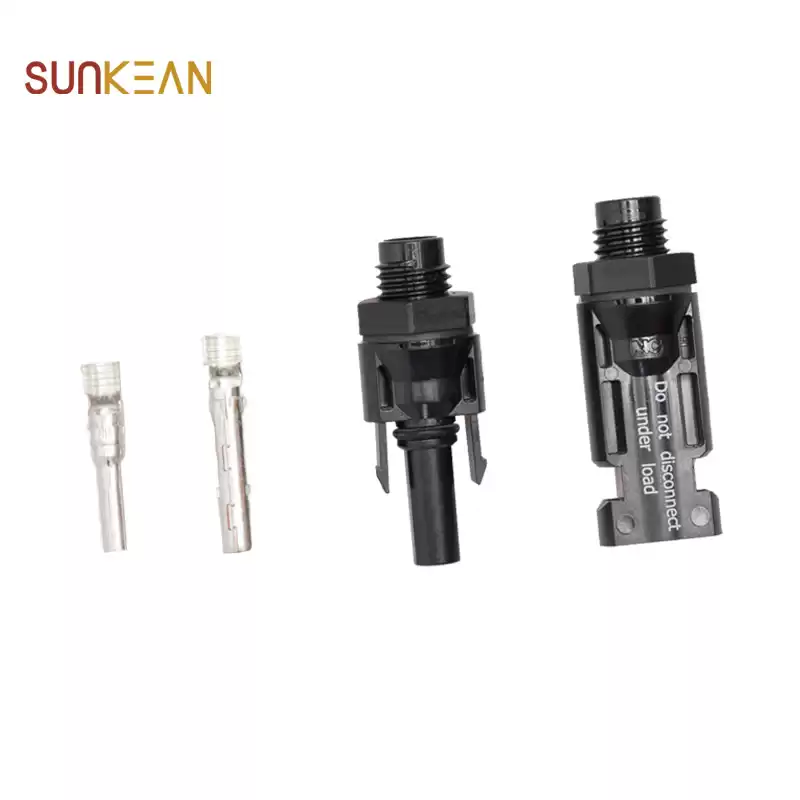

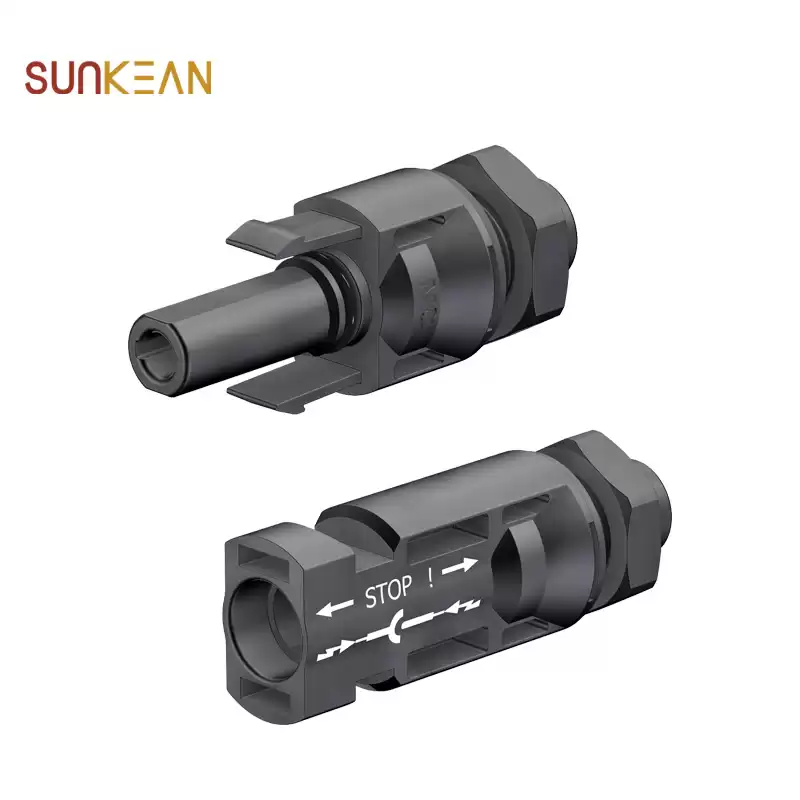

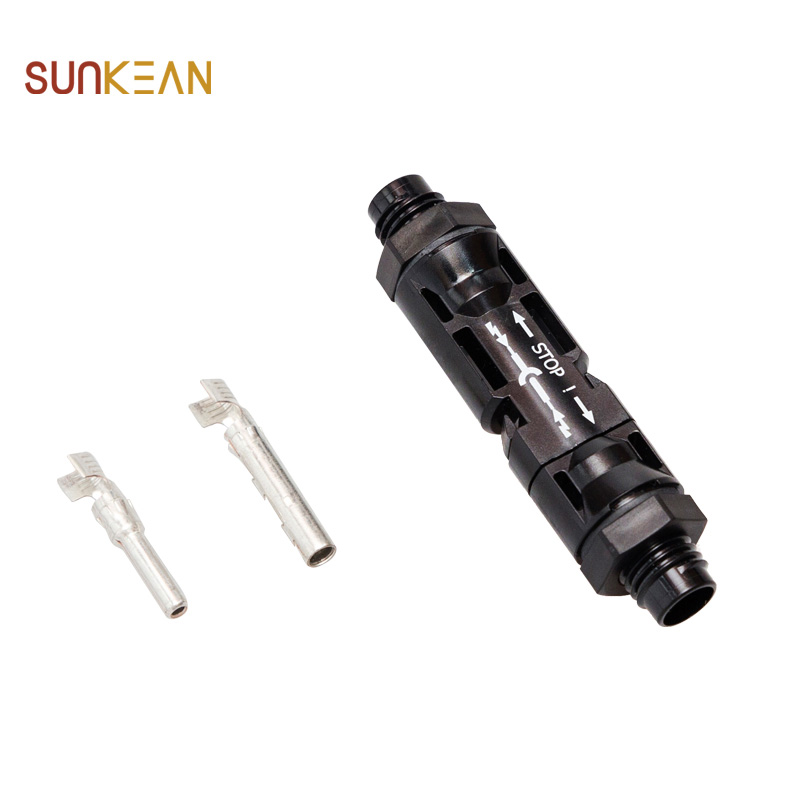

STAUBLI MC4 panel PV connector

Panel-receptacle connectors are the interface between an inverter or junction box or junction and a branch cable.


  • Safety ClassII
  • Ambient Temp-40°C~+85°C(TÜV/UL)
  • Rated Voltage1250V DC (TÜV) 1500V DC (UL)

STAUBLI MC4 panel PV connector

Panel solar connector protect the connection cables wired to the terminals against accidental contact, mechanical interference, dust or water. Free Screw Installation Wire Cable Electrical Circular Power Push Quick Fast IP68 Waterproof Connectors.

IP68 strong waterproof MC4 PV connector


Product Description:

Item

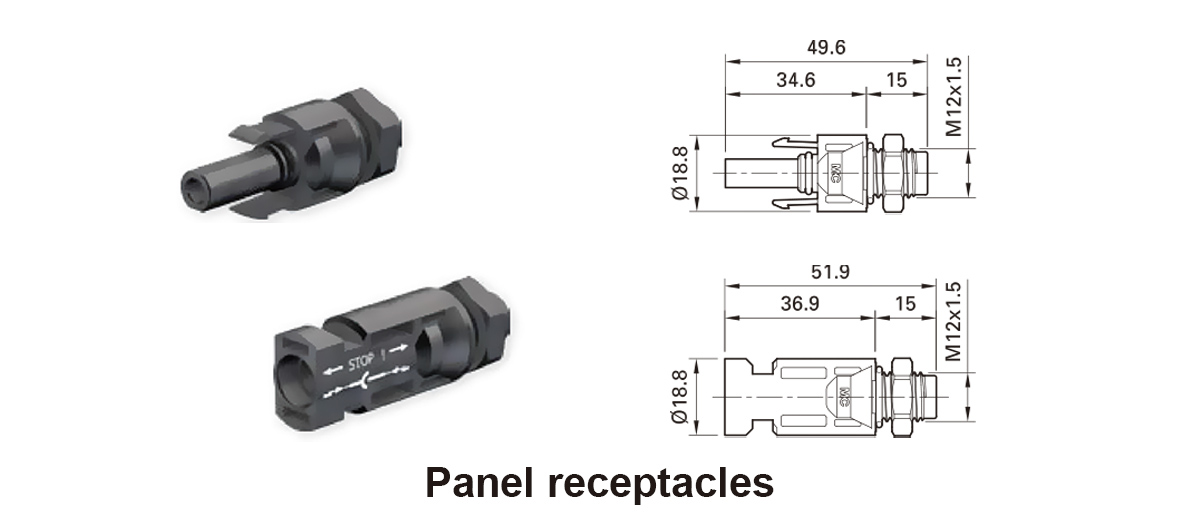

MC4 Panel receptacles

Connector system

Ø4 mm

Rated voltage

1250V DC (TÜV)

1500V DC (UL)

Rated current

22.5A (2.5mm²,14AWG)39A(4mm²,12AWG)

45A(6mm²,10AWG)  51A(10mm²)

Rated impulse voltage

16kV (1250V)

Ambient temp range

-40°C~+85°C(TÜV/UL)

Upper limiting temp

105°C(TÜV)

Degree of protection, mated  unmated

IP65,IP68 (1h/1m)

IP2X

Overvoltage category/Pollution degree

CATIII/3

Contact resistance of plug connectors

≤0.25mΏ

Safety class

II

Contact system

MULTILAM

Type of termination

Crimping

Contact material

copper ,tin plated

Insulation material

PC/PA

Flame class

UL94-V0

Certification



Product Features

------Outstanding reliability;

------Consistently low contact resistance;

------Low service cost & reduced downtime;

------Elimination of risks for hotspots & fire;

------Low power losses;

------Lifetime > 25 years;

------TÜV & UL double approval;

------Applicable for harsh environment outside;

------Use male & female self-block, easy to lock & unlock.

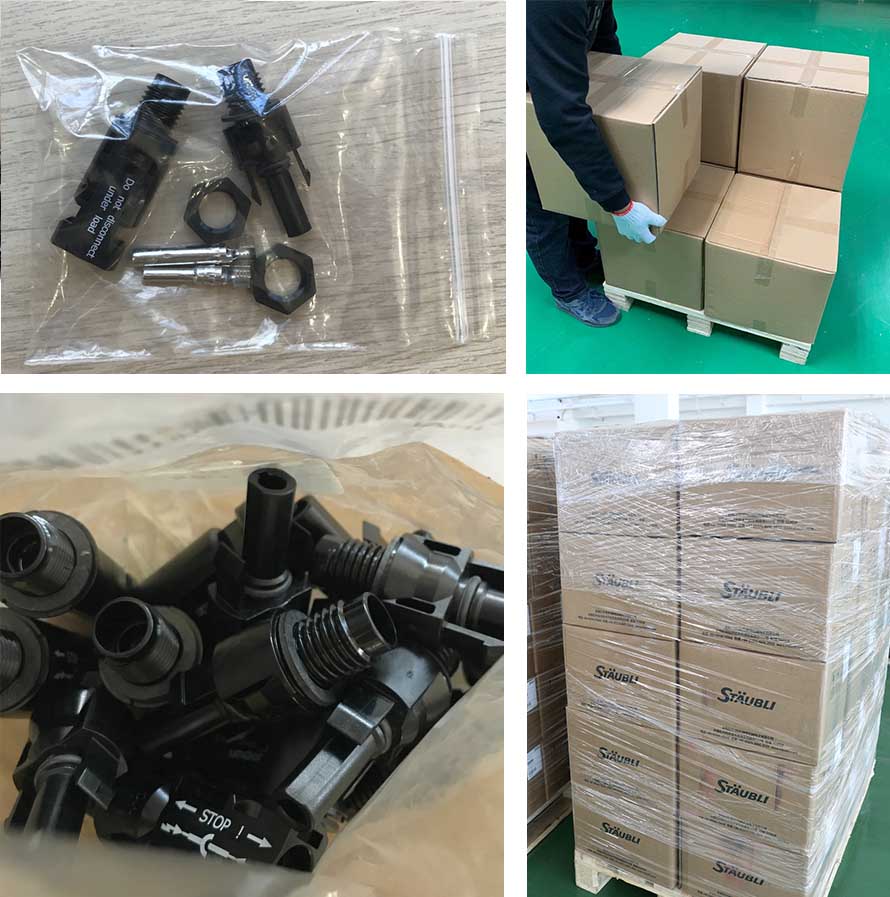

Packing & Delivery:

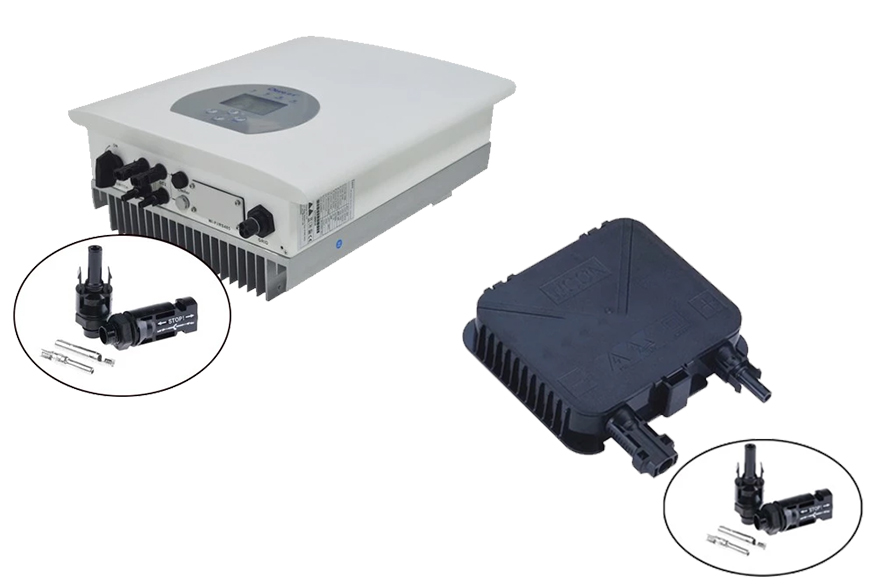

Application Scenario:
