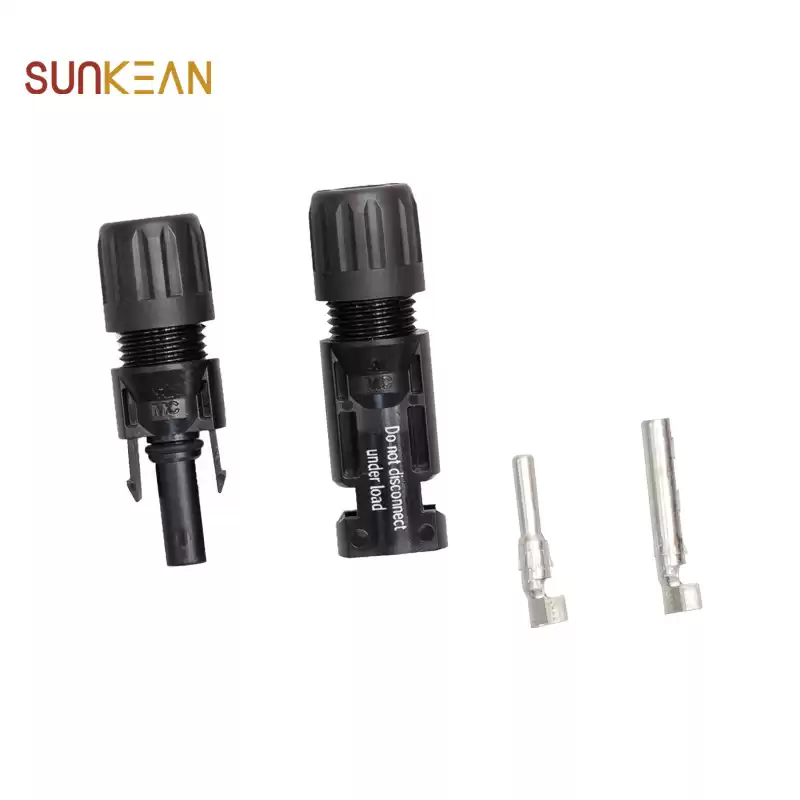

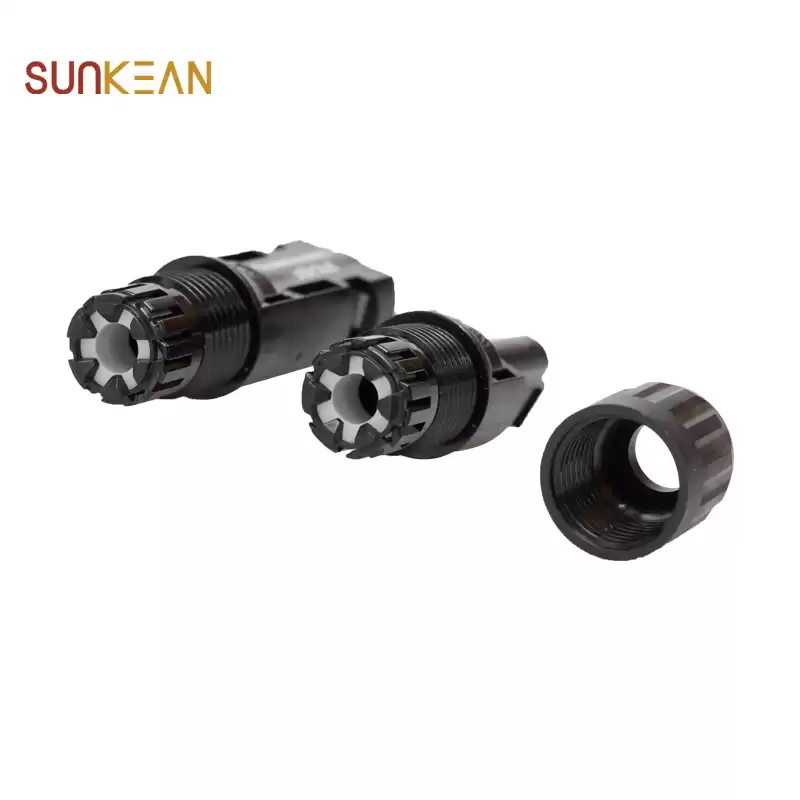

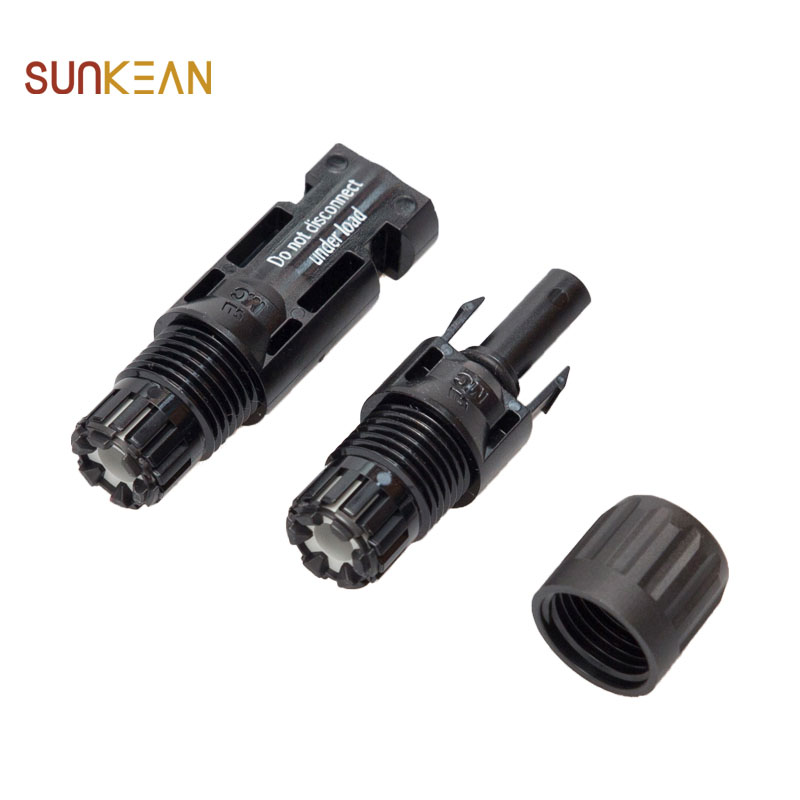

STAUBLI MC4 plug PV connector

Staubli mc4 connector Authorized by staubli, original industry standard, suitable for all kinds of diameter solar cable.


  • Ambient Temp-40°C~+85°C(TÜV) -40°C~+75°C (UL)
  • Rated Voltage1000V DC (IEC 62852) 1500V DC (2Pfg 2330) 1500V DC (UL)
  • Safety Class1000v DC :II 1500V DC: 0

STAUBLI MC4 plug PV connector

Successfully connected to the global 150GW photovoltaic power station;The original industry standard;Waterproof IP68 rating;Owns TUV/UL/JET/CSA/CQC certification.


MC4 plug PV connector


Product Description:

Item
MC4 plug connector

Connector system

Ø4 mm

Rated voltage

1000V DC (IEC 62852)
1500V DC (2Pfg 2330)
1500V DC (UL)

Rated current

22.5A (2.5mm²)39A(4mm²/6mm²)
45A(10mm²)
30A (14AWG/12AWG/10AWG)
50A (8AWG)

Rated impulse voltage

12kV (1000V DC TÜV)
16kV (1500V DC TÜV)


Ambient temp range


-40°C~+85°C(TÜV)
-40°C~+75°C (UL)

Upper limiting temp

105°C(TÜV)

Degree of protection, mated unmated

IP65,IP68 (1h/1m)
IP2X

Overvoltage category/Pollution degree

CATIII/3

Contact resistance of plug connectors

≤0.25mΏ

Safety class

1000v DC :II
1500V DC: 0

Contact system

MULTILAM

Type of termination

Crimping

Contact material

copper ,tin plated

Insulation material

PC/PA

Flame class

UL94-V0

Certification



Product Features:

------Outstanding reliability;

------Consistently low contact resistance;

------Low service cost & reduced downtime;

------Elimination of risks for hotspots & fire;

------Low power losses;

------Lifetime > 25 years;

------TÜV & UL double approval;

------Applicable for harsh environment outside;

------Use male & female self-block, easy to lock & unlock.


Packing & Delivery:

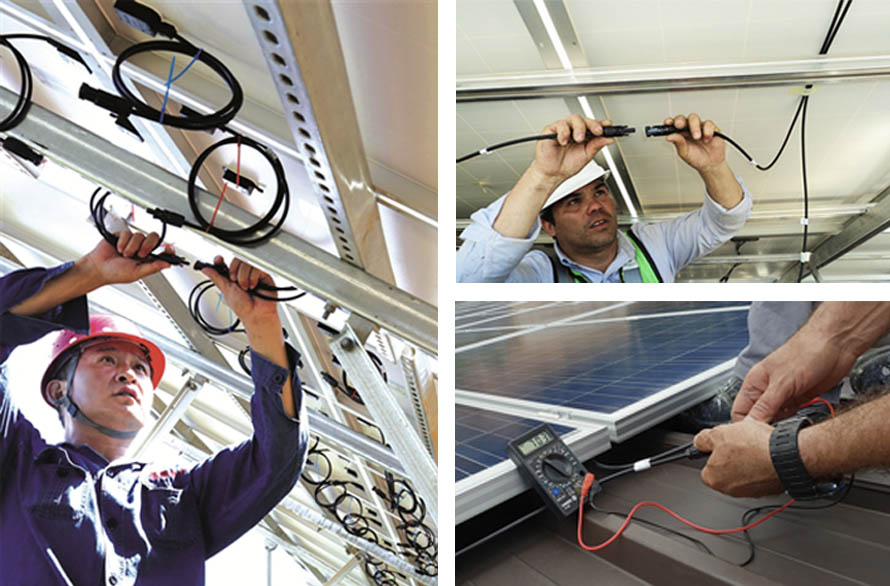

Application Scenario:


Global Exhibitions:


Company Profile:

SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules, solar cables, solar extension cables , PV connectors, solar panel system, solar energy panel for home etc solar products .

SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.


FAQ:

Q: How could i get the sample ?

A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.

Q: How long is the delivery time?

A1)For Sample: 1-3 Days;

A2)For small Orders: 3-10 Days;

A3)For mass Orders:15-20 Days;

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.


If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
