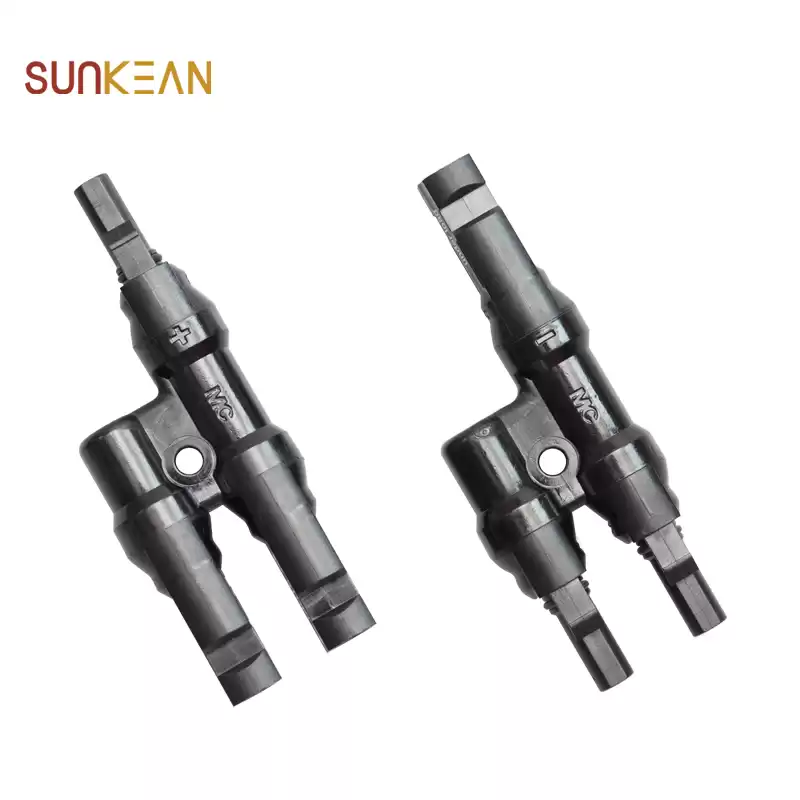

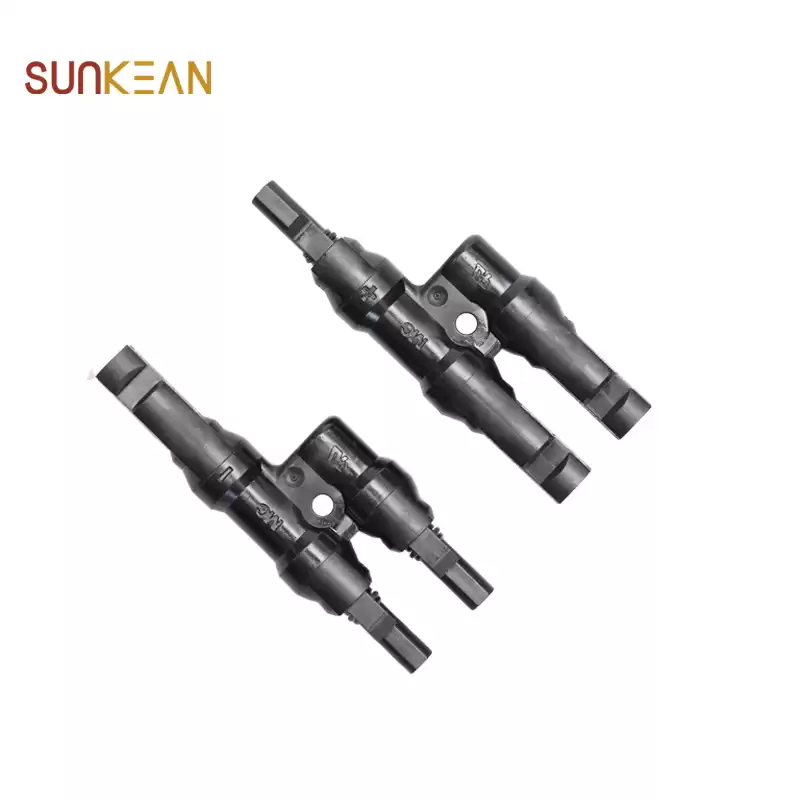

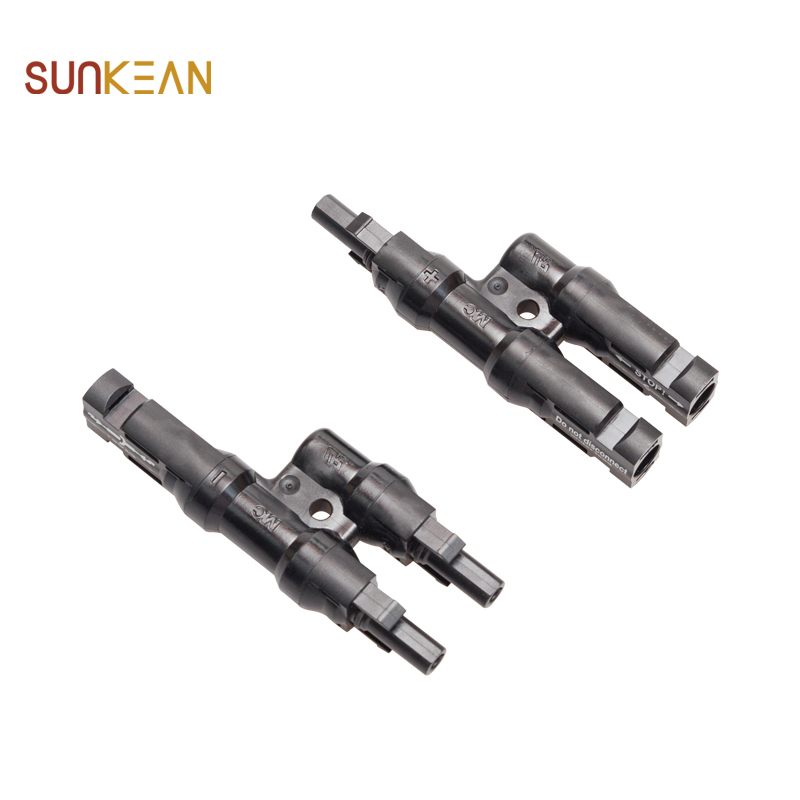

STAUBLI MC4 branch PV connector

Authorized by staubli, original industry standard.For 2.5mm2, 4.0mm2 , 6.0mm2 Y branch solar connector for solar panels.


  • Safety ClassII
  • Ambient Temp-40°C~+85°C(UL)
  • Rated Voltage1500V DC (UL)

STAUBLI MC4 branch PV connector

Staubli mc4 connector is dustproof, resistant to water and fire. Its simple structure greatly facilitates installation. You can join the cables of your outdoor lighting, as a path lamp, LED display panel, garden spot, etc.

IP68 strong waterproof MC4 PV connector


Product Description:

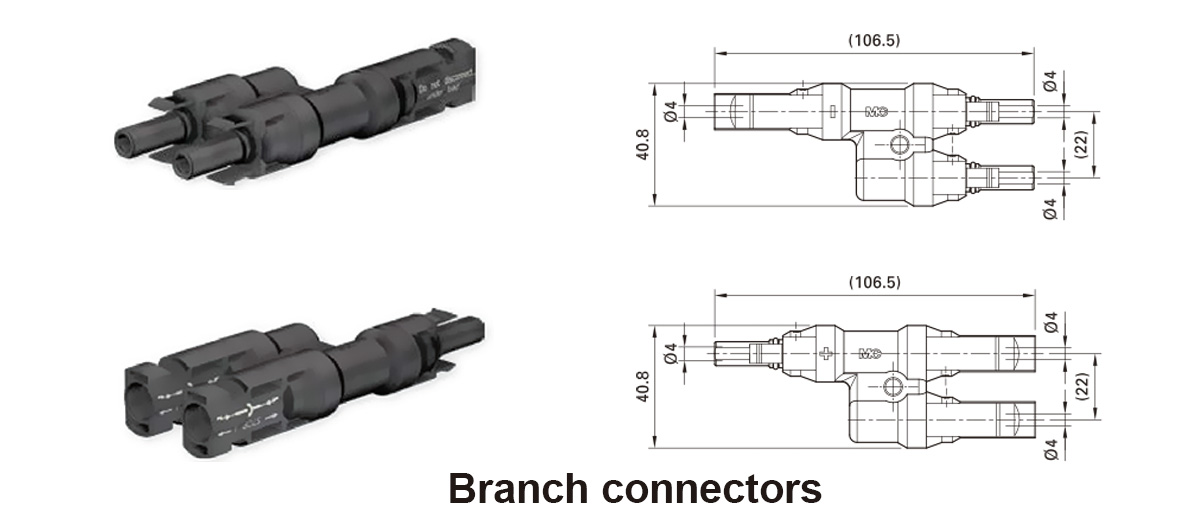

Item

MC4 branch connector

Connector system

Ø4 mm

Rated voltage

1500V DC (UL)

Rated current

50A

Rated impulse voltage

12kV

Ambient temp range

-40°C~+85°C(UL)

Upper limiting temp

105°C(TÜV)

Degree of protection, mated  unmated

IP67

IP2X

Overvoltage category/Pollution degree

CATIII/2

Contact resistance of plug connectors

≤0.5mΏ

Safety class

II

Contact system

MULTILAM

Type of termination

Recessed

Contact material

copper ,tin plated

Insulation material

PC

Flame class

UL94-V0

Certification




Product Features:

------Outstanding reliability;

------Consistently low contact resistance;

------Low service cost & reduced downtime;

------Elimination of risks for hotspots & fire;

------Low power losses;

------Lifetime > 25 years;

------TÜV & UL double approval;

------Applicable for harsh environment outside;

------Use male & female self-block, easy to lock & unlock.


Packing & Delivery:

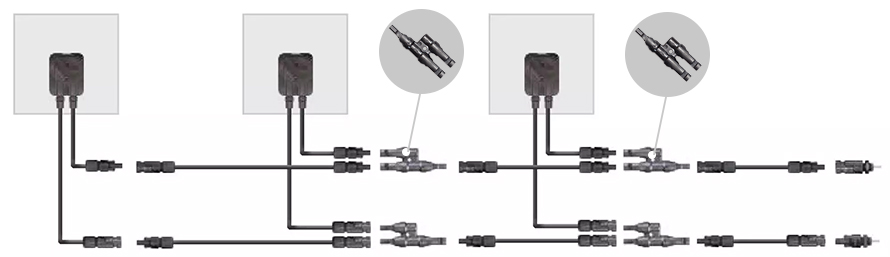

Application Scenario:


Global Exhibitions:


Company Profile:

SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules, solar cables, solar extension cables , PV connectors, fence, inverters etc solar products .

SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.


FAQ:

Q: How could i get the sample ?

A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.

Q: How long is the delivery time?

A1)For Sample: 1-3 Days;

A2)For small Orders: 3-10 Days;

A3)For mass Orders:15-20 Days;

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.


If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
