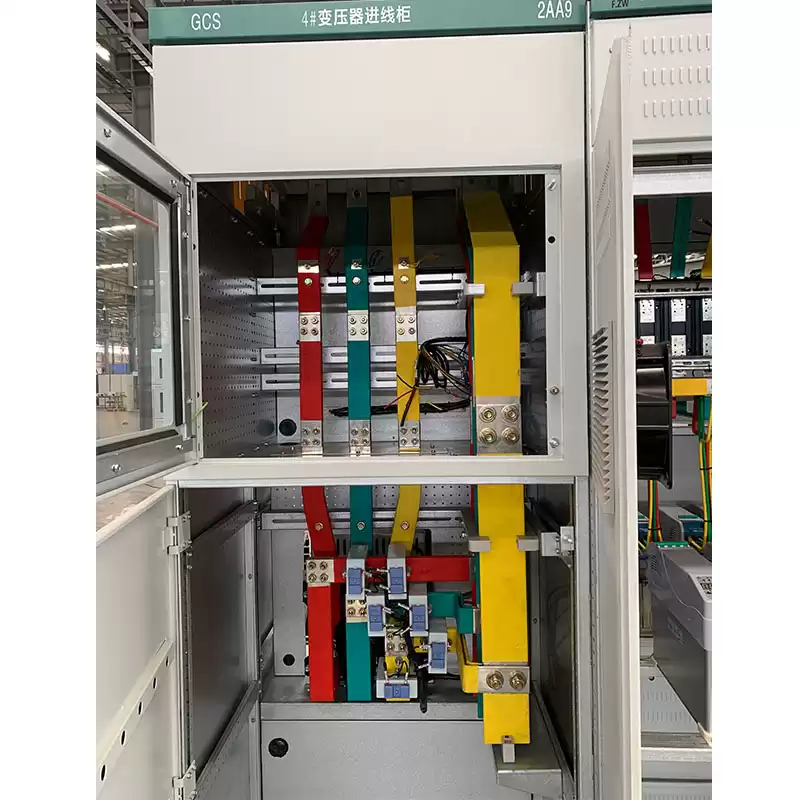

Steel Mills Transformer Power Control Cabinet GCK

GCK type switchgear is suitable for steel mills melting & rolling shop Power Control Cabinet, also for the transformer and other power users. AC 50/60 Hz, rated working voltage to 660V, rated working current to 3150A. As power conversion, distribution and control for power, lighting and distribution equipment in a 50kA power distribution system.




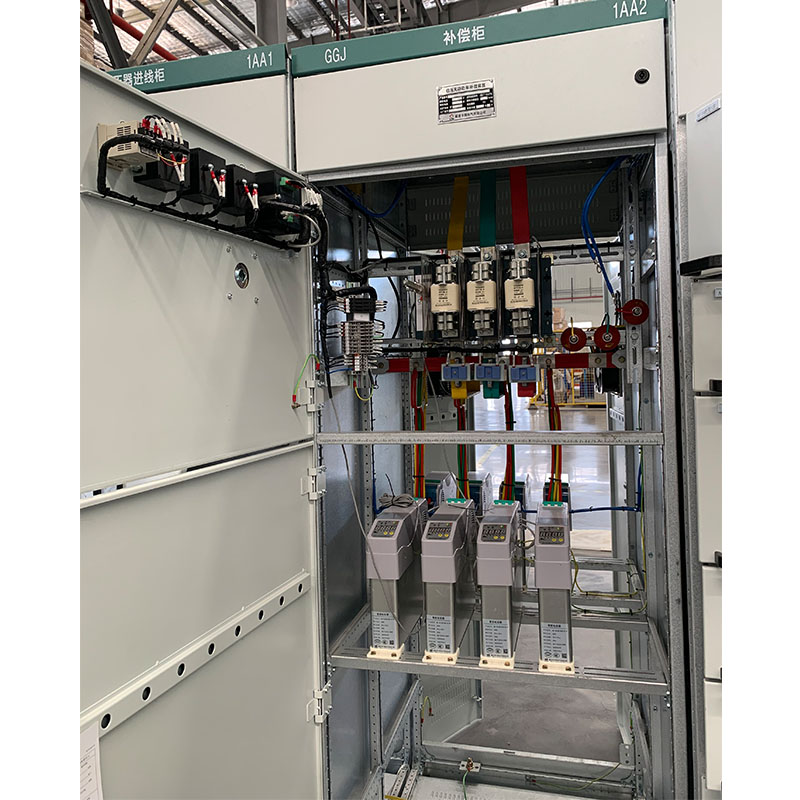

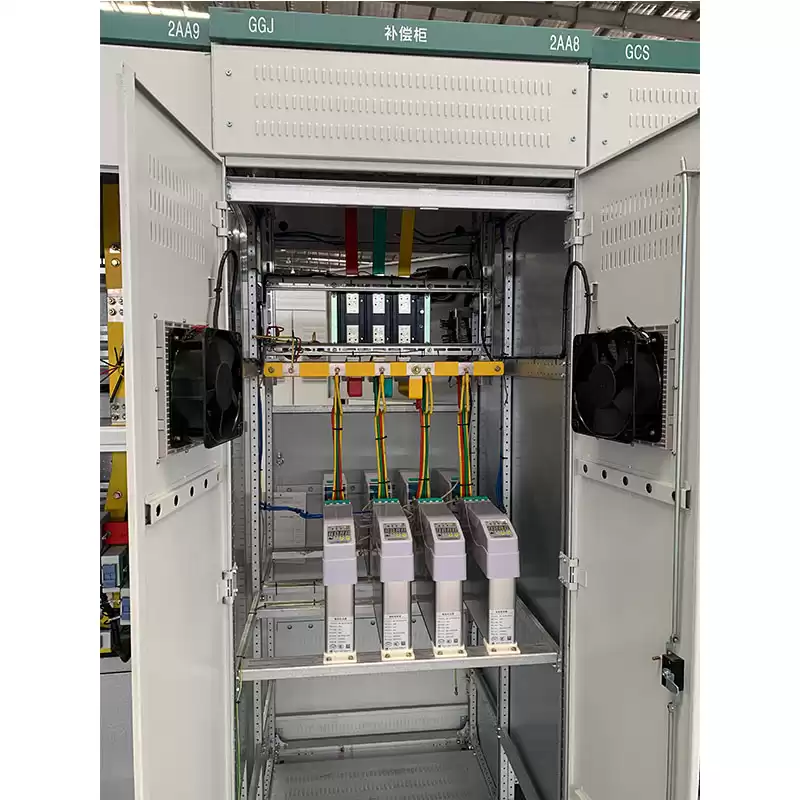

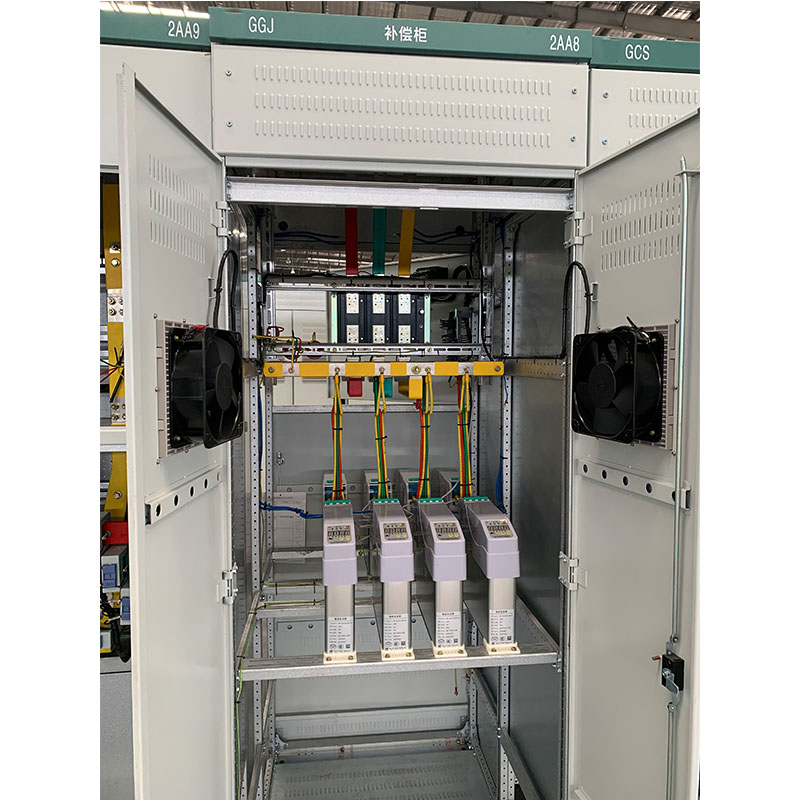

Our Ashare low-voltage equipment covers GGD, GCK, GCS, GGJ, GDF fixed partition, MNST, 8PT Siemens authorization, XL-21 power cabinet, XL distribution box, XM lighting distribution box, XC metering box, JP low-voltage integrated distribution box , XFW low voltage cable branch box, DXW terminal box.



GCK control cabinet is designed according to the requirement of artistic modelling of modern industrial product, the heat dissipation problem in the running of the cabinet is fully considered,There are different number of heat sink holes at both ends of the cabinet, so that the sealed cabinet form a natural air duct from bottom to top, to achieve the purpose of heat.And use golden section ratio designs the appearance of cabinet, make the whole cabinet beautiful and elegant.


The cabinet door is connected with the cabinet body by the movable hinge of rotating shaft, which is convenient for installation and disassembly. The folding edge of the door is embedded with a rubber, which can prevent the door from direct collision with the cabinet body and improve the protection grade of the door.


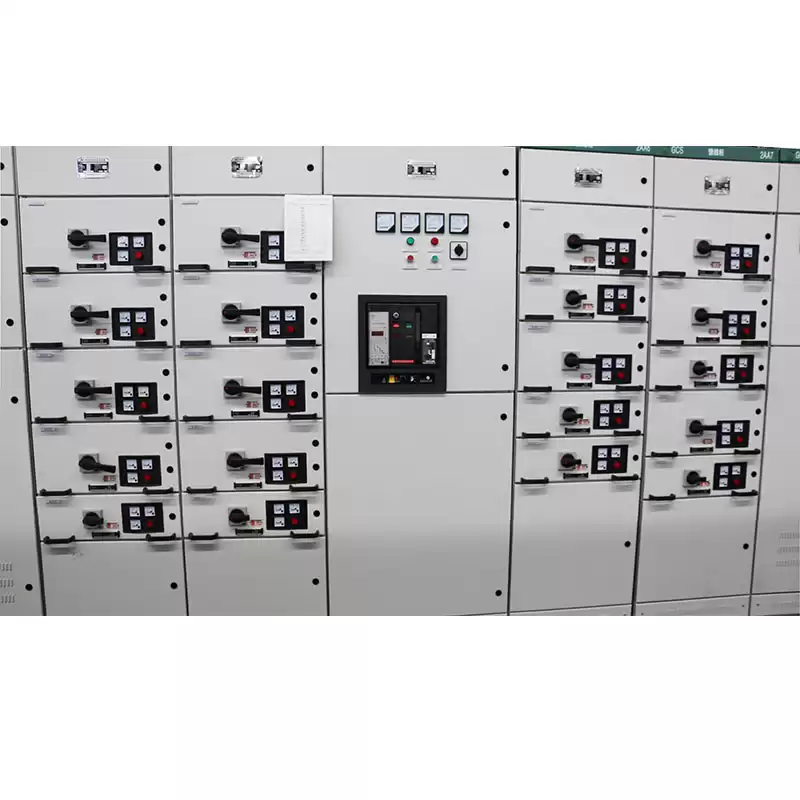

The GCK cabinet selects HD13BX and HS13BX rotary operation knife switch, which makes the cabinet operation door can be opened, easy to manufacture and maintenance.


The top cover of the cabinet can be removed when needed, Easy to assemble and adjust the main bus line on site. The four corners on the top of the cabinet are equipped with lifting rings for lifting and installation



Item

Data

Rated operational voltage(V)

AC 380 (400)660 (690)

Rated voltage of auxiliary circuitV

AC 220380 (400)
DC 110
220

Rated frequencyHz

50/60

Rated insulation voltageV

660 (690)

Horizontal bus rated currentA)

3150A

Main bus rated short-time withstand currentkA/1s)

15 30 50

Bus rated peak withstand currentkA)

30 63 105

Dielectric test voltageV/1 min)

2500

Bus

Three-phase four-wire system

A B C PEN

Three-phase five-wire system

ABCPEN

IP grade

Protect against solid foreign matter with a diameter of no less than 2.5mm

IP30



1. Normal working environment:

Switchgear should be installed in a clean, non-corrosive, non-strong vibration or impact, dry and well ventilated room.The altitude ≤ 2000m.If altitude more than 2000m, the equipment should be operated with corresponding capacity reduction.

Atmospheric conditions: the air is clean, the relative humidity does not exceed 50% at the highest temperature, and higher phase humidity is allowed at lower temperatures (e.g., 90% at +20°C), but it should be considered that temperature changes may occasionally produce condensation, so the device should increase ventilation or heating measures.

Installation inclination shall not exceed 5 degrees;

2. Environment temperature:

Maximum air temperature +40°C;

24 h maximum mean temperature +35°C;

Minimum temperature -5°C.

When the equipment is used above the ambient temperature, capacity reduction operation shall be considered.
