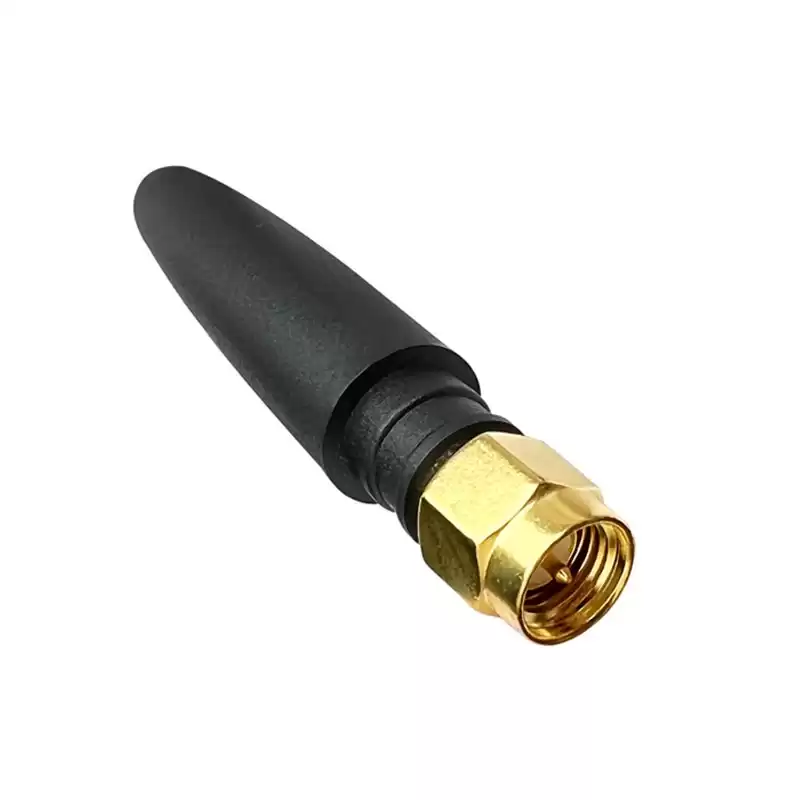

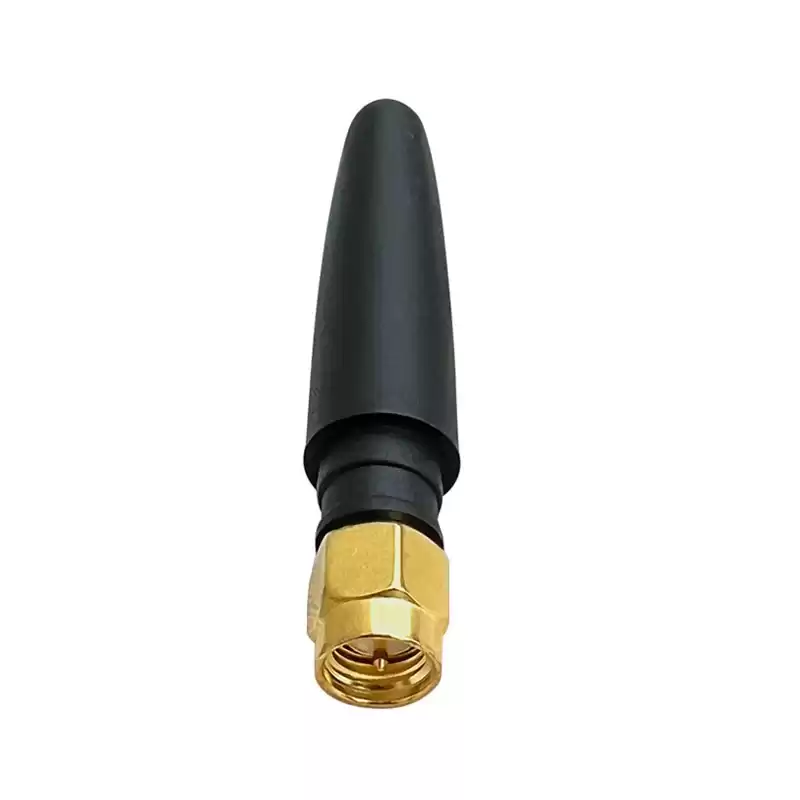

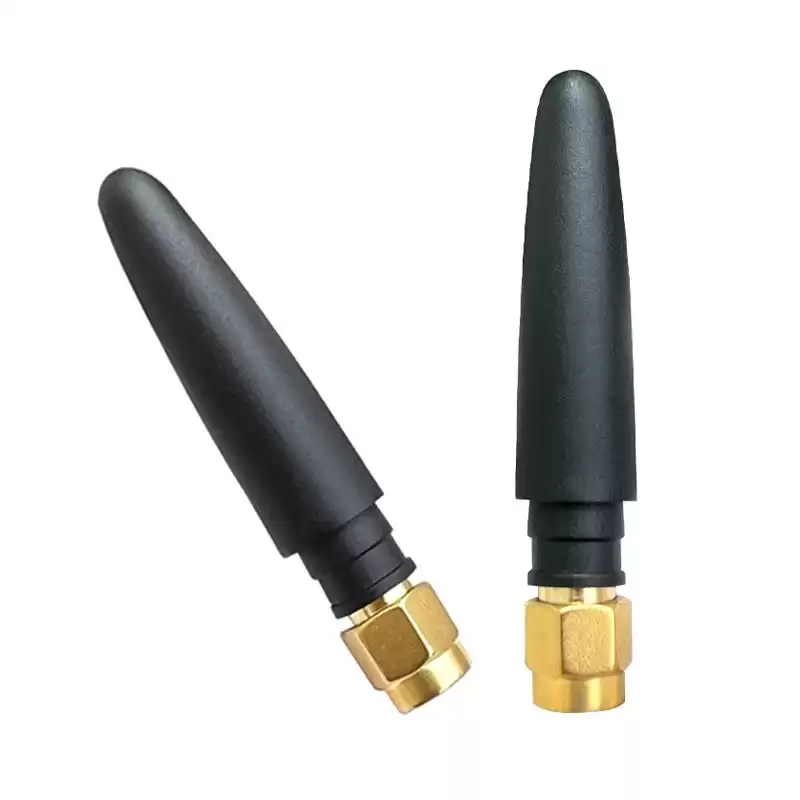

Straight Head WiFi Small Pepper Antenna GSM Blue-tooth Antenna 2.5dBi GPRS 3G GSM Antenna

Features:

  • Radiation Pattern of Antenna;
  • Polarization of Antenna;
  • Intensity of Radiation;
  • Effective Aperture;
  • Gain & Directivity;
  • Bandwidth;
  • Power Gain & Radiation Efficiency;
  • Effective Length;
  • Input Impedance.



Straight Head WiFi Small Pepper Antenna GSM Blue-tooth Antenna 2.5dBi GPRS 3G GSM Antenna

The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.



Specifications

ELECTRICAL DATA
Frequency Range(MHz)  900/1800
VSWR  ≤1.5
Gain(dBi)   2.5dBi
Input Impedance(Ω)  50
Cable Type /
Connector Type  SMA Male
Mounting  /
Housing  Black/White
Storage Temperature  -45'c to +75'c
Operating Temperature  -45'c  to+75'c



Applications

  • Antenna Gain
  • Aperture
  • Directivity and bandwidth
  • Polarization
  • Effective length
  • Polar diagram




Product Tags SMA Male GPRS GSM Antenna          SMA Male Connector GPRS Antenna          900mhz gsm antenna          1800MHz GPRS Antenna          900MHz 1800MHz GSM Antenna          GPRS GSM Antenna
